Basement concrete slabs act as massive heat sinks, drawing warmth directly out of a room and leaving stone or tile flooring uncomfortably cold. When designing a high-end wine room, this persistent chill thoroughly undermines the upscale ambiance and physical comfort of the space. WarmlyYours solved this challenge by delivering an ultra-thin radiant floor heating solution that replaces bone-chilling cold with inviting, radiant warmth.
Project Details
| Specification | Detail |
| Location | Medina, OH |
| Space Type | Basement Wine Room |
| Surface / Flooring | Tile, Marble, or Stone |
| System Type | Electric Floor Warming |
| Total Square Footage | 100 sq. ft. (84 sq. ft. heated area) |
| Technical Specs | 120V / 1,272W / 11A |
| Wattage per Sq. Ft. | 15 W/sq. ft. |
| Products Used | TempZone™ Flex Roll, nSpire Touch Thermostat, Circuit Check™ |
| Professional Installer | Architectural Justice |
The Anatomy of a Heated Wine Cellar Floor
The Problem

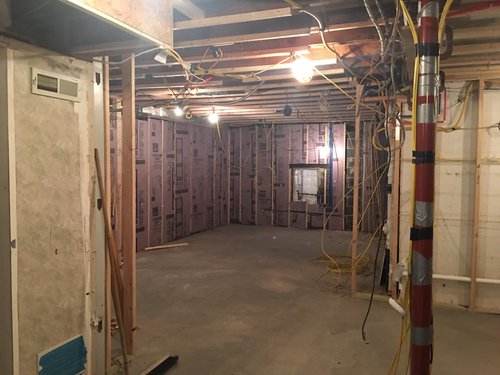

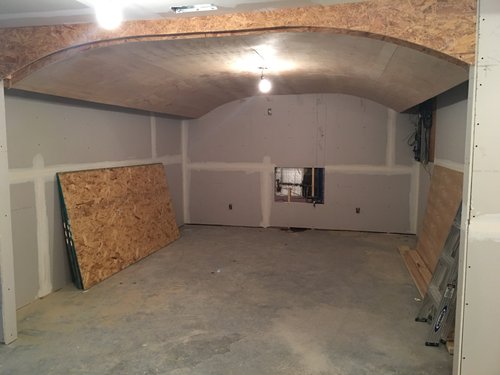

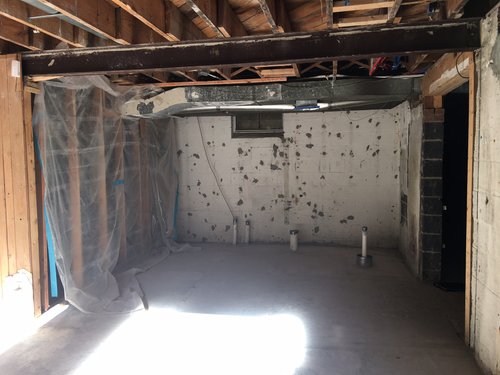

A premium wine room is designed to be an experiential sanctuary for tasting and entertaining, but the reality of subterranean construction often disrupts this luxury. Because the room was built directly over a cold concrete basement slab, the premium tile flooring remained perpetually frigid. This created an uncomfortable climate underfoot that distracted from the room's high-end design and made the space feel uninviting.
The Solution

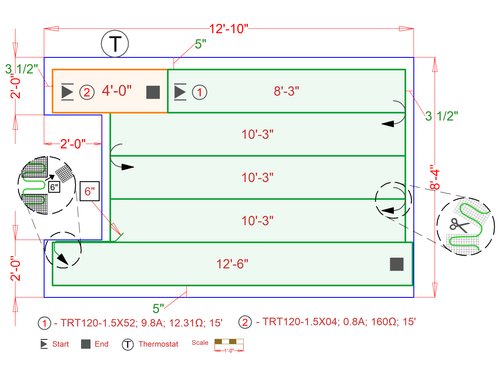

To neutralize the thermal drain from the concrete subfloor, design-build firm Architectural Justice installed an 84-square-footWarmlyYours electric floor heating system. The low-profile heating elements were embedded directly into the thinset immediately beneath the new tile layer, ensuring minimal floor buildup while maximizing thermal conductivity. The system was paired with an intelligent programmable thermostat to allow the homeowners to easily schedule warmth around their lifestyle.
The Outcome

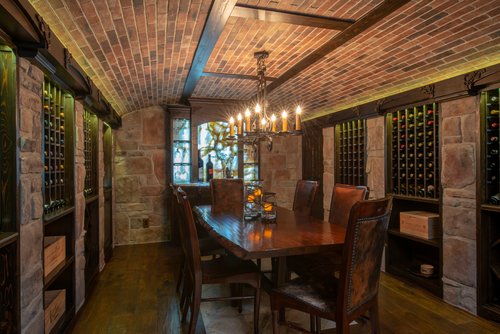

The installation completely transformed the room's environment, eliminating the harsh cold shock typical of basement tile. Heat now radiates evenly from the floor up, enveloping the lower half of the room in consistent comfort without altering the ambient air conditions required for wine storage. This invisible upgrade successfully married elite aesthetics with true physical comfort.
Featured Products
- TempZone™ Flex Roll: This cut-and-turn radiant mesh mat solved the challenge of warming an unyielding stone floor. By housing a high-performance heating cable at fixed spacing, it delivers perfectly uniform warmth across the entire floor plan without any cold spots.
- nSpire Touch Thermostat: Selected to maximize both comfort and energy efficiency, this advanced control features a 3.5-inch color touchscreen and a dedicated floor sensor. It allows the homeowners to set precise, automated schedules so the floor is warm only when the room is in use.
- Circuit Check™: This crucial electronic monitoring tool ensures system integrity from start to finish. By continuously tracking the electrical continuity of the heating elements during the tile installation, it provided the installation team with immediate peace of mind that the system remained undamaged.
