Pro GEN II 32″ x 60″ Shower Pan with Center Drain Hole
- An easy-to-clean integrated hair trap in the drain
- A stronger drain flange
- A wider variety of high quality drain grate covers
- A denser shower pan which allows for the installation of a greater range of tile types, including glass tile
Description

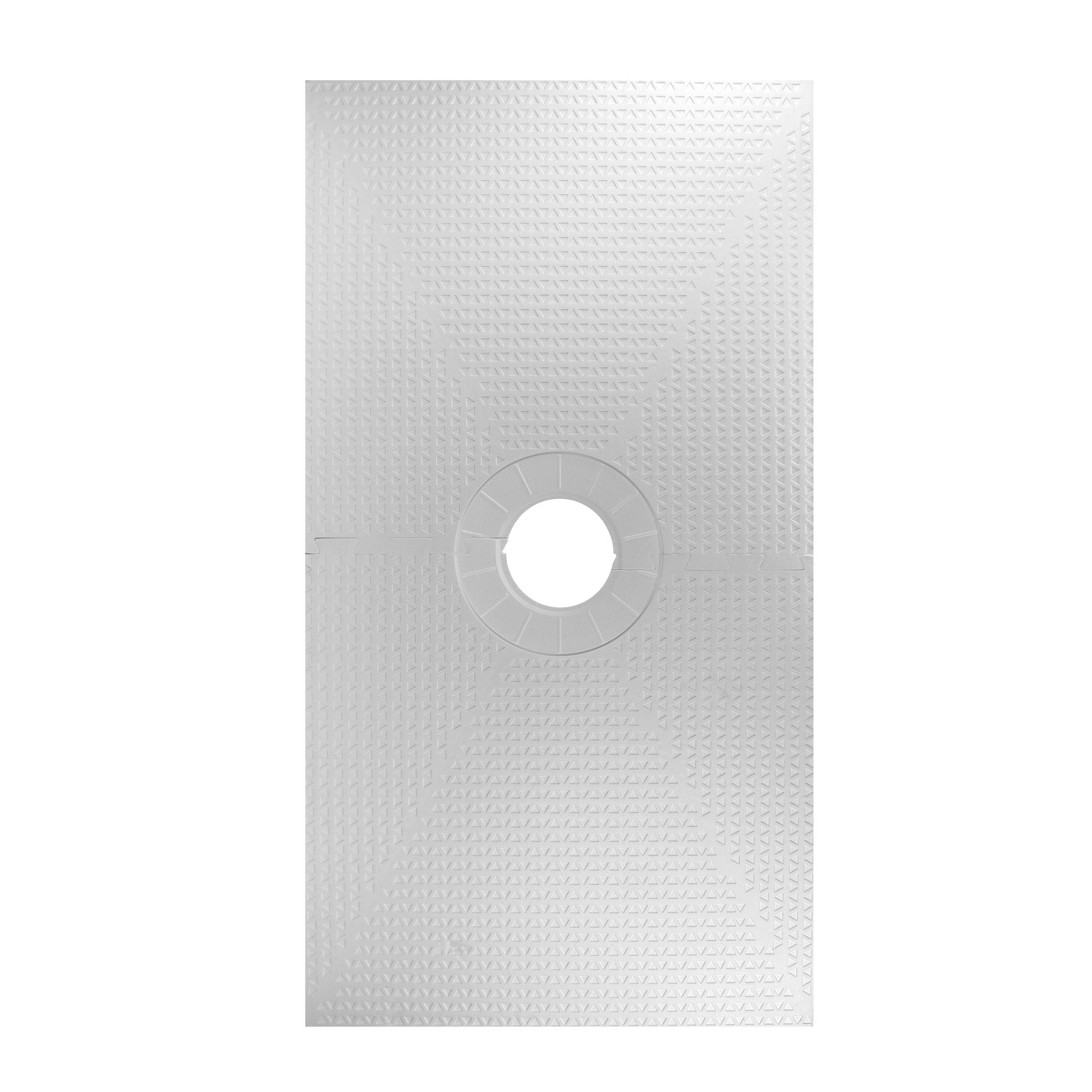

This rectangular (32” x 60”) shower pan with a centered drain hole has a built-in slope that directs water towards the drain. This shower pan greatly decreases both installation time and project weight because it eliminates the need to create a mortar/mud bed.
Please note that this shower pan consists of 2 fitted pieces and in order to make it waterproof, it will need to be combined with various waterproofing accessories like the Pro WP Waterproofing Membrane.
Specifications
Identifiers
| SKU | SH-268431 |
| UPC (GTIN-12) | 881308059781 |
Construction
| Shower Pan Density | 3.5 lb/ft³ |
Product Dimensions
| Weight | 6 lbs |
Documents
Frequently Asked Questions
Showing all 3 questions
- Jigsaw (for subfloor drain hole) & drill (for pilot hole)
- Premium modified (Latex/Polymer) thinset mortar (not premixed)
- 5-gallon bucket
- Mixer and caulking gun
- 3/16"x 3/16" square notch trowel
- Margin trowel
- Utility knife
- PVC or ABS cement, and section of coupler pipe for connection
- Level
A complete kit will include the following:
- Shower pan
- 108 sq. ft. of waterproofing membrane
- 33 linear feet of waterproof joint band
- 4 pre-shaped inside corners
- 1 drain flange with ABS or PVC neck (check your local standards for using ABS or PVC)
- Drain grate riser with construction plug and hair trap
- Drain grate cover
- Curb piece/s
- 2 outside corners for the curb
Note: If you elect to include floor heating, a complete kit will also include a TempZone Shower Floor Heating Mat, an nSpire Touch programmable thermostat, and a Circuit Check.
For the Floor Heating Systems:
The TempZone™ Shower Floor Heating Mat is covered by ourWarmlyYours’ 25-Year No Nonsense™ Warranty. In the event of a defect, we cover not only the repair or replacement of the TempZone™ system, but also any labor and materials required to perform the repair.
The nSpire Touch is covered by a 3-year limited warranty.
For the Pro GEN II Shower Waterproofing Kits:
Pro GEN II shower waterproofing materials come with a a lifetime limited warranty.
