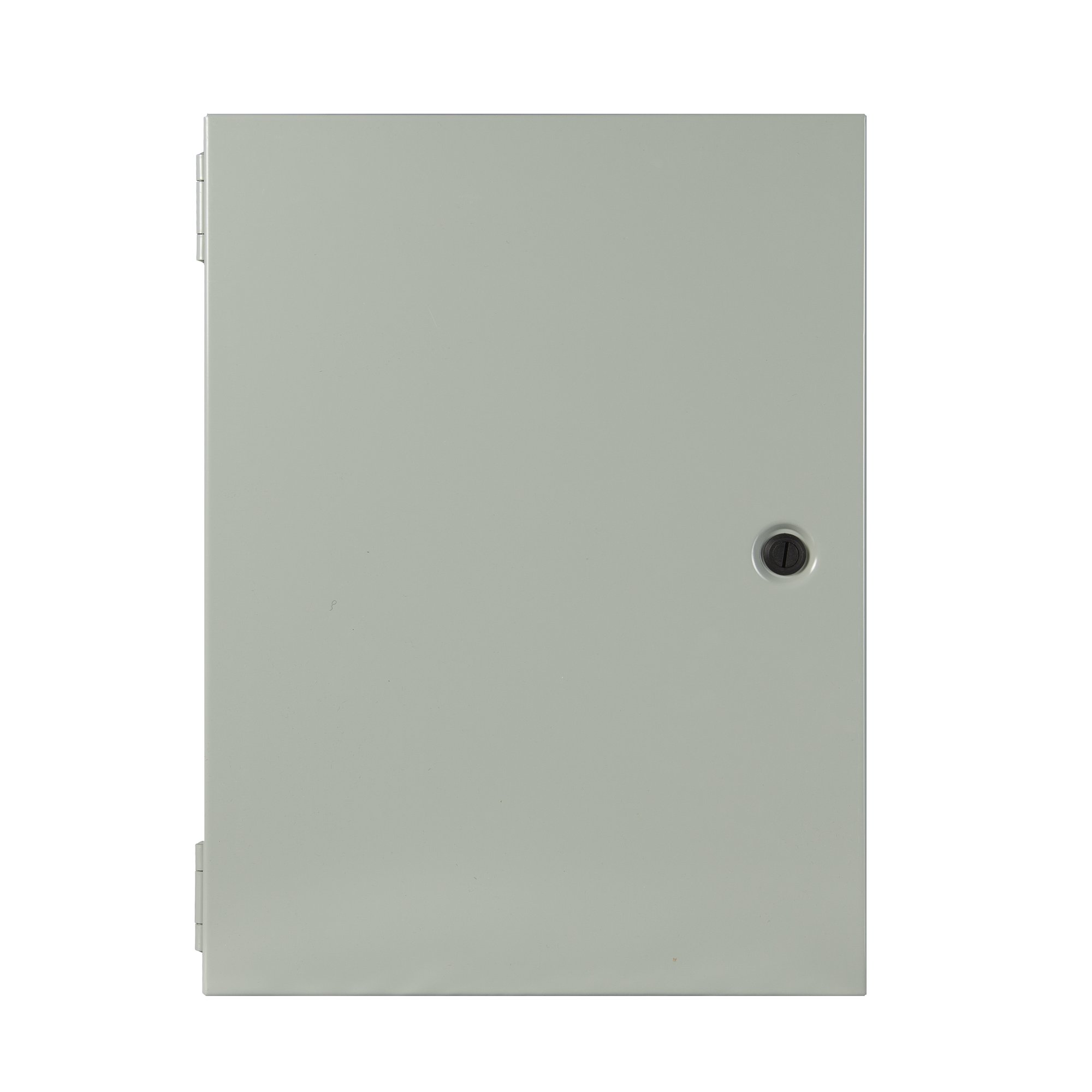

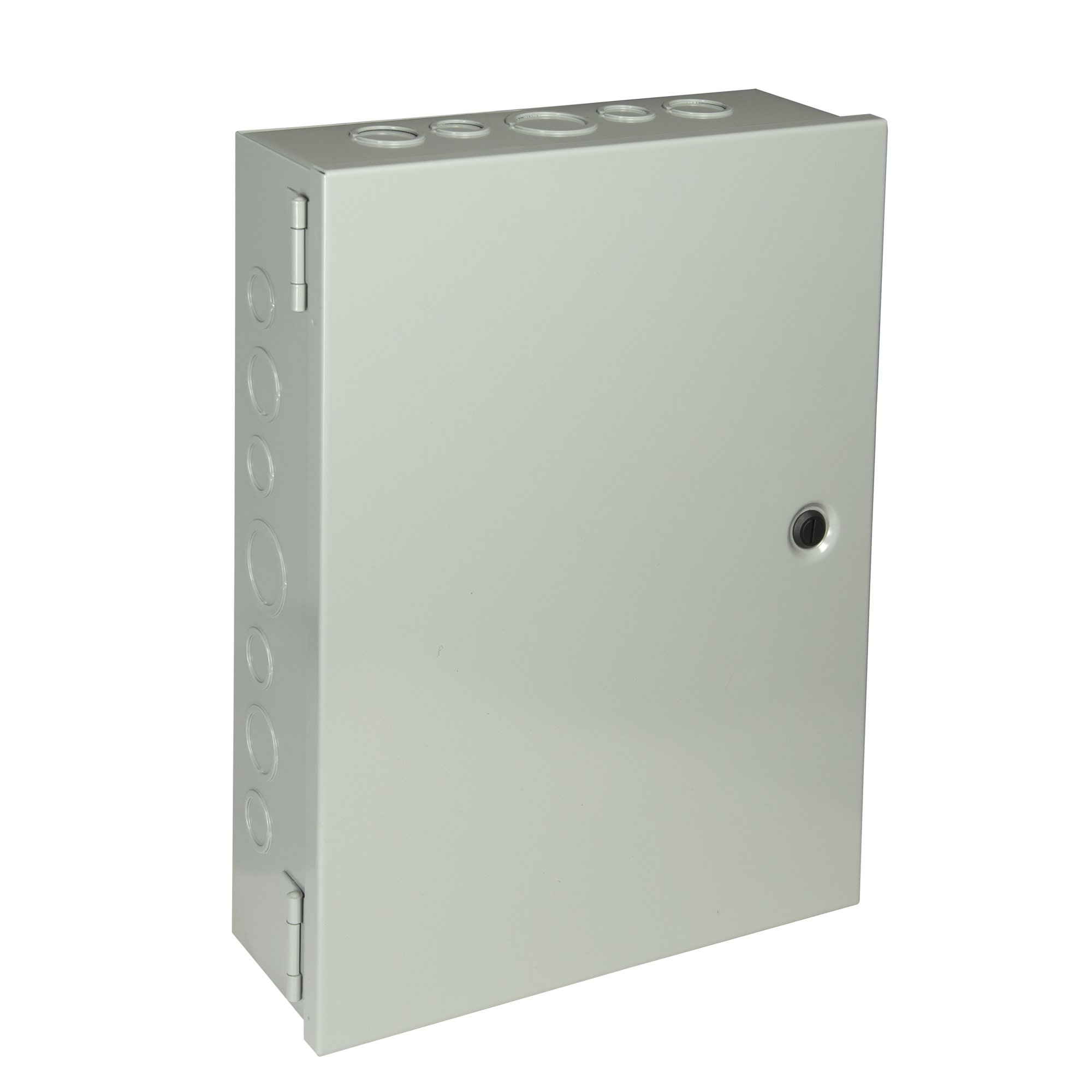

Large Relay Panel, (6x) 2-Pole
Features
-
Comes with 12 poles (six 2-pole pairs)
-
Each of the 6 relays in the RLY-12PL-CC are rated for up to 30 Amps
-
Designed for use with snow melting, slab heating, and roof and gutter deicing systems
-
Safe: cULus approved and NEMA 1-rated metal enclosure
-
Limited 2-year warranty
Relay Panels Description

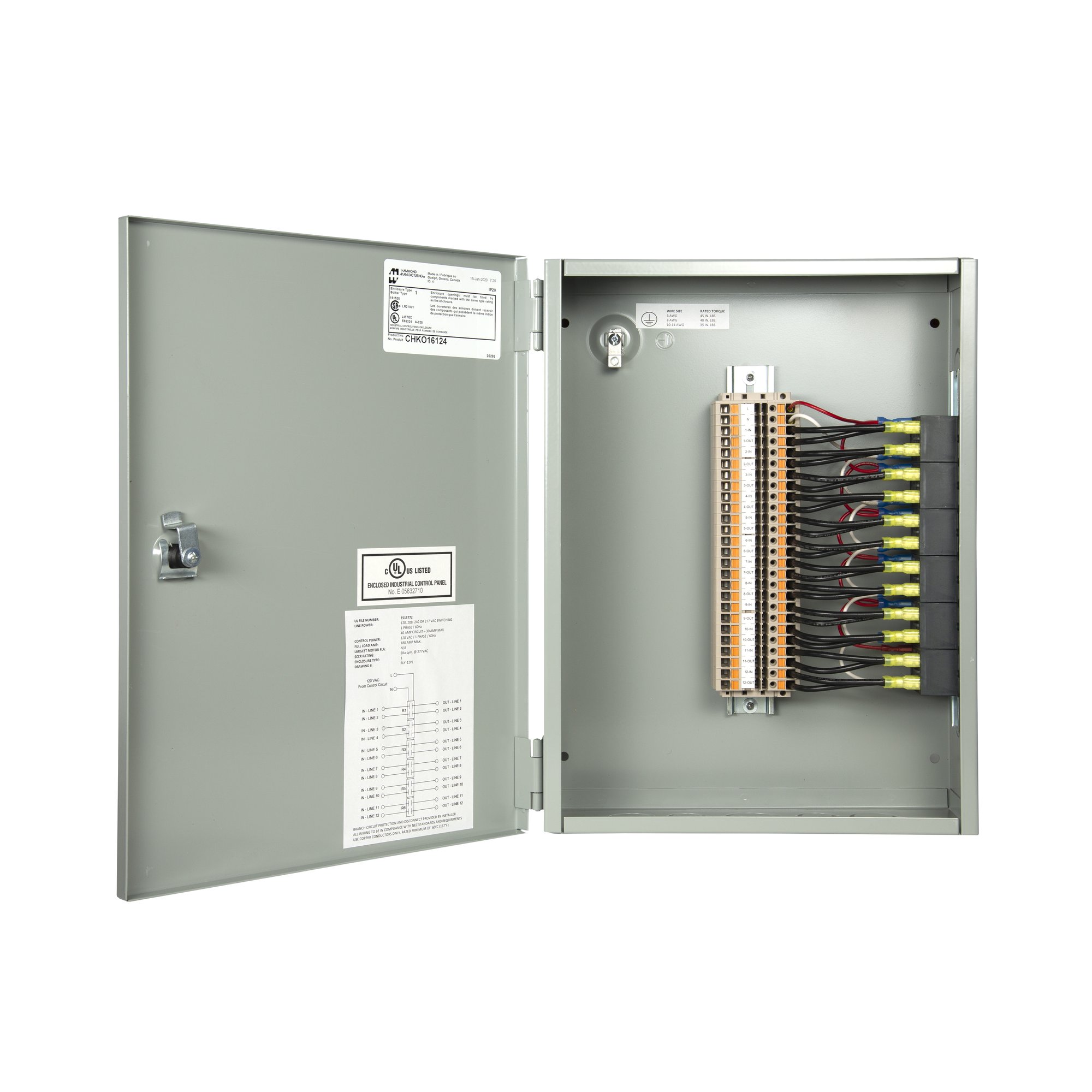

The RLY-12PL-CC large relay panel is an ultra-silent, power-switching panel suitable for snow melting, slabheating, and roof and gutter deicing applications. Housed in a NEMA 1 indoor enclosure,this large panel is cULus approved and each of the 6 relays in the RLY-12PL-CC are rated for up to 30 Amps. The RLY-12PL-CC panelscan be used with 120, 208, 240 or 277 VAC cables. Comes with 12 poles (six 2-pole pairs) and easy-to-use “push-in” terminals for connecting the leads and power supply.
Learn more about snow melting systems. Perfect for heated driveways, patios, walkways and paths, accessibility ramps, or even stairs.
Specifications
Electrical
| Applicable Voltages | 120 V, 208 V, 240 V, 277 V |
| Connection Method | Hardwired |
| Maximum Current | 30 A |
| Numbers of Poles | 12 |
Product Dimensions
| Depth | 4″ |

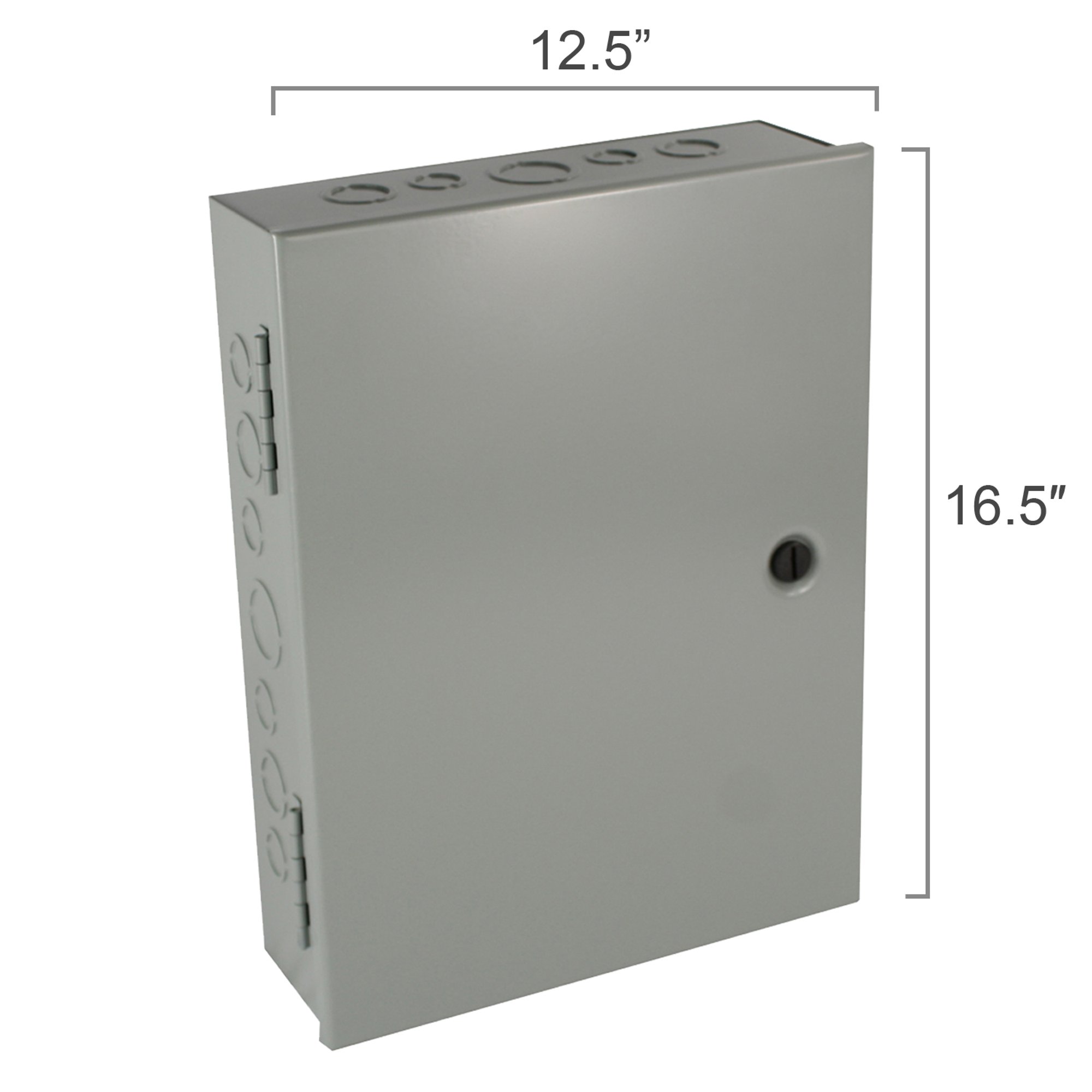

| Height | 16½″ |
| Weight | 15.2 lbs |
| Width | 12½″ |
Identifiers
| SKU | RLY-12PL-CC |
| UPC (GTIN-12) | 881308065362 |
Documents
Project Planners
- PRO Resource: Technical Field Guide for Electric Snow Melting Controls, Aerial & In- Slab Sensors, Hold-On Timers, and Pre-Season Commissioning (English)
- WarmlyYours Snow Melting Field Pocket Guide - Quick Field Troubleshooting Checklist (English)
Technical Information
Wiring Diagrams
- Relay Panels Sizing Guide (English)
- Relay Panels Wiring Diagram (English)
- Relay Panels Wiring Diagram with 208V Snow Melt Products (English)
- Relay Panels Wiring Diagram with 277V Snow Melt Products (English)
- Wiring Diagram for 120V & 240V Floor Heating Products with Relay with Thermostat (English)
Catalogs
Frequently Asked Questions
Showing all 5 questions
GFEP is the National Electric Code (NEC) required protection for fixed outdoor deicing and snow-melting equipment, which may be accomplished by using circuit breakers equipped with ground-fault equipment protection (GFEP) of 30 mA. It is important to understand that this required equipment protection is NOT the same as a 5 mA GFCI used for personal protection.
Our systems can handle low temperatures, but many controls come equipped with a Low-Temperature Lockout Feature. This feature prevents the system from running in very low temperatures. At very low temperatures it can become difficult for the system to effectively melt the snow. It is however possible to turn off this feature should you need the system to keep running during such low temperatures.
All of our automatic controllers have a Hold-on time feature after the initial warming up of the snow melt system. This feature ensures that all the snow is melted from the surface, and also that the system continues to operate and evaporate the surface water without it refreezing.
