Hardwired WiFi Switch - Black with Black Wallplate


Part Number: GK16-30090-0003-B
This support page provides publications, manuals, specifications, support articles, and common support questions


question-mark
Common Support Questions (8)

publication
Publications and Manuals (5)

specifications
Specifications (17)

Articles (3)

Related Items (4)

Similar Items (5)

Create a new Support Request

Shop Now

Common Support Questions


Yes, most of our wall-mounted towel warmers have a fixed power location in the lower right corner.  All of our heated towel racks are electric "dry" (liquid/oil-free) units and most can be installed "upside down". Doing so will result in the power location relocating from the lower right corner to the upper left corner.

Please see the installation video here:  https://www.warmlyyours.com/en-US/video-media/towel-warmer-install

Need more help? View support options

A WarmlyYours electric towel warmer can't be installed in a tub or shower enclosure. A WarmlyYours electric heated towel rack should be installed at least 24” away from a wet location like a shower, tub, etc. Always install a WarmlyYours electric towel warmer in compliance with all local building and electrical codes.

Need more help? View support options

Yes. WarmlyYours towel warmers are to be installed in accordance with the instructions in the manual and CEC, NEC, and local code guidelines relating to electrical fixtures in bathrooms. A towel warmer with a hardwired connection must be on a GFCI-protected circuit and be wired by a professional who is certified to do electrical wiring. Towel warmer models with plug-in connections should be used with a GFCI outlet.

Need more help? View support options

WarmlyYours towel warmers are all 120VAC units. Towel warmers are available in wattages from 35 watts all the way up to 250 watts. A single towel warmer would typically range from 1-2 amps based on the model. Wire size and breaker size need to be selected based on the total amperage of the towel warmer(s). For towel warmers installed in bathrooms, a GFCI breaker is required.

Need more help? View support options

Yes, regular (non-dimming) light switch can be used as an external switch to control a towel warmer in addition to a built-in switch on the towel warmer itself. A GFCI breaker powering the switch may be required by local Electrical Code.

Need more help? View support options

If the app has scheduled turning on/off the towel warmer, it will override the manual setting.

Need more help? View support options

Yes, when using our Hardwired WiFi Switch which works with Amazon's Alexa, Google Assistant, or the Nest Thermostat (no hub required).

    Need more help? View support options

    If the WiFi switch is not functioning to the My Leviton app's schedule or settings, it is recommended to either update the firmware of the WiFi switch from the Leviton app or, reset the WiFi switch by turning it on/off at the circuit breaker controlling the switch.

    Need more help? View support options

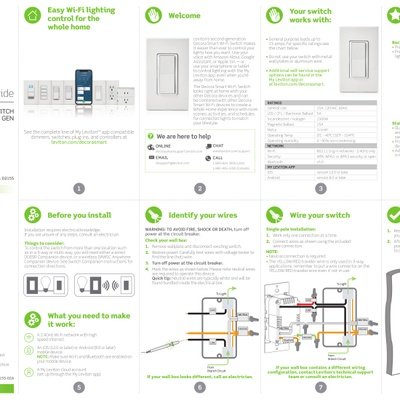

    Publications and Manuals



    Specifications


    Appearance

    Color Black
    Mounting Method In-wall, single-gang box

    Electrical

    Connection Method Hardwired
    Maximum Load (Resistive Only) 15 A
    Voltage 120 V

    Logistics

    Country of Origin (COO) United States of America

    Product Dimensions

    Depth 1.77″
    Height 4.66″
    Wallplate Depth 0.218″
    Width 2.922″

    Identifiers

    SKU GK16-30090-0003-B
    UPC (GTIN-12) 881308070724

    Connectivity

    Voice Control Works with Amazon Alexa, Apple Home/Siri, and Google Assistant voice assistants (sold separately)
    Wi-Fi IEEE Standards 802.11 a/b/g/n
    Wi-Fi Radio Frequency Bands 2.4 GHz
    Works with Works with My Leviton, Amazon Alexa, Hey Google, Apple Home/Siri, Schlage, SmartThings, or IFTTT (no hub required)

    Warranty / Certifications

    Warranty 5-year limited warranty
