Comfort Regulator 120V HWR1GA-15-120
This support page provides publications, manuals, specifications, support articles, and common support questions
Common Support Questions
Breaker and wire sizes are selected based on the total amperage of the heating system connected to a single thermostat. This information is on the heating product's installation plan, electrical plan, or UL label. Based on guidelines from the National Electrical Code: loads up to 16 Amps may utilize 12 gauge wire with a 20-Amp breaker, and loads up to 12 Amps - 14 gauge wire with a 15-Amp breaker. Local code and/or other factors may change these guidelines.
Need more help? View support options
When the ground fault protection mechanism trips, the TEST light is On (red). To reset the ground fault protection, switch the thermostat to Off and back to On. The TEST light will turn off.
Need more help? View support options
Solution:
The ground wire in the floor mat must be connected directly to the ground wire of the supply or to the house ground wire.
Need more help? View support options
All thermostats are mandated at 42" height for handicap accessibility, most private residences are mounted at 52-60".
Need more help? View support options

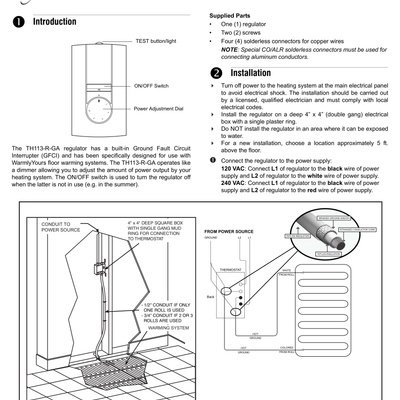

Publications and Manuals
Wiring Diagrams
Wiring Diagram for TempZone™ Cut & Turn Single Conductor (Multiple rolls) 120V & 240V with SmartStat™, EasyStat™ and Comfort Regulator (English)Wiring Diagram for TempZone™ Cut & Turn Twin Conductor (Multiple Rolls) 120V & 240V with SmartStat™, EasyStat™, Comfort Regulator and Power Modules (English)
Specifications
Electrical
| Connection Method | Hardwired |
| Voltage | 120 VAC |
Logistics
| Country of Origin (COO) | China |
Product Dimensions
| Length | 0.1″ |
| Width | 0.1″ |
Identifiers
| SKU | HWR1GA-15-120 |
Warranty / Certifications
| Warranty | Limited 3-year warranty and lifetime technical support |
Articles
How to test for Amperage Output- Comfort Regulator
Is there a limit to the number of power modules in an OJ system? nJoin
PakTronics PakStat with 1000-ohm sensor (Old WarmlyYours Regulator)
Red light on Thermostat lighted
