Pro GEN II Hair Trap - 3″ Diameter


Pro GEN II Hair Trap - 3″ Diameter

$1.95





Support Page

Shower Waterproofing System Accessory Description

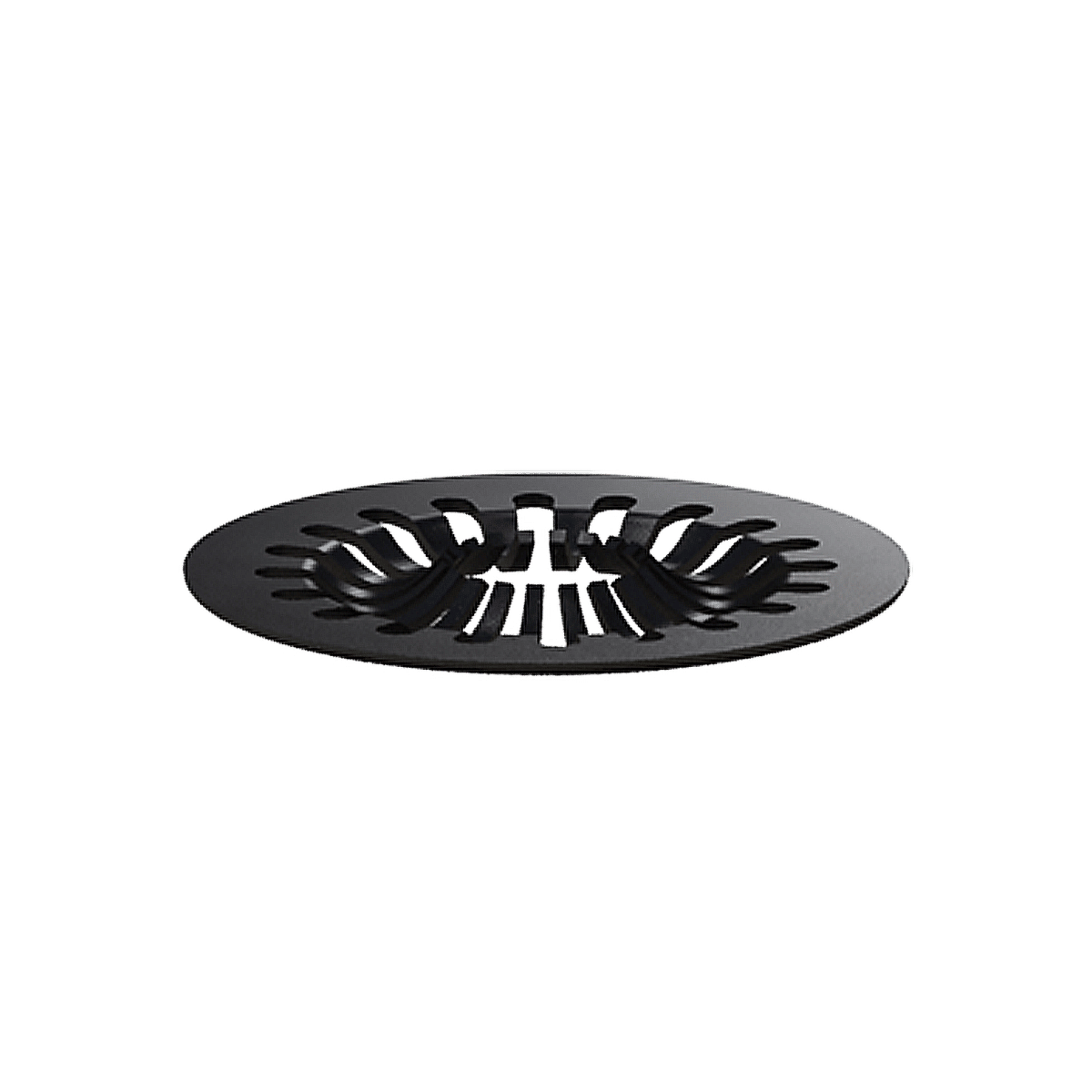

This replacement/extra Pro GEN II Hair Trap is a 3” diameter circular, integrated hair trap designed to fit in the drain riser of a Pro GEN II drain assembly. Because the grate covers in this system are screw-less, this means the hair trap is easy to remove and clean.

Every Pro GEN II Shower Drain Assembly and Pro GEN II Shower Drain Assembly Kit from WarmlyYours will come with this hair trap included.

Specifications

Identifiers

SKU SH-270060
UPC (GTIN-12) 865705000218

Customer Questions & Answers

Shower Waterproofing System Accessory has 14 Questions and Answers.

Don't see the answer you're looking for? Post your question

Why is modified thinset better for my installation?

Modified thinsets are stronger once cured. Most have additional anti-crack features, and better initial tack/grab (AKA less “slump”). They also are required for use with porcelain and glass tile.

2 people found this helpful.  Did you find this helpful? Yes No

Should I install a traditional mud kit (drypack mortar and PVC liner / mortar and membrane) or use a pre-formed foam pan?

Pre-formed pans are easily modifiable and easy to install on any substrate. They are great for DIY, as well as for a fast and clean installation by a professional. Drypack kits do not work well for tiles smaller than 2" x 2" without additional work.

2 people found this helpful.  Did you find this helpful? Yes No

The mat I bought is too big or too small. Can I add wire or remove wire to make it fit?

No. Never cut the heating mat. The floor heating mat is designed with a very specific resistance in order to consistently maintain heating at the chosen wattage per square foot. Trimming the heating cable in the mat would lower the resistance of the cable causing the system to overheat. Adding heating cable to the system would raise the resistance and the system would not heat properly.

If you think you have the wrong heating element, contact our 24/7 Technical Support Team by calling 1-800-875-5285.

1 person found this helpful.  Did you find this helpful? Yes No

What is included in a complete Pro Gen II shower waterproofing kit?

A complete kit will include the following:

  • Shower pan
  • 108 sq. ft. of waterproofing membrane
  • 33 linear feet of waterproof joint band
  • 4 pre-shaped inside corners
  • 1 drain flange with ABS or PVC neck (check your local standards for using ABS or PVC)
  • Drain grate riser with construction plug and hair trap
  • Drain grate cover
  • Curb piece/s
  • 2 outside corners for the curb

Note: If you elect to include floor heating, a complete kit will also include a TempZone Shower Floor Heating Mat, an nSpire Touch programmable thermostat, and a Circuit Check.

Did you find this helpful? Yes No

What additional tools and materials are needed to install a Pro GEN II shower waterproofing kit?

  • Jigsaw (for subfloor drain hole) & drill (for pilot hole)
  • Premium modified (Latex/Polymer) thinset mortar (not premixed)
  • 5-gallon bucket
  • Mixer and caulking gun
  • 3/16"x 3/16" square notch trowel
  • Margin trowel
  • Utility knife
  • PVC or ABS cement, and section of coupler pipe for connection
  • Level
Did you find this helpful? Yes No
