Pro GEN II Shower Drain Assembly - ABS Flange
Shower Waterproofing System Accessory Description

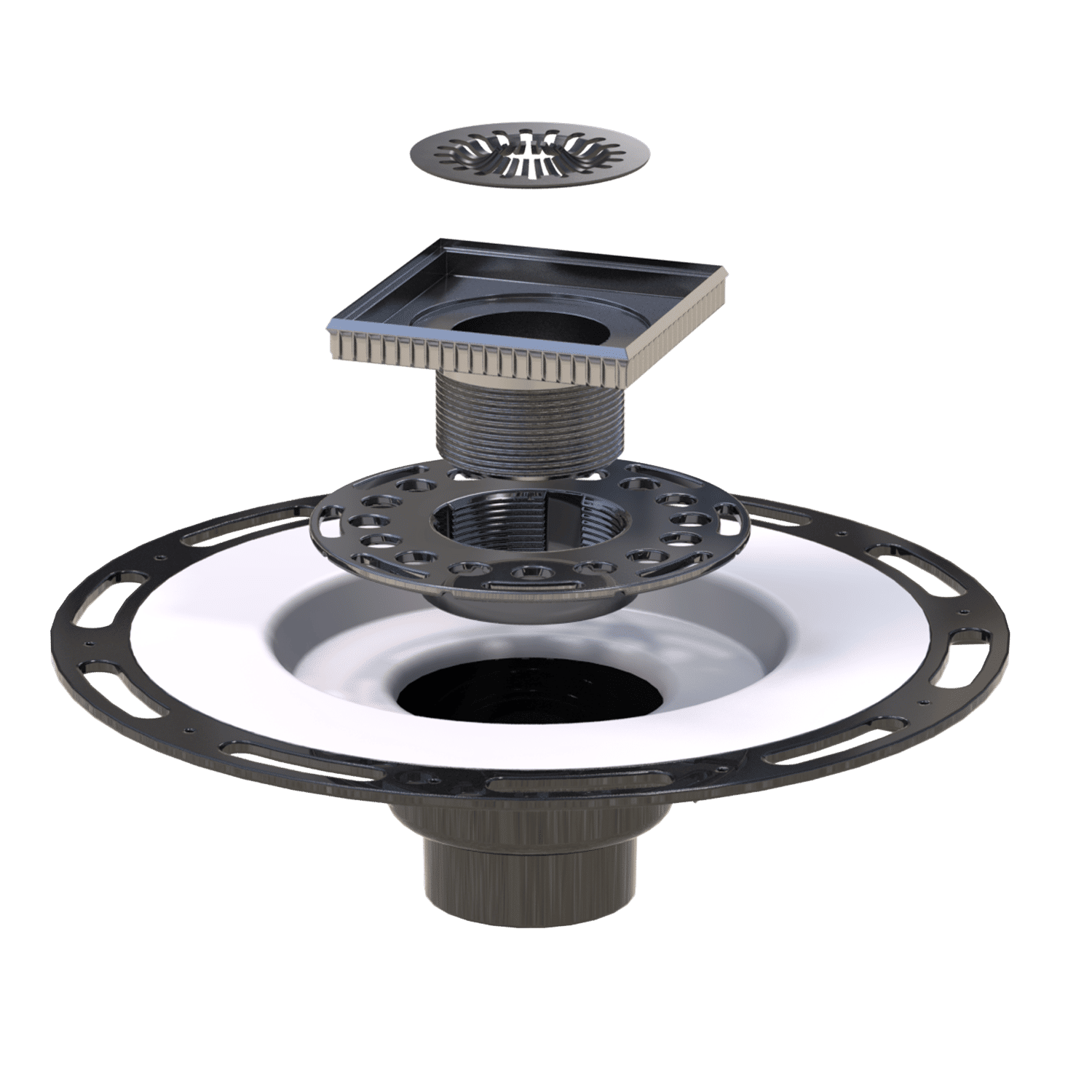

This is a Pro GEN II shower drain assembly with an ABS flange. The robust Pro GEN II shower drain flange is rated to withstand 780 PSI of pressure vs. the competition’s rating of 250 PSI.
In addition to the ABS flange, this item includes 1 low profile riser, 1 riser ring, 1 easy-to-clean integrated hair trap, and 1 yellow construction cover.
|Drain Assembly Pressure Rating||780 PSI|
Customer Questions & Answers
Shower Waterproofing System Accessory has 14 Questions and Answers.
Why is modified thinset better for my installation?
Modified thinsets are stronger once cured. Most have additional anti-crack features, and better initial tack/grab (AKA less “slump”). They also are required for use with porcelain and glass tile.
Should I install a traditional mud kit (drypack mortar and PVC liner / mortar and membrane) or use a pre-formed foam pan?
Pre-formed pans are easily modifiable and easy to install on any substrate. They are great for DIY, as well as for a fast and clean installation by a professional. Drypack kits do not work well for tiles smaller than 2" x 2" without additional work.
The mat I bought is too big or too small. Can I add wire or remove wire to make it fit?
No. Never cut the heating mat. The floor heating mat is designed with a very specific resistance in order to consistently maintain heating at the chosen wattage per square foot. Trimming the heating cable in the mat would lower the resistance of the cable causing the system to overheat. Adding heating cable to the system would raise the resistance and the system would not heat properly.
If you think you have the wrong heating element, contact our 24/7 Technical Support Team by calling 1-800-875-5285.
What is included in a complete Pro Gen II shower waterproofing kit?
A complete kit will include the following:
- Shower pan
- 108 sq. ft. of waterproofing membrane
- 33 linear feet of waterproof joint band
- 4 pre-shaped inside corners
- 1 drain flange with ABS or PVC neck (check your local standards for using ABS or PVC)
- Drain grate riser with construction plug and hair trap
- Drain grate cover
- Curb piece/s
- 2 outside corners for the curb
Note: If you elect to include floor heating, a complete kit will also include a TempZone Shower Floor Heating Mat, an nSpire Touch programmable thermostat, and a Circuit Check.
What additional tools and materials are needed to install a Pro GEN II shower waterproofing kit?
- Jigsaw (for subfloor drain hole) & drill (for pilot hole)
- Premium modified (Latex/Polymer) thinset mortar (not premixed)
- 5-gallon bucket
- Mixer and caulking gun
- 3/16"x 3/16" square notch trowel
- Margin trowel
- Utility knife
- PVC or ABS cement, and section of coupler pipe for connection
View all 14 Questions and Answers
Shower Waterproofing System Accessory achieved an average rating of 5.0 stars with 1 reviews by our customers.
Collin F., Kootenai, ID on 01/10/2021
I liked the WarmlyYours shower kit it is straight forward and easy to use. Takes one day to get your shower prepped for tile.
