TempZone™ Bench Mat 120V 16″ x 32″, 3.6 sq.ft., 0.5A


TempZone™ Bench Mat 120V 16″ x 32″, 3.6 sq.ft., 0.5A




Get an Instant Quote
Support Page

Features

  • 25 Year Warranty

  • 15 Watts Per Sq. Ft

  • 1/8'' Super thin rolls or mats to fit any room shape

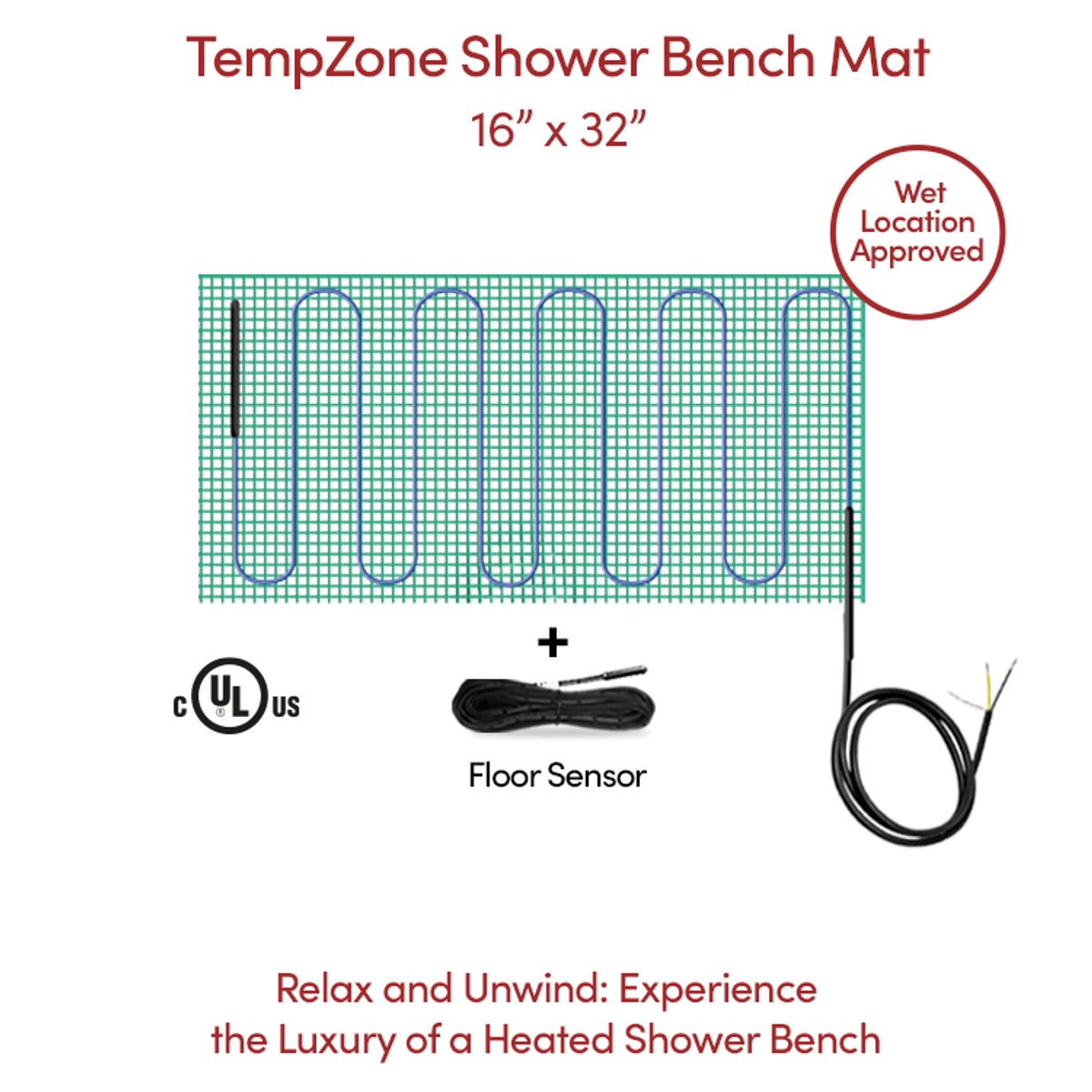

TempZone™ Shower Bench Mats Description

Pamper yourself with the radiant comfort of a WarmlyYours TempZone™ Twin Shower Bench Mat. At 15 watts per sq. ft., these 120V, 16 in. X 32 in. mats chase away the chill and gently heat your shower bench. They are UL Listed and safe for installation in wet locations. With a twin-conductor heating cable and a 14 AWG cold lead, the TempZone™ Twin Shower Bench Mat is fully backed by our industry-leading 25-year No Nonsense™ Warranty.

Specifications

Electrical

Amps 0.45 A
Floor Load 0.05 kW
Ohms 266.6667 Ω
Ohms Per Ft 99.999 Ohm/ft
Thermal Power 0.05 kW
Voltage 120 V
Watts 54 W
Watts Per Sq. Ft. 15 Watts Per Sq. Ft.

Warranty / Certifications

Approvals cULus listed
Warranty 25 Year Warranty
Wet Location Listed US, Canada

Performance

BTU Per Hour 184 Btu

Product Dimensions

Cold Lead Length 22′
Coverage 3.56 ft²
Heating Element Thickness 1/8″
Length 2′ 8″
Width 1′ 4″

Logistics

Country of Origin (COO) India

Installation

Floor Types Tile, Marble, Stone, Vinyl, LVT, LVP, Wood, Bamboo, Carpet, and more

Identifiers

SKU TRT120-1.3x2.7
UPC (GTIN-12) 881308022020

Customer Questions & Answers

TempZone™ Shower Bench Mats has 68 Questions and Answers.

Don't see the answer you're looking for? Post your question

How do I work with my electrician to install WarmlyYours electric floor heating?

While WarmlyYours electric radiant floor heating systems are typically installed by your floor covering contractor, a licensed electrician is recommended for the final thermostat hook-up. With every quote, we provide an Installation Plan layout, together with an electrical plan that has all the info required for the electrician.

35 people found this helpful.  Did you find this helpful? Yes No

How can I determine what I need for my floor heating project and how can I find out what my floor heating system will cost?

You can use the Instant Quote Tool, which gives you many options for your floor heating coverage. Use this interactive tool to design your room online and receive an instant quotation with product recommendations, rough-in and installation kits, cost of your control, etc. Planning your floor heating project is made easy when using our Instant Quote Tool.

Send us your floor plan or fax it to (800) 408-1100 and we will send you a quote, product recommendation and a free custom installation plan for your project.

29 people found this helpful.  Did you find this helpful? Yes No

What voltage does WarmlyYours floor heating systems utilize?

The floor heating systems are offered in both 120 volt and 240 volt for the North American market. A 208 volt breaker panel can also accommodate our 240 volt floor heating system. It is important to note that the energy consumption will be the same: a 240 volt system will not cost more to operate than a 120 volt system. You are billed in kilowatts, and the 120 volt and 240 volt systems use the same amount of kilowatts. WarmlyYours often specifies a 120 volt system in smaller projects while a 240 volt system is typically recommended for larger projects (120 square feet of electric floor heating coverage or more). The benefit of switching to a 240 volt system is the reduction in amperage. Our programmable thermostat can control a radiant floor system up to 15 amps. The 120 volt system will reach 15 amps at 120 square feet of electric floor heating coverage. However, the 240 volt system will reach 15 amps at 240 square feet of electric floor heating coverage, allowing a much larger system to be connected to the thermostat. For installations over 240 square feet, a relay contactor or power modules are needed.

22 people found this helpful.  Did you find this helpful? Yes No

Is electric floor heating safe and what about EMF?

Our electric radiant floor heating systems have withstood rigorous safety testing and earned the UL listing. They produce much less EMF than common household appliances like your TV or vacuum cleaner. The EPRI (Electric Power Research Institute) tests all electrical devices and publishes the data. Many common household appliances are tested at a distance of 6 inches. The test results indicate that on average, the EMF emitted for the following appliances, measured in Milligauss (mG) units, is:

Vacuum Cleaner: 300 mG

Microwave: 200 mG

Portable Heater: 100 mG

Dishwasher: 20 mG

Washing Machine: 20 mG

WarmlyYours TempZone™ (Twin): 1.8 mG

26 people found this helpful.  Did you find this helpful? Yes No

What type of flooring can I install along with an electric floor heating system?

WarmlyYours’ TempZone™ product is most commonly installed under tile, stone, and marble flooring, but can also be installed under many other popular floor covering options such as hardwood, vinyl and linoleum. We also have our Environ system, which is an electric floor heating product as well and is specially designed for installation under carpet (in the U.S. only), laminate and floating wood. WarmlyYours can accommodate any flooring type with either of the electric radiant floor heating products that we offer. If your flooring type isn't listed here, just give us a call at (800) 875-5285 and we will be happy to discuss it with you.

24 people found this helpful.  Did you find this helpful? Yes No

View all 68 Questions and Answers

Customer Reviews

TempZone™ Shower Bench Mats achieved an average rating of 4.8 stars with 8 reviews by our customers.

Have you used this product before? Leave a review

Easy system

Todd A., Rosemount, MN on 08/20/2024

The floor and shower bench system were easy to install and worked flawlessly.

Great company with great product and customer service

Anonymous, Eastchester, NY on 09/07/2023

This company was outstanding to work with. Dealt with any issues immediately and was a great product at a great price for our bathroom renovation.

Excellent!!

Jan B., Saint Paul, MN on 10/16/2022

Troy was outstanding from start to finish. Thank you so much. My granite shower bench is warm to sit on. So happy I found you on Google.

Excellent

Adventure E., N Vancouver, BC on 07/15/2021

Mary was a super lady on this process . She kept me informed about the product availability & shipping & yes we got it just the day before it had to be installed. We finally energized the two coils all working fine, it was a wonderful experience dealing with Mary. Thank you very much.

Seat warmer

Anonymous, Columbia, MD on 02/15/2021

This product was installed in a shower. Unfortunately, it only seems to hear half of the seat!

Amazing product and customer service top of the Line. I love this company. very professional

Brother G., Lafayette, CO on 02/15/2021

I will definitely be using WarmlyYours in the on the next project The bench warmer only uses 40 watts and gets to 108 degrees, very toasty!

Easy install, would buy again no problem

Gregory T., Oshawa, ON on 11/19/2020

Easy install, would buy again no problem

The Warmly Yours Heating element is a superior quality produc

Coastal I., Huntington, NY on 09/04/2012

The WarmlyYours Heating element is a superior quality product. Ordering is expedited, especially when utilizing the services of our Sales Supervisor Matthew Caruso, a real credit to the WarmlyYours organization. Delivery is always on time or ahead of schedule. The products always arrvie properly packaged and contain all of the necessary parts and instructions. Most of all, our clients only see the ease of use and a product that completely does what its advertised to do.

View all customer reviews
