Hardwired Programmable Timer


Part Number: GK16-30090-0002
This support page provides publications, manuals, specifications, videos, support articles, and common support questions


question-mark
Common Support Questions (10)

publication
Publications and Manuals (9)

specifications
Specifications (9)

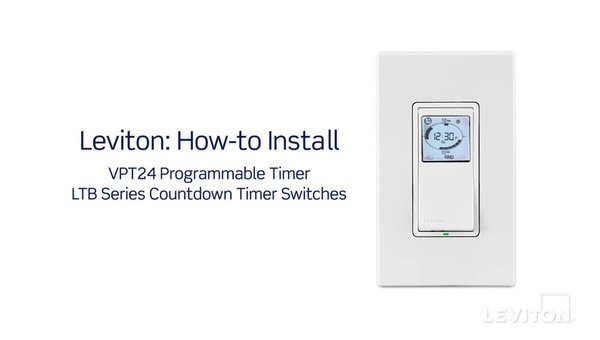

Videos (1)

Articles (3)

Similar Items (1)

Create a new Support Request

Shop Now

Common Support Questions


Yes, most of our wall-mounted towel warmers have a fixed power location in the lower right corner.  All of our heated towel racks are electric "dry" (liquid/oil-free) units and most can be installed "upside down". Doing so will result in the power location relocating from the lower right corner to the upper left corner.

Please see the installation video here:  https://www.warmlyyours.com/en-US/video-media/towel-warmer-install

Need more help? View support options

A WarmlyYours electric towel warmer can't be installed in a tub or shower enclosure. A WarmlyYours electric heated towel rack should be installed at least 24” away from a wet location like a shower, tub, etc. Always install a WarmlyYours electric towel warmer in compliance with all local building and electrical codes.

Need more help? View support options

Yes. WarmlyYours towel warmers are to be installed in accordance with the instructions in the manual and CEC, NEC, and local code guidelines relating to electrical fixtures in bathrooms. A towel warmer with a hardwired connection must be on a GFCI-protected circuit and be wired by a professional who is certified to do electrical wiring. Towel warmer models with plug-in connections should be used with a GFCI outlet.

Need more help? View support options

WarmlyYours towel warmers are all 120VAC units. Towel warmers are available in wattages from 35 watts all the way up to 250 watts. A single towel warmer would typically range from 1-2 amps based on the model. Wire size and breaker size need to be selected based on the total amperage of the towel warmer(s). For towel warmers installed in bathrooms, a GFCI breaker is required.

Need more help? View support options

Yes, regular (non-dimming) light switch can be used as an external switch to control a towel warmer in addition to a built-in switch on the towel warmer itself. A GFCI breaker powering the switch may be required by local Electrical Code.

Need more help? View support options

Press on the door for 3 seconds until 'MAN' is shown on the display. Press on the door for 3 seconds until 'AUTO' is shown on the display.

Need more help? View support options

Lift up the bottom of the door of the T1033 using a small screwdriver.

Need more help? View support options

Assure there is power to the timer. If there is power to the timer, then make sure the ON/OFF button is pushed all the way to the right - ON position. If this doesn't resolve the issue, press the RESET button using a paper clip. If none of these steps resolve the issue, then contact WarmlyYours at (800) 875-5285 to order a replacement controller.

Need more help? View support options

Press the push pad to temporarily turn it on or off, or hold the pad down for several seconds to permanently turn it on or off.

Ensure the towel warmer built-in switch is in the ON position.

See the 'Timer Override' section of the Timer Switch Manual for further details.

Need more help? View support options


Publications and Manuals



Specifications


Appearance

Color White
Mounting Method In-wall, single-gang box

Electrical

Connection Method Hardwired
Maximum Load (Resistive Only) 15 A

Logistics

Country of Origin (COO) United States of America

Product Dimensions

Installed Dimensions 4.13 in x 1.75 in x 1.40 in

Identifiers

SKU GK16-30090-0002
UPC (GTIN-12) 881308058395

Warranty / Certifications

Warranty 5-year limited warranty
