Transformer 1200VA 80sqft Q-Tran TR-1200VA-Q


Part Number: TR-1200VA-Q
This support page provides publications, manuals, specifications, support articles, and common support questions


question-mark
Common Support Questions (5)

publication
Publications and Manuals (1)

specifications
Specifications (9)

Articles (3)

Related Items (1)

Similar Items (5)

Create a new Support Request

Common Support Questions


The breaker and wire sizes are selected based on the total amperage of the WarmlyYours heating system connected to a single thermostat. This information is on the WarmlyYours heating system's installation plan, electrical plan, or UL label. Based on guidelines from the National Electrical Code: loads up to 16 Amps may utilize 12 gauge wire with a 20-Amp breaker, and loads up to 12 Amps - 14 gauge wire with a 15-Amp breaker. Local code and/or other factors may change these guidelines.

Need more help? View support options

Solution:

The ground wire in the floor mat must be connected directly to the ground wire of the supply or to the house ground wire.


Need more help? View support options

All thermostats are mandated at 42" height for handicap accessibility, most private residences are mounted at 52-60".

Please see this video on how to install a WarmlyYours nSpiration Series thermostat: https://www.warmlyyours.com/video-media/wire-nspiration-thermostat-to-electric-floor-heating-roll

Need more help? View support options

Poor maintenance, overheating, insulation breakdown, and vermin damage are common causes.

Need more help? View support options

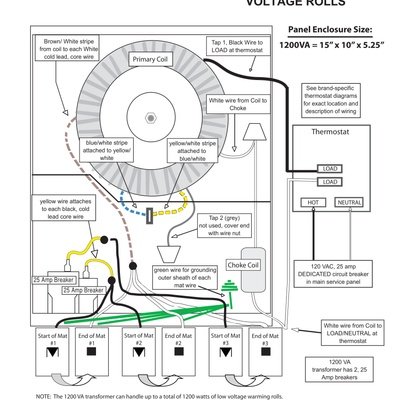

If your floor is not heating and your thermostat is functioning properly, test to see if proper voltages are present at the transformer.  If 24 VAC is not being returned by the transformer, then it either needs to be replaced or checked to ensure that the internal secondary circuit breakers have not been tripped and are functioning properly.  Contact Warmly Yours technical support at 1-800-875-5285 for further assistance.

Need more help? View support options


Publications and Manuals



Specifications


Electrical

Breaker Amperage 50 Amps
Connection Method Hardwired
Output Wattage 1200 Watts
Power 120V
Voltage (Output) 24 VAC

Product Dimensions

Depth 10“
Height 15“
Width 5.25“

Identifiers

SKU TR-1200VA-Q

Articles



Similar Items
