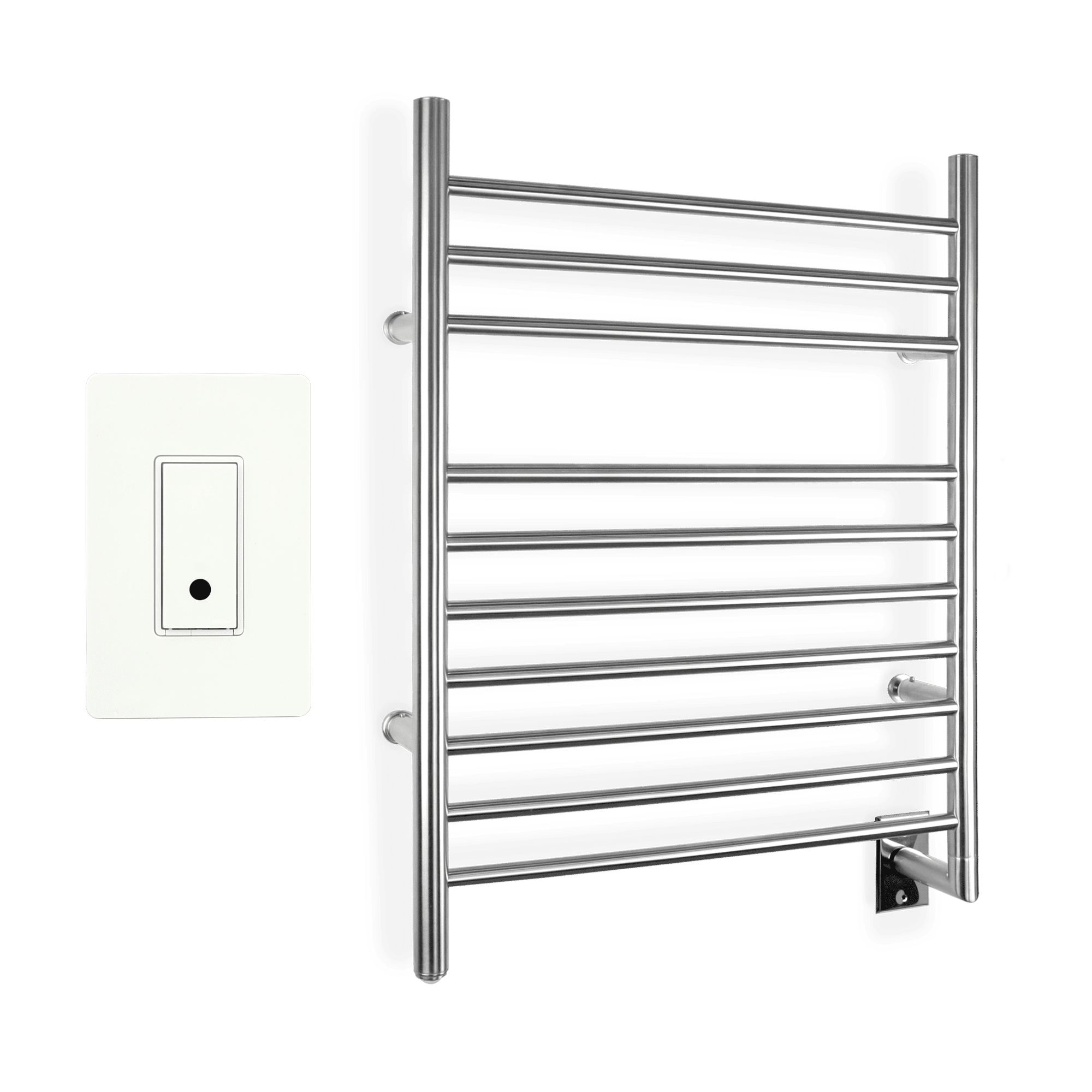

Infinity - Hardwired with WeMo Wi-Fi Switch (TW-F10BS-HW-WL)

Infinity - Hardwired with WeMo Wi-Fi Switch (TW-F10BS-HW-WL)

Part Number: TW-F10BS-HW-WLPast Model
This product is discontinued.
This support page provides publications, manuals, specifications, videos, support articles, and common support questions

Support Questions

Showing all 6 questions

One can leave the towel warmer on all day. If doing so, observe the towels on the warmer every couple of hours the first day or two to verify that the towels do not become discolored or scorched by leaving the warmer on all day.

3 people found this helpful Was this helpful? Yes No

If a towel cools off too soon after removing it from the warmer, try a differently-constructed towel. The warmer has NO affect on the heat loss of the particular towel after it is removed from the warmer.

2 people found this helpful Was this helpful? Yes No

Within the Product Dimensions of the WarmlyYours web page for your particular Towel Warmer, it is listed as the general 'Mounting Footprint'. Measure all dimensions of the delivered product prior to rough-in and installation because continuous improvements in the product may affect the finished dimensions.

2 people found this helpful Was this helpful? Yes No

Test the ohms of the unit to verify that it is within 5-10% of the resistance indicated in specs. Verify that there is at least 110 volts present into and out of the power supply. If the ohms are too high, the warmer will feel cooler. The lower the voltage, the cooler the unit.If these values are within specs, the towel warmer is working as designed.

1 person found this helpful Was this helpful? Yes No

The dash represents the "on" position because it signifies a closed circuit, allowing power to flow. The O represents the "off" position, indicating an open circuit where power is disconnected. You can further identify the on/off state of the towel warmer by the LED coming on around the switch when powered.

Was this helpful? Yes No

If a warmer towel is desired, try folding the towel over or unfold it to experiment, try a thicker towel (traps more heat, resulting in higher surface temperatures), a different fabric (cotton vs. blends), leave the towel warmer on longer before the shower (thicker towel plus longer heating time), or place a second towel on the warmer to trap more heat. Keep in mind, the towel will at some point reach its maximum temperature on the towel rack. If that time is an hour, leaving the warmer on all day will not raise the maximum temperature of that towel or warmer, but if you would like to experiment, that's OK, too.

Was this helpful? Yes No


Specifications

Electrical (TW-F10BS-HW)

Amps 1.25 A
Connection Method Hardwired
Ingress Protection (IPxx) Rating IP44
Ohms 96 Ω
On/Off Switch Yes
Thermal Power 0.15 kW
Voltage 120 V
Watts 150 W

Warranty / Certifications (TW-F10BS-HW)

Approvals cULus listed
ETL Listing Number 5008694
Warranty 2 years

Performance (TW-F10BS-HW)

Average Surface Temperature 149°F / 65°C
BTU Per Hour 512 Btu
Heat-up Time 15-20 minutes
TempSmart Safety Limit 149°F - 167°F / 65°C - 75°C
Towel Capacity 1-2

Appearance (TW-F10BS-HW)

Bar Arrangement 2 Groups of 3 and 7
Bar Shape Round
Cord Color White
Finish Brushed Stainless Steel
Finish Application None (bare steel)
Mounting Method Wall Mounted
Steel Type 304-stainless steel
Style Classic
Towel Bars 10

Product Dimensions (TW-F10BS-HW)

Bar Thickness (Radius) 0.37″
Depth 4¾″
Height 32″
Mounting Footprint 22 ⅜“ (568mm) W x 15 ¼“ (388mm) H
Size Classification Standard
Weight 10.6 lbs
Width 23⅝″

Electrical (CO-WM-SW-F7C030)

Connection 4 wires
Connection Method Hardwired
Maximum Current 15 A
Maximum Load (Resistive Only) 15Amps
Voltage 120 V

Identifiers (CO-WM-SW-F7C030)

Ground Fault Protection (GFCI) No
SKU CO-WM-SW-F7C030
UPC (GTIN-12) 881308049355

Thermostat (CO-WM-SW-F7C030)

Has Floor Sensor n

Appearance (CO-WM-SW-F7C030)

Mounting Method In-wall, single-gang box

Logistics (TW-F10BS-HW)

Package Contents Towel Warmer, installation manual and hardware kit

Identifiers (TW-F10BS-HW)

SKU TW-F10BS-HW
Towel Warmer Collection Name Classic Collection
UPC (GTIN-12) 881308057725

Product Dimensions (CO-WM-SW-F7C030)

Weight 0.3 lbs
