We’ve known for some time that heat loss to a cement slab can drastically alter the performance of an electric floor heating system. Cement subfloors act as large heat sinks, in that they manage to consume a large portion of the heat produced and intended to heat the floor. A heating system installed directly on a cement subfloor can see a limited top-temperature, in addition to a much longer heat up time. Rest assured we have found a way around this dilemma.

Concrete subfloor
Concrete subfloors are common in many first-story rooms.

Insulation.

    For tile installations, we were thrilled to find a product called CeraZorb. It was initially designed as a sound deadening membrane for use in condominiums and other buildings where limiting noise travel between floors was crucial. CeraZorb also has the added bonus of offering some insulation value. CeraZorb has an R-value of 1.5.  Hot air rises, but heat, much like water, seeks out the path of least resistance. Insulation is essentially resistance, so when CeraZorb is installed below the heating elements, the resistance inherent in the material is enough to redirect the heat upward through the flooring instead of down into the slab where it is, in essence, wasted energy.

Cerazorb 4 Pack
The CeraZorb underlayment can prevent heat-loss to the subfloor.


    CeraZorb comes in 2 foot by 4 foot panels in a thickness of 5mm. CeraZorb is a Synthetic cork underlayment that will not rot, swell, or absorb water. It is also anti-microbial. According to the Robinson test, it has a light commercial rating, and in addition to providing acoustical benefits and insulation, CeraZorb can also act as a crack suppression membrane up to a ¼”. This means cracks in your subfloor, of up to ¼” in width, will be prevented from damaging your tile floor.

Installation of the insulation is fairly straightforward. You’ll want to start with a conditioned slab. First, inspect the concrete subfloor for any open cracks and if necessary fill them with a high-grade patch. Second, remove any excess concrete lumps or residue that may interfere with the installation of the CeraZorb. Third, the concrete slab should be fully cured, dry, smooth, flat, and accept water penetration. Concrete must be free of efflorescence and not subject to hydrostatic pressure. A good quality concrete waterproof sealer may be required if moisture in the slab is above 10 percent. At this point it may even be necessary to assess the levelness of the slab, and if the slab is badly out of level, it is best to use a self-leveling compound and applicable primer to level the floor prior to installing the CeraZorb.

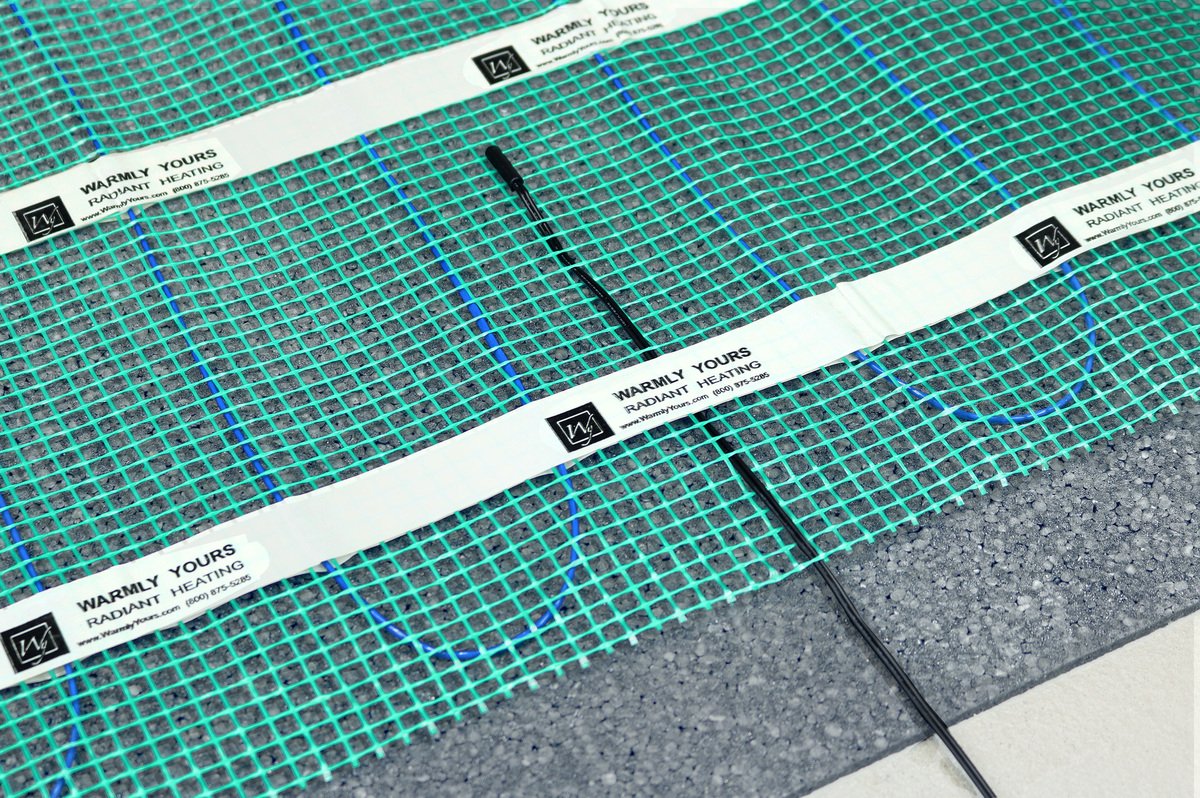

TempZone Flex Roll with Sensor
CeraZorb with a TempZone Flex Roll and floor sensor.


Using a 16th inch notched trowel, spread a layer of good quality latex modified thinset on the slab and then position the CeraZorb into the thinset. Take care to stagger the seams just like brick work. Once the CeraZorb is in place, locate a roller and roll out the floor to ensure the modified thinset has securely bonded the membrane to the subfloor. We recommend a 35 to 50 pound roller, but in a pinch a 100 pound roller can be used with good results. Once the CeraZorb is rolled out and bonded with the subfloor, give it a day to cure and then it’s time to lay out the heating mat, followed by modified thinset and then start setting the tile.

That thin layer of CeraZorb will go to work for you in increasing the efficiency and output of your floor heating and in the long run will be saving you energy costs.

Happy Heating all around.
