nJoin 2.0 Power Module with Class A GFCI
- Great for Large Projects: This device helps your main radiant heating thermostat handle larger projects
- Sleek and Modern Design: This updated power module represents the fusion of form and function
- Extensive Compatibility: Works with current (nJoy and nTrust 2.0) and previous (nSpire Touch WiFi, nSpire Touch, nTrust and nHance) thermostats
- Two Connectors with Screw Terminals: These help make final connections in the field easier and safer
- Safety Assured: cULus listed with a built-in GFCI for peace of mind
Notices
Quebec Repairability Notice
Avis important pour les consommateurs du Québec:
WarmlyYours ne fournit ni services de réparation ni pièces de rechange pour ce produit. Si votre thermostat de chauffage de sol intérieur tombe en panne pendant la période de garantie, nous remplacerons l'unité complète conformément à notre politique de garantie. Notre équipe de soutien technique est disponible par téléphone 24h/24 et 7j/7 pour l'assistance à l'installation et au dépannage. Pour tous les détails, veuillez consulter notre Politique de Retour. Cet avis est fourni conformément à l'article 39 de la Loi sur la protection du consommateur du Québec (telle que modifiée en 2025).
Important Notice for Québec Consumers:
WarmlyYours does not provide repair services or replacement parts for this product. If your indoor floor heating thermostat fails within the warranty period, we will replace the entire unit according to our warranty policy. Our technical support team is available 24/7 by phone for installation and troubleshooting assistance. For full details, see our Return Policy. This notice is provided in accordance with Québec’s Consumer Protection Act, section 39 (as amended in 2025).

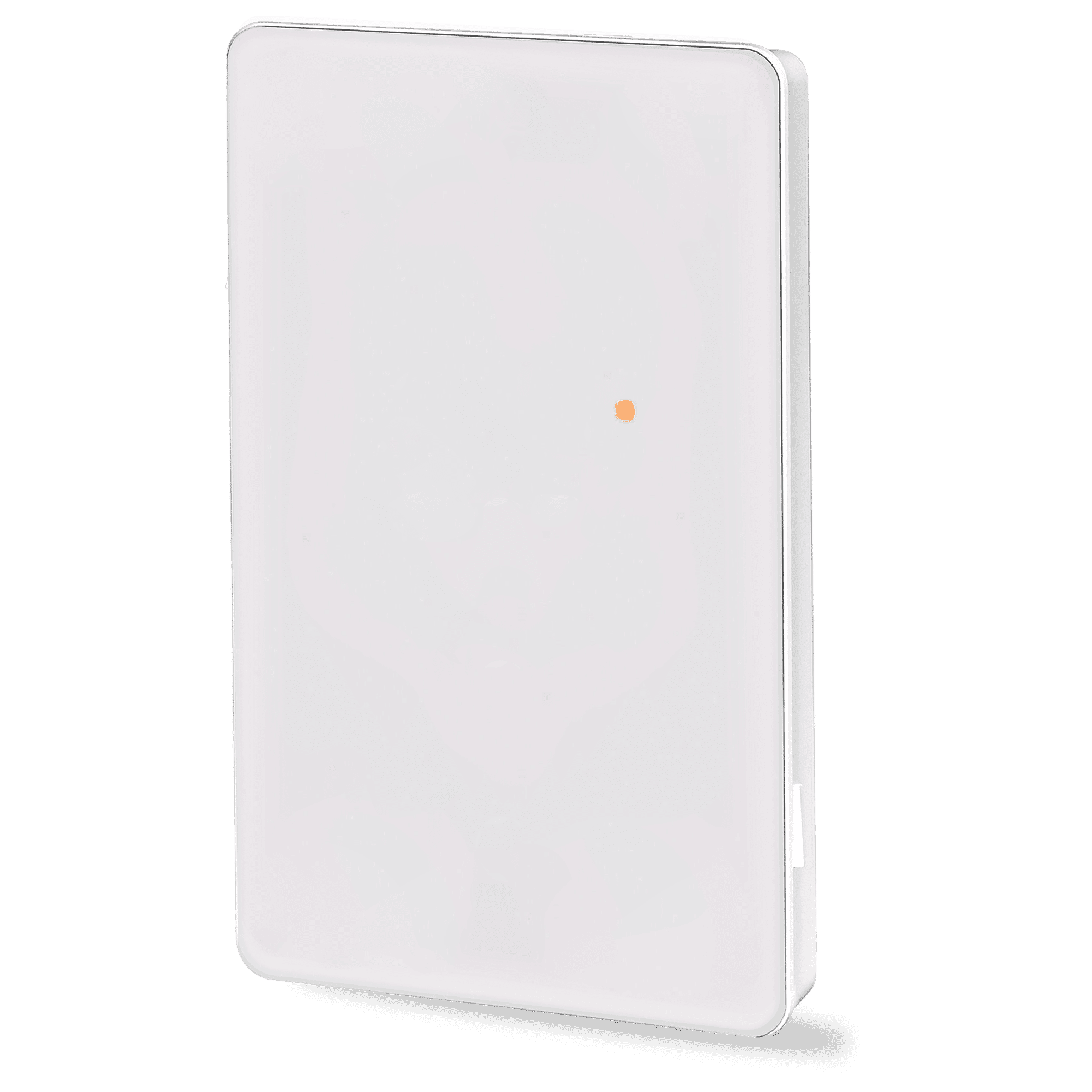

nJoin 2.0 Power Module Description
Some floor heating jobs are just too large for a single radiant heating thermostat to handle alone. The nJoin 2.0 power module is here to help you heat those larger projects.
The refined and modern-looking nJoin 2.0 links up to current (nJoy and nTrust 2.0) and previous (nSpire Touch WiFi, nSpire Touch, nTrust, and nHance) WarmlyYours radiant heating thermostats to increase the electrical output in 15 amp increments per module. This will help your heating system cover additional areas or large rooms, like basements, with a single thermostat.
The nJoin 2.0 features an attractive update to its design and is equipped with a dual-color LED indicator, offering a straightforward visual display of the unit’s status for effortless monitoring and troubleshooting. The LED changes color to convey different operational messages, ensuring quick and easy diagnostics.
Additionally, because the nJoin 2.0 doesn't provide any direct control functionality, it can be installed out of view if desired.
Comes with two connectors, one for the main thermostat and another for an extra power module if needed, that feature screw terminals for safe and easy installs.
Features:
- Works with current (nJoy and nTrust 2.0) and previous (nSpire Touch WiFi, nSpire Touch, nTrust and nHance) radiant heating thermostats.
- 3-year warranty
- Comes with screw terminals
- Built-in self-testing, Class A GFCI
- Dual voltage: 120V and 240V
- cULus listed
Specifications
Warranty / Certifications
| Approvals | cULus listed |
| Ingress Protection (IPxx) Rating | IP20 |
| UL Listing Number | E157297 |
| Warranty | Limited 3-year warranty and lifetime technical support |
Appearance
| Color | White Acrylic |
Electrical
| Connection | 4 wires, double pole |
| Connection Method | Hardwired |
| Ground Fault Protection | GFCI, Class A, 5 mA |
| Maximum Current | 15 A |
| Maximum Power | 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V |
| Supply | 120 VAC, 208 VAC, 240 VAC (50/60Hz) |
Product Dimensions
| Depth | 1.73″ |
| Installed Depth | 0.46″ |
| Length | 4.98″ |
| Weight | 0.4 lbs |
| Width | 3.09″ |
Identifiers
| SKU | USG5-4000 |
| UPC (GTIN-12) | 881308080433 |
Frequently Asked Questions
Showing all 2 questions
The breaker and wire sizes are selected based on the total amperage of the WarmlyYours heating system connected to a single thermostat. This information is on the WarmlyYours heating system's installation plan, electrical plan, or UL label. Based on guidelines from the National Electrical Code: loads up to 16 Amps may utilize 12 gauge wire with a 20-Amp breaker, and loads up to 12 Amps - 14 gauge wire with a 15-Amp breaker. Local code and/or other factors may change these guidelines.
No, floor heating thermostats are not compatible with the towel warmers. We would also not recommend using both devices on the same control, as it does not take the same amount of time to reach the ideal temperature for each product, which could lead to one unit to overheat and the other to not function properly.
