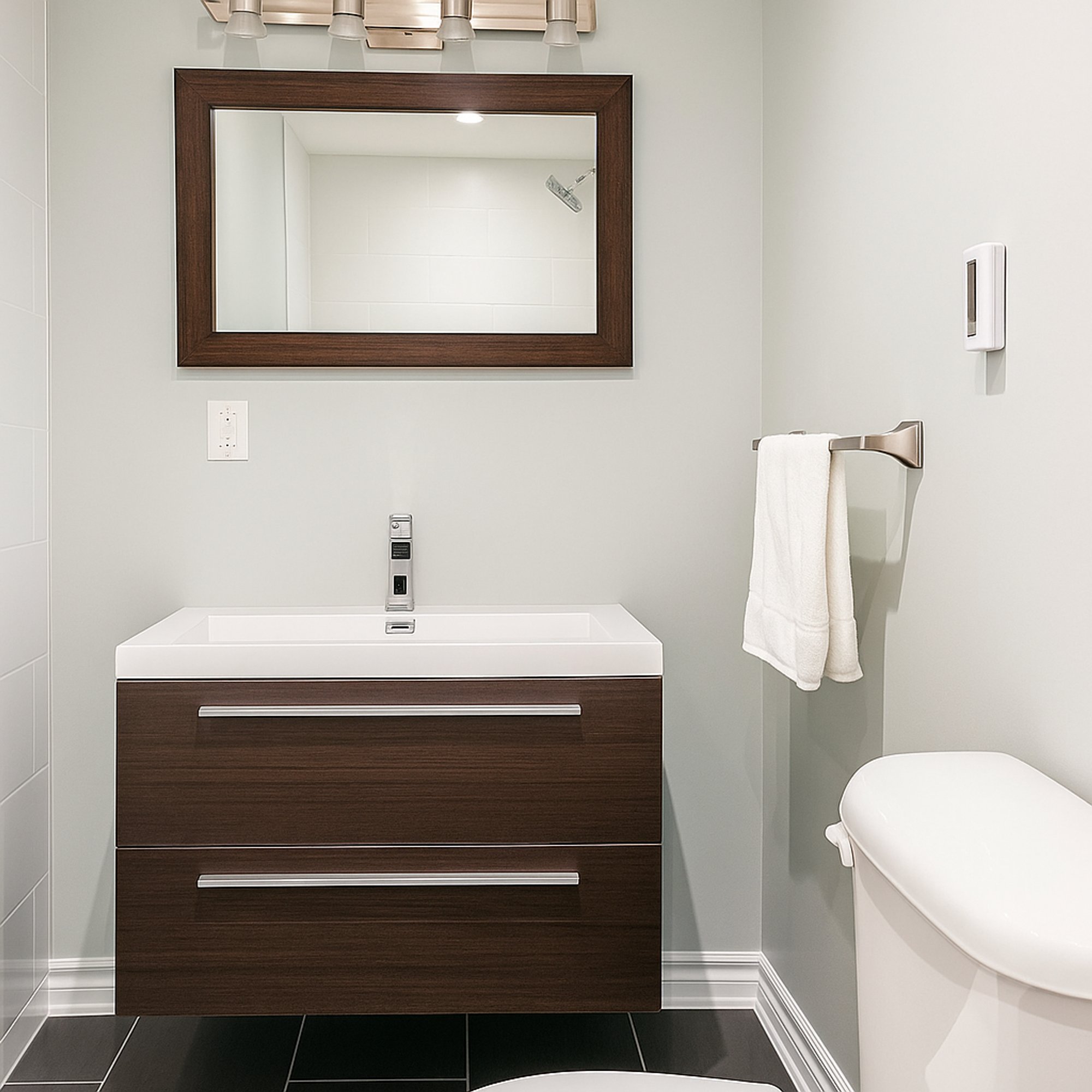

Luxury Comfort Underfoot: Transforming a Mississauga Bathroom with Radiant Floor Heating

Master Bathroom Renovation in Mississauga, Ontario, Solved with an Energy-Efficient TempZone™ Easy Mat System

Mississauga, ON

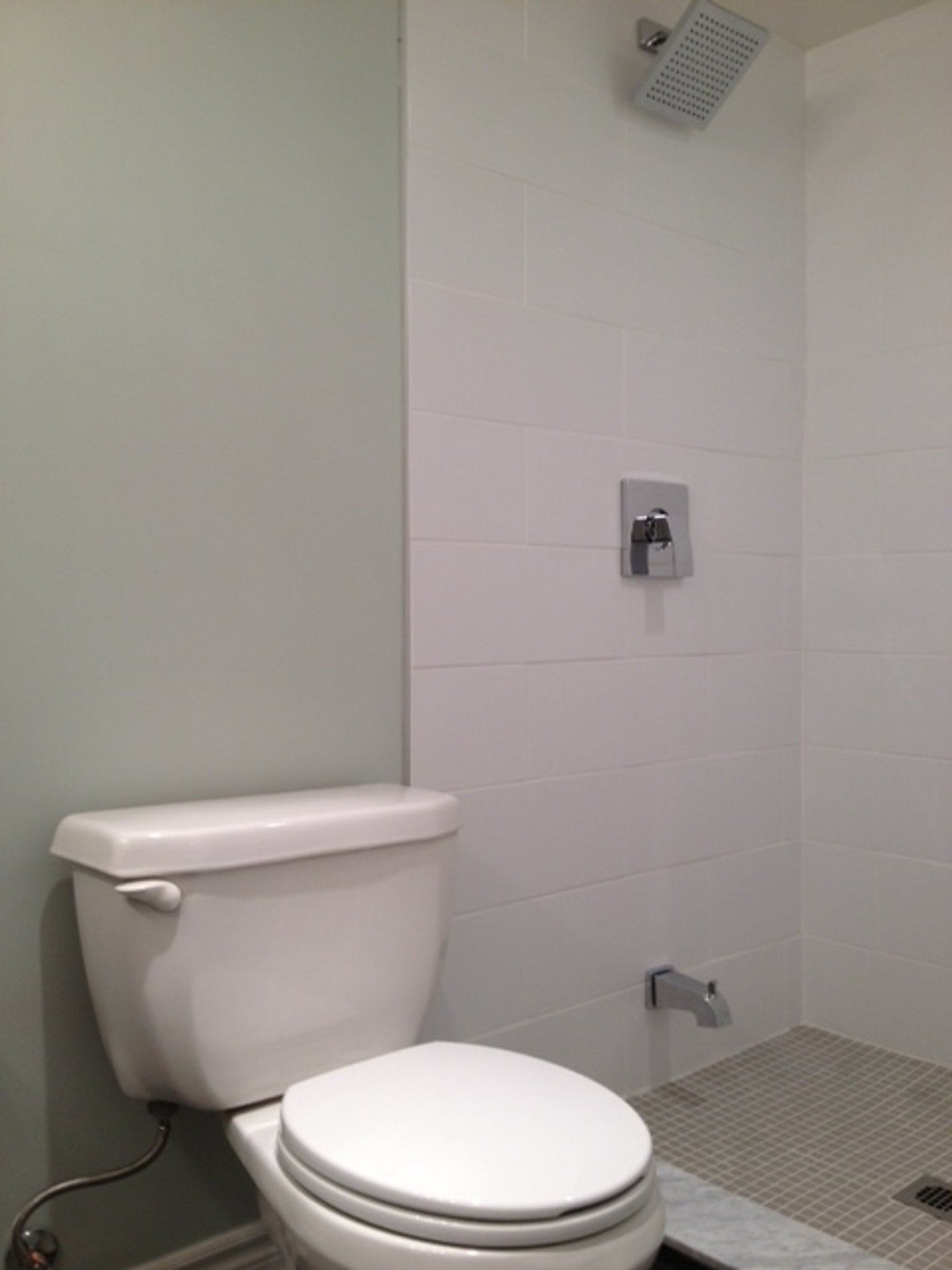

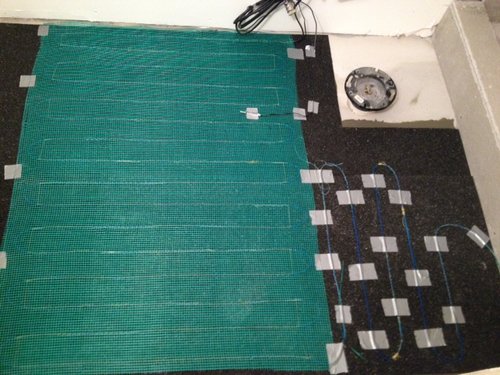

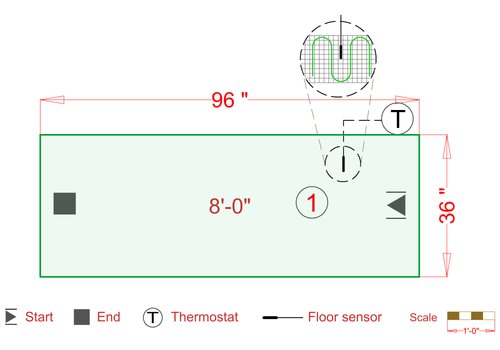

Finished basement bathroom with a 3' x 8' TempZone Floor Heating Mat
Size: 24 sq. ft. Voltage: 120V Wattage: 360 W Amps: 3 A Flooring: Tile, Marble or Stone Cost/hr *: $0.00
This project centered on a homeowner in Mississauga, Ontario, who sought to eliminate the jarring cold of their tile and marble bathroom floor, especially during the harsh Canadian winters. The challenge was finding a comfortable, efficient, and low-profile heating solution that wouldn't require a complicated remodel. WarmlyYours provided the ideal solution with an easy-to-install electric radiant floor heating system—the TempZone™ Easy Mat—controlled by a smart nSpire Touch thermostat, adding both luxurious comfort and lasting value to the home. Project Details Location: Mississauga, Ontario, Canada Heated Space Type: Bathroom Square Footage (Heated): 24 sq. ft. Floor/Surface Type: Tile, Marble or Stone Watts, Volts, Amps: 360 Watts, 120 Volts, 3.0Amps Operating Cost Per Hour: approx $0.04 CAD per hour (Off-Peak) Cost Breakdown (Estimate based on 8 hours/day Off-Peak use): Per Day: approx $0.32 CAD Per Month: approx $9.70 CAD Products Used: TempZone™ Easy Mat 120V (3' x 8'), nSpire Touch Thermostat, Circuit Check The Comfort Upgrade: Warmth for Cold Tile in Ontario The primary motivation for this Mississauga homeowner was simple: the cold shock of stepping onto stone and tile flooring in the bathroom, a common issue in Canadian homes, especially during winter. Unlike traditional forced-air systems that heat the ceiling first, in-floor heating gently radiates warmth directly from the floor surface up, ensuring the most used area of the room—the floor—is always cozy. The installation was streamlined using the TempZone™ Easy Mat. This pre-sized mat was placed in the open areas of the 24 sq. ft. space, simplifying the installation process for the contractor/installer and avoiding the need for complex cable spacing. Once installed under the new tile, the system transformed the bathroom from a cold zone into a sanctuary of warmth. The final step was the connection to the nSpire Touch thermostat, allowing the homeowner to easily program a heating schedule, ensuring the floor was perfectly warm before their morning routine and remaining energy efficient when not in use. This minimal investment delivered maximum, long-term comfort and elevated the luxury feel of the entire master bath. Featured Products TempZone™ Easy MatA pre-sized, roll-out mat for quick installation under tile, stone, or marble. The electric floor heating mat provides $15\text{ watts/sq. ft.}$ for comfortable floor warming and comes with WarmlyYours' 25-year warranty. nSpire Touch Thermostat A sleek, programmable thermostat with a 3.5" full-color touchscreen. Features a built-in GFCI, an intuitive setup wizard, and precise temperature control for optimal energy efficient heating and comfort. Circuit Check An essential installation tool that continuously monitors the heating mat's electrical continuity, ensuring the system is safe and fully functional before, during, and after installation.

* This 360-watt system costs approximately $0.04 CAD per hour to run during Off-Peak times in Mississauga, based on local electricity rates. This low operating cost translates to less than $10 CAD per month for daily use, providing maximum radiant comfort for a minimal investment.

Project Gallery

Quotes

These quotes are linked to this showcase and include the products used in this project or recommended for a similar-sized project.

Frequently Asked Questions

Based on current Ontario Off-Peak residential electricity rates approx 9.8¢/kWh, this specific 24 sq. ft. system with a 360 Watt load costs approximately 0.04 CAD per hour or less than $10 per month when used for 8 hours daily during Off-Peak times. The cost is notably low because the system only heats the floor, not the air.
In many cases, yes. While this project used the system for luxurious floor warming beneath cold tile, WarmlyYours systems generating $12\text{ to } 15\text{ watts per square foot}$ can serve as the primary heat source for well-insulated bathrooms. For a definitive answer, a detailed Heat Loss Calculation is required for the specific room and location.
The TempZone™ Easy Mat is perfectly suited for installation under thermally-conductive materials like tile, marble, or stone, as used in this Mississauga bathroom. These materials transfer the warmth from the heating element quickly and hold the heat well, creating a truly luxurious and warm surface for your feet.
Yes, electric radiant floor heating is highly energy efficient compared to traditional forced-air heating. It uses radiant heat to warm objects and people directly, starting from the floor up, which can feel warmer at a lower thermostat setting. Paired with a programmable thermostat like the nSpire Touch, you only heat the floor when needed, maximizing energy savings.
