The shock of a freezing tile floor first thing in the morning can ruin an otherwise peaceful routine, especially during damp Pacific Northwest winters. When remodeling their bathroom, these North Vancouver homeowners knew they needed to fix this exact comfort gap before laying down their new stone tile. By choosing a custom-fit WarmlyYours in-floor heating solution, they transformed a cold, uninviting footprint into a highly efficient, spa-like sanctuary that warms from the ground up.
Project Details
| Specification | Detail |
| Location | North Vancouver, British Columbia, Canada |
| Space Type | Master Bathroom |
| Flooring / Surface Type | Tile, Marble, or Stone |
| System Type | Radiant Floor Heating / Floor Warming |
| Total Square Footage | 36 sq. ft. |
| Technical Specs | 120V / 540W / 5A |
| Wattage per Sq. Ft. | 15 Watts per sq. ft. |
| Cable Spacing | 3 inches on center (OC) |
| Products Used | WarmlyYours TempZone™ Flex Roll, nSpire Touch Thermostat |
| Operating Cost | ~$0.04 per hour |
| Professional Installer | VSO Contracting / Nido Developments |
Real-World Comfort: Overcoming the Coastal Chill
The Problem
The primary challenge for these homeowners was the penetrating, damp winter cold of coastal British Columbia, which makes dense materials like stone, marble, and ceramic tile feel like walking on solid ice. Stepping out of a warm morning shower directly onto a freezing tile surface created an uncomfortable daily routine. To complete their bathroom remodel successfully, they needed a low-profile electric floor heating solution that could eliminate this biting chill without raising the floor profile or causing complicated installation delays in a tight layout.

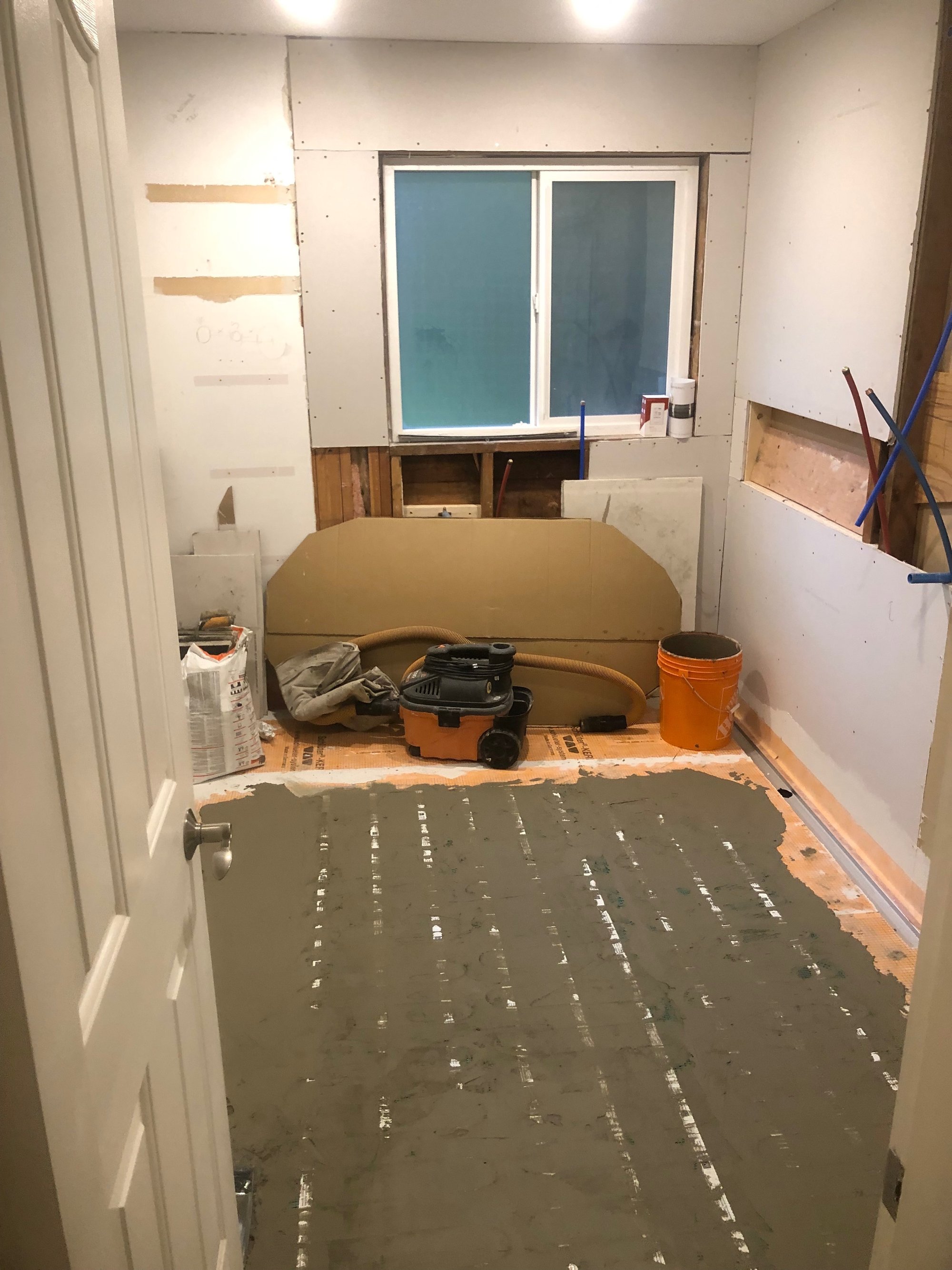

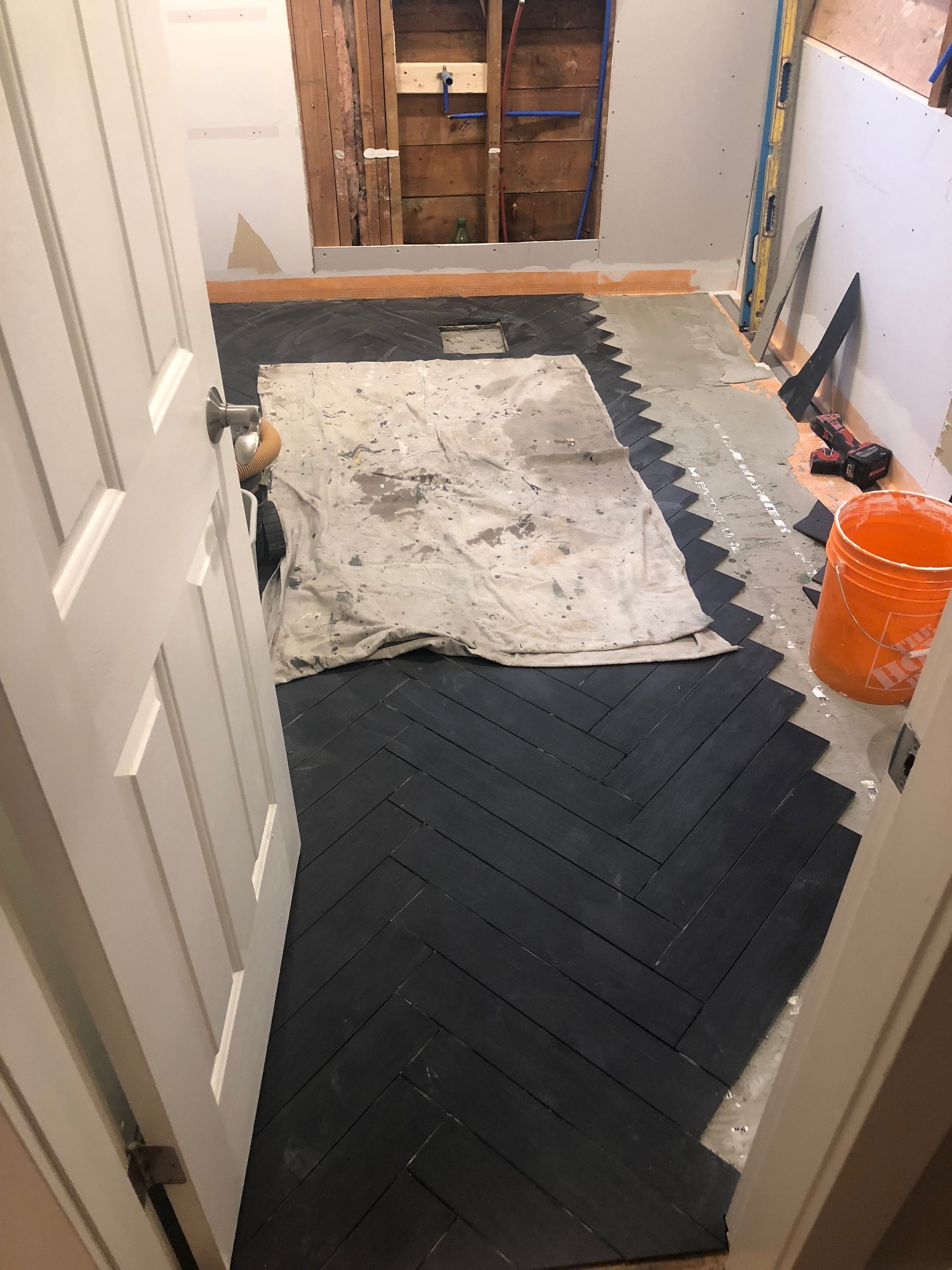

The Solution

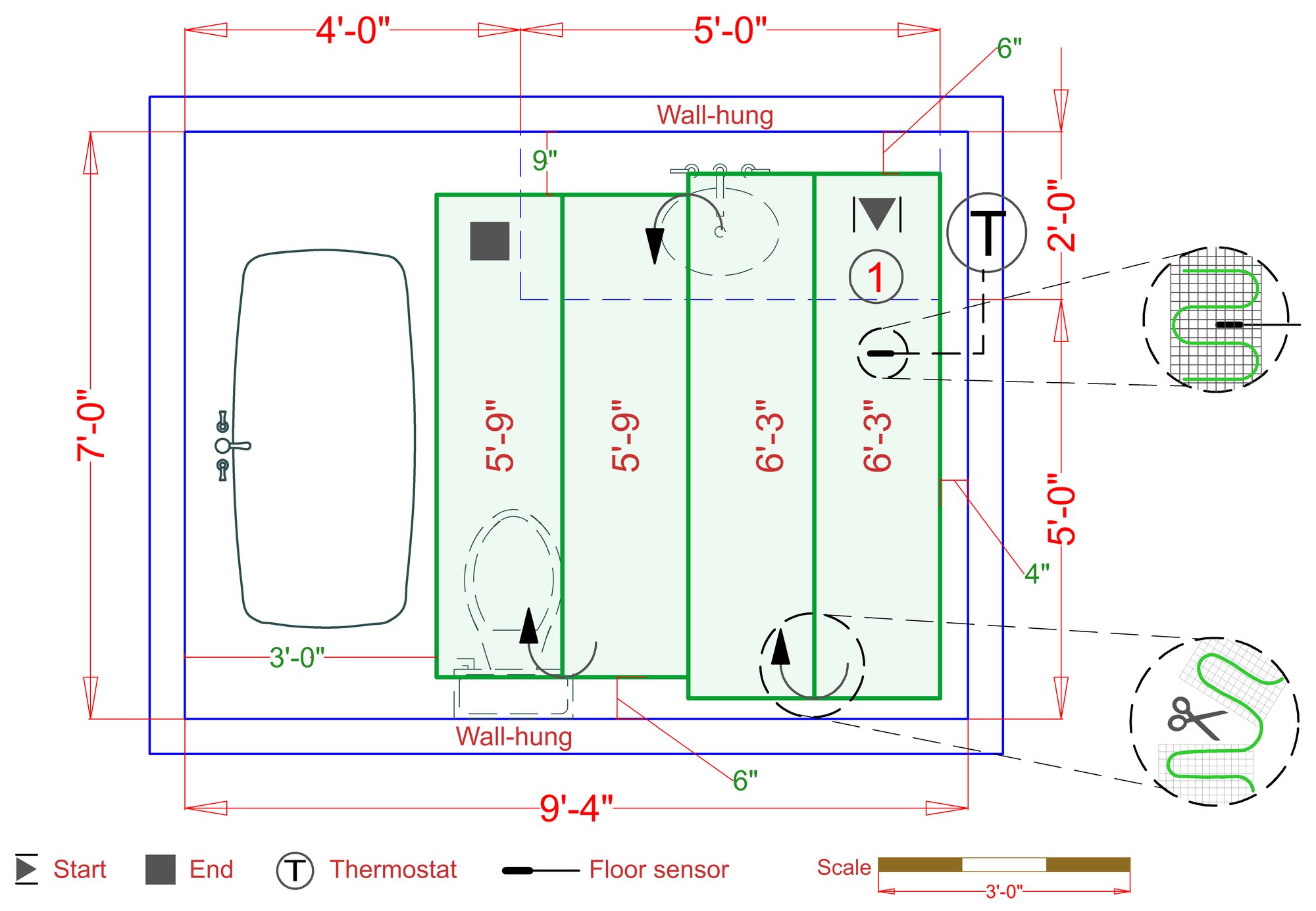

To deliver uniform warmth, the professional installation team at VSO Contracting and Nido Developments deployed the WarmlyYours TempZone™ Flex Roll system. This specialized floor warming mat features a flexible heating cable woven into a mesh backer, engineered precisely for standard bathroom configurations. Its cut-and-turn design allowed the installers to easily trim and rotate the mesh backing to navigate around the bathroom vanity, toilet, and shower envelope while maintaining a perfectly uniform 3-inch cable spacing. The heating grid was then paired with an interactive nSpire Touch Thermostat to manage daily warmth efficiently.

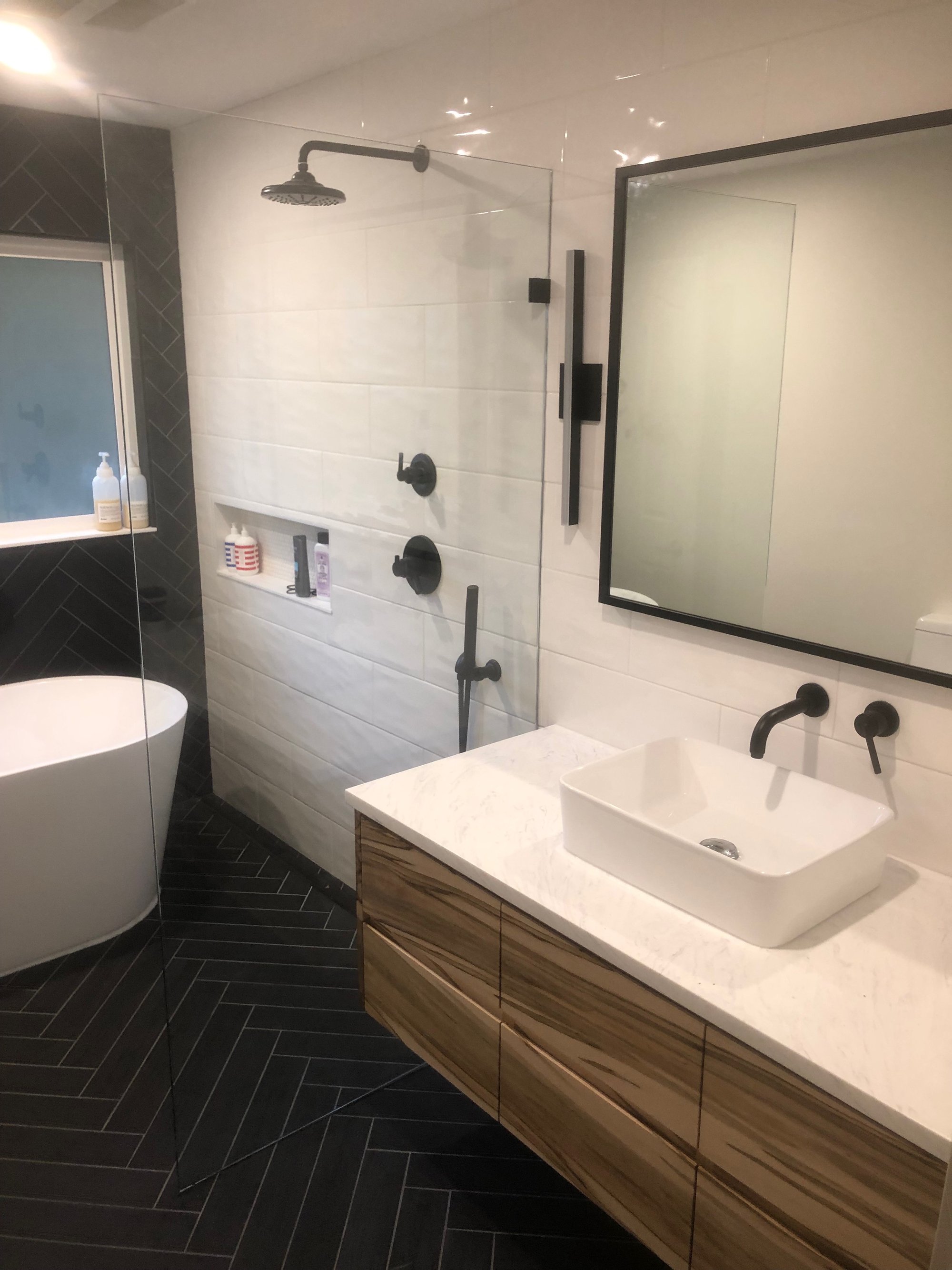

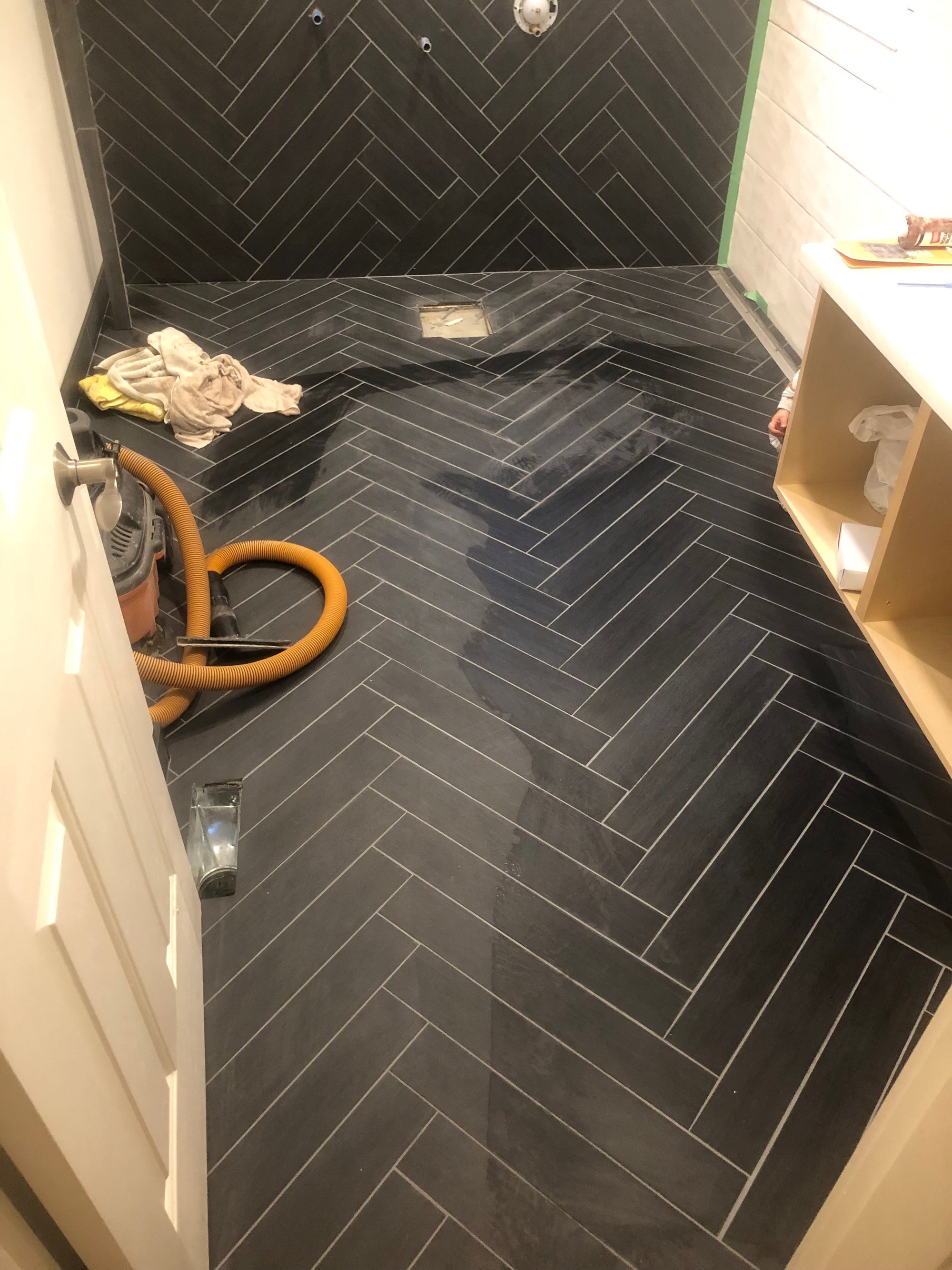

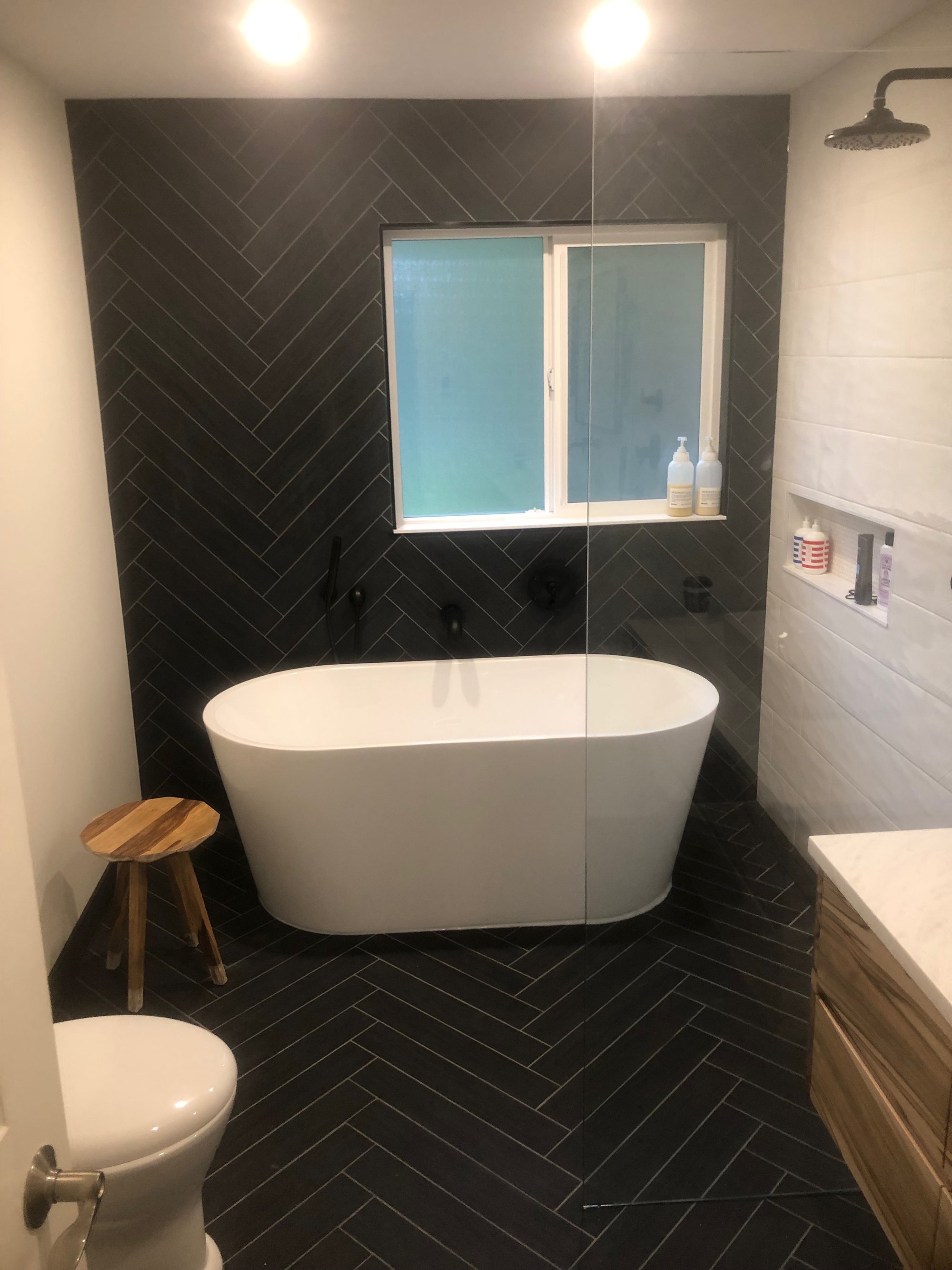

The Outcome
electric radiant systemThe installation completely transformed the master bathroom from an uninviting, chilly space into a warm, spa-like home sanctuary. By combining the conductive properties of stone tiling with an energy-efficient electric radiant system, the homeowners now enjoy soothing, barefoot-friendly comfort exactly when they wake up. The programmable thermostat provides complete peace of mind, running automatically during their busiest morning and evening hours while cutting power consumption during the day to keep monthly utility expenses remarkably low.
Featured Products
TempZone™ Flex Roll (120V)
Engineered for ultimate versatility in residential rooms, this electric floor heating mat features an ultra-low profile that doesn't raise bathroom floor lines. The cut-and-turn mesh structure allows installers to quickly alter directions during layout, providing complete, wall-to-wall radiant coverage around complex bathroom fixtures.
nSpire Touch Thermostat
A sleek, user-friendly programmable thermostat boasting a crystal-clear touchscreen interface. It provides precise temperature control alongside intuitive scheduling tools, allowing homeowners to maximize energy efficiency by heating the floors only when the room is actively in use.
