A large, beautifully tiled family room should be the heart of a home. But during harsh Maryland winters, cold floors and persistent drafts can turn an inviting space into an unusable, frigid zone. When standard heating setups leave rooms uncomfortable and force families to retreat elsewhere, radiant floor heating transforms these drafty challenges into spaces of cozy, reliable warmth. WarmlyYours successfully turned a 325 sq. ft. cold spot into the most comfortable room in the house, proving that you don't have to compromise on stone or tile flooring to maintain a warm, welcoming home.
Project Details
| Location | Mount Airy, Maryland |
Space Type | Family Room |
Flooring / Surface Type | Tile, Marble, or Stone |
System Type | Radiant Floor Heating |
Coverage | 325 sq. ft. (288 sq. ft. heated) |
Voltage / Wattage / Amps | 240V / 4,319W / 18A |
Wattage per Sq. Ft. | 15 Watts per sq. ft. |
Cable Spacing | 3 inches OC (On Center) |
Operating Cost | $0.76 per hour |
WarmlyYours Products Used | TempZone™ Flex Rolls, CT230-GA Power Modules, TH115-AF-12VDC Thermostat |
Installer | Doug / D and S Quality Home Improvement |
The Story & Expert Attribution
The Problem

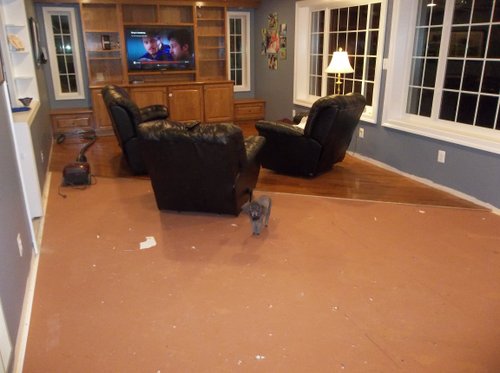

Large living areas featuring tile or stone flooring are notoriously difficult to keep warm during the winter. For one Maryland family, their expansive 325 square foot family room became completely unusable during the coldest months of the year. The existing heating setup simply couldn't combat the deep chill radiating from the tile floor, creating a drafty, uncomfortable atmosphere that forced the homeowners to abandon the space altogether when the frost set in.
The Solution

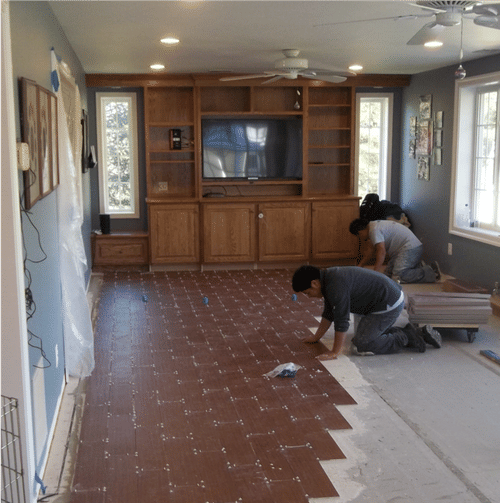

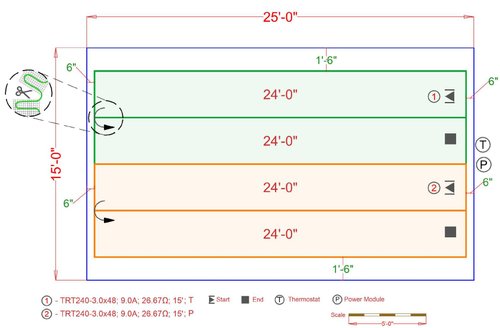

Doug from D and S Quality Home Improvement recognized that a conventional space heater wouldn't solve the core issue of a freezing floor subfloor. He specified a high-performance WarmlyYours TempZone™ floor warming system to be embedded directly beneath the new tile installation. By utilizing two 144 sq. ft. TempZone™ Flex Rolls, Doug covered the main 288 sq. ft. living area with consistent radiant heat. Because the large-scale 18-amp system exceeded standard thermostat limits, he integrated power modules to safely manage and distribute the electrical load across the entire layout.
The Outcome

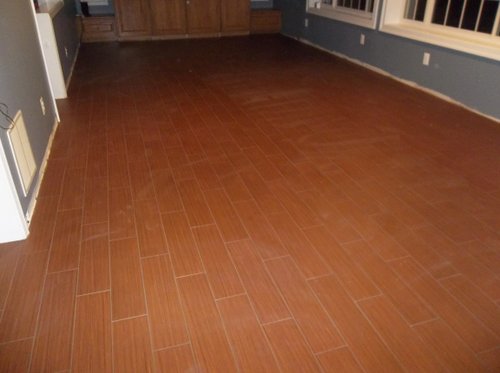

The transformation was immediate and absolute. Even when outdoor temperatures plummeted to a bitter -4°F, setting the floor thermostat to 88°F easily maintained a perfectly stable, draft-free 70°F ambient environment throughout the room. The system proved so remarkably efficient and comfortable that the homeowners permanently turned off their supplemental propane heater. The once-avoided cold spot is now the absolute favorite room in the house for gathering, relaxing, and walking barefoot all winter long.
Featured Products

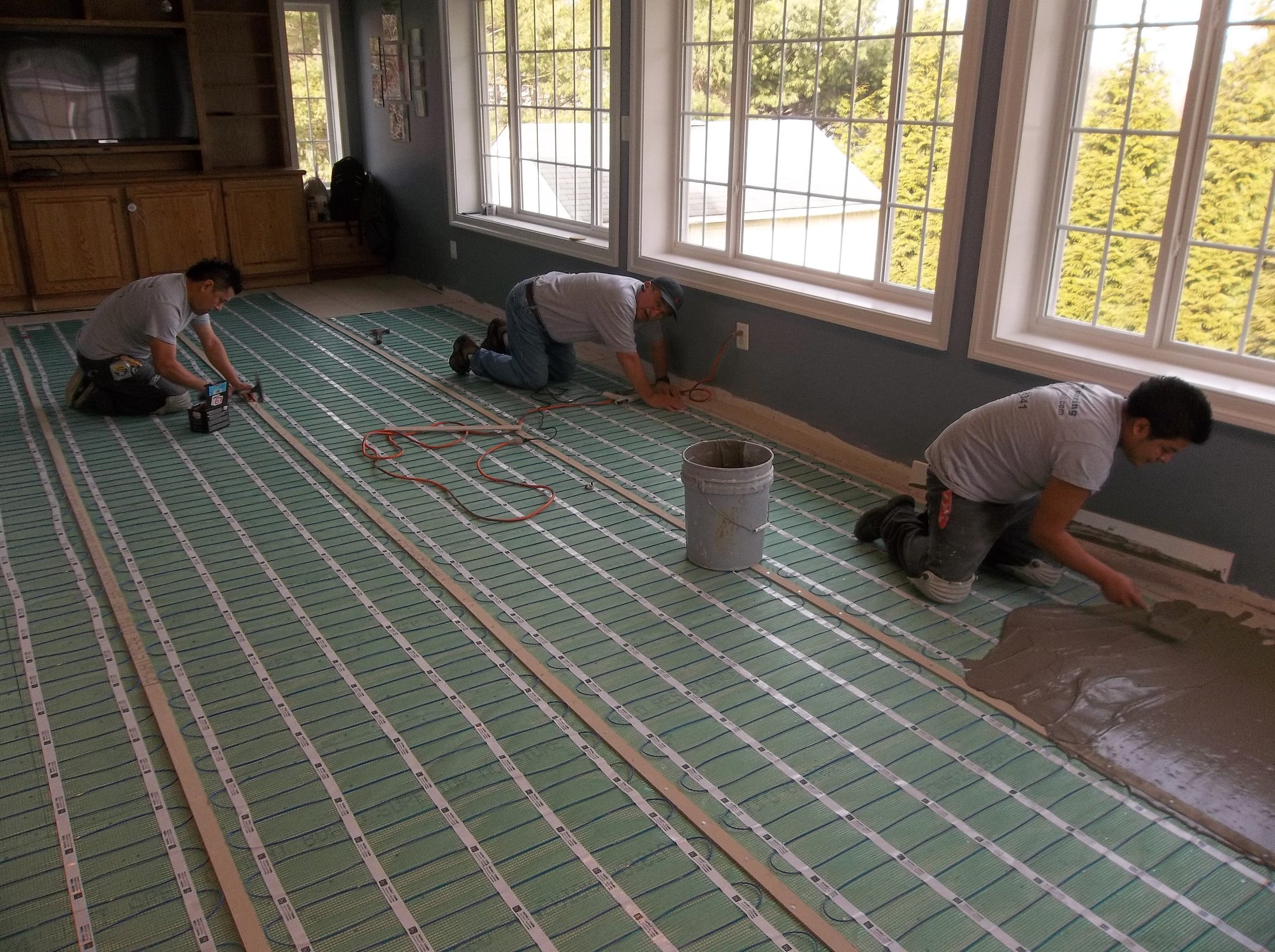

- TempZone™ Flex Rolls: Selected for their rapid installation and exceptional thermal coverage, these rolls feature premium heating cable pre-spaced on a mesh backing, ensuring an even 15-watt-per-square-foot density beneath heavy tile or stone.
- TH115-AF-12VDC Thermostat: This master controller provides reliable, straightforward temperature management, utilizing an included floor sensor to monitor exact surface temperatures for optimal energy efficiency.
- CT230-GA Power Modules: These vital safety components act as an extension of the thermostat, allowing the large 18-amp layout to be safely controlled from a single interface by switching secondary electrical circuits simultaneously.
