This project showcases how radiant floor heating transformed a 167 sq. ft. sunroom in West Springfield, Virginia, into a year-round comfortable living space. The homeowner wanted to ensure the new tile floor in their addition remained warm and inviting, even during the cooler months. WarmlyYours partnered with Moss Building and Design to install an energy-efficient TempZone™ Cable system, successfully overcoming the challenge of cold tile floors and maximizing the utility and value of the new sunroom.
Project Details
- Location: West Springfield, Virginia
- Heated Space Type: Sunroom / Addition
- Insulated Area: 167 sq. ft.
- Heated Area (Coverage): 125 sq. ft.
- System Voltage: 120V
- Wattage: 1,396 W
- Amperage: 12 A
- Flooring: Tile, Marble, or Stone
- Products Used: TempZone™ Floor Heating Cable (120V, 3.7W/ft.) and nSpire Touch Thermostat

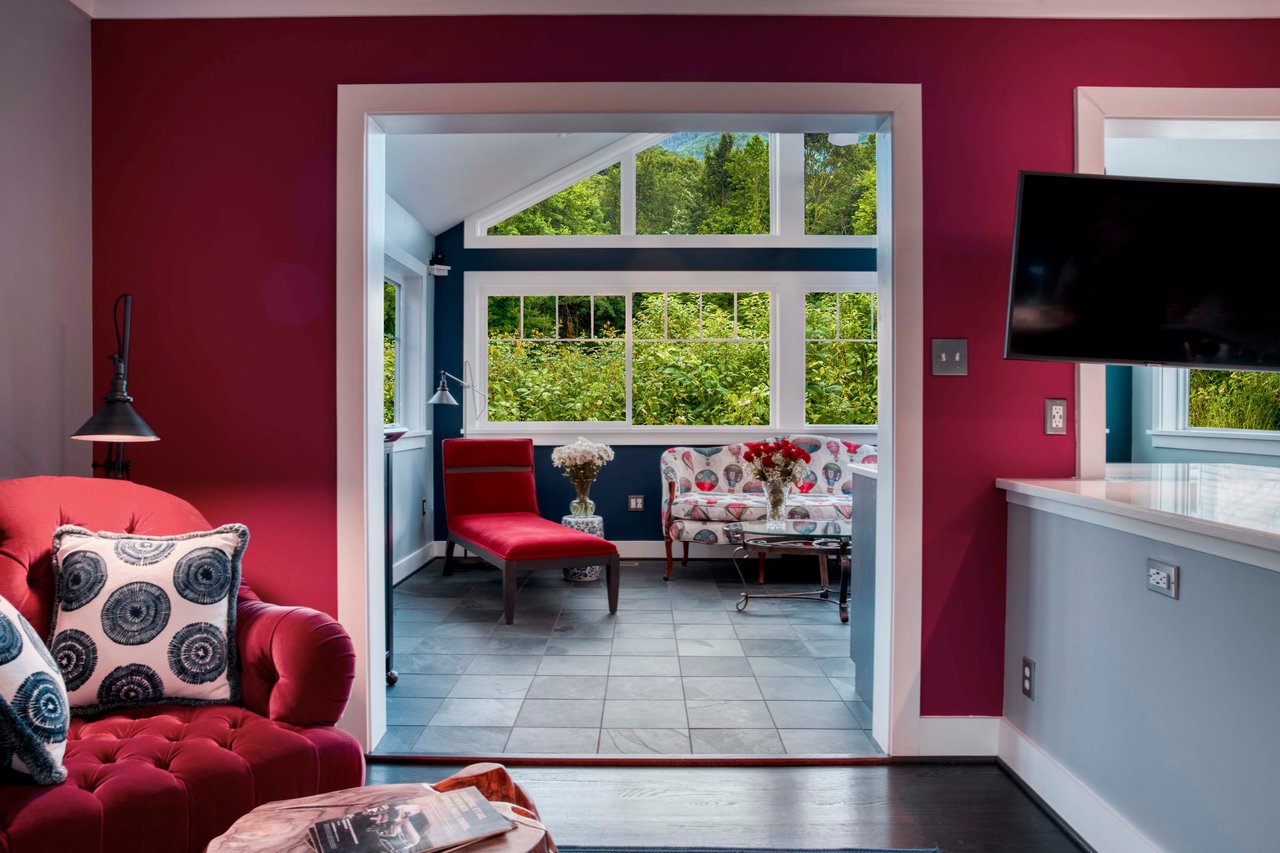

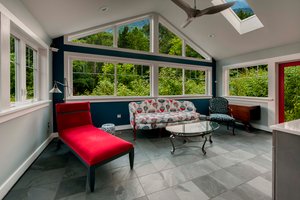

Upgrading a Sunroom with In-Floor Heating
Moss Building and Design, a trusted local contractor, was tasked with building a new sunroom addition in West Springfield, VA. The choice of tile, marble, or stone flooring for its durability and aesthetic appeal presented a common challenge: these materials tend to feel unpleasantly cold, especially in a space exposed to many windows. The design goal was to make this new room a comfortable retreat for every season, which would be impossible without a proper floor warming solution.

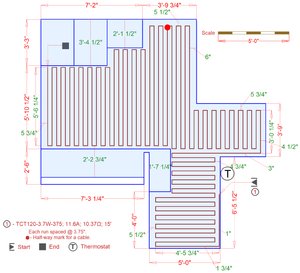

The team selected the WarmlyYours TempZone™ Cable system, an ideal solution for customizing coverage in irregularly shaped spaces. The system was designed to provide 125 sq. ft. of comfortable, energy-efficient heat coverage under the new tile floor. By embedding the electric floor heating cables directly beneath the tile, the system heats the floor surface directly, providing gentle, consistent warmth that radiates up into the room.1 This approach successfully solved the cold floor problem, turning the sunroom into a cozy and highly valued part of the home, boosting both comfort and property value.
Featured Products
- TempZone™ Floor Heating Cable (120V): This is a high-performance, shielded heating cable that delivers 3.7 Watts per linear foot. It is the core of the system, installed for custom coverage beneath tile, stone, or marble floors. It ensures targeted heat and is a durable, maintenance-free electric radiant floor heating solution.
- nSpire Touch: Touch Thermostat : The brain of the system, this programmable thermostat features a sleek touchscreen, a Class A GFCI, and a floor sensor. It allows the homeowner to easily program the heating schedule to maximize energy efficiency and ensure the floor is warm exactly when needed.
- Circuit Check (SKU: SS-01): A mandatory installation accessory used to monitor the heating cable throughout the installation process. It continuously checks for shorts or breaks in the cable, providing an audible alarm to ensure the system is undamaged before the flooring is installed.
- (FHE-ROUGH-IN-KIT-S3): A necessary kit providing the components (including the junction box and conduits) needed to run the power and sensor leads from the heating cable to the thermostat location, ensuring a safe and compliant electrical installation.
- TC-MEM-BL-162 : Since this exact SKU was not in the original list, this typically represents a heating mat or similar large-format product. This item would be utilized for its specific dimensions or easy-to-roll format to further optimize heat coverage across the floor area. (Note: In this specific project, the cable was used, but this SKU is included per your request as a featured product.)
