Programmable Timer Towel Warmer Control
Part Number: CO-TI-PLS750Past Model
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
Common Support Questions
How close can a WarmlyYours electric towel warmer be installed to a shower or tub? Can an electric towel warmer be mounted in a shower enclosure?
A WarmlyYours electric towel warmer can't be installed in a tub or shower enclosure. A WarmlyYours electric heated towel rack should be installed at least 24” away from a wet location like a shower, tub, etc. Always install a WarmlyYours electric towel warmer in compliance with all local building and electrical codes.
Need more help? View support options
Does a towel warmer need to be paired with a GFCI circuit or outlet?
Yes. WarmlyYours towel warmers are to be installed in accordance with the instructions in the manual and CEC, NEC, and local code guidelines relating to electrical fixtures in bathrooms. A towel warmer with a hardwired connection must be on a GFCI-protected circuit and be wired by a professional who is certified to do electrical wiring. Towel warmer models with plug-in connections should be used with a GFCI outlet.
Need more help? View support options
What size wires and breaker will I need for my electric towel warmer?
WarmlyYours towel warmers are all 120VAC units. Towel warmers are available in wattages from 35 watts all the way up to 250 watts. A single towel warmer would typically range from 1-2 amps based on the model. Wire size and breaker size need to be selected based on the total amperage of the towel warmer(s). For towel warmers installed in bathrooms, a GFCI breaker is required.
Need more help? View support options
Can I use a regular light switch to control a towel warmer?
Yes, regular (non-dimming) light switch can be used as an external switch to control a towel warmer in addition to a built-in switch on the towel warmer itself. A GFCI breaker powering the switch may be required by local Electrical Code.
Need more help? View support options
What does the Ground Fault Circuit Interrupter (GFCI/GFEP) do that the Circuit Breaker doesn't?
A GFCI/GFEP (Ground Fault Circuit Interrupter / Ground Fault Equipment Protection) works differently than a circuit breaker by specifically detecting a small imbalance in electrical current between the hot and neutral wires, which indicates a potential ground fault (like a person touching a live wire), and instantly shutting off the power to prevent shock, while a circuit breaker only trips when there's a significant overload in current flow on the circuit, like a short circuit or too many appliances plugged in.
Need more help? View support options
Will a circuit breaker protect against a power surge?
No, a circuit breaker will NOT protect against a power surge; a circuit breakers primary function is to protect against excessive current flow (overload), while a surge protector is specifically designed to handle voltage spikes, which are what power surges are considered to be.
Need more help? View support options
How do I get into manual or automatic (programmed) modes on the Programmable Timer?
Press the main button for 3 seconds, select the mode menu, the hand icon indicates manual operation and the clock icon indicates automatic operation.
Need more help? View support options
At what height should a wall-mounted towel warmer be mounted?
A good starting point is to follow the recommendation often provided in the installation manual. The location of your electric towel warmer should take building code, safety, functionality, and aesthetics into consideration. If the towel warmer is mounted too low, towels may drag on the floor, causing tripping or mold issues. Mounting it higher reduces risk of burn, especially for children or those who may accidentally bump into it. If you are unsure what height is best for you, consult your WarmlyYours representative at +1 (800) 875-5285.
Need more help? View support options
How do I turn the Programmable Timer off?
Briefly press the main button to turn the switch on/off.
Need more help? View support options
How can I tell if the Programmable Timer is trying to heat the floor?
The LED in lower right corner of the thermostat will illuminate.
Need more help? View support options
How do I erase a program from the Programmable Timer?
Press and hold the main button for the Menu option, select Prog. Press and release the main button until the days of the week are flashing. Use the right arrow to scroll through the days of the week until you get the word NONE. This means there will be no schedule for that specific program.
Need more help? View support options
How do I temporarily override the programmed setting of the Programmable Timer?
Change the 'state' by pressing the main button briefly. The load state will flash 'On' or 'Off' to indicate the change and will remain in effect until the next program cycle is invoked or the main button is pressed again.
Need more help? View support options
How many programs can be set on the Programmable Timer?
21 "on" programs and 21 "off" programs.
Need more help? View support options
How to manually turn on or off the programmable timer (GK16-30090-0002)?
Press the push pad to temporarily turn it on or off, or hold the pad down for several seconds to permanently turn it on or off.
Ensure the towel warmer built-in switch is in the ON position.
See the 'Timer Override' section of the Timer Switch Manual for further details.
Need more help? View support options
I have a lock icon on my screen, how do I unlock the Programmable Timer?
Within 2 seconds, press the left button twice then press the right button twice.
Need more help? View support options
Where do I find my latitude and longitude coordinates, to enter into the Programmable Timer for the sunrise/sunset feature?
By default the Programable Timer is set to +45 longitude and -75 latitude, this is fine for most North American cities. To find your cities coordinates, go to www.geonames.org, or simply use a GPS device.
Note: enter a negative number for a south latitude or a west longitude.
Need more help? View support options
Why does a GFCI (Ground Fault Circuit Interrupter) fail?
GFCI can fail for various reasons, such as wear and tear, moisture, corrosion, power surges, faulty wiring, or improper installation. Some of these causes can be prevented by regular inspection and maintenance, while others may require professional assistance. It is important to note that GFCI devices (ex. thermostat, breakers, outlets) should be tested regularly as these do wear out over time.
Need more help? View support options
Why is my Programmable Timer's display faded / irregular?
The ambient room temperature is either too low or too high, affecting the thermostat's display.
Need more help? View support options
Publications and Manuals
Operation Manuals

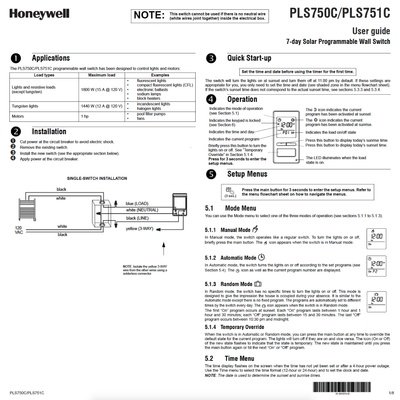

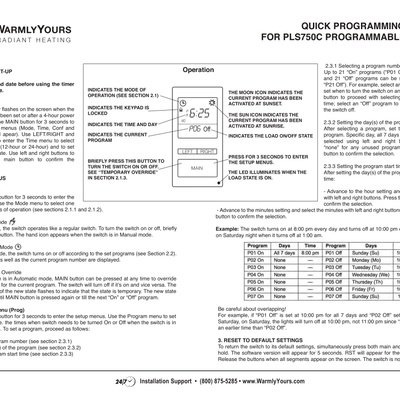

PLS750C Programmable Timer Quick Programming Guide (Legacy) (English)PLS750C Programmable Timer User Guide (English)
Specifications
Electrical
| Connection | Single Pole or 3-Way |
| Connection Method | Hardwired |
| Maximum Current | 15 A |
| Maximum Load (Resistive Only) | 1800 W |
| Supply | 120 VAC, 60Hz |
| Voltage | 120 V |
Product Dimensions
| Depth | 1“ |
| Length | 3“ |
| Weight | 0.4 lbs |
| Width | 2“ |
Identifiers
| SKU | CO-TI-PLS750 |
| UPC (GTIN-12) | 881308047542 |
