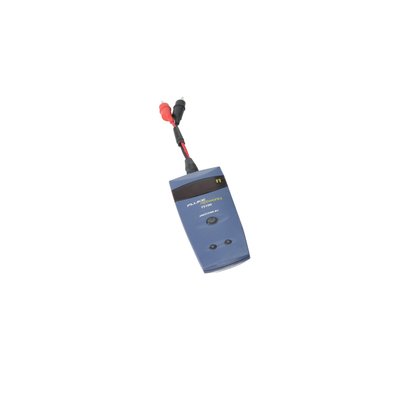

Cable Fault Finder SHORTSTOP


Part Number: SHORTSTOP
This support page provides publications, manuals, specifications, and videos


publication
Publications and Manuals (7)

specifications
Specifications (24)

Videos (4)

Similar Items (8)

Create a new Support Request

Publications and Manuals



Specifications


Warranty / Certifications

CSA File Number CAN/CSA-C22.2 No. 60950-1-03 CAN/CSA-C22.2 No. 1010.1-92 CSA-C22.2 No. 1010.1B-97, UL/ANSI 3111-1

Performance

Cable Type Virtually all two or more conductor cables
Length Accuracy ±2 feet for cables less than 10 feet ±5 feet for cables longer than 10 feet and shorter than 200 feet ±3 % and ±5 feet for cables longer than 200 feet
Low Battery Indicator flashes when battery voltage falls below 4.1 V
Maximum Length 2500 feet on certain cable types, 2000 feet on most cable types, and 500 feet on very lossy cables. The tester will display –Err if the cable is too long to be correctly measured.
Measurement Rate Maximum of 4 complete measurements per second, decreasing to 2 seconds per measurement based on cable size and uniformity.
Measurement Technology Time Domain Reflectometry (TDR) with 50 Ω drive impedance, 6 V maximum pulse height
Minimum Length No minimum length. Minimum non-zero reading is 2 feet.
Operating Humidity Range 0 % to 80 %
Operation Temperature Range 32 °F to 131 °F (0 °C to 55 °C)
Power 4 x AA alkaline batteries, provide 50 hours of operation. Reverse Battery Protection. No damage to the tester will occur if the batteries are installed backwards.
Storage Humidity Range 0 % to 100 %
Storage Temperature Range -40 °F to 158 °F (-40 °C to 70°C)
Tone Injection Approximately 1 kHz at an amplitude of 80 % of battery voltage. Variable frequency and cadence. Tone characteristic is changed as cable condition changes to “normal-open” from any other condition.
VOP Adjustable from -20- to -99-, retained during power off. Default to -66- when batteries are changed.

Logistics

Country of Origin (COO) United States of America

Product Dimensions

Depth 1.5″
Length 7.4″
Width 2.75″

Electrical

High Voltage Detection An ac voltage of more than 5 V rms will trigger the High Voltage Warning.
Impedance Range 35 Ω to 330 Ω with auto-compensation within this range. Cables with an impedance outside this range will not be properly tested and may produce erratic or incorrect readings.
Input Protection 250 V rms ac, continuous or intermittent

Construction

Moisture If the tester is exposed to water, some may get inside, but it will suffer no damage.

Identifiers

SKU SHORTSTOP
