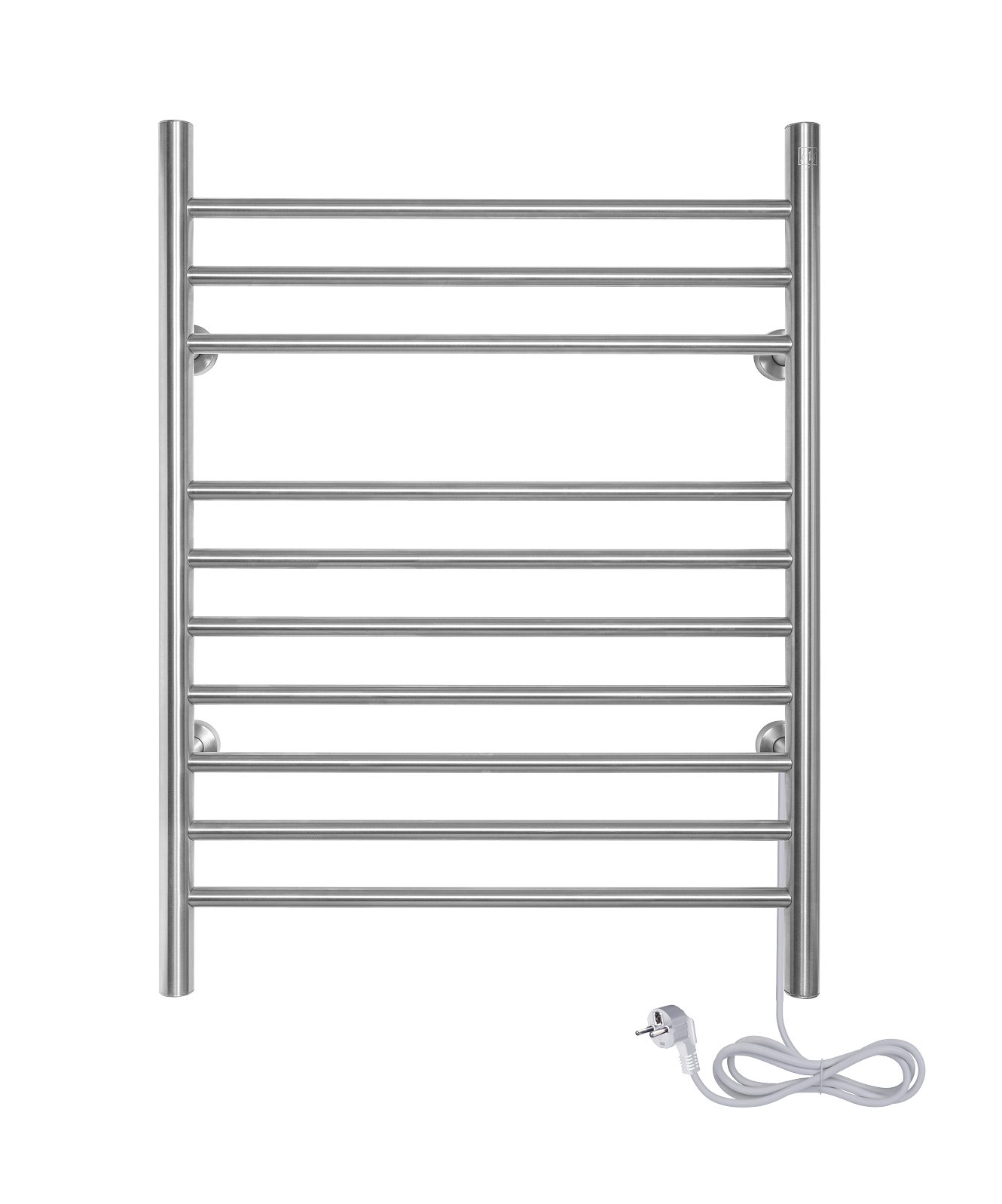

Infinity Towel Warmer, Brushed, Dual Connection, 10 Bars
This support page provides publications, manuals, specifications, support articles, and common support questions
Common Support Questions
How close can a WarmlyYours electric towel warmer be installed to a shower or tub? Can an electric towel warmer be mounted in a shower enclosure?
A WarmlyYours electric towel warmer can't be installed in a tub or shower enclosure. A WarmlyYours electric heated towel rack should be installed at least 24” away from a wet location like a shower, tub, etc. Always install a WarmlyYours electric towel warmer in compliance with all local building and electrical codes.
Does a towel warmer need to be paired with a GFCI circuit or outlet?
Yes. WarmlyYours towel warmers are to be installed in accordance with the instructions in the manual and CEC, NEC, and local code guidelines relating to electrical fixtures in bathrooms. A towel warmer with a hardwired connection must be on a GFCI-protected circuit and be wired by a professional who is certified to do electrical wiring. Towel warmer models with plug-in connections should be used with a GFCI outlet.
7 people found this helpful. Did you find this helpful? Yes NoCan I use a regular light switch to control a towel warmer?
Yes, regular (non-dimming) light switch can be used as an external switch to control a towel warmer in addition to a built-in switch on the towel warmer itself. A GFCI breaker powering the switch may be required by local Electrical Code.
2 people found this helpful. Did you find this helpful? Yes NoAt what height should a wall-mounted towel warmer be mounted?
A good starting point is to follow the recommendation often provided in the installation manual. The location of your electric towel warmer should take building code, safety, functionality, and aesthetics into consideration. If the towel warmer is mounted too low, towels may drag on the floor, causing tripping or mold issues. Mounting it higher reduces risk of burn, especially for children or those who may accidentally bump into it. If you are unsure what height is best for you, consult your WarmlyYours representative at +1 (800) 875-5285.
Did you find this helpful? Yes NoPublications and Manuals
Specifications
Electrical
| Amps | 0.65 A |
| Connection Methods | Plug-in or Hardwired |
| Cord Length | 1.9 m |
| Ingress Protection (IPxx) Rating | IP44 |
| Ohms | 352.67 Ω |
| On/Off Switch | Yes |
| Plug-Type | CEE 7/7 |
| Thermal Power | 0.15 kW |
| Voltage | 230 V |
| Watts | 150 W |
Performance
| Average Surface Temperature | 65 °C |
| BTU Per Hour | 512 Btu |
| Heat-up Time | 15-20 minutes |
| Heating Area | 1 m² |
| TempSmart Safety Limit | 65°C - 75°C |
| Towel Capacity | 1-2 |
Appearance
| Bar Arrangement | 2 Groups of 3 and 7 |
| Bar Shape | Round |
| Color | Silver |
| Cord Color | White |
| Finish | Brushed Steel |
| Material | Steel |
| Overall Towel Warmer Shape | Rectangular |
| Steel Type | 304-stainless steel |
| Style | Classic |
| Towel Bars | 10 |
Product Dimensions
| Bar Thickness (Radius) | 9.5 mm |
| Depth | 121 mm |
| Height | 813 mm |
| Size | 600 x 813 x 121 mm |
| Weight | 10 lbs |
| Width | 600 mm |
Installation
| Mounting Method | Wall Mounted |
| Rotatable | No |
Logistics
| Package Contents | Towel Warmer, installation manual and hardware kit |
Identifiers
| SKU | TWE-F10BS-HP |
| Towel Warmer Collection Name | Classic Collection |
| UPC (GTIN-12) | 881308069490 |
X-Maxeda
| Special Feature 1 | Dimensions: 60 x 81.3 x 12.1 cm |
| Special Feature 2 | 150W, heat output of 512 BTUs/hour |
| Special Feature 3 | 10 heated bars with brushed stainless finish |
| Special Feature 4 | Dual connection: plug-in or hardwire (230V) |
