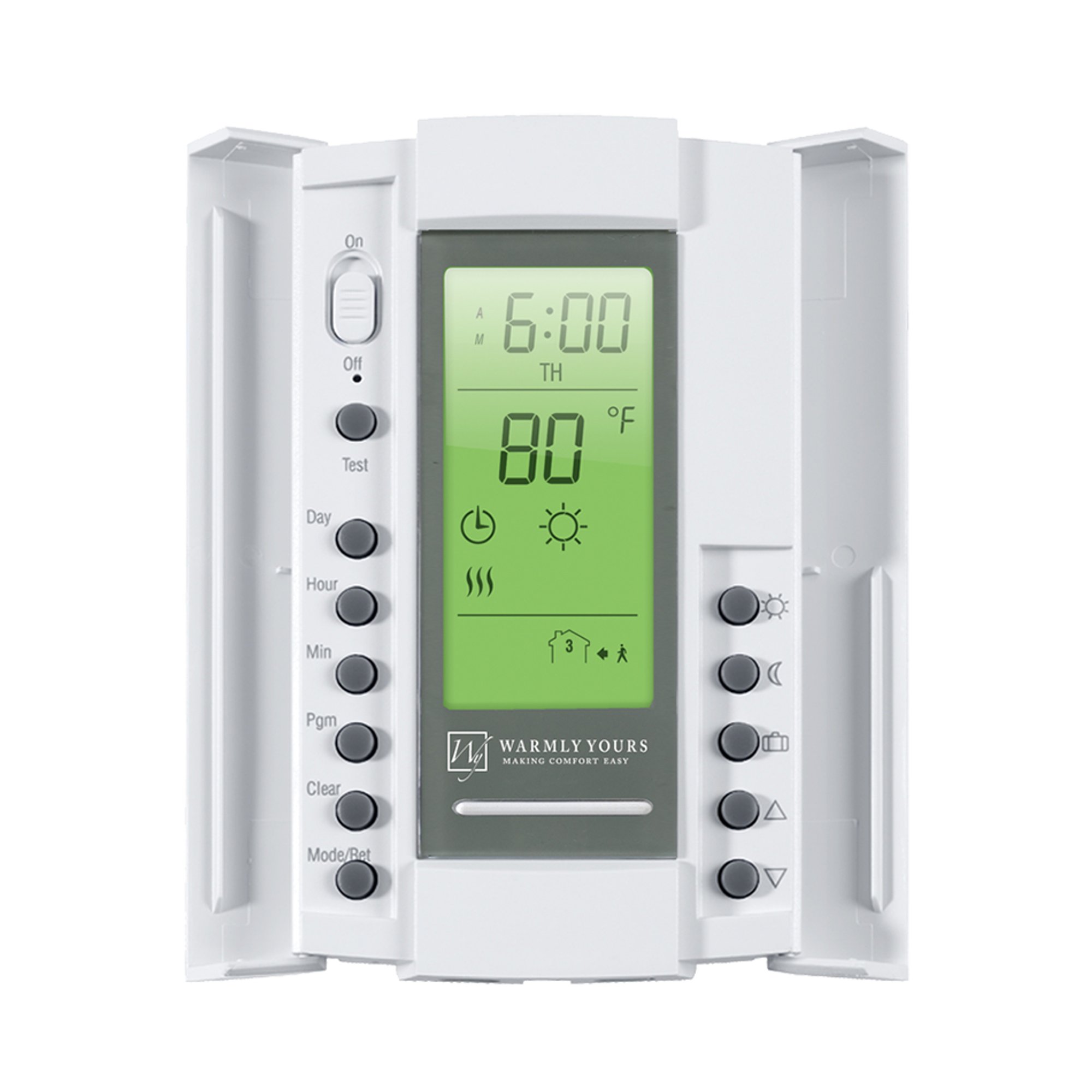

SmartStat 7-Day Programmable Thermostat

4.88
Based on 871 reviews

Refurbished

Currently Unavailable

There are currently no refurbished version of this product.

Buy it New: $269

SmartStat™ Programmable Thermostat Description

The SmartStat™ Programmable Thermostat allowsyou to program up to 4 setting changes for each day of the week and includesmanual setbacks to "high" and a "low" temperature levels.An in-floor sensor ensures accurate temperature control. The SmartStat™features an easy-to-read, backlit digital display and battery backup in case ofpower failure.

Programming the SmartStat™ to match yourschedule allows you to enjoy the comfort of radiant heat while saving energy.The Early Start mode allows the thermostat to “learn” what time it needsactivate the system to ensure the floor is warmed to the desired temperature atthe time you programmed. The SmartStat™ features a built-in GFCI for safety andaccommodates either 120V or 240V floor-heating systems. For radiant floorheating installations larger than 240 sq. ft., a Master Thermostat with PowerModule or a Relay Contactor is also required.

Specifications

Electrical

Connection Double or Single pole, Line 1 & Line 2 or Hot & Neutral
Connection Method Hardwired
Ground Fault Protection (GFCI) Class A, 5 mA
Maximum Current 15 A
Maximum Load (Resistive Only) 1800 W - 120 V, 3600 W - 240 V, 15 A
Voltage 120/240 V

Product Dimensions

Depth 2″
Installed Depth 0.75″
Length 4.875″
Weight 1 lbs
Width 2.75″

Thermostat

Has Floor Sensor y

Identifiers

SKU TH115-AF-GA-08-BTK
UPC (GTIN-12) 881308068813

Warranty / Certifications

Warranty Limited 3-year warranty and lifetime technical support

Frequently Asked Questions

Showing all 5 questions

While WarmlyYours electric radiant floor heating systems are typically installed by your floor covering contractor, a licensed electrician is recommended for the final thermostat hook-up. With every quote, we provide an Installation Plan layout, together with an electrical plan that has all the info required for the electrician.

40 people found this helpful Was this helpful? Yes No

A floor heating system can work as a supplemental heating source and make the basement warmer. If more heat needs to be added to the room, you can experiment with setting the floor heating thermostat to higher temperatures.

6 people found this helpful Was this helpful? Yes No

The breaker and wire sizes are selected based on the total amperage of the WarmlyYours heating system connected to a single thermostat. This information is on the WarmlyYours heating system's installation plan, electrical plan, or UL label. Based on guidelines from the National Electrical Code: loads up to 16 Amps may utilize 12 gauge wire with a 20-Amp breaker, and loads up to 12 Amps - 14 gauge wire with a 15-Amp breaker. Local code and/or other factors may change these guidelines.

6 people found this helpful Was this helpful? Yes No

No, floor heating thermostats are not compatible with the towel warmers. We would also not recommend using both devices on the same control, as it does not take the same amount of time to reach the ideal temperature for each product, which could lead to one unit to overheat and the other to not function properly.

5 people found this helpful Was this helpful? Yes No

When the ground fault protection mechanism trips, the TEST light is On (red). To reset the ground fault protection, switch the thermostat to Off and back to On. The TEST light will turn off.

3 people found this helpful Was this helpful? Yes No
