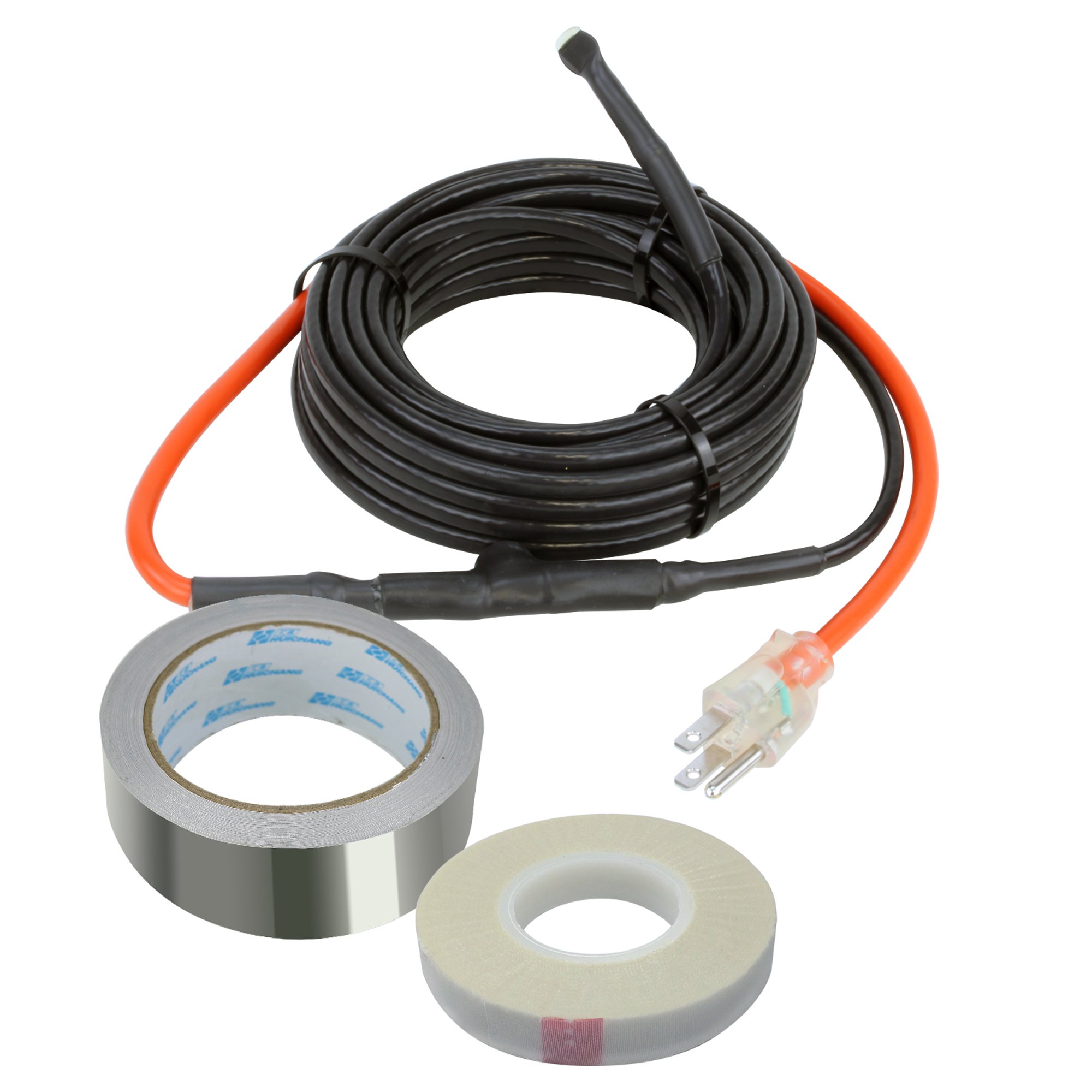

40′ PRO-Tect DIY Plug-in Heating Cable for Pipes, Constant Wattage (7W/ft), 120V
- This 40' cable is great for 3/8” – 3/4" diameter pipes up to 42’ long and 1” – 1 1/2” diameter pipes up to 40’ long
- Easy plug-in operation with indicator light and integrated thermostat
- Stops pipes from freezing at temps as low as -40°F/-40°C
- 7 watts per linear foot (constant wattage)
- Safe: cCSAus listed
PRO-Tect DIY Heating Cable for Pipes, Constant Wattage (7W/ft), 120V Description
A burst water pipe in the dead of winter can be a huge inconvenience and completely replacing the insulation needed to prevent pipes in perimeter walls and crawlspaces from freezing can be cost-prohibitive.

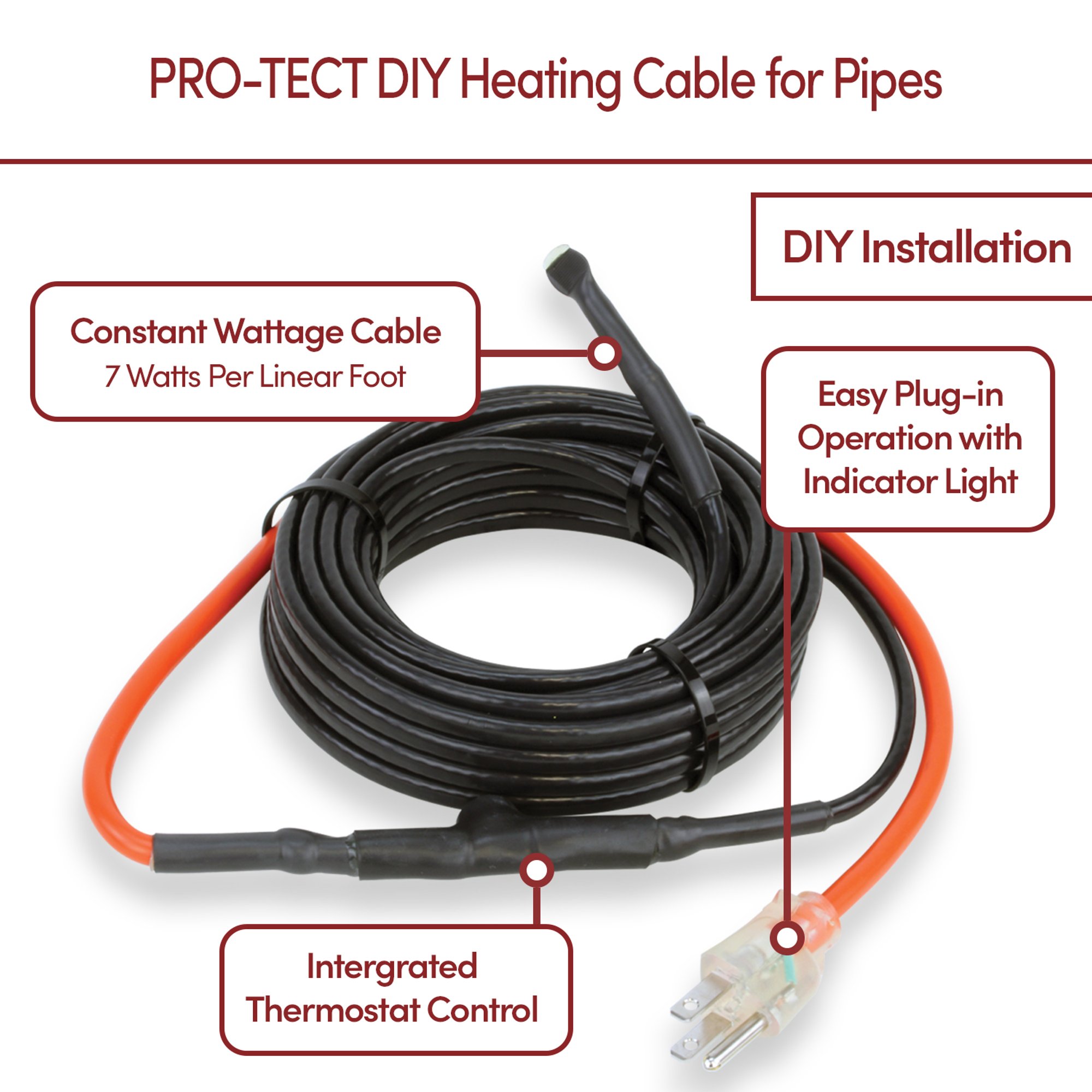

To keep your most vulnerable pipes from freezing, the simple and DIY-friendly solution is to install a PRO-Tect heating cable for pipes. This 120 V plug-in heating cable generates heat (7 watts per linear foot) which will keep your pipes from freezing in low temperatures. The integrated thermostat control, located between the non-heating lead cable and the heating wire itself, will ensure a consistent temperature while minimizing energy use. The thermostat turns the heating cable on when exposed to temperatures below 37.4°F (3°C). It will shut the heating cable off when the pipe has been heated to a temperature of approximately 50°F (10°C).
The cable is covered by a 2-year warranty.
Specifications
Electrical (PTC120-7W-040)
| Amps | 2.33 A |
| Cable Construction | Twin conductor |
| Cable Type | Constant Wattage |
| Conductor Insulation | XLPE |
| Connection Method | Plug-in |
| Ohms | 51.4 Ω |
| Outer Insulation | PVC |
| Plug-Type | NEMA 5-15 (Type B) |
| Plug-in Cable Diameter | 0.31″ / 8mm |
| Plug-in Cord Length | 2′ |
| Voltage | 120 V |
| Watts | 280 W |
| Watts Per Linear Ft. | 7 W |
Warranty / Certifications (PTC120-7W-040)
| Approvals | cUL Listed, CSA Listed, and cETLus Listed |
| Warranty | 2-year warranty |
Product Dimensions (PTC120-7W-040)
| Cable Cross Section | 0.31″ x 0.23″ / 8mm x 6mm |
| Heating Cable Length | 40′ |
| Splice Dimensions | 0.56″ x 6.69″ x 0.94″ / 1.4cm x 17.5cm x 2.4cm |
| Weight | 1.3 lbs |
Installation (PTC120-7W-040)
| Maximum Pipe Diameter | 1 ½″ (3.81cm) |
| Minimum Bend Radius | 1″ (2.54cm) |
| Minimum Installation Temperature | 15°F (-10°C) |
Identifiers (PTC120-7W-040)
| SKU | PTC120-7W-040 |
| UPC (GTIN-12) | 881308072094 |
Controls (PTC120-7W-040)
| Thermostat | Built-in: ON setpoint 37.4°F (3°C), OFF setpoint 50°F (10°C) |
