120V vs 240V TempZone Ruler Cable: The Professional's Complete Selection & Superiority Guide

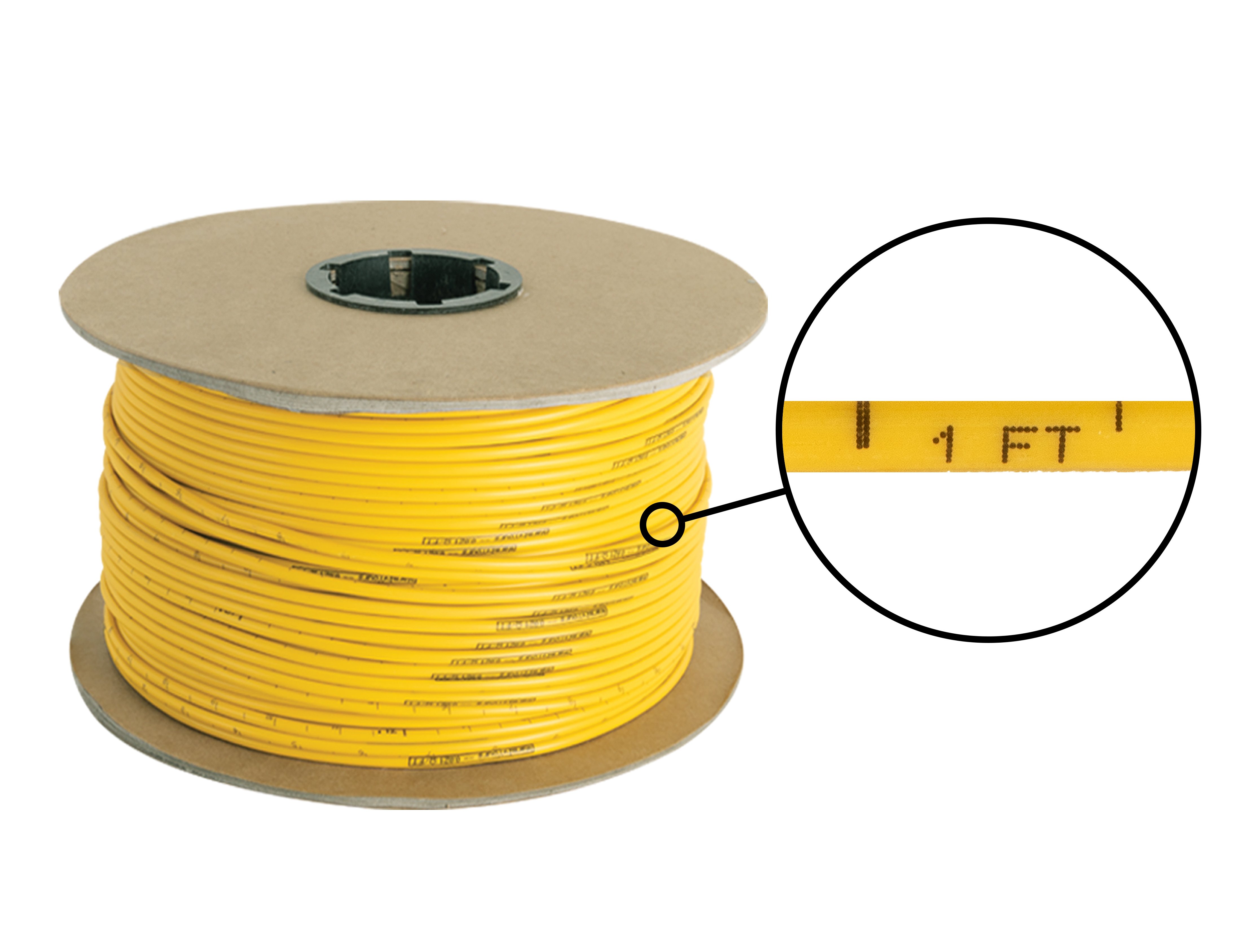

TempZone Floor Heating Ruler Cable with Detail

The industry's first ruler-marked heating cable with game-changing features that set new professional standards


What's the Difference Between 120V and 240V Floor Heating Cable?

Quick Answer: 120V cables cover smaller areas (up to 150 sq. ft.) with simpler electrical requirements, while 240V cables handle larger installations (up to 300 sq. ft.) with lower amperage draw. However, TempZone Ruler Cable revolutionizes both options with industry-first ruler markings, superior ETFE insulation, and up to 15 watts per square foot output.


Why TempZone Ruler Cable is the Professional's Choice

Industry-First Innovation: Ruler Markings

  • Tick marks at every 1/2", 1", and foot increment
  • No measuring tape required during installation
  • Perfect spacing every time - 3", 4", or 5" spacing made simple
  • Game changer for efficiency - reduces installation time by 30%

Superior Heat Output: Up to 15 Watts Per Square Foot

  • 25% more heat than industry standard (8-12 watts)
  • Ideal for concrete slabs and high heat loss areas
  • Better performance in challenging installations
  • Warmer floors faster - improved customer satisfaction

Built-in Professional Protection

  • Circuit Check included with every order for installation monitoring
  • Monitor heating element during installation
  • All WarmlyYours controls have built-in GFCI protection
  • No separate GFCI required - saves time and cost

PRO Exclusive Product

  • Available ONLY to trade professionals - not sold to homeowners
  • Not available on Amazon or big box stores
  • Cannot be price-shopped by customers
  • Protects professional margins and project control
  • Exclusive access maintains contractor value

Technical Comparison: 120V vs 240V Selection Guide

120V TempZone Ruler Cable

Best For:

  • Residential bathrooms (up to 150 sq. ft.)
  • Small kitchens and entryways
  • Retrofit installations
  • Areas with standard 120V circuits available

Technical Specifications:

  • Coverage: Up to 150 sq. ft.
  • Power Output: Up to 15 watts/sq. ft.
  • Electrical: Standard 120V household circuit
  • Amperage: Higher amp draw per square foot
  • Installation: Plug-and-play simplicity

Professional Advantages:

  • Simpler electrical connections
  • No electrician required for basic installations
  • Standard household voltage
  • Lower upfront electrical costs

240V TempZone Ruler Cable

Best For:

  • Large residential areas (up to 300 sq. ft.)
  • Commercial installations
  • Multiple room projects
  • New construction with 240V circuits

Technical Specifications:

  • Coverage: Up to 300 sq. ft.
  • Power Output: Up to 15 watts/sq. ft.
  • Electrical: 240V dedicated circuit
  • Amperage: 50% lower amp draw than 120V
  • Installation: Professional electrical connection

Professional Advantages:

  • Lower operating costs (more efficient)
  • Smaller wire gauge requirements
  • Better for large installations
  • Reduced electrical panel load

Professional Selection Matrix

Project Type Area Size Recommended Voltage Key Benefits
Bathroom Retrofit Under 100 sq. ft. 120V Simple installation, existing circuits
Kitchen/Mudroom 100-150 sq. ft. 120V or 240V Either works - choose based on available circuits
Large Master Bath 150-250 sq. ft. 240V Lower amp draw, more efficient
Multiple Rooms Over 250 sq. ft. 240V Significantly more efficient
Commercial Projects Any size 240V Professional standard, lower operating costs


Game-Changing Installation Features

1. Industry-First Ruler Markings

The Innovation: Printed tick marks every 1/2", 1", and foot increment

  • 3" spacing: 15 watts/sq. ft. (primary heating, concrete slabs)
  • 4" spacing: 11 watts/sq. ft. (supplemental heating, wood subfloors)
  • 5" spacing: 8.9 watts/sq. ft. (comfort heating, warmer climates, wood subfloors only)

Professional Impact:

  • 30% faster installations
  • Perfect spacing without measuring
  • Reduced callbacks and mistakes
  • Higher customer satisfaction2. Superior ETFE Insulation vs. Standard XLPE

Technical Superiority:

  • 150°C temperature rating (vs. 90°C standard)
  • FT2 fire rating (superior safety)
  • Superior crush resistance (installation durability)
  • Better flexibility (easier installation around obstacles)
  • Virtually zero EMF (spiral tape shielding)

3. Professional Installation Support

What's Included:

  • Circuit Check included with every order for monitoring
  • Backup floor sensor included with every Ruler Cable heating element
  • Built-in GFCI in all WarmlyYours controls
  • 24/7 technical support (US-based)
  • Installation videos and guides
  • SmartPlan design service

Electrical Requirements Made Simple

120V Installation Requirements:

  • Circuit: 15A or 20A standard household circuit
  • GFCI: Built into WarmlyYours controls
  • Wire Size: 12 AWG typical
  • Electrician: Not required for basic installations

240V Installation Requirements:

  • Circuit: Dedicated 240V circuit (size varies by load)
  • GFCI: Built into WarmlyYours controls
  • Wire Size: Smaller gauge due to lower amperage
  • Electrician: Required for circuit installation

Professional Profitability Benefits

Installation Efficiency Gains:

  1. Ruler markings = 30% faster cable layout
  2. Superior flexibility = easier routing around obstacles
  3. Circuit Check included = professional monitoring capability
  4. Built-in GFCI = simplified electrical connections

Reduced Callbacks:

  • Precise spacing prevents uneven heating
  • Superior insulation prevents damage during installation
  • Professional testing tools catch issues before completion

Customer Satisfaction:

  • Up to 15W output = warmer floors faster
  • Even heat distribution = consistent comfort
  • 25-year warranty = long-term peace of mind

How to Choose: Professional Decision Tree

Step 1: Determine Area Size

  • Under 150 sq. ft. → Either voltage works
  • Over 150 sq. ft. → 240V recommended

Step 2: Check Available Circuits

  • 120V available → Use 120V for smaller areas
  • 240V available → Use 240V for efficiency
  • New construction → Plan for 240V

Step 3: Consider Long-term Efficiency

  • Single room → 120V acceptable
  • Multiple rooms → 240V saves operating costs
  • Commercial → Always choose 240V

Competitive Advantage Summary

Why TempZone Ruler Cable Dominates:

Innovation Leadership:

  • Only cable with ruler markings (industry first)
  • ETFE insulation superiority (150°C vs. 90°C)
  • Up to 15W output (vs. 8-12W standard)

Professional Exclusivity:

  • PRO exclusive product (not available to homeowners)
  • Protected from price shopping (Amazon/big box exclusion)
  • Maintains professional margins
  • Contractor-only access

Professional Support:

  • Circuit Check included with every order
  • Built-in GFCI (no separate purchase needed)
  • 24/7 US technical support

Installation Benefits:

  • 30% faster installations
  • Perfect spacing guaranteed
  • Reduced callbacks and mistakes
TempZone Ruler Cable heating element with backup floor sensor and installation manual showing professional installation components and documentation
Complete Professional Package: Every TempZone Ruler Cable includes heating element, backup floor sensor, and detailed installation manual for reliable project completion.

Frequently Asked Questions

Q: Can I use 120V cable on a 240V circuit?

A: No. Always match cable voltage to circuit voltage. Using incorrect voltage will damage the cable and void warranty.

Q: Which voltage is more energy efficient?

A: 240V is more efficient for larger areas due to lower amperage draw and reduced line losses.

Q: Do I need a separate GFCI with TempZone Ruler Cable?

A: No. All WarmlyYours controls have built-in GFCI protection, saving installation time and cost.

Q: What makes the ruler markings so important?

A: Precise spacing is critical for even heat distribution. Ruler markings eliminate measuring errors and ensure perfect 3", 4", or 5" spacing every time.

Q: Can homeowners buy TempZone Ruler Cable directly?

A: No. TempZone Ruler Cable is exclusively available to trade professionals, contractors, and installers. It's not sold on Amazon, big box stores, or directly to homeowners, ensuring professional control and protected margins.

Q: Can I achieve 5" spacing on concrete slabs?

A: No. 5" spacing (8.9W/sq. ft.) is only for comfort heating on wood subfloors in warmer climates. Concrete slabs require 3" or 4" spacing due to thermal mass.
