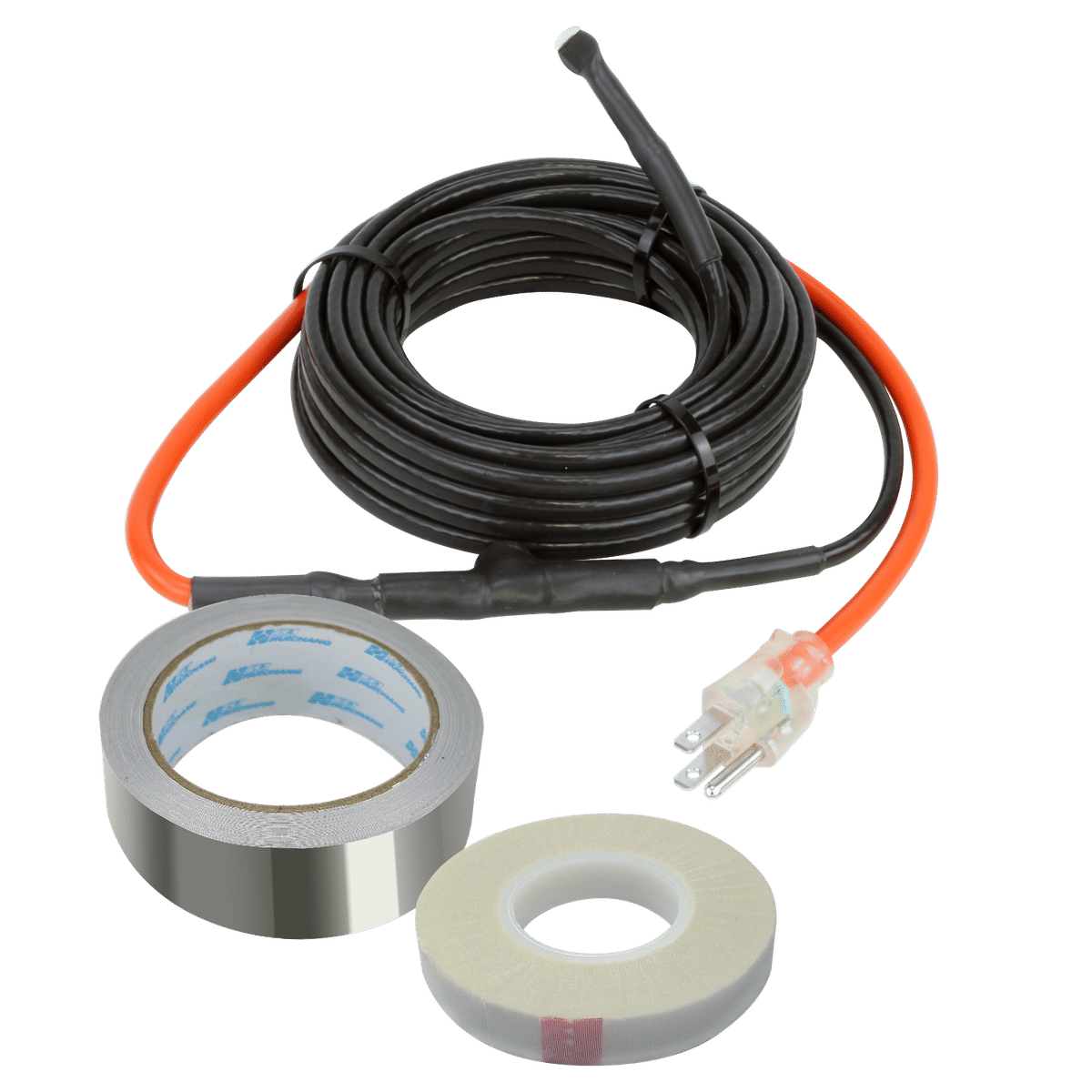

40′ PRO-Tect DIY Plug-in Heating Cable for Pipes, Constant Wattage (7W/ft), 120V
Features
-
This 40' cable is great for 3/8” – 3/4" diameter pipes up to 42’ long and 1” – 1 1/2” diameter pipes up to 40’ long
-

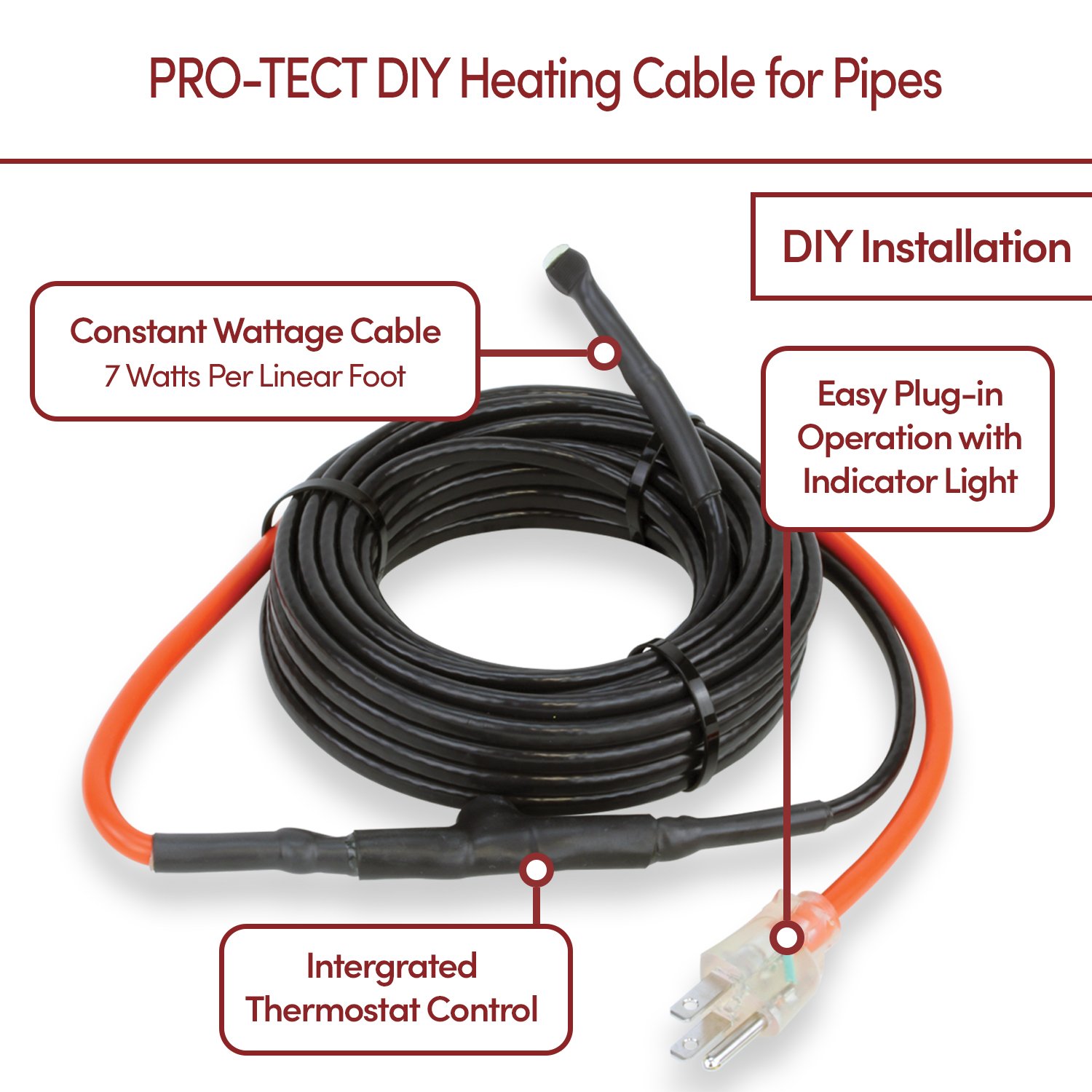

Easy plug-in operation with indicator light and integrated thermostat
-
Stops pipes from freezing at temps as low as -40°F/-40°C
-
7 watts per linear foot (constant wattage)
-
Safe: cCSAus listed
Description
A burst water pipe in the dead of winter can be a huge inconvenience and completely replacing the insulation needed to prevent pipes in perimeter walls and crawlspaces from freezing can be cost-prohibitive.
To keep your most vulnerable pipes from freezing, the simple and DIY-friendly solution is to install a PRO-Tect heating cable for pipes. This 120 V plug-in heating cable generates heat (7 watts per linear foot) which will keep your pipes from freezing in low temperatures. The integrated thermostat control, located between the non-heating lead cable and the heating wire itself, will ensure a consistent temperature while minimizing energy use. The thermostat turns the heating cable on when exposed to temperatures below 37.4°F (3°C). It will shut the heating cable off when the pipe has been heated to a temperature of approximately 50°F (10°C).
The cable is covered by a 2-year warranty.
Documents & Manuals
Installation
- Constant Wattage Pipe Freeze Protection System Installation Manual (English)
- Self-Regulating Pipe Freeze Protection PT-DUAL Installation Sheet A (English)
Operation Manuals
- Self-Regulating Pipe Freeze Protection PT-DUAL Manual (English)
- Self-Regulating Pipe Freeze Protection PT-SINGLE Manual (English)
Sell Sheets
- PRO-Tect Constant Wattage Heating Cable for Pipes Sell Sheet USA (English)
- PRO-Tect DIY Constant Wattage Heating Cable for Pipes Sell Sheet USA (English)
- Self-Regulating Pipe Freeze Protection Dual-Zone Control PT-DUAL Sell Sheet (English)
- Self-Regulating Pipe Freeze Protection Single-Zone Control PT-SINGLE Sell Sheet (English)
Catalogs
Customer Questions & Answers
Pipe Freeze Protection has 6 Questions and Answers.
Will heat tape really keep my pipes from freezing?
Simply put, yes--the right type of heat tape will really keep your pipes from freezing. By applying gentle heat, heat tape can prevent the water in your pipes from turning to ice and blocking the flow of water--or worse. Combined with proper insulation, heat tape regulates the overall temperature of your water pipes.
7 people found this helpful. Did you find this helpful? Yes NoCan heat tape start a fire?
What is heat trace?
Heat trace, heat tape, or heating cable for pipes is typically an electric heating cable that can be attached to the pipe which helps keep non-flowing water pipes in poorly insulated perimeter walls flowing despite harsh winter temperatures.
4 people found this helpful. Did you find this helpful? Yes NoHow long does it take for pipes to unfreeze if heat tape is installed?
Unfortunately there's no set answer for this because it depends on many factors such as the diameter of the pipes, the installation density of the heating cables, the outdoor temperature, the installation of thermal insulation sleeves, etc.
There are too many variables to provide an accurate answer. Even though this product is designed to keep pipes from freezing, it is not designed to thaw pipes. If your pipe has frozen with the heat tape installed and energized, please check the placement of the built-in thermostat and verify that the insulation has been properly installed and waterproofed.
