Pro GEN II 48″ x 48″ Shower Pan with Center Drain Hole


Pro GEN II 48″ x 48″ Shower Pan with Center Drain Hole




Support Page

Description

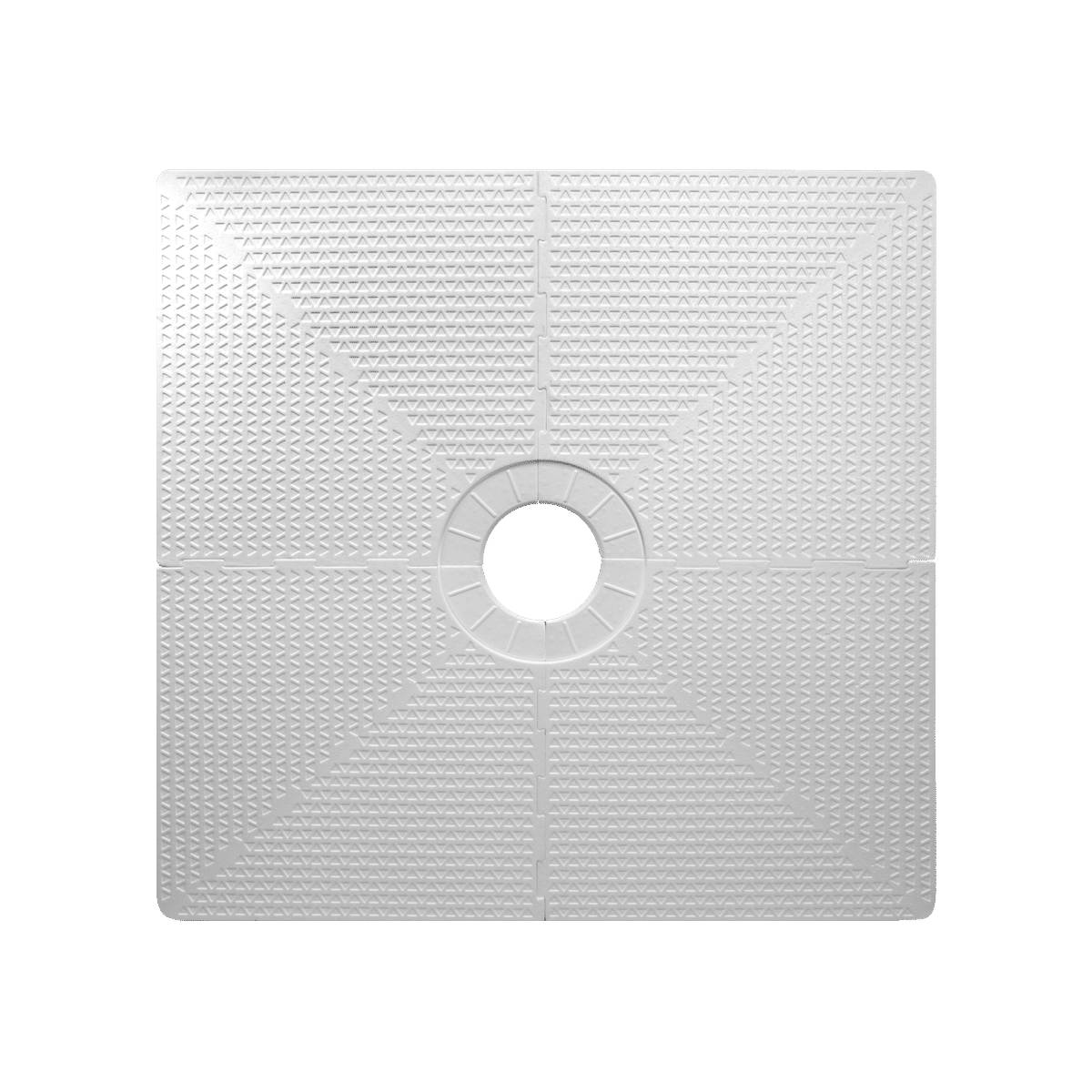

This square (48” x 48”) shower pan with a centered drain hole has a built-in slope that directs water towards the drain. This shower pan greatly decreases both installation time and project weight because it eliminates the need to create a mortar/mud bed.

Please note that this shower pan consists of 2 fitted pieces and in order to make it waterproof, it will need to be combined with various waterproofing accessories like the Pro WP Waterproofing Membrane.

Specifications

Identifiers

SKU SH-176652
UPC (GTIN-12) 881308059767

Construction

Shower Pan Density 3.5 lb/ft³

Customer Questions & Answers

Shower Kits has 14 Questions and Answers.

Don't see the answer you're looking for? Post your question

Why is modified thinset better for my installation?

Modified thinsets are stronger once cured. Most have additional anti-crack features, and better initial tack/grab (AKA less “slump”). They also are required for use with porcelain and glass tile.

6 people found this helpful.  Did you find this helpful? Yes No

Should I install a traditional mud kit (drypack mortar and PVC liner / mortar and membrane) or use a pre-formed foam pan?

Pre-formed pans are easily modifiable and easy to install on any substrate. They are great for DIY, as well as for a fast and clean installation by a professional. Drypack kits do not work well for tiles smaller than 2" x 2" without additional work.

5 people found this helpful.  Did you find this helpful? Yes No

What is the typical operating cost of a TempZone Shower floor heating system?

The actual cost of operating your floor heating system will vary depending upon a number of factors including the cost of electricity in your area and the length of time you run your system. The WarmlyYours TempZone™ Shower Floor Heating Mat, for example, uses 15 watts per square foot. Based on a national average electricity rate of $.10/kW/hr, the approximate operating cost of an average bathroom using this system, measuring 4' x 4' would be as little as 4 cents a day. This cost is based on running your system a full 8 hours per day. Try our Operating Cost Calculator for a quick estimate.

4 people found this helpful.  Did you find this helpful? Yes No

What additional tools and materials are needed to install a Pro GEN II shower waterproofing kit?

  • Jigsaw (for subfloor drain hole) & drill (for pilot hole)
  • Premium modified (Latex/Polymer) thinset mortar (not premixed)
  • 5-gallon bucket
  • Mixer and caulking gun
  • 3/16"x 3/16" square notch trowel
  • Margin trowel
  • Utility knife
  • PVC or ABS cement, and section of coupler pipe for connection
  • Level
3 people found this helpful.  Did you find this helpful? Yes No

How does the TempZone floor heating system work?

TempZone™ is an electric floor heating system that operates like an electric blanket for your floors. TempZone™ is covered in thinset, and is installed over the top of your shower pan and beneath your flooring. The system provides a warm, even temperature across your floor. The TempZone™ floor heating system is easy to install, operate, and maintain.

3 people found this helpful.  Did you find this helpful? Yes No

View all 14 Questions and Answers

Customer Reviews

Shower Kits achieved an average rating of 5.0 stars with 1 reviews by our customers.

Have you used this product before? Leave a review

Shower kit

Collin F., Kootenai, ID on 01/10/2021

I liked the WarmlyYours shower kit it is straight forward and easy to use. Takes one day to get your shower prepped for tile.
