Pro GEN II 32″ x 60″ Shower Pan with Offset Drain Hole


Pro GEN II 32″ x 60″ Shower Pan with Offset Drain Hole

$115.00





Support Page

Shower Waterproofing System Accessory Description

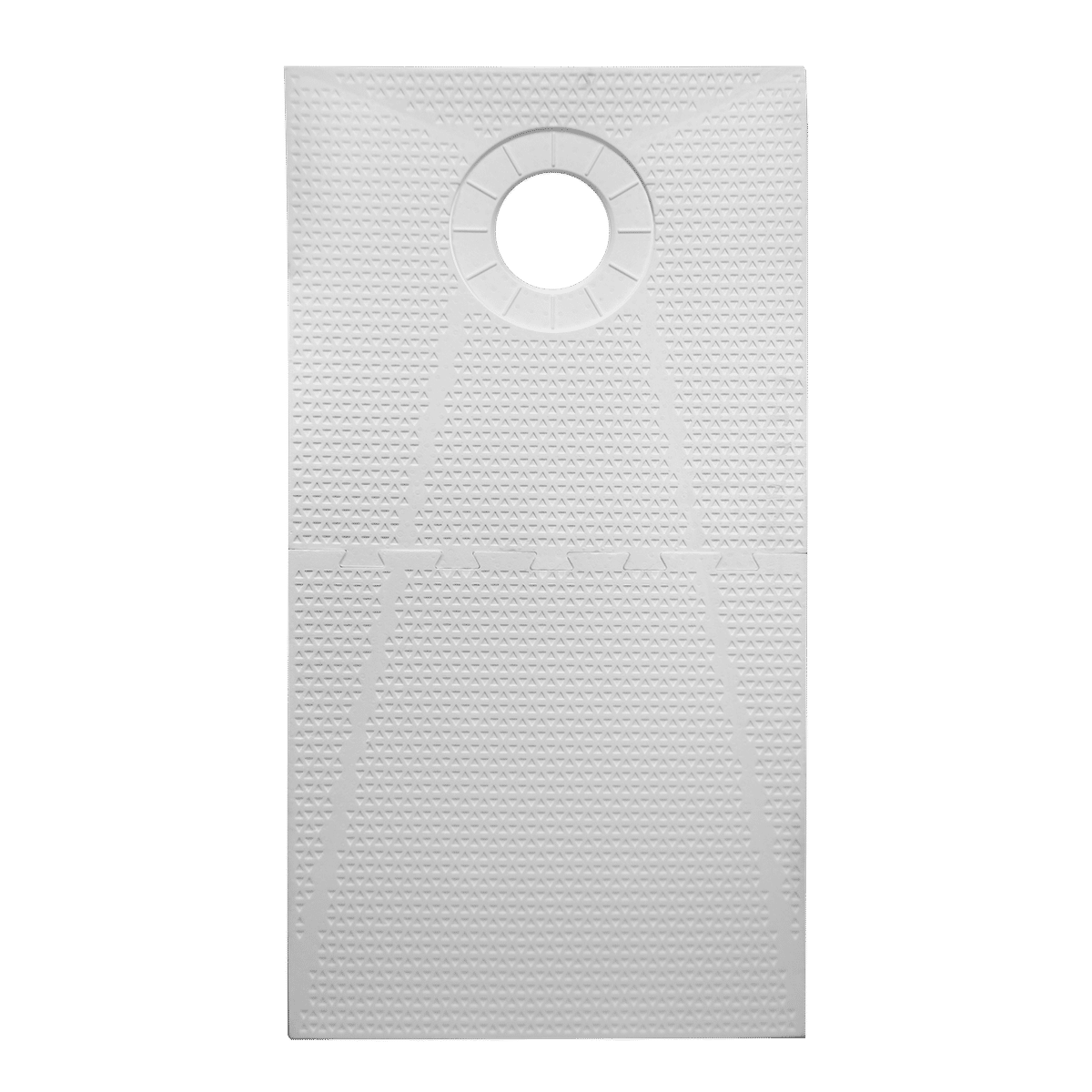

This rectangular (32” x 60”) shower pan with an offset drain hole has a built-in slope that directs water towards the drain. This shower pan greatly decreases both installation time and project weight because it eliminates the need to create a mortar/mud bed.

Please note that this shower pan consists of 2 fitted pieces and in order to make it waterproof, it will need to be combined with various waterproofing accessories like the Pro WP Waterproofing Membrane.

Specifications

Identifiers

SKU SH-203271
UPC (GTIN-12) 881308059774

Construction

Shower Pan Density 3.5 lb/ft³

Customer Questions & Answers

Shower Waterproofing System Accessory has 14 Questions and Answers.

Don't see the answer you're looking for? Post your question

Why is modified thinset better for my installation?

Modified thinsets are stronger once cured. Most have additional anti-crack features, and better initial tack/grab (AKA less “slump”). They also are required for use with porcelain and glass tile.

2 people found this helpful.  Did you find this helpful? Yes No

Should I install a traditional mud kit (drypack mortar and PVC liner / mortar and membrane) or use a pre-formed foam pan?

Pre-formed pans are easily modifiable and easy to install on any substrate. They are great for DIY, as well as for a fast and clean installation by a professional. Drypack kits do not work well for tiles smaller than 2" x 2" without additional work.

2 people found this helpful.  Did you find this helpful? Yes No

The mat I bought is too big or too small. Can I add wire or remove wire to make it fit?

No. Never cut the heating mat. The floor heating mat is designed with a very specific resistance in order to consistently maintain heating at the chosen wattage per square foot. Trimming the heating cable in the mat would lower the resistance of the cable causing the system to overheat. Adding heating cable to the system would raise the resistance and the system would not heat properly.

If you think you have the wrong heating element, contact our 24/7 Technical Support Team by calling 1-800-875-5285.

1 person found this helpful.  Did you find this helpful? Yes No

What is included in a complete Pro Gen II shower waterproofing kit?

A complete kit will include the following:

  • Shower pan
  • 108 sq. ft. of waterproofing membrane
  • 33 linear feet of waterproof joint band
  • 4 pre-shaped inside corners
  • 1 drain flange with ABS or PVC neck (check your local standards for using ABS or PVC)
  • Drain grate riser with construction plug and hair trap
  • Drain grate cover
  • Curb piece/s
  • 2 outside corners for the curb

Note: If you elect to include floor heating, a complete kit will also include a TempZone Shower Floor Heating Mat, an nSpire Touch programmable thermostat, and a Circuit Check.

Did you find this helpful? Yes No

What additional tools and materials are needed to install a Pro GEN II shower waterproofing kit?

  • Jigsaw (for subfloor drain hole) & drill (for pilot hole)
  • Premium modified (Latex/Polymer) thinset mortar (not premixed)
  • 5-gallon bucket
  • Mixer and caulking gun
  • 3/16"x 3/16" square notch trowel
  • Margin trowel
  • Utility knife
  • PVC or ABS cement, and section of coupler pipe for connection
  • Level
Did you find this helpful? Yes No
