Pro GEN II Grate Cover, Designer Series Pebbles Pattern, Polished Stainless Steel

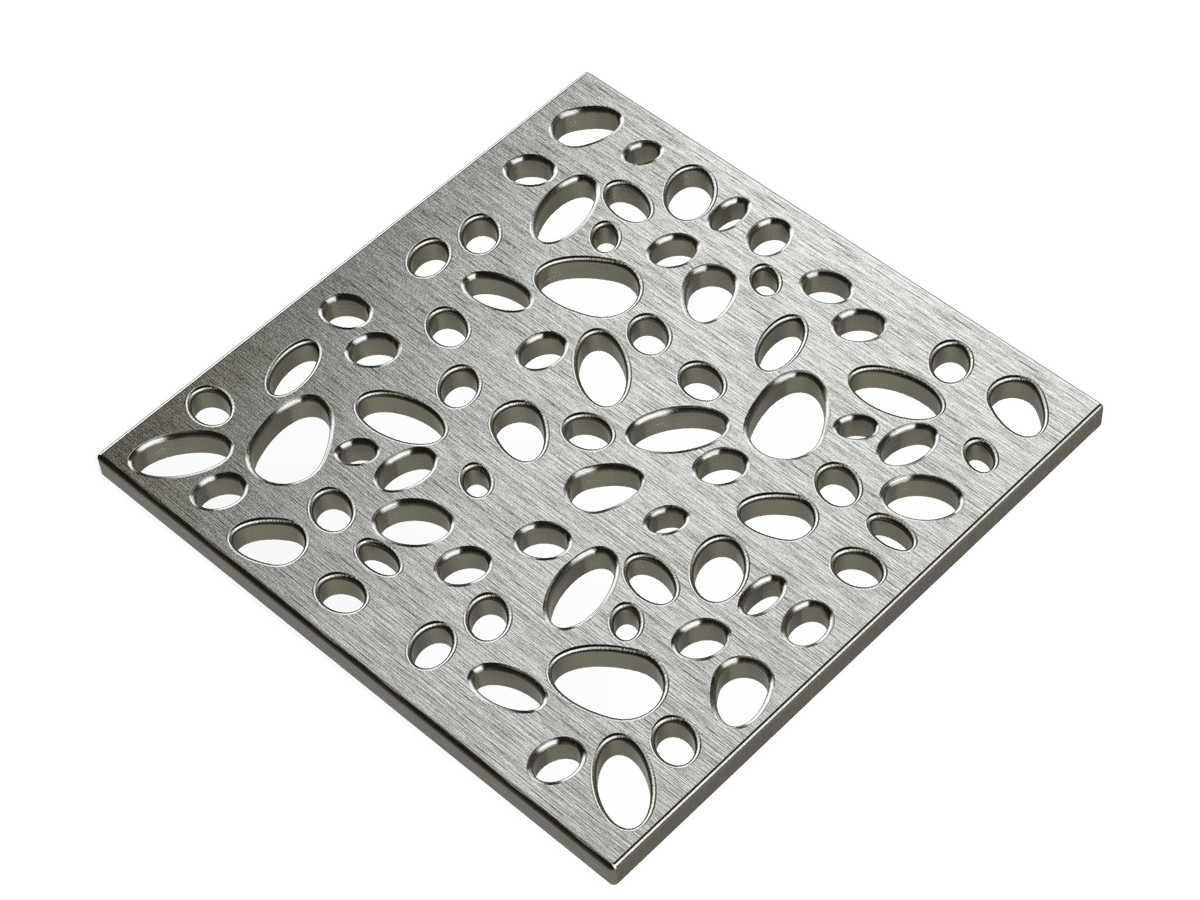

This 3.75” x 3.75” Designer Series drain grate cover comes with a polished finish and a pattern design called “Pebbles”. It is constructed of solid 304 stainless steel and comes with a separate stainless steel spacer. It’s compatible with the Pro GEN II Drain Assembly and it will friction fit within the drain riser. This screw-less installation method and included puller key means that the Pro GEN II’s integrated hair trap can be easily accessed and cleaned.
|Grate Cover Steel Type||Stainless Steel|
|Grate Size||3.75” x 3.75”|
Customer Questions & Answers
Shower Kits has 14 Questions and Answers.
Why is modified thinset better for my installation?
Modified thinsets are stronger once cured. Most have additional anti-crack features, and better initial tack/grab (AKA less “slump”). They also are required for use with porcelain and glass tile.
Should I install a traditional mud kit (drypack mortar and PVC liner / mortar and membrane) or use a pre-formed foam pan?
Pre-formed pans are easily modifiable and easy to install on any substrate. They are great for DIY, as well as for a fast and clean installation by a professional. Drypack kits do not work well for tiles smaller than 2" x 2" without additional work.
The mat I bought is too big or too small. Can I add wire or remove wire to make it fit?
No. Never cut the heating mat. The floor heating mat is designed with a very specific resistance in order to consistently maintain heating at the chosen wattage per square foot. Trimming the heating cable in the mat would lower the resistance of the cable causing the system to overheat. Adding heating cable to the system would raise the resistance and the system would not heat properly.
If you think you have the wrong heating element, contact our 24/7 Technical Support Team by calling 1-800-875-5285.
What is included in a complete Pro Gen II shower waterproofing kit?
A complete kit will include the following:
- Shower pan
- 108 sq. ft. of waterproofing membrane
- 33 linear feet of waterproof joint band
- 4 pre-shaped inside corners
- 1 drain flange with ABS or PVC neck (check your local standards for using ABS or PVC)
- Drain grate riser with construction plug and hair trap
- Drain grate cover
- Curb piece/s
- 2 outside corners for the curb
Note: If you elect to include floor heating, a complete kit will also include a TempZone Shower Floor Heating Mat, an nSpire Touch programmable thermostat, and a Circuit Check.
What additional tools and materials are needed to install a Pro GEN II shower waterproofing kit?
- Jigsaw (for subfloor drain hole) & drill (for pilot hole)
- Premium modified (Latex/Polymer) thinset mortar (not premixed)
- 5-gallon bucket
- Mixer and caulking gun
- 3/16"x 3/16" square notch trowel
- Margin trowel
- Utility knife
- PVC or ABS cement, and section of coupler pipe for connection
View all 14 Questions and Answers
Shower Kits achieved an average rating of 5.0 stars with 1 reviews by our customers.
Collin F., Kootenai, ID on 01/10/2021
I liked the WarmlyYours shower kit it is straight forward and easy to use. Takes one day to get your shower prepped for tile.
