Snow Melt Cable 240V, 4.17A, 85.5 ft. - Refurbished
- High Heat Output: This embeddable electric heating cable provides 12-watts of heat per linear foot (nearly 50-watts per sq. ft.)

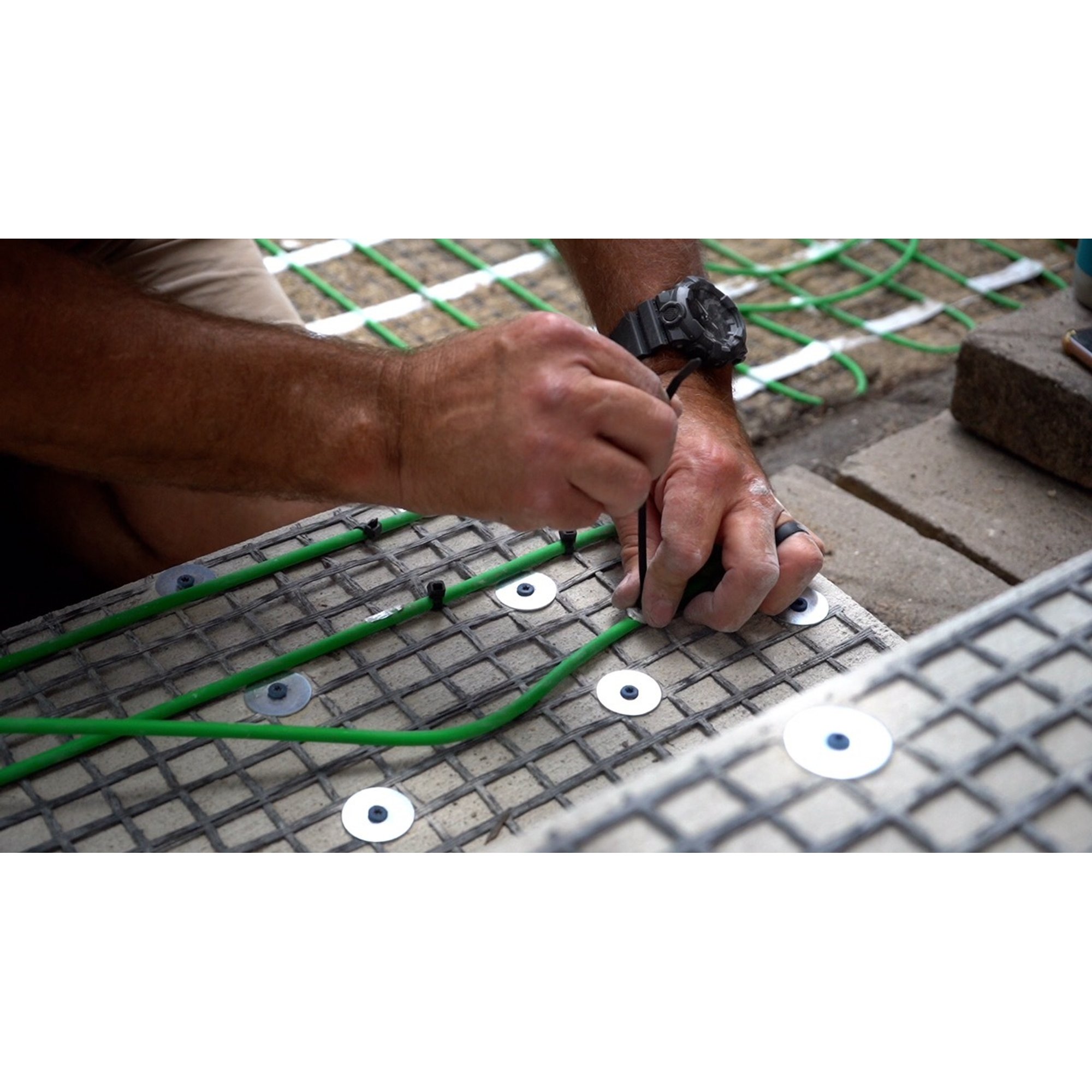

- Embeddable in Concrete, Asphalt, or in Mortar Under Pavers: Installing a cable-based snow melting system within a new driveway, walkway, or patio means you can enjoy snow/ice free outdoor surfaces all year
- Cost-Effective and Flexible: Snow melting cables are an less expensive (but more time consuming) alternative to snow melting mats and they provide maximum flexibility to cover round driveways, cornered patios, or outdoor stairs
- Wide Variety of Voltages: We offer snow melting cables in 120, 208, 240, and 277 voltages and in a range of different lengths
- Installation Support: WarmlyYours offers free SmartPlan™ installation plans, 24/7 phone support, and a 10-year limited warranty
How Much Cable Will I Need?
The amount of cable you'll need depends on the heat output and amount of heating coverage you want, both of which are impacted by the spacing of the heating cable.
The recommended spacing for snow melting cables is 3", which will provide a heat output of 48-watts per sq. ft.
You can use our quote tool to get a rough estimate of the amount of cable you'll need for a project.
Or contact us for help:
You can also submit a drawing of your project (with dimensions) and we'll provide you with a free installation plan with the exact amount of cable you'll need. Get started

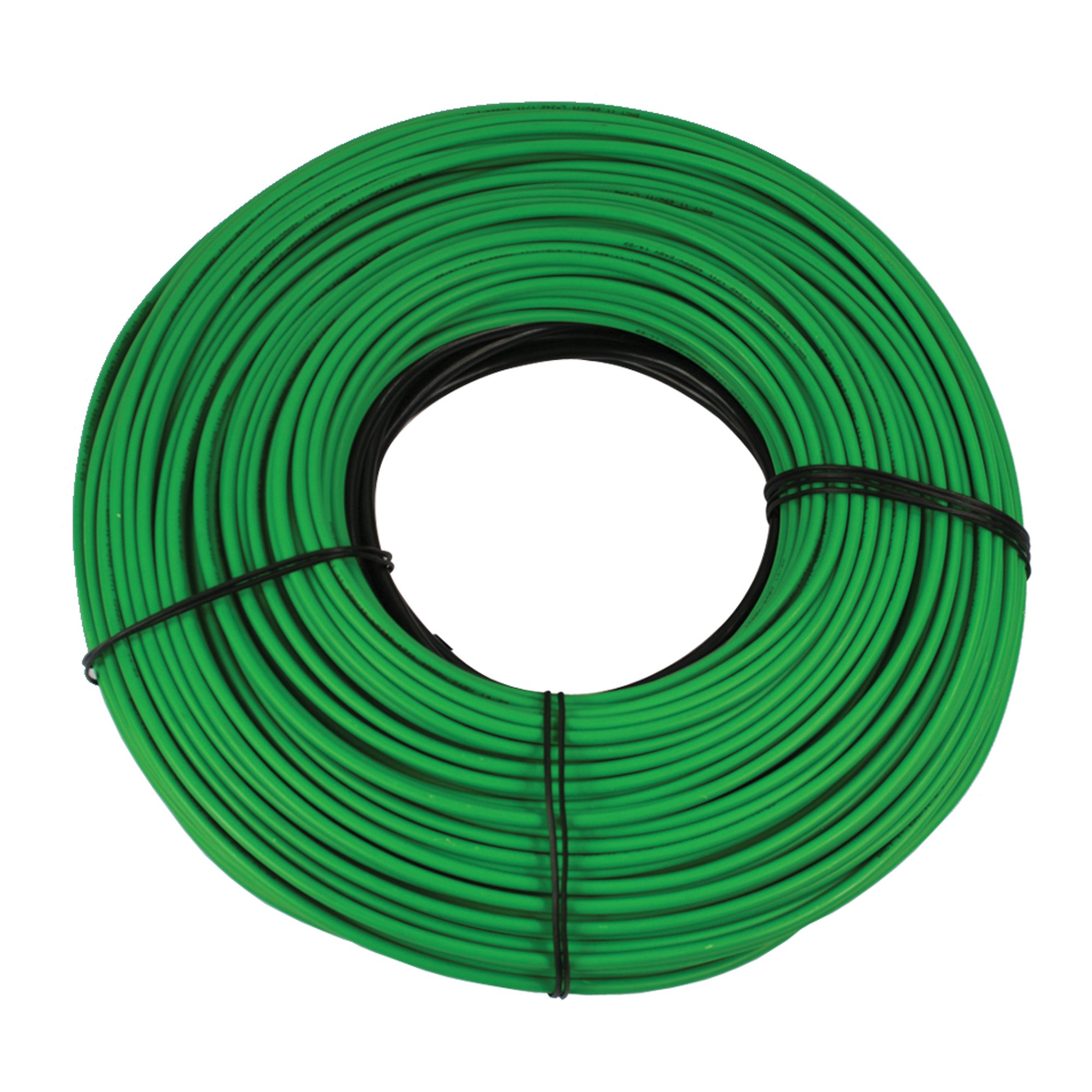

Snow Melt Cables Description
Melt away snow and ice, quickly and easily with WarmlyYours’240 V twin conductor heating cable. For use in eitherresidential or commercial applications, this 85.5 ft.cable provides the flexibility needed to for installing on stairsor odd-shaped layouts.
Each cable features a ¼” (6mm) twin-conductor heatresistant cable for energy efficient operation and generates 12 watts perlineal foot for dependable and efficient snow melting performance. Equippedwith 20 feet (6m) of 14 AWG cold lead, this 85.5 ft. snow melting cable is ideal for shorterpathways and smaller spaces.
All WarmlyYours snow melting cables are CSAcertified for outdoor use in Canadian and U.S. markets.
Learn more about snow melting systems. Perfect for heated driveways, patios, walkways and paths, accessibility ramps, or even stairs.
Specifications
Electrical
| Amps | 4.17 A |
| Ohms | 57.6 Ω |
| Voltage | 240 V |
| Watts | 1000 W |
| Watts Per Linear Ft. | 11.69 W |
| Watts Per Sq. Ft. at 3 Inch Spacing | Up to 50 |
| Watts Per Sq. Ft. at 4 Inch Spacing | Up to 38.5 |
| Watts Per Sq. Ft. at 5 Inch Spacing | Up to 31.5 |
Warranty / Certifications
| Approvals | cCSAus Listed |
| Warranty | 10 years |
Performance
| BTU Per Hour | 3412 Btu |
Product Dimensions
| Cold Lead Length | 20′ |
| Coverage at 3 Inch Spacing | 21.4 ft² |
| Coverage at 4 Inch Spacing | 28.5 ft² |
| Coverage at 5 Inch Spacing | 35.6 ft² |
| Heating Element Thickness | 1/4″ |
| Height | 0.25″ |
| Length | 85′ 6″ |
| Weight | 5.2 lbs |
| Width | 0.25″ |
Appearance
| Color | Green |
Identifiers
| SKU | WHCA-240-0086-BTK |
| UPC (GTIN-12) | 881308073190 |
Installation
| Surface Types | Asphalt, concrete or in mortar under pavers |
Logistics
| UNSPSC Code | 40101842 |
