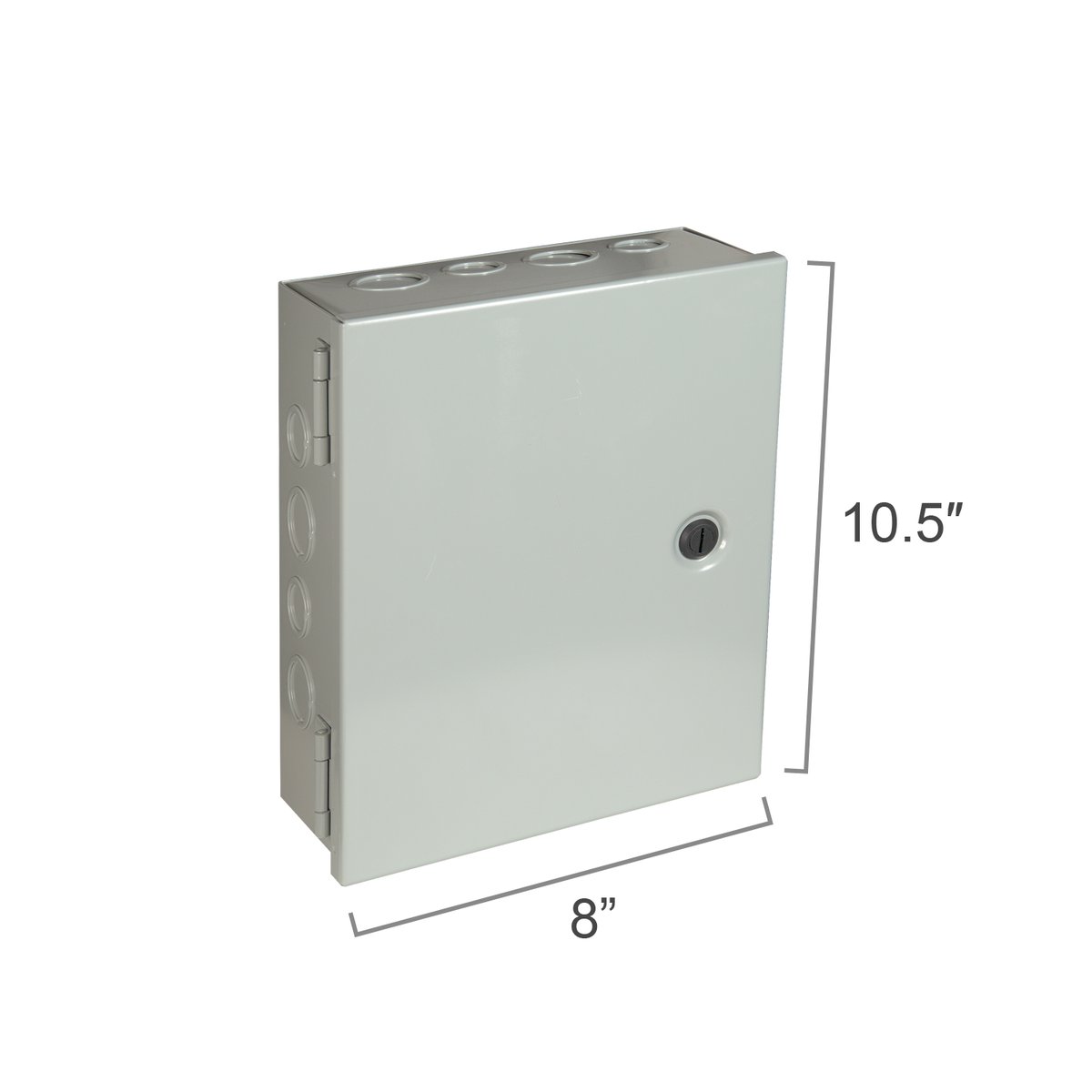

Small Relay Panel, (2x) 2-Pole



  • Virtually silent load switching panels are ideally suited for snow heating mats and cables
  • Power relays are rated for up to 24 amps and include Nema1 rated metal enclosures
  • Limited 2-year warranty

Relay Panels Description

Featuring a NEMA 1 indoor enclosure and clearly labeledterminals to facilitate installation, the RLY-4PL small relay panels are designed for use withsnow melting, slab heating, and roof deicing applications. Appropriate for usewith 120, 208, 240 or 277 Vac cables, they are virtually silent during operation. The RLY-4PL panels are C-UL-US approved and rated for up to 24 amps.

Specifications

Electrical

Applicable Voltages 120 V, 208 V, 240 V, 277 V
Connection Method Hardwired
Maximum Current 24 A
Numbers of Poles 4

Product Dimensions

Depth 4″
Height 10½″
Weight 6.8 lbs
Width 8″

Identifiers

SKU RLY-4PL-BTK
UPC (GTIN-12) 881308066581

Warranty / Certifications

Warranty 2 years

Frequently Asked Questions

Showing all 4 questions

The relay panel is not rated for outdoors.  It can be put in a NEMA 4 box outdoors to meet this requirement.

Was this helpful? Yes No

GFEP is the National Electric Code (NEC) required protection for fixed outdoor deicing and snow-melting equipment, which may be accomplished by using circuit breakers equipped with ground-fault equipment protection (GFEP) of 30 mA. It is important to understand that this required equipment protection is NOT the same as a 5 mA GFCI used for personal protection.

11 people found this helpful Was this helpful? Yes No

When the design requirement's amp draw exceeds the selected controller's capacity.

5 people found this helpful Was this helpful? Yes No

Ground fault equipment protection (GFEP) is intended to provide protection for equipment against damaging line-to-ground currents by disconnecting all ungrounded conductors of the faulted circuit.

2 people found this helpful Was this helpful? Yes No
