The support portal for PRO-Tect: Pipe Freeze Protection Self-Regulating Heating Cable provides free installation guides, wiring diagrams, operation manuals and more.
Yes. Because the cable is a parallel electrical device, it can be cut to length without affecting its power output per foot. Because we also sell this product by the foot, you can ensure minimal waste on the job-site.
Yes, insulation is highly recommended for use with a pipe freeze protection system for the following reasons:
· It helps cut down on heat loss from the heated water pipe.
· Properly installed insulation helps keep the cable in good contact with the water pipe so that maximum surface area contact is achieved.
· While the cable is wet location approved, weatherproofed insulation adds an extra layer of protection. Ideally, the insulation will be nonflammable and waterproofed.

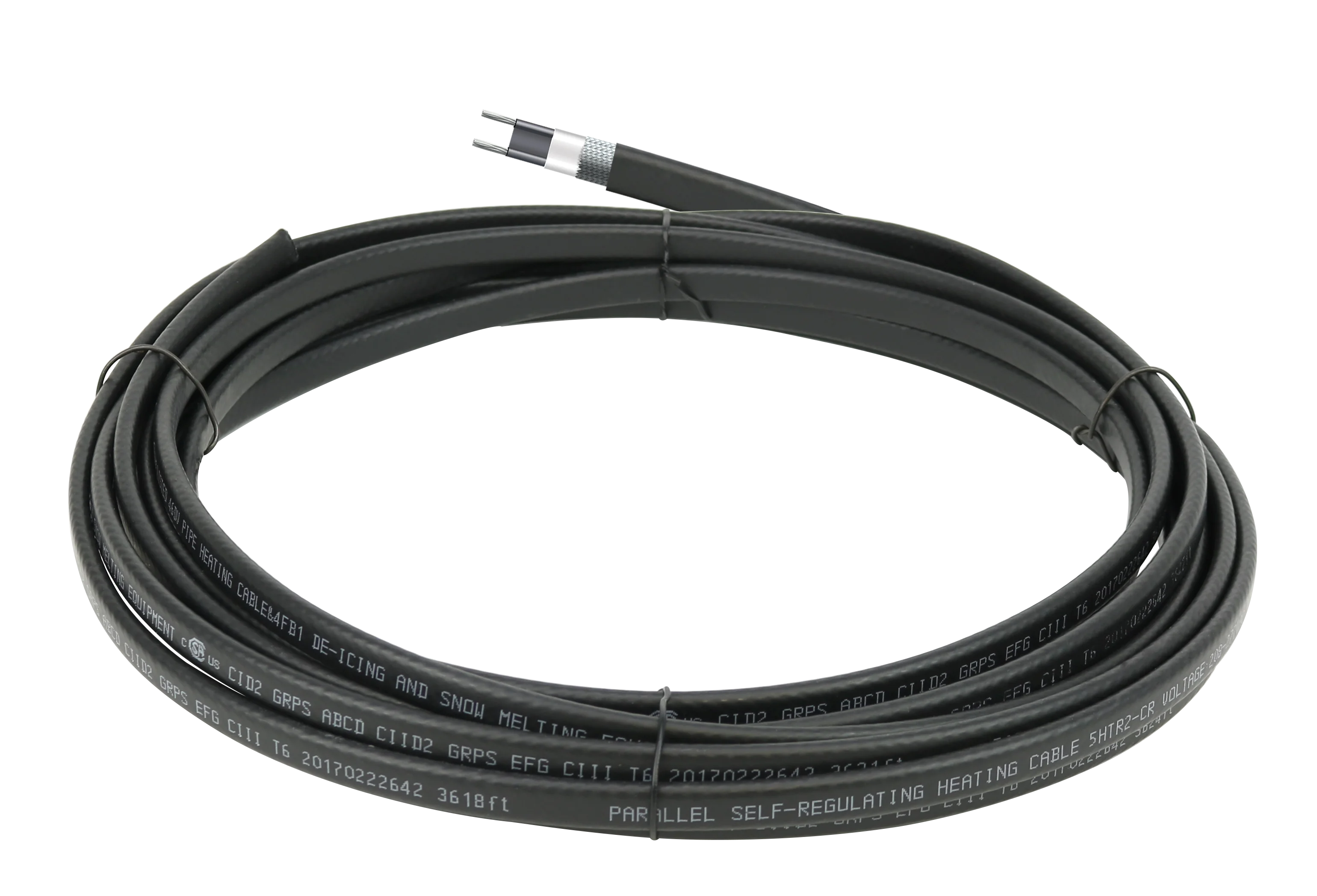

Self-regulating heating cables, like PRO-Tect: Pipe Freeze Protection cables, use a conductive polymer core, which continually adjusts its heat output.
This is why this type of cable, unlike some heat tapes, won’t burn out if it is wrapped closely together, overlapped, or overinsulated. This also means lower operating costs and increased energy efficiency.
We recommend using a fiberglass-based tape, which is available from WarmlyYours.
The amount of cable needed depends on the size and type of pipe, and on the lowest expected temperature. Once you know the type of pipe (metal or plastic), pipe diameter, length of pipe, and the minimum expected temperature, you can use this form to request a quote. Just follow the instructions on the form to get it back to us.
There is no built-in thermostat, but we do have recommended WarmlyYours controls which will activate the system for continuous operation at 40°F or below.
Yes, this depends on the cable type, voltage, and starting temperature. Refer to the Maximum Length vs. Circuit Breaker Size chart found in the manual.
We sell three different max power outputs: 10W/ft. 8W/ft., and 5W/ft. Because these cables are self-regulating, the actual power output will depend on the temperature (i.e. the lower the temperature, the higher the power output).
At a minimum: a PRO-Tect Pipe Freeze Protection Self-Regulating Cable, an End Seal kit, and a Power Connection Kit. However, we also strongly recommend a control. All of these components are directly available from WarmlyYours (along with other accessories).
Use of another manufacturer’s components will void the warranty.
This heating cable can be used to protect aboveground water pipes, which are insulated and weatherproofed, from freezing—weatherproofing is particularly important for any cable installed outdoors.
No. They are not designed to be powered by DC voltage. They must be used with AC voltage.
