Relay with built-in transformer 240V+Floor Sensor
Floor Heating Home Automation Integration Kits Description

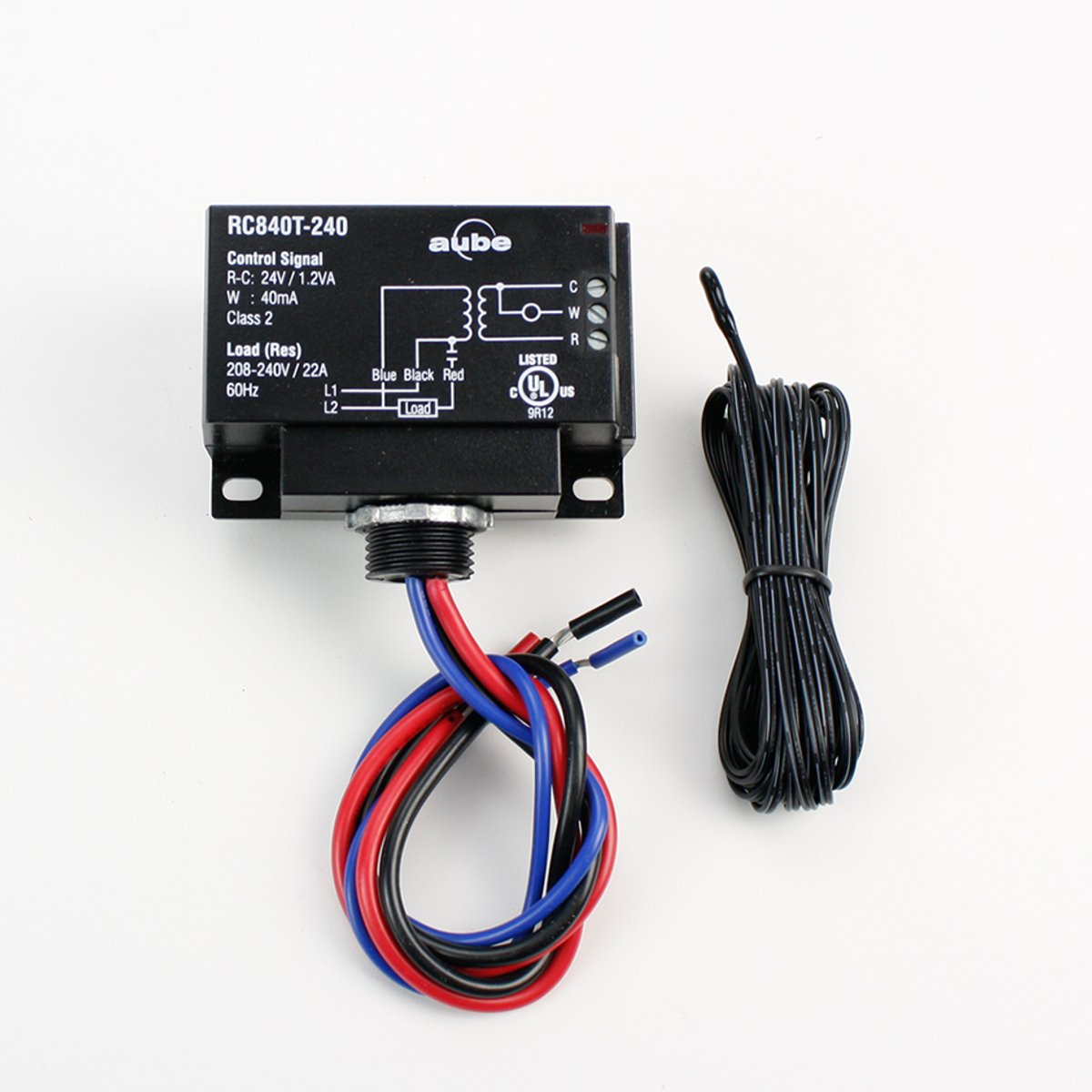

WarmlyYours electric floor heating systems can easily be integrated with your home automation system or third-party thermostat. The 240 V Integration Kit+ includes all the features of the 240 V Integration Kit, plus a 10 kilohm floor temperature sensor to give you even better control of your TempZone™ or Environ™ radiant heating system. The 240 V Integration Kit+ includes an electric heating relay with a built-in 24V/1.2VA/Class 2 transformer. This integration kit includes 3-wire, double-pole switching and a 12 AWG terminal wire, and operates at a resistive load of 22 amps at 240 V. The kit features a terminal board connection to make the installation process easy. Epoxy soundproofing ensures quiet operation of the relay, and a quick glance at the heating command indicator light confirms relay operation. Because of the low current consumption of the relay, a single thermostat can control multiple relays. The Integration Kit+ is C-UL-US Listed for safety and comes with a 3-year warranty against manufacturer defects.
Specifications
Electrical
Connection | Single pole, 3 wires |
Connection Method | Hardwired |
Maximum Load (Resistive Only) | 22 amps |

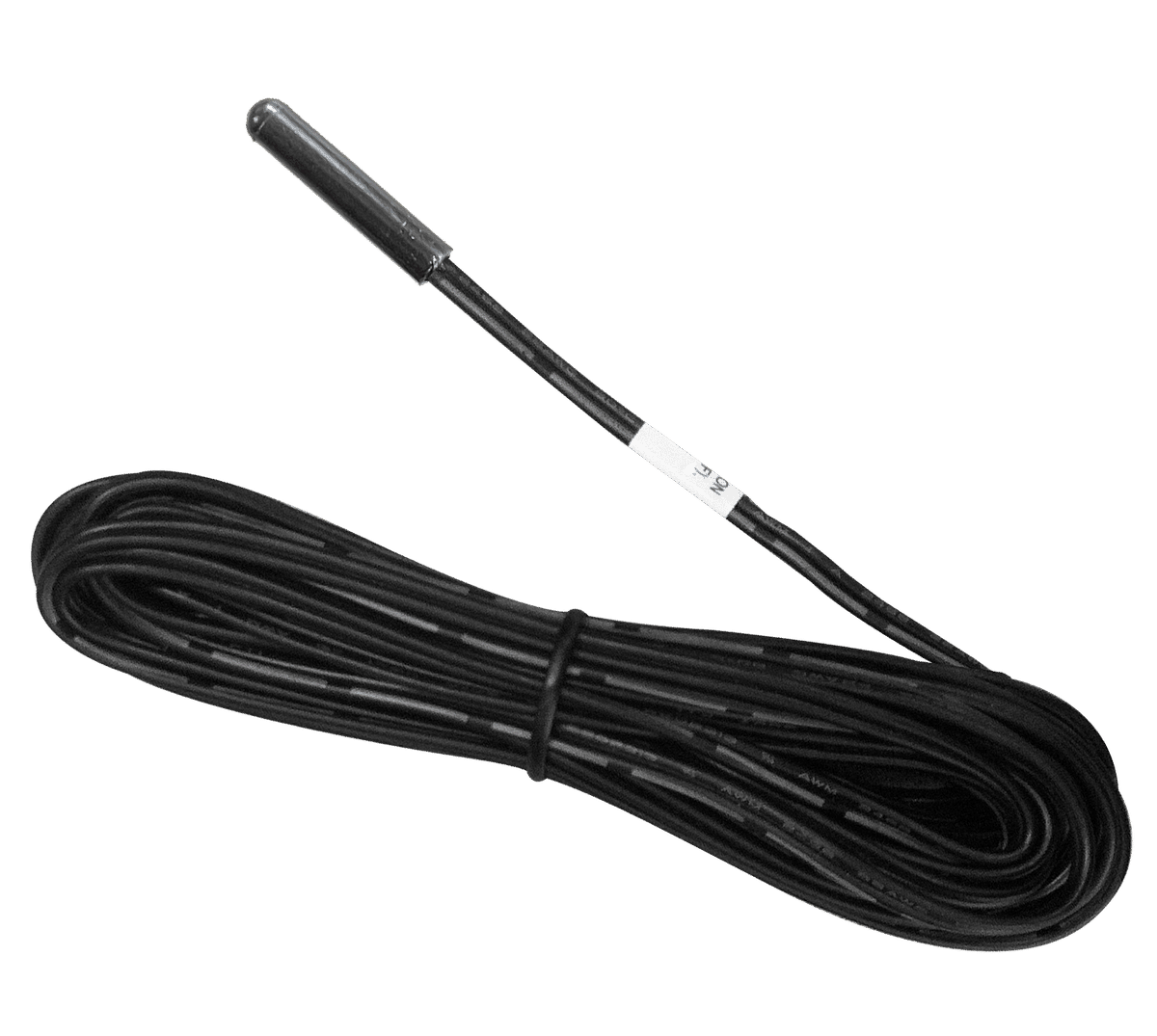

Sensor Type (Resistance) | 10 kOhm |
Transformer Ratings | 24 VAC / 1.2 VA / Class 2 |
Voltage | 240 V |
Controls
Control Signal | 24VAC / 40mA / 1.2VA |
Logistics
Country of Origin (COO) | China |
Identifiers
Ground Fault Protection (GFCI) | No |
SKU | INTEGRATION-KIT-PLUS-240V |
UPC (GTIN-12) | 881308037918 |
Product Dimensions
Length | 15′ |
Width | 0.1″ |
Warranty / Certifications
Warranty | 3 years |
Documents & Manuals
Installation
- TH115-AF-GA-08 SmartStat Installation Manual (English)
- RC840 Installation Guide (English)
- RC840T (Integration Kit) Installation Guide (English)
Project Planners
Wiring Diagrams
- Generic Wiring Diagram & Instruction, Integration Kit (English)
- Generic Wiring Diagram Multiple Integration Kits 240V (English)
- Nest Integration Multi 240V Wiring Diagram and Instructions (English)
- Nest Integration Wiring Diagram and Instructions (English)
- Savant Integration Wiring Diagram and Instructions (English)
- TempZone™ Custom & Standard Mat Wiring Diagram (English)
- WIRING DIAGRAM 120V & 240V Heating Products with PB112D-GA (English)
- Wiring Diagram for TempZone™ Cut & Turn Single Conductor (Multiple rolls) 120V & 240V with SmartStat™, EasyStat™ and Comfort Regulator (English)
- Wiring Diagram for TempZone™ Cut & Turn Twin Conductor (Multiple Rolls) 120V & 240V with SmartStat™, EasyStat™, Comfort Regulator and Power Modules (English)
- nSpire Series Thermostat Wiring Diagram for 120v and 240V Floor Heating Systems (English)
Sell Sheets
Customer Questions & Answers
Floor Heating Home Automation Integration Kits has 28 Questions and Answers.
How do I work with my electrician to install WarmlyYours electric floor heating?
While WarmlyYours electric radiant floor heating systems are typically installed by your floor covering contractor, a licensed electrician is recommended for the final thermostat hook-up. With every quote, we provide an Installation Plan layout, together with an electrical plan that has all the info required for the electrician.
What type of flooring can I install along with an electric floor heating system?
WarmlyYours’ TempZone™ product is most commonly installed under tile, stone, and marble flooring, but can also be installed under many other popular floor covering options such as hardwood, vinyl and linoleum. We also have our Environ system, which is an electric floor heating product as well and is specially designed for installation under carpet (in the U.S. only), laminate and floating wood. WarmlyYours can accommodate any flooring type with either of the electric radiant floor heating products that we offer. If your flooring type isn't listed here, just give us a call at (800) 875-5285 and we will be happy to discuss it with you.
How do I know if I am installing my electric floor heating system properly?
Please keep in mind that you must check your electric floor heating system with a digital ohmmeter in conjunction with a Circuit Check™. Take an initial reading as soon as you take the product out of the box to verify that it is within -5% / +10% of the values stated on the product’s label. This will give you a basis of comparison for future readings. Take a second reading once you have positioned the system to match your custom installation plan. It is also advisable to take an additional reading in the middle of the tile installation, just to make sure that the Circuit Check™ is doing its job. Then, take a final reading when you are finished with the floor installation and are ready to hook up the thermostat.
The Circuit Check™ is a tool developed by WarmlyYours to give you peace of mind and ensure trouble-free installations. Simply hook up the cold leads to the tool while you position the system to match your custom installation plan.
The Circuit Check™ will continuously monitor the continuity of the circuit during the installation of your system and during the installation of your flooring. The Circuit Check™ beeps immediately when a short in the system is detected, alerting you to a potentially damaged cable in the area you are working, before you lay the tile over the electric floor heating system. The WarmlyYours technical support team is available 24/7 to provide assistance if the alarm sounds, or if you would have any questions during your installation.
How much does it cost to run an electric floor heating system?
The answer to this question will depend on a whole host of variables related to electric floor heating, including, but not limited to, the run time (for supplemental heating, we usually recommend between 4-8 hours per day), the electric radiant floor heating system you're using, the total square footage, and your local electrical cost. Typically, the cost is just a few cents a day.
To figure out how much electric floor heating might cost to run for you, make sure to use our interactive Operating Cost Calculator.
Will electric floor heating help with moisture issues like mold and mildew?
Yes, the drying effects of electric radiant floor heating will reduce the humidity coming from the slab, which is the largest source of moisture.
View all 28 Questions and Answers
