Ember Mirror Radiant Panel Heater - 800W - 47" x 24ʺ - Dual Connection
What Size Panel Do I Need?
A radiant heat panel is a great way to add supplemental heat to a room—not unlike a wall mounted space heater. The table below will help you identify the typical room size* that a radiant heat panel can help warm up, based on wattage/heat output.
| Radiant Panel Wattage* | Warming Coverage |
|---|---|
| 300W Ember | 43 sq. ft. |
| 500W Ember | 71 sq. ft. |
| 600W Ember (Glass Only) | 86 sq. ft. |
| 700W Ember | 100 sq. ft. |
| 800W Ember (Glass Only) | 114 sq. ft. |
*This estimation is based on installing a radiant panel in a typical/average room. One factor that will impact the actual results is a room's degree of heat loss, which can be impacted by a number of factors including ceiling height, number of windows, and insulation level.
To get a free Heat Loss Calculation based on your room:
Features
-
Wall mounted: this 47” x 24” infrared heating panel can be installed vertically or horizontally on your wall
-
High heat output: this panel heater delivers an impressive heat output of 2,728 BTUs per hour
-
Energy efficient: it only costs approximately 10 cents per hour on average to run this electric wall heater
-
Dual connection: can be hardwired to a thermostat or plug-in a standard outlet (120 VAC)
-
Covered by a 5-year limited warranty
Notices
Quebec Repairability Notice
Avis important pour les consommateurs du Québec:
WarmlyYours n’offre pas de services de réparation pour ce produit. Aucune pièce de rechange n’est disponible pour le panneau en verre ou en aluminium, l’élément chauffant, les supports de montage ou la connexion électrique. Si votre panneau Ember tombe en panne pendant la période de garantie, nous remplacerons l’unité complète conformément à notre politique de garantie. Notre équipe d’assistance technique est disponible 24h/24 et 7j/7 par téléphone pour toute aide à l’installation ou au dépannage. Pour plus de détails, consultez notre politique de retour. Cet avis est fourni conformément à la Loi sur la protection du consommateur du Québec, article 39 (telle qu’amendée en 2025).
Important Notice for Québec Consumers:
WarmlyYours does not provide repair services for this product. No replacement parts are available such as the glass or aluminum panel, heating element, mounting brackets, or wiring connection. If your Ember panel fails within the warranty period, we will replace the entire unit according to our warranty policy. Our technical support team is available 24/7 by phone for installation and troubleshooting assistance. For full details, see our Return Policy. This notice is provided in accordance with Québec’s Consumer Protection Act, section 39 (as amended in 2025).
Ember Mirror Radiant Panels Description
The Ember Mirror radiant panel looks just like an ordinary mirror. Yet, looks can be deceiving. This 3.9- by 2-foot mirror emits 800 watts of heat so that it can heat a room and even function as a heating source/mirror defogger in bathrooms. Furthermore, mount it vertically in a dry area of your bathroom, accessorize it with a towel bar, and you have a beautiful, fully functional towel warmer. Of course, the panel can be mounted to a wall in any room of your home to provide comforting, even heat. Furthermore, unlike convection heating, this radiant panel does not circulate dust or other allergens into the air. It also is unique in that it delivers heat in the most energy efficient way possible. Ember radiant panels have one of the highest possible efficiency rates and consume the least amount of energy possible*.
These panels are also dual connection, meaning they can be used “as is” to plug into a standard 120 VAC outlet or they can be modified by a licensed electrician to have a hardwired 120 VAC electrical connection.
Note: Towel bars must be purchased separately.
* Infrapower Manufacturing Ltd.
Features:
- Wall Mounted: This 47” x 24” radiant panel can be installed vertically or horizontally on your wall
- Dual Connection: Can be hardwired to a thermostat or plug-in a standard outlet (120 VAC)
- High Heat Output: This infrared heating panel puts out 2,728 BTUs per hour
- Low Operating Cost: It only costs roughly $0.10 per hour to run this model (based on a national average electrical cost of 12 cents per kWh)
- Safe and Stylish: This radiant panel is not only more aesthetically pleasing than a propane space heater but it’s also safer
- 5-year Warranty: This product is covered by a 5-year limited warranty

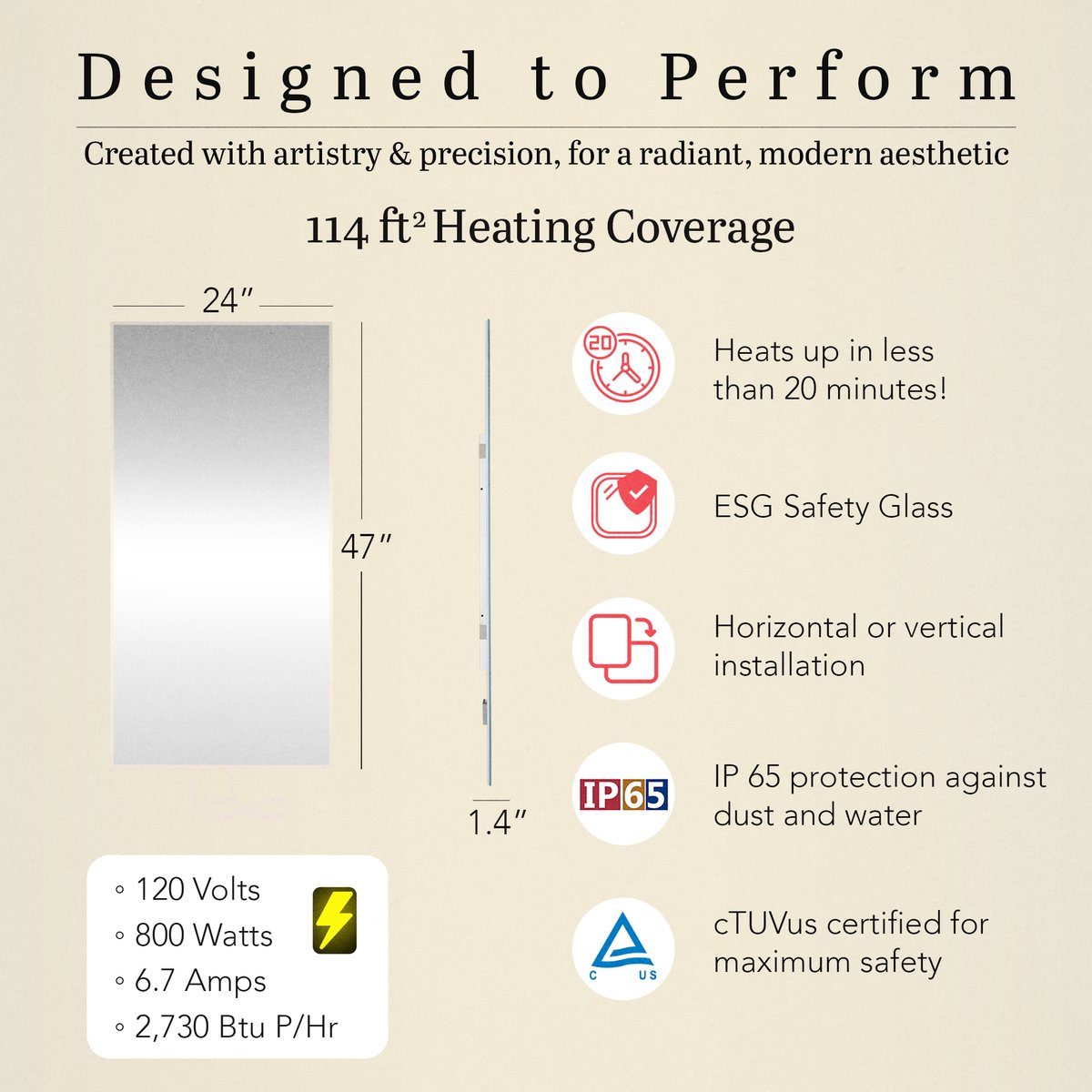

Specifications
Electrical
| Amps | 6.67 A |
| Connection Method | Plug-in or Hardwired |
| Cord Length | 6′ |
| Ohms | 18 Ω |
| On/Off Switch | No |
| Plug-Type | NEMA 5-15 (Type B) |
| Thermal Power | 0.8 kW |
| Voltage | 120 V |
| Watts | 800 W |
Warranty / Certifications
| Approvals | cTUVus certified |
| Ingress Protection (IPxx) Rating | IP65 |
| RoHS Compliance | 2002/95/EC (RoHS 1) |
| Warranty | 5 years |
Performance
| Average Surface Temperature | 194 °F |
| BTU Per Hour | 2730 Btu |
| Heating Coverage | 114 ft² |
| Surface Safety Limit | 248 °F |
Product Dimensions
| Depth | 1.375″ |
| Depth with Towel Bar Accessory | 4.5″ |
| Height | 47.2″ |
| Length | 47.2″ |
| Weight | 40.7 lbs |
| Width | 23.6″ |
Appearance
| Finish | Glass Mirror |
| Model | Ember Mirror - 47″ x 24″ |
| Size | 47″ x 24″ - 800W |
Installation
| Mounting Locations | Wall |
| Mounting Orientation | Horizontal or Vertical |
Identifiers
| SKU | IP-EM-GLS-MIR-0800 |
| UPC (GTIN-12) | 881308073961 |
Controls
A great control is the secret to any great heating system.
Accessories and Parts
Feel free to chat us if you have any questions about these items.
Documents
Installation
Wiring Diagrams
Warranties
Sell Sheets
Catalogs
Frequently Asked Questions
Verify 120V power at the connection of the panel to the circuit at the junction box in the wall (for hardwired connections), or at the outlet (for plug-in connections). Each Ember heater has a built-in safety switch that turns off the heating element automatically if it overheats. By unplugging or disconnecting the unit and waiting for about 10 to 15 minutes, the safety switch will reset automatically and the unit will be operational again.
If you experience additional issues, please give us a call at 1-800-875-5285.
We do not have a Radiant Panels Running Cost Calculator. However, this can be determined easily by taking the panel’s wattage, dividing it by 1000, and then multiplying the result by the local kW/hr cost – then take this hourly cost and multiple by 730 hours to get a monthly estimate.
There is no on/off button. If you're using your dual connection Ember radiant panel in the plug-in configuration, it can be unplugged when not in use or paired with compatible plug-in control devices like a timer. If you've elected to convert your dual connection radiant panel to a hardwired connection, the radiant panel should be wired to a hardwired control option like a switch, a hardwired timer, or a hardwired thermostat.
