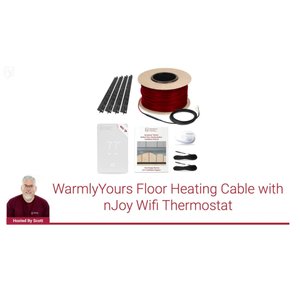

TempZone Cable Kit 30 ft (10 sqft @ 4 in spacing) with nJoy WiFi LED Touch Programmable Thermostat, 120V, 3.7/ft, 1.08A

C$523
Need help? Call our experts at (800) 875-5285
Request a Free Product Sample
Support Page
Jump to

TempZone Cable Kits with Fixing Strips and nJoy WiFi Thermostat Description

Specifications

Electrical (TCT120-3.7W-030)

Amps 1.08 A
Cold Lead Wire Gauge 17 AWG
Floor Load 0.13 kW
Ohms 111 Ω
Ohms Per Ft 3.7 Ohm/ft
Thermal Power 0.13 kW
Voltage 120 V
Watts 130 W
Watts Per Sq. Ft at 3.75 Inch Spacing Up to 12
Watts Per Sq. Ft. 9 to 15
Watts Per Sq. Ft. at 3 Inch Spacing Up to 15
Watts Per Sq. Ft. at 4 Inch Spacing Up to 11
Watts Per Sq. Ft. at 5 Inch Spacing Up to 9

Controls (UWG5-4999-WY)

App Languages English, French, Spanish

Warranty / Certifications (TCT120-3.7W-030)

Approvals cULus listed
Warranty 25 Year Warranty
Wet Location Listed US, Canada

Warranty / Certifications (UWG5-4999-WY)

Approvals cULus listed
FCC ID XPYNINAW106
Hardware Version Identification Number (HVIN) NINA-W156
IC Certification Number 8595A-NINAW106
Ingress Protection (IPxx) Rating IP20
Warranty Limited 3-year warranty and lifetime technical support

Performance (TCT120-3.7W-030)

BTU Per Hour 444 Btu

Electrical (UWG5-4999-WY)

Backup Battery Capacity 40 mA*h
Backup Battery Chemistry Lithium manganese dioxide (Li-MnO2); primary lithium metal
Backup Battery Lithium Content 0.0012 g
Backup Battery Manufacturer Hubei Zhongju (EEMB) Energy Power Co., Ltd.
Backup Battery Model CR1220
Backup Battery Nominal Voltage 3 V
Backup Battery Rechargeable No
Backup Battery Total Weight 0.9 g
Battery One internal EEMB CR1220 lithium manganese dioxide backup cell; 3 V, 40 mAh; approximately 0.9 g
Connection 4 wires, double pole, screw terminals
Connection Method Hardwired
Ground Fault Protection GFCI, Class A, 5 mA
Maximum Current 15 A
Maximum Power 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V
Power Terminal Wire Gauge 14–12 AWG solid or stranded; 14–13 AWG stranded with ferrule
Signal Terminal Wire Gauge 22–18 AWG solid or stranded; 22–20 AWG stranded with ferrule
Supply 120 VAC, 208 VAC, 240 VAC (50/60Hz)

Connectivity (UWG5-4999-WY)

Bluetooth® Version 4.2 (BDR/EDR/BLE)
Security TLS 1.3
Wi-Fi IEEE Standards 802.11 b/g/n
Wi-Fi Radio Frequency Bands 2.4 GHz
WiFi Encryption WPA, WPA2, WPA3
Works with Hey Google or Amazon Alexa

Product Dimensions (TCT120-3.7W-030)

Cold Lead Length 15′
Coverage 10 ft²
Coverage at 3 Inch Spacing 7.5 ft²
Coverage at 3.5 Inch Spacing 8.8 ft²
Coverage at 3.75 Inch Spacing 9.4 ft²
Coverage at 4 Inch Spacing 10 ft²
Coverage at 5 Inch Spacing 12.5 ft²
Heating Cable Length 30′
Heating Element Thickness 3/16″
Length 30′
Weight 1.8 lbs

Appearance (TCT120-3.7W-030)

Color Red

Appearance (UWG5-4999-WY)

Color White Acrylic
Display LED Light Through

Product Dimensions (UWG5-4999-WY)

Depth 1.73″
Installed Depth 0.46″
Length 4.98″
Weight 0.4 lbs
Width 3.09″

Installation (TCT120-3.7W-030)

Fixing Strips at 3 inch spacing 30
Fixing Strips at 4 inch spacing 30
Fixing Strips at 5 inch spacing 30
Floor Types Commonly installed beneath tile and stone
Ideal Cable Spacing with Competitor's Membrane 3½″
Ideal Cable Spacing with Fixing Strips 4″
Ideal Cable Spacing with Prodeso Membrane 3¾″

Thermostat (UWG5-4999-WY)

Floor Sensor Compatibility 10k ohms, 12k ohms and custom
Includes Floor Sensor 10k ohms, 15′ lead
Maximum Ambient Temperature Setting 77 °F
Maximum Floor Temperature Setting 104 °F
Minimum Ambient Temperature Setting 32 °F
Minimum Floor Temperature Setting 41 °F

Logistics (TCT120-3.7W-030)

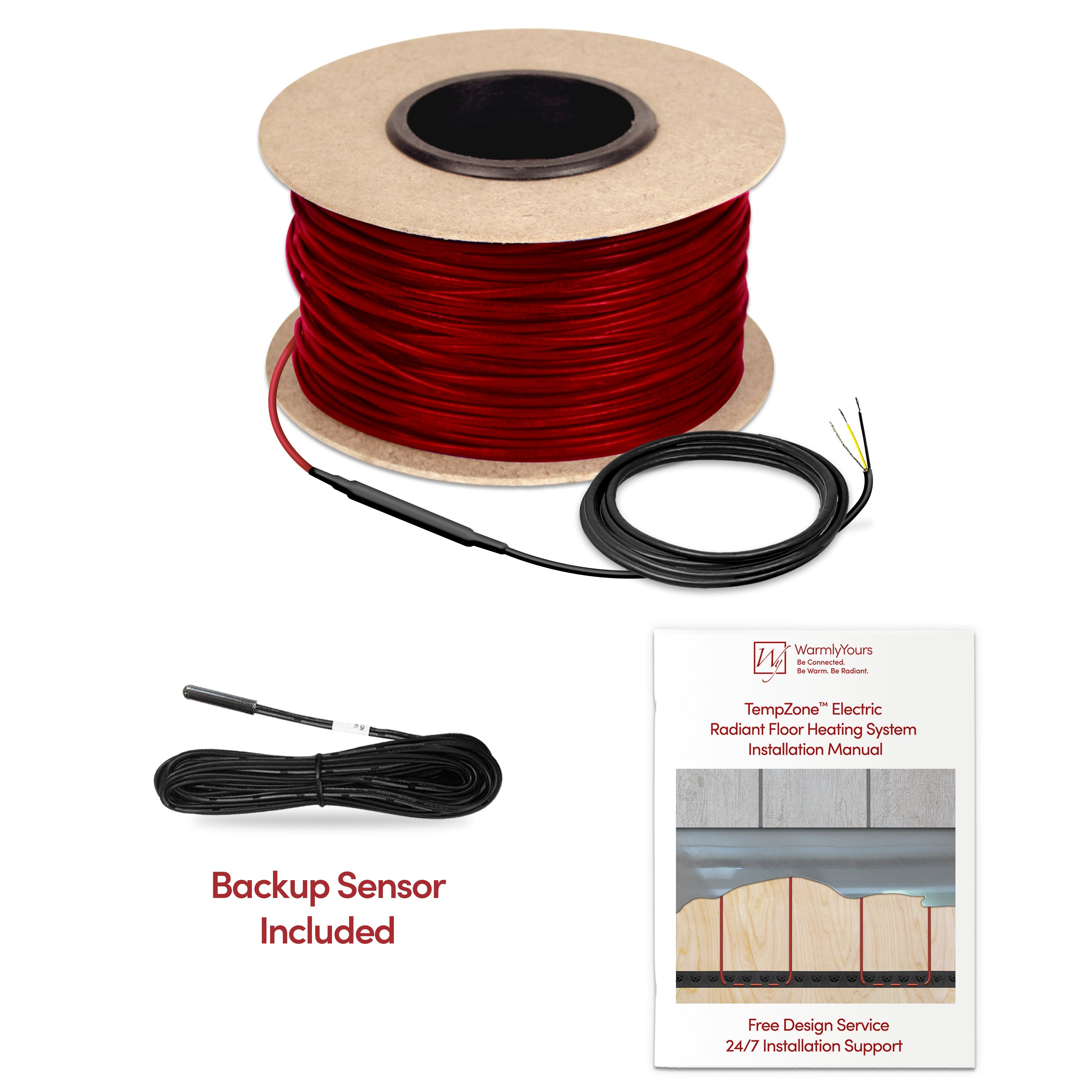

Package Contents (1) TempZone Floor Heating Cable 120V 3.7W/ft 30 ft 1.0A (TCT120-3.7W-030); 1x Floor Heating Sensor (FH-BACKUP-SENSOR)
UNSPSC Code 40101830

Identifiers (TCT120-3.7W-030)

SKU TCT120-3.7W-030
UPC (GTIN-12) 881308048969

Identifiers (UWG5-4999-WY)

SKU UWG5-4999-WY
UPC (GTIN-12) 881308076771

Documents

Installation

Operation Manuals

Project Planners

Technical Information

Wiring Diagrams

Warranties

Register Warranty

Sell Sheets

Catalogs

Case Studies

Frequently Asked Questions

Showing all 5 questions

While WarmlyYours electric radiant floor heating systems are typically installed by your floor covering contractor, a licensed electrician is recommended for the final thermostat hook-up. With every quote, we provide an Installation Plan layout, together with an electrical plan that has all the info required for the electrician.

41 people found this helpful Was this helpful? Yes No

Our electric radiant floor heating systems have withstood rigorous safety testing and earned the UL listing. They produce much less EMF than common household appliances like your TV or vacuum cleaner. The EPRI (Electric Power Research Institute) tests all electrical devices and publishes the data. Many common household appliances are tested at a distance of 6 inches. The test results indicate that on average, the EMF emitted for the following appliances, measured in Milligauss (mG) units, is:

Vacuum Cleaner: 300 mG

Microwave: 200 mG

Portable Heater: 100 mG

Dishwasher: 20 mG

Washing Machine: 20 mG

WarmlyYours TempZone™ (Twin): 1.8 mG

32 people found this helpful Was this helpful? Yes No

Yes. Unlike the heating cable for electric floor heating, the cold lead wires can be trimmed.

22 people found this helpful Was this helpful? Yes No

To prevent any melting, ensure that the heating wire is at least 4” from the toilet wax ring.

17 people found this helpful Was this helpful? Yes No

Electric-resistance heating cables and systems have no polarity. This includes all current WarmlyYours heating elements.

14 people found this helpful Was this helpful? Yes No
