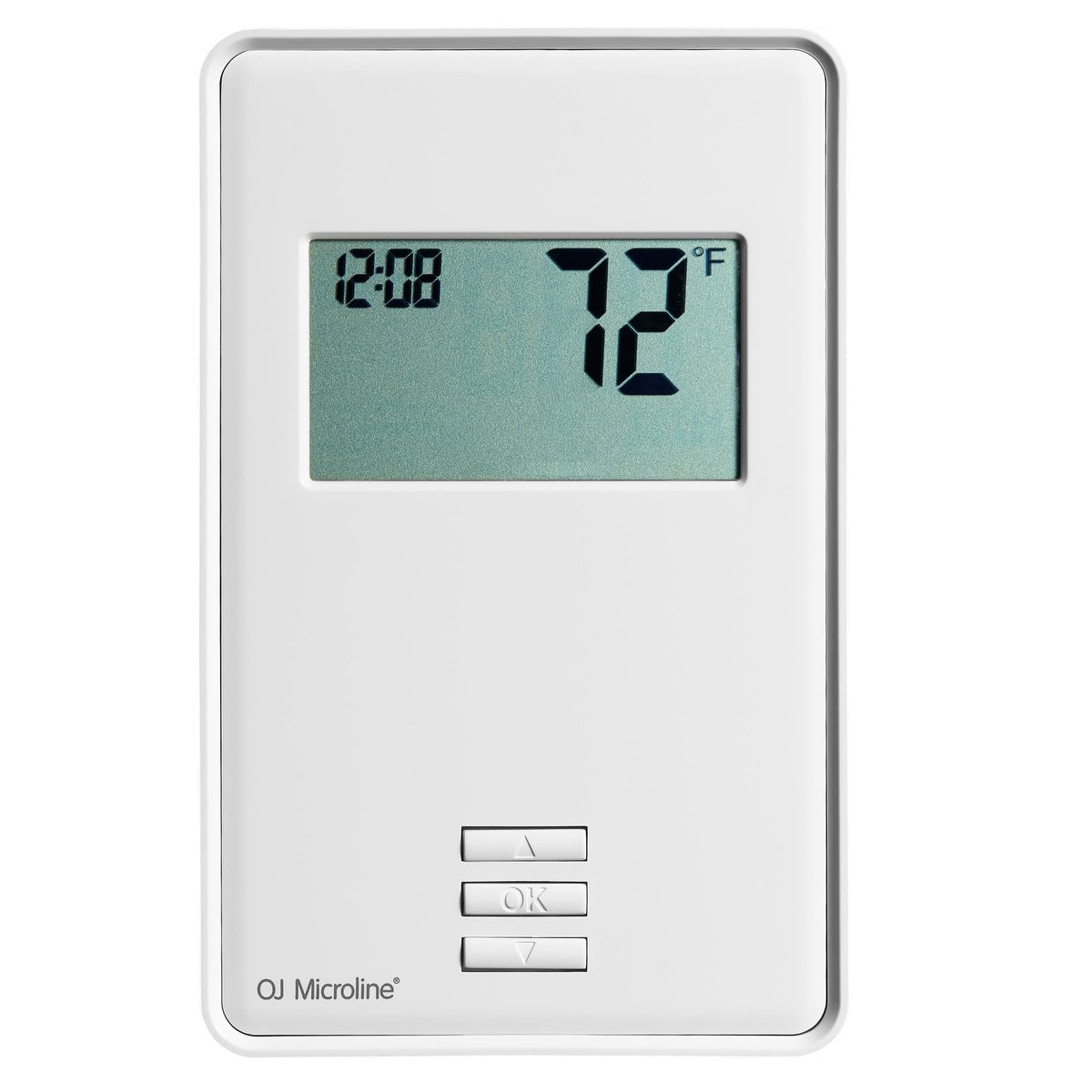

nTrust Nonprogrammable Thermostat
Features
-
With an included floor sensor, your system can cycle on and off and continuously adjust to save energy and only use the electricity that you need
-

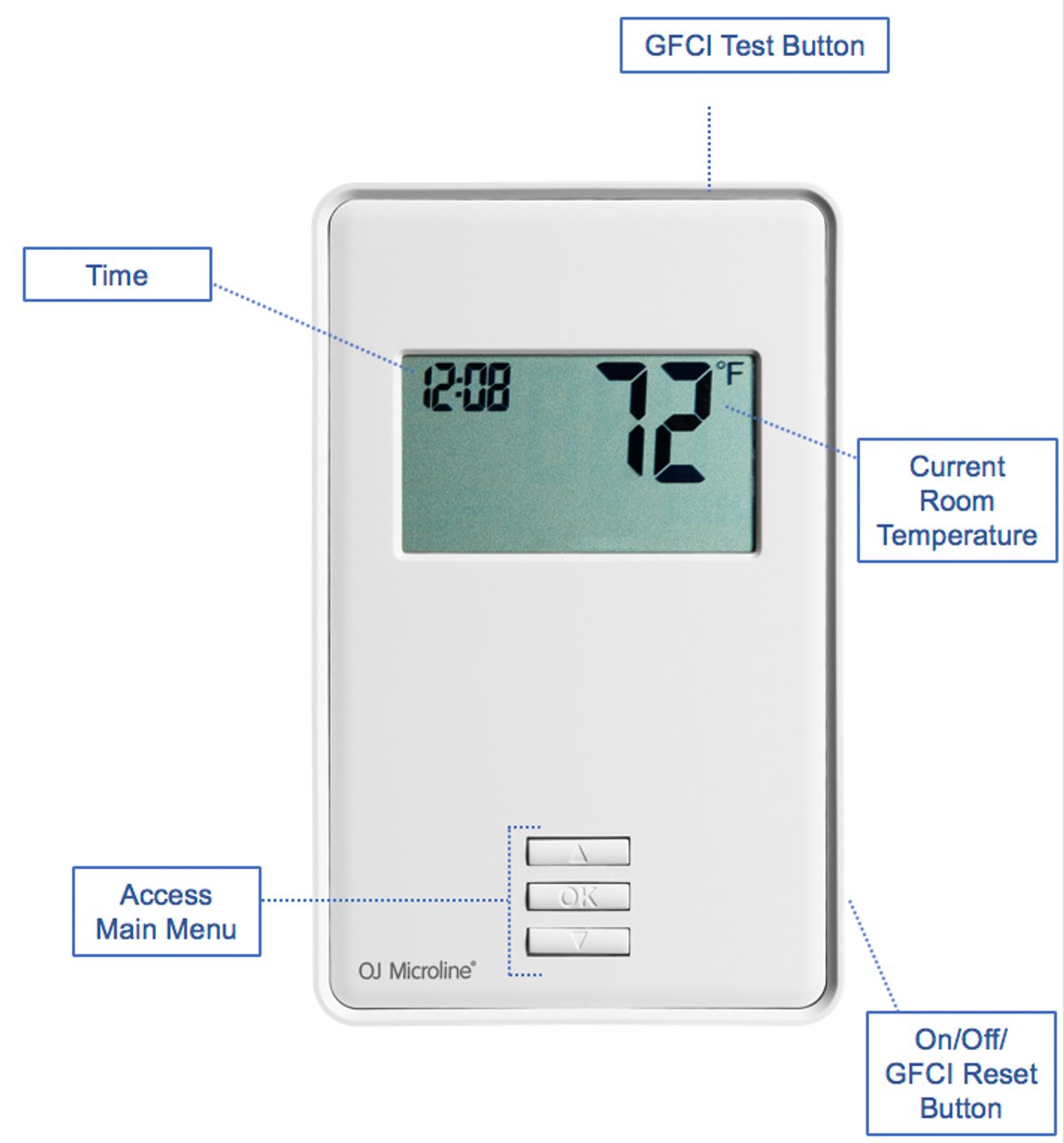

Large, backlit display for easy reading in low light areas
nTrust Non Programmable Thermostat Description
Enjoying the comfort of radiant heating has never been easier. The nonprogrammable nTrust thermostat delivers both ease and reliability. Its sleek, minimalist appearance, featuring a large backlit display for ease of reading in low light, compliments nearly any interior design theme.
Because there is no programming required for this dual voltage (120V/240V) control, you can just set it for your desired temperature and then sit back and relax. This elegant piece of wall-candy is perfect for high-traffic rooms, like the living room, where you want to keep the temperature at a consistent level throughout the day. Includes floor sensor.
- Large, easy-to-read display
- Energy Log for tracking use
- Works with hardwired WarmlyYours radiant panels
- Built-in self-testing GFCI
- 3-year warranty
Specifications
Warranty / Certifications
Approvals | cULus listed |
Proposition 65 Compliant | Yes |
Warranty | Limited 3-year warranty and lifetime technical support |
Electrical
Circuits Required | 1 |
Connection | 4 wires, double pole |
Connection Method | Hardwired |
Ground Fault Protection | GFCI, Class A, 5 mA |
Maximum Current | 15 A |
Maximum Power | 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V |
Supply | 120 VAC, 50/60Hz / 240 VAC, 50/60Hz |
Logistics
Country of Origin (COO) | Malaysia |
Product Dimensions
Depth | 2″ |
Installed Depth | 0.75″ |
Length | 5.125″ |
Width | 3.25″ |
Controls
Display | Backlit Display |
Display Size | 2.5″ |
Thermostat
Floor Sensor Compatibility | 10k ohms only |
Includes Floor Sensor | Yes (1) |
Maximum Ambient Temperature Setting | 77 °F |
Maximum Floor Temperature Setting | 104 °F |
Minimum Ambient Temperature Setting | 32 °F |
Minimum Floor Temperature Setting | 41 °F |
Programmable | No |
Identifiers
SKU | UTN4-4999 |
UPC (GTIN-12) | 881308051235 |
Documents & Manuals
Installation
- nSpiration Electrical Rough-in Kit Installation (Single Gang Box with 2 Conduits) (English)
- nSpiration Electrical Rough-in Kit Installation (Single Gang Box with Single Conduit) (English)
- nSpiration Electrical Rough-in Kit Installation (Single Gang Box without Conduit) (English)
Operation Manuals
Wiring Diagrams
- nSpiration Series Thermostat Wiring Diagram (120V & 240V) (English)
- nSpiration Series Thermostat Environ Wiring Diagrams (English)
- nSpiration Series Thermostat TempZone Twin Wiring Diagrams (English)
Sell Sheets
Customer Questions & Answers
nTrust Non Programmable Thermostat has 20 Questions and Answers.
How do I work with my electrician to install WarmlyYours electric floor heating?
While WarmlyYours electric radiant floor heating systems are typically installed by your floor covering contractor, a licensed electrician is recommended for the final thermostat hook-up. With every quote, we provide an Installation Plan layout, together with an electrical plan that has all the info required for the electrician.
How can I determine what I need for my floor heating project and how can I find out what my floor heating system will cost?
You can use the Instant Quote Tool, which gives you many options for your floor heating coverage. Use this interactive tool to design your room online and receive an instant quotation with product recommendations, rough-in and installation kits, cost of your control, etc. Planning your floor heating project is made easy when using our Instant Quote Tool.
Send us your floor plan or fax it to (800) 408-1100 and we will send you a quote, product recommendation and a free custom installation plan for your project.
How do I know if I am installing my electric floor heating system properly?
Please keep in mind that you must check your electric floor heating system with a digital ohmmeter in conjunction with a Circuit Check™. Take an initial reading as soon as you take the product out of the box to verify that it is within -5% / +10% of the values stated on the product’s label. This will give you a basis of comparison for future readings. Take a second reading once you have positioned the system to match your custom installation plan. It is also advisable to take an additional reading in the middle of the tile installation, just to make sure that the Circuit Check™ is doing its job. Then, take a final reading when you are finished with the floor installation and are ready to hook up the thermostat.
The Circuit Check™ is a tool developed by WarmlyYours to give you peace of mind and ensure trouble-free installations. Simply hook up the cold leads to the tool while you position the system to match your custom installation plan.
The Circuit Check™ will continuously monitor the continuity of the circuit during the installation of your system and during the installation of your flooring. The Circuit Check™ beeps immediately when a short in the system is detected, alerting you to a potentially damaged cable in the area you are working, before you lay the tile over the electric floor heating system. The WarmlyYours technical support team is available 24/7 to provide assistance if the alarm sounds, or if you would have any questions during your installation.
Can I use electric floor heating as a primary heat source?
Yes, in most cases, an electric floor heating system can be effective as a primary heat source. However, our TempZone™ and Environ™ systems are most commonly used as a secondary heat source, providing floor-to-ceiling radiant heat to any room in your home where you desire more warmth and comfort.
If you are considering electric floor heating for an addition to your home, such as a sunroom where you have no other source of heat, WarmlyYours offers an innovative online tool which calculates approximate heat loss. This tool can help you to determine if a WarmlyYours’ electric radiant floor heating system will provide your desired comfort temperature throughout the year. You can access the Heat Loss Calculator or you can call us at (800) 875-5285 and a Customer Service Representative will make the calculation for you.
How can I make my basement warmer?
A floor heating system can work as a supplemental heating source and make the basement warmer. If more heat needs to be added to the room, you can experiment with setting the floor heating thermostat to higher temperatures.
View all 20 Questions and Answers
