Stepping out of a warm shower onto a freezing tile floor instantly shatters the feeling of relaxation. For homeowners in Michigan's unforgiving winters, cold bathrooms aren't just an inconvenience—they are a daily disruption to morning and evening routines.
By integrating invisible warmth directly beneath the floor, this new-build project turned a routine master bath into a high-efficiency wellness sanctuary.
Project Details
| Specification | Detail |
| Location | Washington, Michigan |
| Space Type | Master Spa Bathroom |
| Surface / Flooring | Tile, Marble, or Stone |
| System Type | Radiant Floor Heating |
| Total Room Area | 96 sq. ft. |
| Heated Area | 72 sq. ft. |
| Technical Specs | 120V / 1,080W / 9A |
| Watt Density | 15 Watts per sq. ft. |
| Products Used | TempZone™ Flex Roll, SmartStat™ Programmable Thermostat, Circuit Check™ |
| Professional Installer | Borchert Building Company |
The Master Spa Experience
The Problem
The Borchert Building Company set out to construct a high-end master suite that felt like a boutique wellness retreat. However, the design called for beautiful, high-thermal-mass tile flooring—a material notorious for stealing body heat and feeling uncomfortably cold throughout the fall and winter months. Without a dedicated heating solution, the room's premium aesthetic would be undermined by its physical discomfort.
The Solution

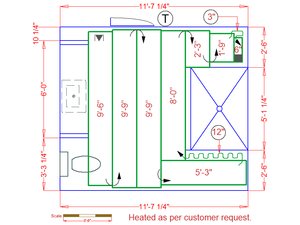

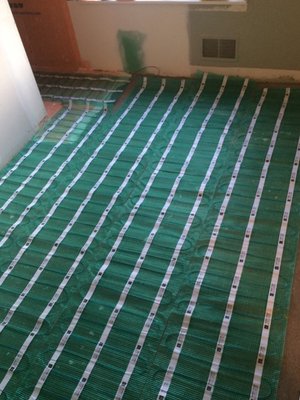

To resolve this, the construction team embedded an ultra-thin electric floor warming system directly into the floor structure. Using a custom engineering layout, the installers rolled out the heating mesh across the 72 square feet of walkable floor space. By encasing the heating elements in a layer of modified thin-set mortar beneath the tile, the system was optimized to radiate heat evenly upward, ensuring there are zero cold zones in the room.

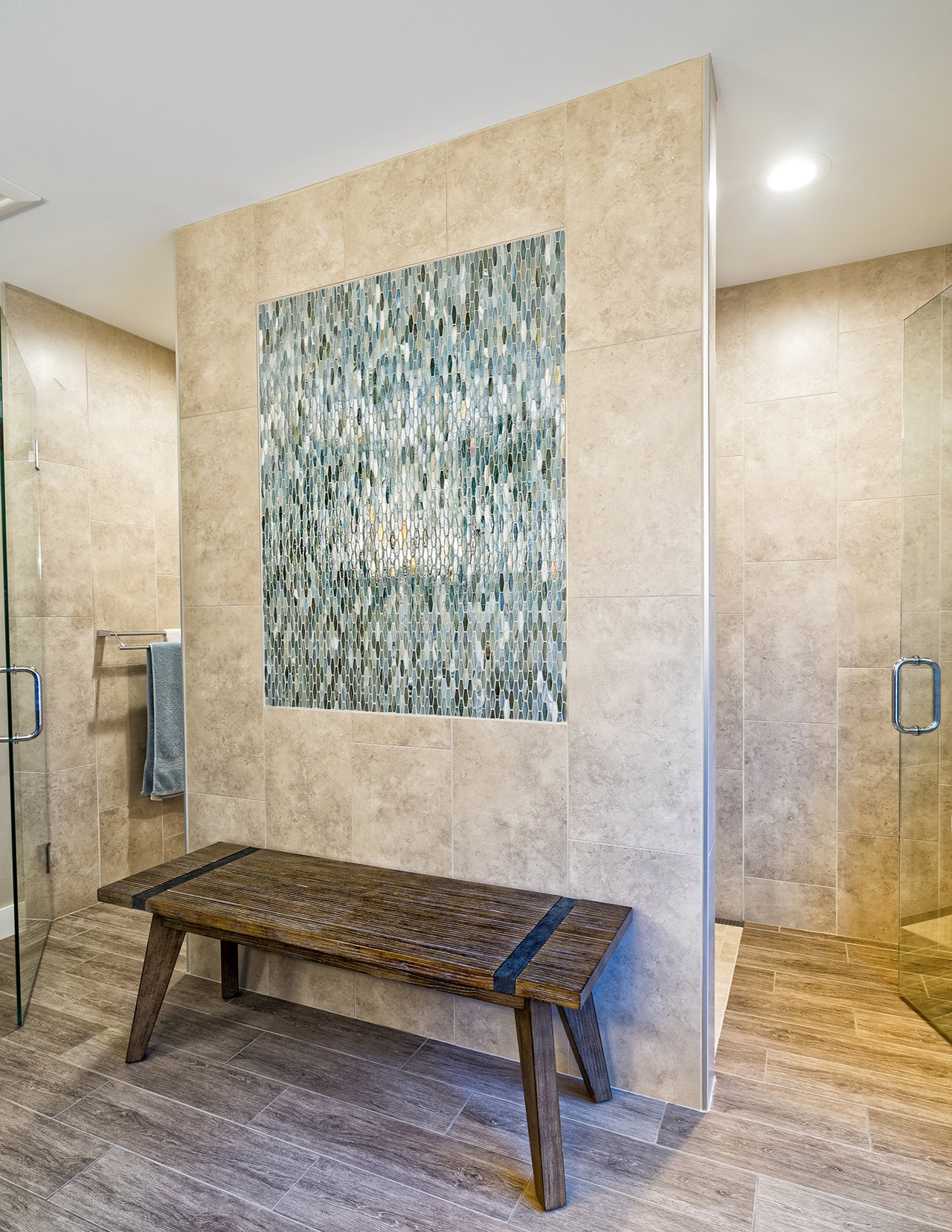

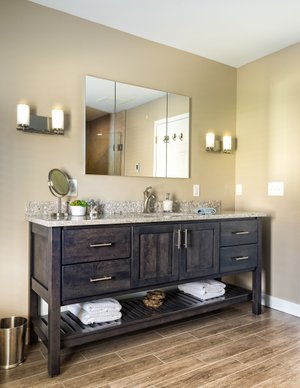

The Outcome
The finished space delivers uncompromised comfort. Instead of relying purely on forced-air vents that dry out the air and leave floors cold, the radiant system gently warms the stone surface to a precise, comfortable temperature. The homeowners now enjoy a warm floor exactly when they wake up, combining energy-efficient zone heating with true luxury.
Featured Radiant Products
- TempZone™ Flex Roll: This electric radiant floor heating mat features a low-profile cable pre-spaced on a fiberglass mesh. Its flexible cut-and-turn layout simplifies installation around bathroom fixtures while guaranteeing a uniform 15 watts per square foot density.
- SmartStat™ Programmable Thermostat: A dedicated control unit equipped with an in-floor thermal sensor. It monitors actual floor temperature rather than ambient air, allowing homeowners to program automated schedules that maximize energy savings.
- Circuit Check™ Continuity Alarm: A critical safeguard tool that connects to the heating leads during installation. It sounds an immediate warning if the cable is accidentally cut or nicked during tiling, preventing post-flooring issues.
