This project in Buffalo Grove, Illinois, showcases how electric radiant heating was installed beneath a new paver driveway and walkway to deliver hands-free, permanent snow removal. The challenge of harsh Chicagoland winters, with heavy snow and dangerous ice, was solved by installing WarmlyYours Snow Melt PowerMats. This invisible system ensures the customer's property is always safe and clear, dramatically increasing winter comfort, improving safety, and adding substantial value to the home.
Project Details
- Location: Buffalo Grove, Illinois
- Heated Space Type: Driveway and Walkway (Paver Surface)
- Total Heated Square Footage: 100 sq. ft.
- Watts: 5000 W
- Volts: 240V
- Amps: 20 A
- Operating Surface: Paver
- Installation Company: JD Wieland Incorporated
- Operating Cost Per Hour: $0.52
Year-Round Comfort with Heated Driveways
The winter conditions in Buffalo Grove, IL, demand a reliable solution for snow and ice. The homeowner, working with installer JD Wieland Incorporated, recognized that a manual shoveling or salting routine was inefficient and risky. They opted for a permanent, in-ground snow melting system during the construction of their new paver driveway and walkway.

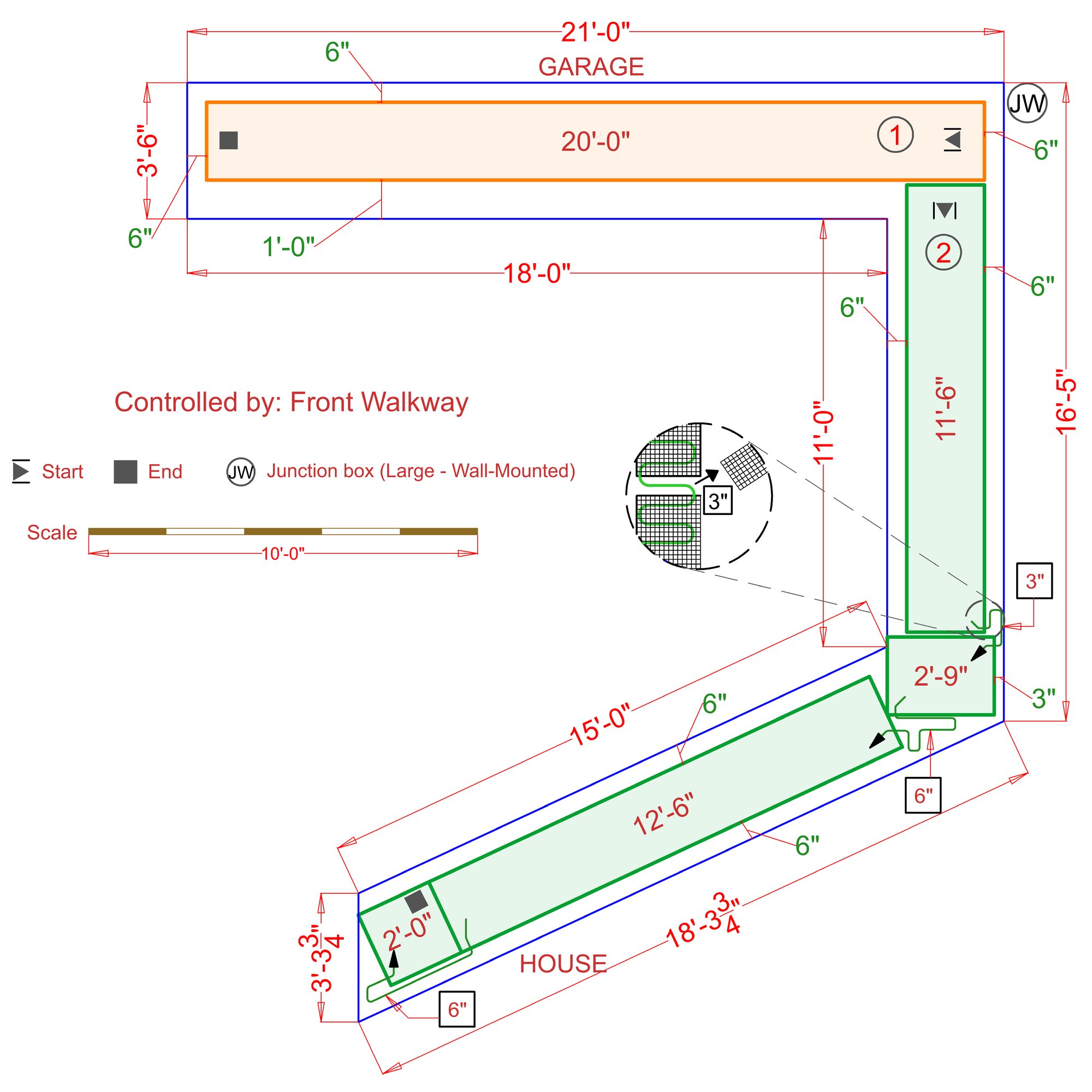

WarmlyYours provided a custom radiant floor heating plan for the irregularly shaped area, specifying Snow Melt PowerMats for easy and effective installation. The mats were laid out on the prepared substrate before the final paver bedding and pavers were installed, ensuring even heat distribution across the 100 square foot area. This heated driveway system is fully automated with a sensor (Controlled by Front Walkway, ID: IP1554422-R1), which activates the electric heating as soon as it detects moisture and freezing temperatures.

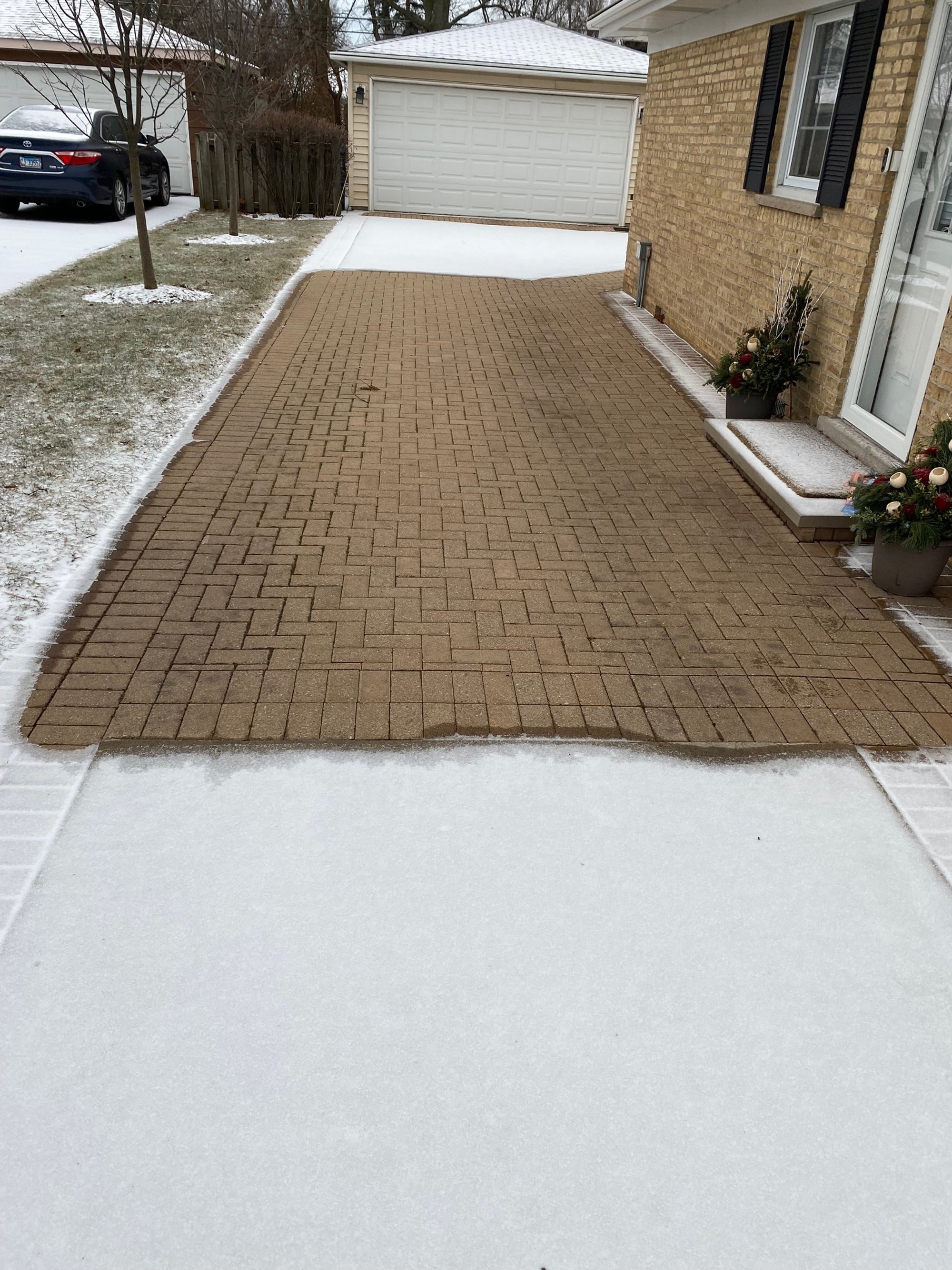

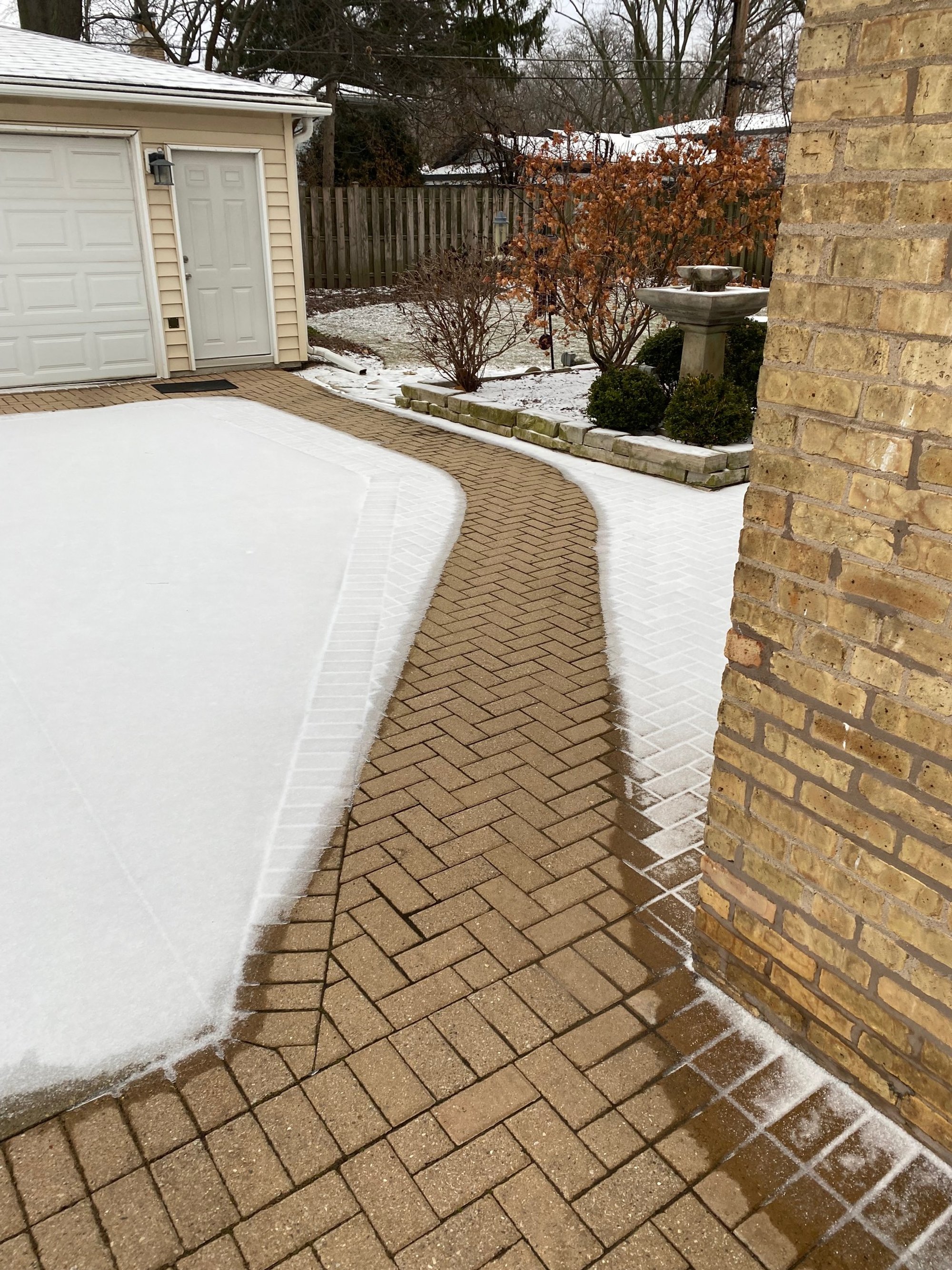

The outcome is a stunning paver driveway and walkway that is completely maintenance-free in the winter. The system melts snow on contact, preventing dangerous ice from forming and eliminating the need for salt, which can damage the pavers and surrounding landscape. This upgrade provides unparalleled winter convenience, enhances property curb appeal, and offers peace of mind through a truly reliable, energy-efficient heating solution.
Featured Products
- Snow Melt PowerMat : Pre-sized mats of electric heating cable designed for easy, roll-out installation under wet applications like asphalt, concrete, and pavers. Delivers 50 watts per square foot for efficient snow melting.
- Advanced Snow and Ice Melt Control : An automated control system that uses an included aerial sensor to detect temperature and moisture, activating the snow melt system only when necessary to maximize energy efficiency.
- Large Relay Panel : Required for large systems (high amperage) to switch the electrical load, ensuring the system runs safely and effectively.
- Snow Melt Embeddable Attachment Grid : Specialty grid used to secure the heating mats and cables during the paver installation process, ensuring stable and proper placement.
