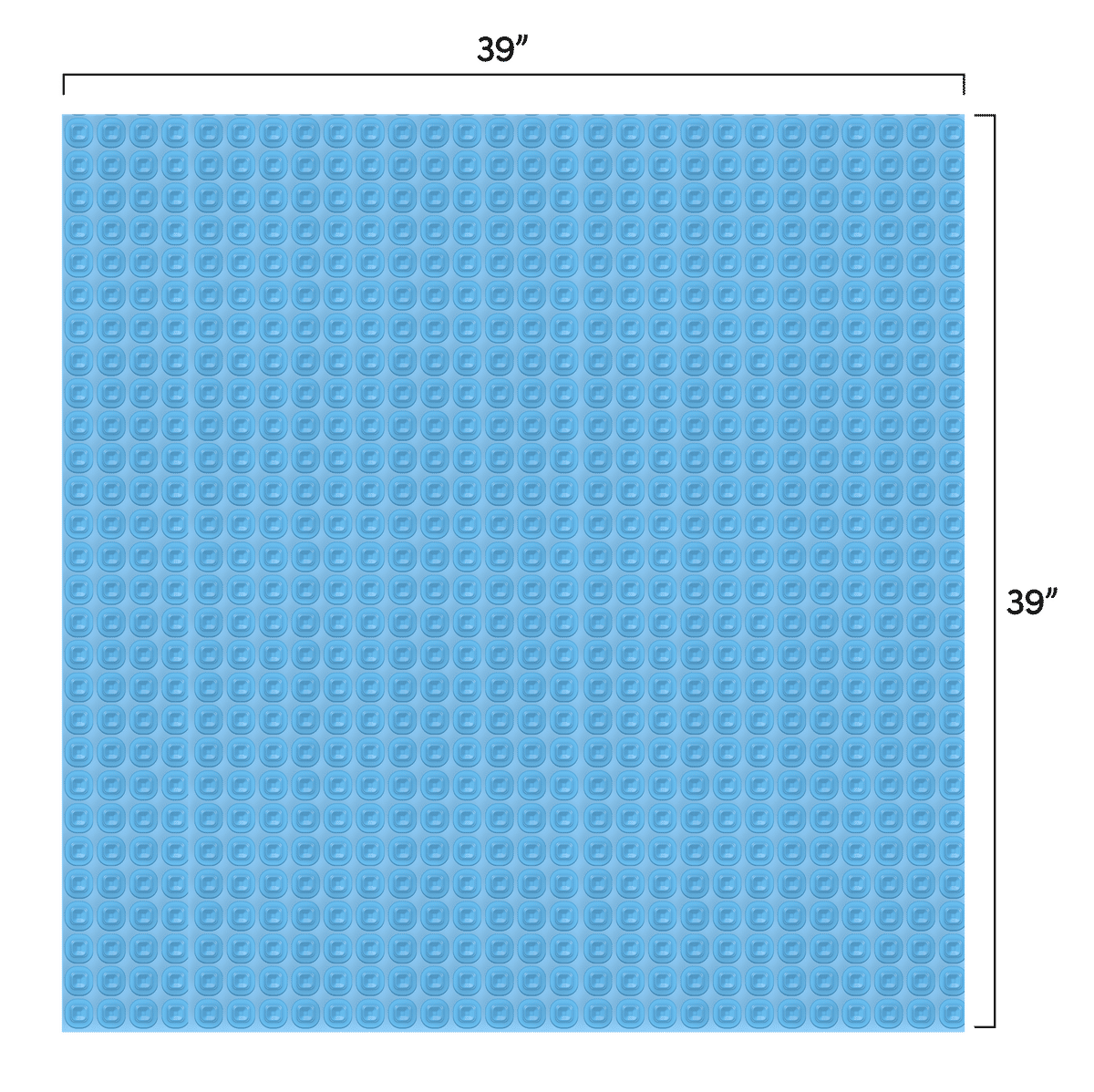

Prodeso Membrane Sheet 10.8 Sq. Ft. (3′ 3.4″ x 3′ 3.4″)


Prodeso Membrane Sheet 10.8 Sq. Ft. (3′ 3.4″ x 3′ 3.4″)

Support Page

Prodeso Cable Installation Membrane Description

The Prodeso Cable Installation Membrane is an uncoupling membrane that is designed to be used with TempZone electric floor heating cable*. This 10.78 sq. ft. sheet of the membrane is great for small applications or smaller areas in a project.

The unique design of the membrane allows for greatly accelerated installations of radiant floor heating—in fact, most floor heating installs with this membrane can be completed in a single day.

The polypropylene membrane features integrated channels are shaped to easily and securely hold the 3.7-watt TempZone Heating Cable. This makes it easy to maintain proper spacing throughout an entire project. The Prodeso membrane also provides uncoupling and crack isolation benefits, which can greatly extend the life of tile, marble, and stone floors. With the use of ProBand accessories, the membrane can also be waterproofed for high-moisture applications like kitchens or bathrooms. The low 7/32" profile of this membrane means its installation won't significantly increase overall floor height. The membrane comes with a 10-year warranty.


* TempZone electric floor heating cable sold separately.

Specifications

Logistics

Country of Origin (COO) Italy

Product Dimensions

Coverage 10.78 ft²
Length 3′ 3.4″
Stud Spacing 1.25″
Thickness 0.219″
Width 3′ 3.4″

Installation

Minimum Tile Size 2″ x 2″
Recommended Cable Spacing 3.75″, 5″

Identifiers

SKU TC-MEM-BL-SH39X39
UPC (GTIN-12) 881308063641

Appearance

Type Membrane

Warranty / Certifications

Warranty 10 years

Customer Questions & Answers

Prodeso Cable Installation Membrane has 40 Questions and Answers.

Don't see the answer you're looking for? Post your question

How can I determine what I need for my floor heating project and how can I find out what my floor heating system will cost?

You can use the Instant Quote Tool, which gives you many options for your floor heating coverage. Use this interactive tool to design your room online and receive an instant quotation with product recommendations, rough-in and installation kits, cost of your control, etc. Planning your floor heating project is made easy when using our Instant Quote Tool.

Send us your floor plan or fax it to (800) 408-1100 and we will send you a quote, product recommendation and a free custom installation plan for your project.

27 people found this helpful.  Did you find this helpful? Yes No

Should I be concerned about electric floor heating melting the toilet connection's wax ring?

To prevent any overheating, we recommend that you do not install any electric radiant floor heating elements closer than 4" from the wax ring.

13 people found this helpful.  Did you find this helpful? Yes No

Can I put furniture on top of underfloor heating?

Yes, but any furniture that may trap heat, such as pieces with an enclosed bottom, should be avoided. Furniture on legs with a clearance of at least 3" is permissible.

13 people found this helpful.  Did you find this helpful? Yes No

How do I know if I am installing my electric floor heating system properly?

Please keep in mind that you must check your electric floor heating system with a digital ohmmeter in conjunction with a Circuit Check™. Take an initial reading as soon as you take the product out of the box to verify that it is within -5% / +10% of the values stated on the product’s label. This will give you a basis of comparison for future readings. Take a second reading once you have positioned the system to match your custom installation plan. It is also advisable to take an additional reading in the middle of the tile installation, just to make sure that the Circuit Check™ is doing its job. Then, take a final reading when you are finished with the floor installation and are ready to hook up the thermostat.

The Circuit Check™ is a tool developed by WarmlyYours to give you peace of mind and ensure trouble-free installations. Simply hook up the cold leads to the tool while you position the system to match your custom installation plan.

The Circuit Check™ will continuously monitor the continuity of the circuit during the installation of your system and during the installation of your flooring. The Circuit Check™ beeps immediately when a short in the system is detected, alerting you to a potentially damaged cable in the area you are working, before you lay the tile over the electric floor heating system.
 The WarmlyYours technical support team is available 24/7 to provide assistance if the alarm sounds, or if you would have any questions during your installation.

12 people found this helpful.  Did you find this helpful? Yes No

Can you heat under the appliances, fixtures, or furniture in a laundry room, mudroom, or utility room?

No, it is recommended that floor heating only be installed in the areas that you will walk on. Heat can become trapped if installed under objects that do not offer enough clearance for air to circulate (such as a washer or dryer).

9 people found this helpful.  Did you find this helpful? Yes No

View all 40 Questions and Answers

Customer Reviews

Prodeso Cable Installation Membrane achieved an average rating of 5.0 stars with 12 reviews by our customers.

Have you used this product before? Leave a review

My "go to" floor heat supplier

Anonymous, Washington, DC on 02/08/2024

I really liked the ease, durability and agility of the decoupling mat and wire installation.

Always great experience!

Johnny K., Lake Zurich, IL on 01/30/2024

Very professional assistance in sales department as well as the Technical Support.

Another successful installation!

Jeff W., Downingtown, PA on 12/21/2023

Once again we have made another customer happy with and grateful for a WarmlyYours heated floor!

Excellent customer service and technical support. Easy to ins

Anonymous, Taos, NM on 09/12/2023

Excellent customer service and technical support. Easy to install after consulting instruction manual and online videos. Thank you!

Warmly staff was very helpful in selecting the correct items

David D., Vashon, WA on 08/11/2023

Warmly staff was very helpful in selecting the correct items to purchase for my project. The instruction booklets were very clear and made installation straight forward. Everything worked without any issues. Thanks

I purchased 2 heated flooring kits for a double bathroom reno

Pine R., Ottawa, ON on 04/11/2023

I purchased 2 heated flooring kits for a double bathroom renovation. I was happy with the correspondence from the company, the price was fair and the layout they supplied for running the cable was extremely helpful. Product came in 2 days after order was placed. My clients are happy and so I will be using this product for our next renovation.

Easy, Peasy

Krista F., Naperville, IL on 01/16/2023

Working with the WarmlyYours products and staff could not be easier! Products are perfect for the new construction projects.

Kerilyn Merritt ROCKS!

John P., Westerly, RI on 12/27/2022

I’m not a big account but Kerilyn treats as if I am. IMO she is a huge asset to the company. All my business with them has been exemplary and will always use them for all my projects!

Easy

Michael B., Gurnee, IL on 10/21/2022

My installer liked the concept and looks forward to working with this in the future. So easy to install!

Amazing service

Brad S., Des Peres, MO on 07/11/2022

I was going to use a competitor's product, but every place that 'carried' it I also had to order it. Since the tile guy was coming over on a specific date I needed to make sure everything was in place, & based on experience I couldn't trust Lowe's or HD's site when it said it would come in by a Wednesday of the week needed. I called WarmlyYours, they confirmed that they had all the items in inventory & could ship the same day. I texted the bathroom plans and later that day they got back w/ the design and a quote. I ordered it that Friday afternoon, and was shocked that it showed up at my door the next day-Saturday. Everything went as stated. Very nice when facing delays w/ so many of the other items in our project.

View all customer reviews
