This Crystal Lake homeowner sought to transform their master bathroom from a chilly, uninviting space into a high-end personal retreat. By partnering with Diamond Bath, LLC., they integrated an energy-efficient electric floor heating system that eliminates the bite of cold tile. The result is a fast-responding, luxurious floor warming solution that adds significant value and comfort to the home for just pennies a day.
Project Details
| Location | Crystal Lake, IL |
| Heated Space Type | Master Bathroom |
| Square Footage | 38 sq.ft.Heated Area) / {52 sq.ft.}(Total Room) |
| Watts, Volts, Amps | 444 W, 120 V, 3.7 A |
| Operating Cost Per Hour | approx $0.06 |
| Cable Spacing | 3.75 inches (Standard for high heat output) |
| Watts Per Sq. Ft. | 12 Watts (Optimized for tile and stone) |
| Products Used | TempZone™ Floor Heating Cable, nSpire Touch Thermostat |
| Installer | Diamond Bath, LLC. |
Perfecting a Cold Bathroom Floor with Radiant Comfort

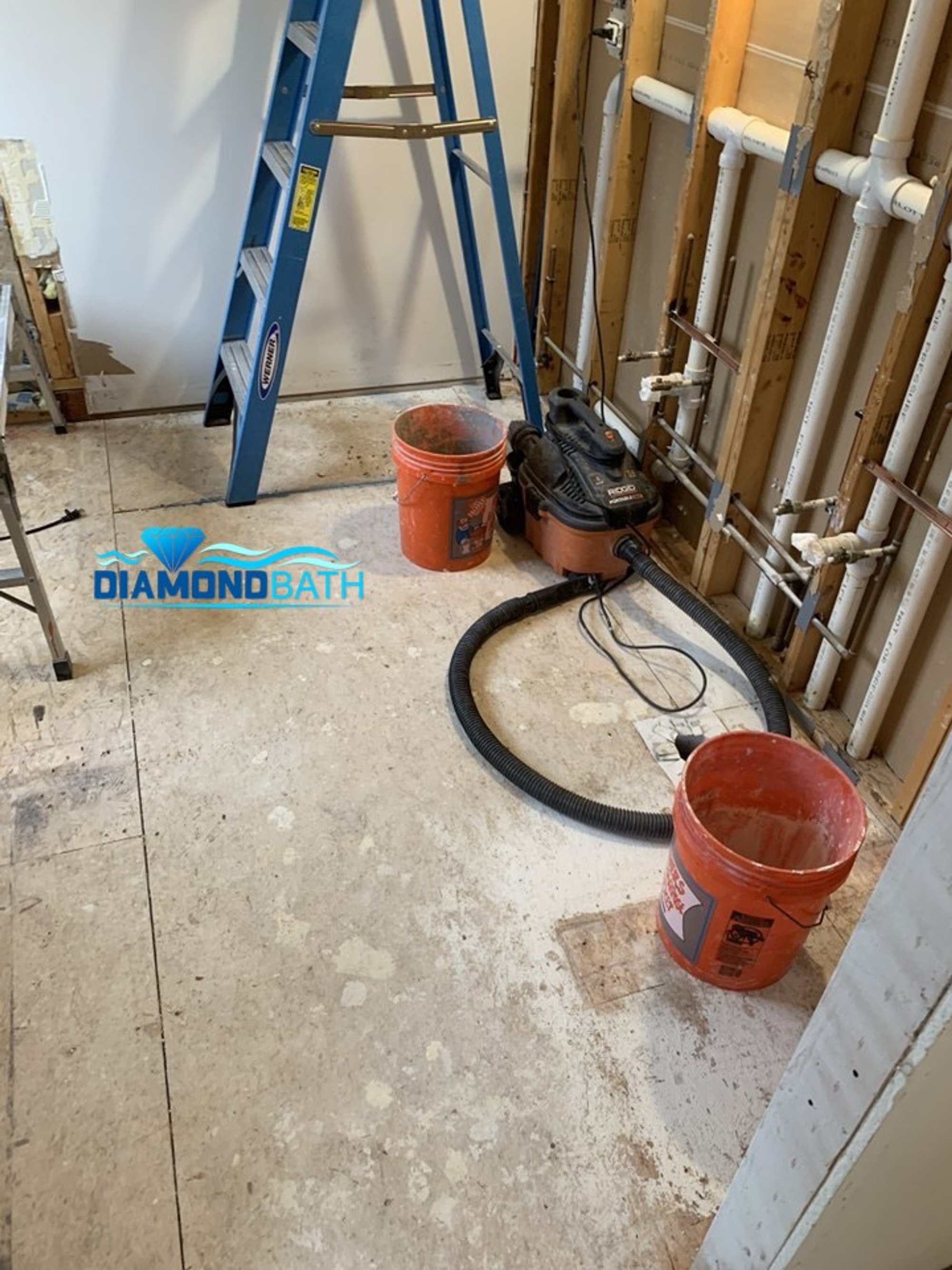

The primary challenge for this project was the notorious "icebox effect" of natural tile during harsh Illinois winters. While the master bathroom featured beautiful stone aesthetics, the surface was uncomfortably cold to the touch, making the home's central heating feel inadequate. Diamond Bath, LLC. was tasked with installing a powerful system that could provide consistent warmth without requiring a major subfloor overhaul.

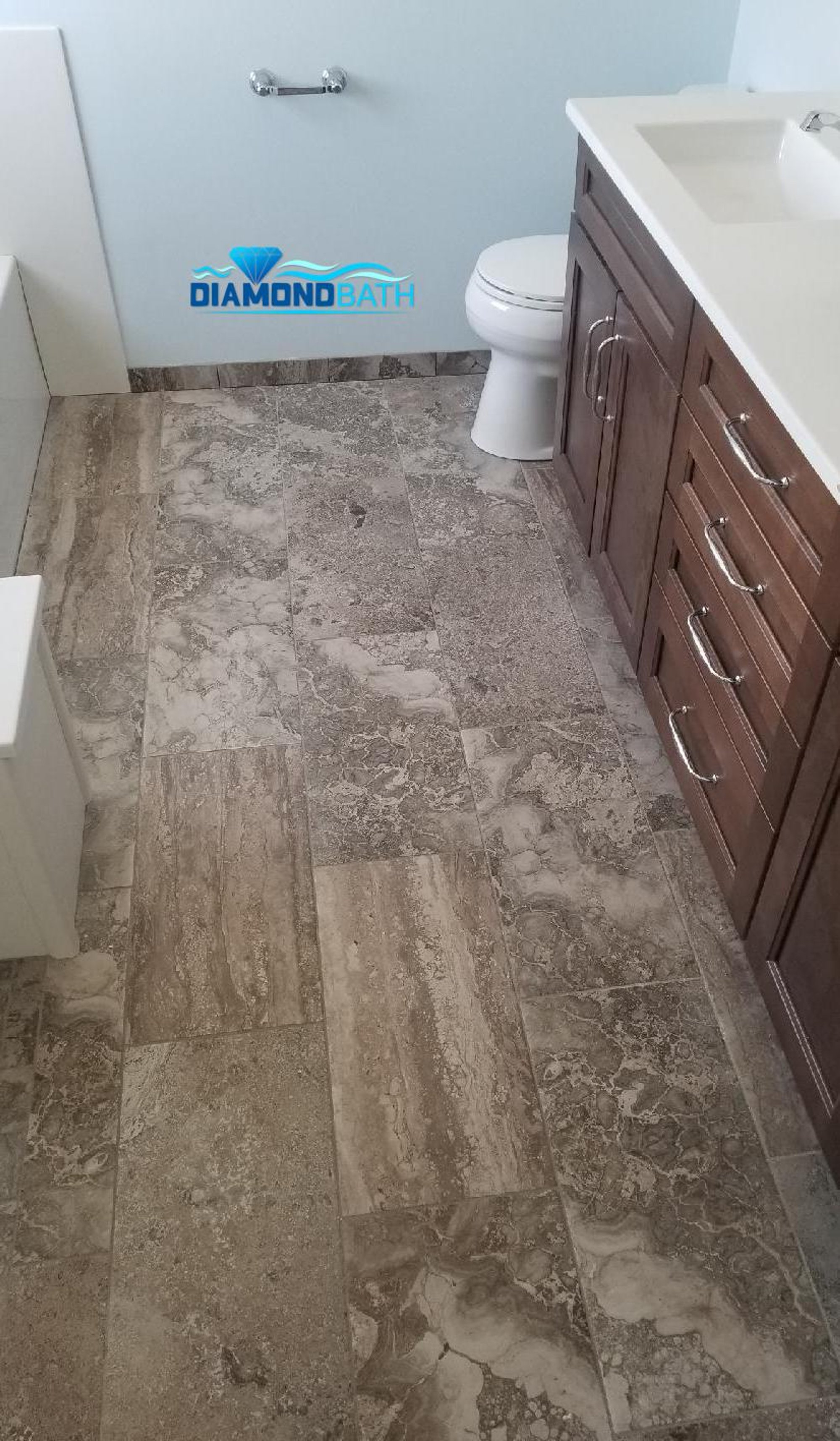

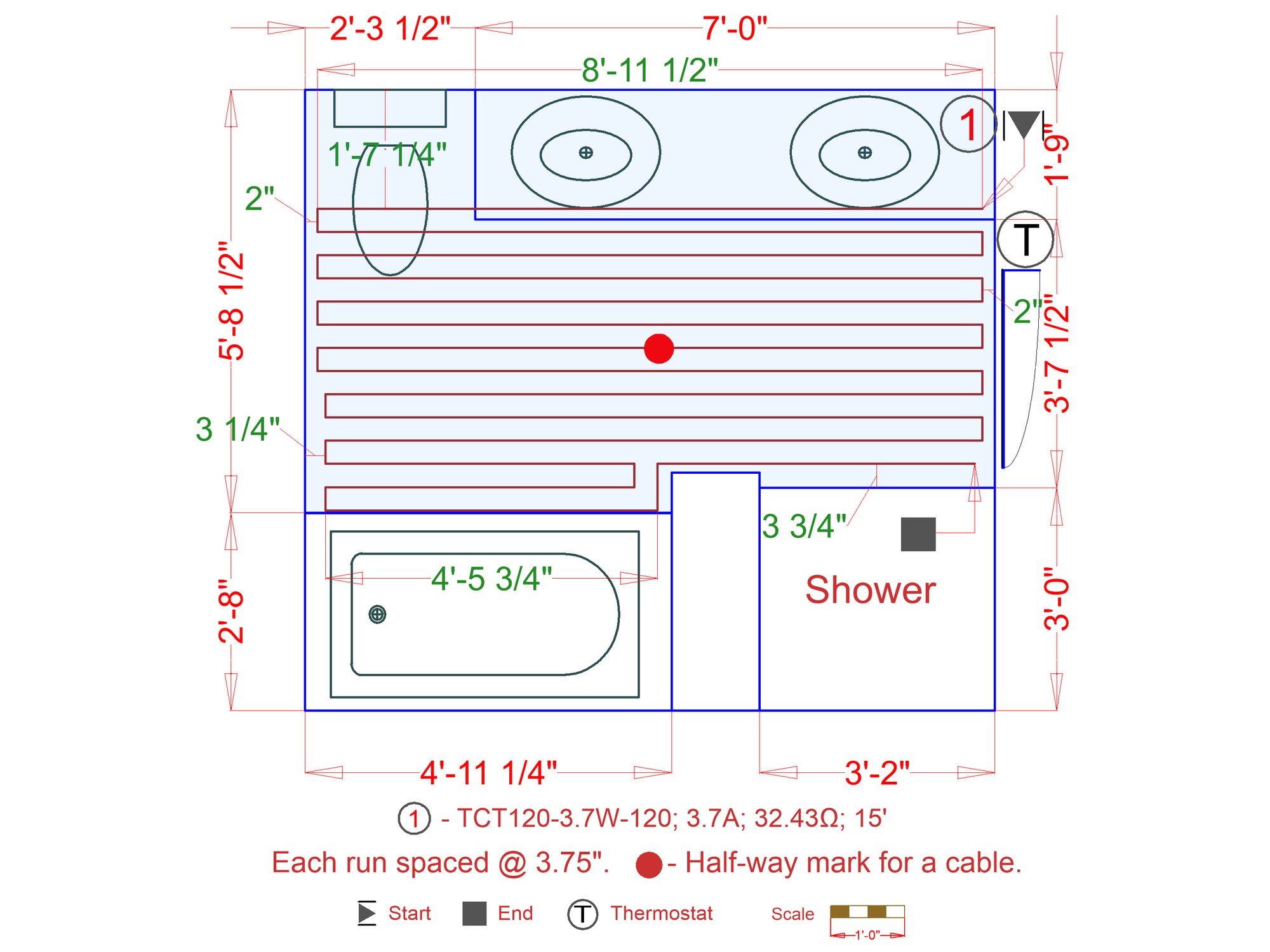

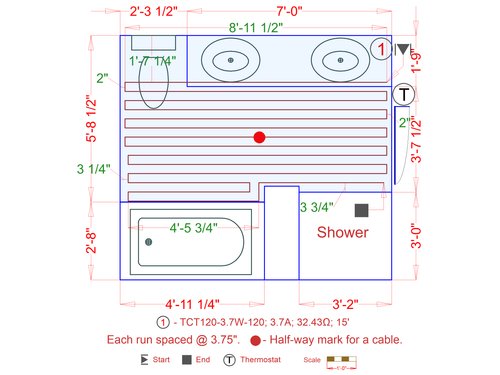

The solution featured a custom-designed TempZone™ Cable system. By selecting a cable spacing of 3.75 inches, the team achieved a robust output of 12 watts per square foot. This ensures a dense, even heat distribution across the entire 38 sq. ft. heated area. By installing the heating element directly beneath the tile and stone, the team achieved a supremely comfortable surface that radiates heat upward, warming both the floor and the people standing on it.
Controlled by the intelligent nSpire Touch Thermostat, the system is now programmed to follow the homeowner's daily routine. This ensures the bathroom is cozy the moment they wake up while maintaining peak energy efficiency during the hours the room isn't in use. This installation by Diamond Bath, LLC. successfully turned a functional room into a daily spa-like experience.
Featured Products
- TempZone™ Floor Heating Cable : The core of the system. This free-form cable allows for maximum design flexibility, perfect for maneuvering around fixtures and ensuring 100% coverage of the open floor space in irregularly shaped bathrooms. It provides uniform, powerful in-floor heating and is safe for installation under tile.
- nSpire Touch Thermostat: A sleek, programmable thermostat with a 3.5-inch color touchscreen. It features an energy-saving schedule, an integrated Class A GFCI for safety, and tracks energy use, promoting energy efficient heating and easy control of the floor warming.

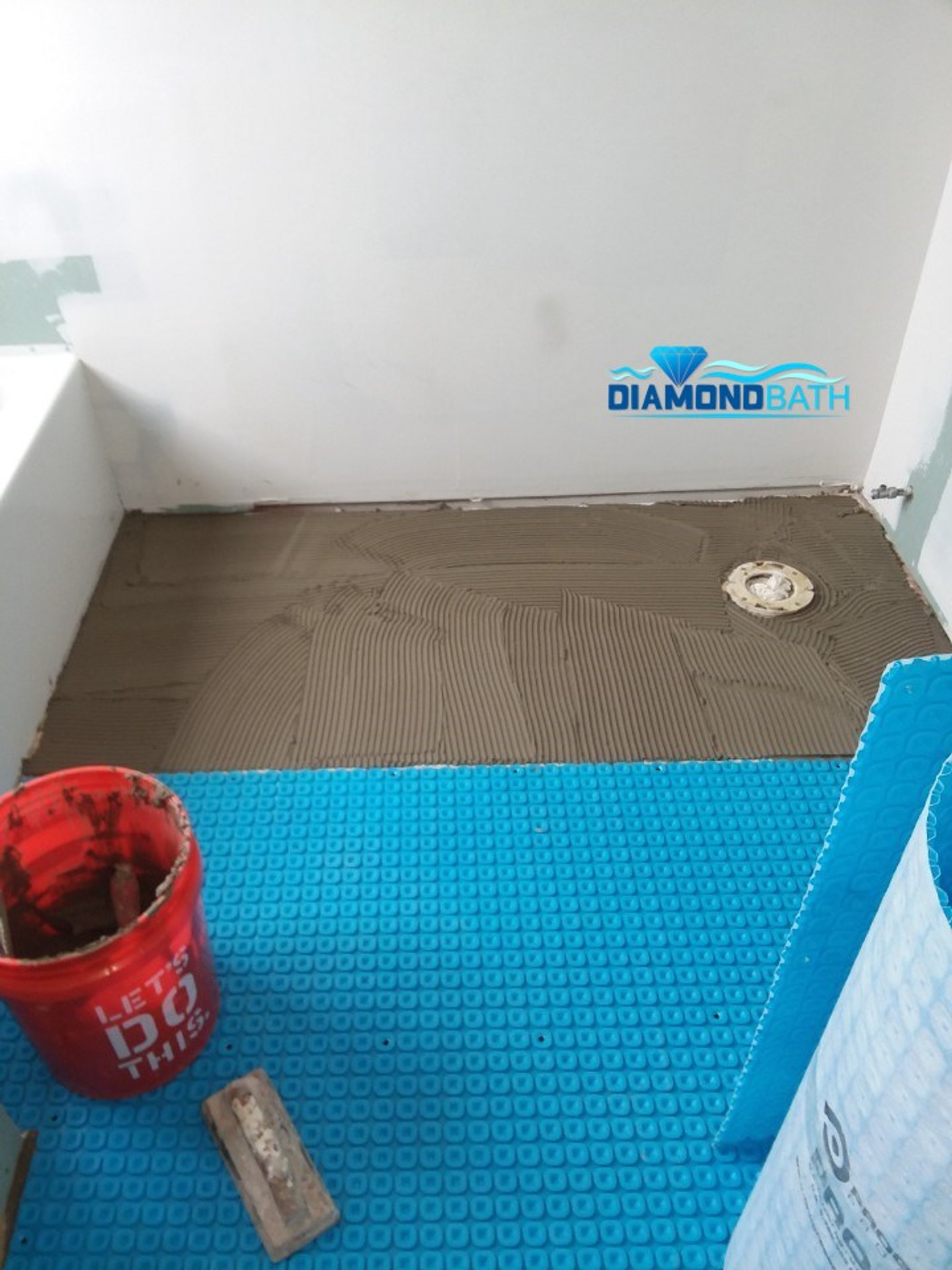

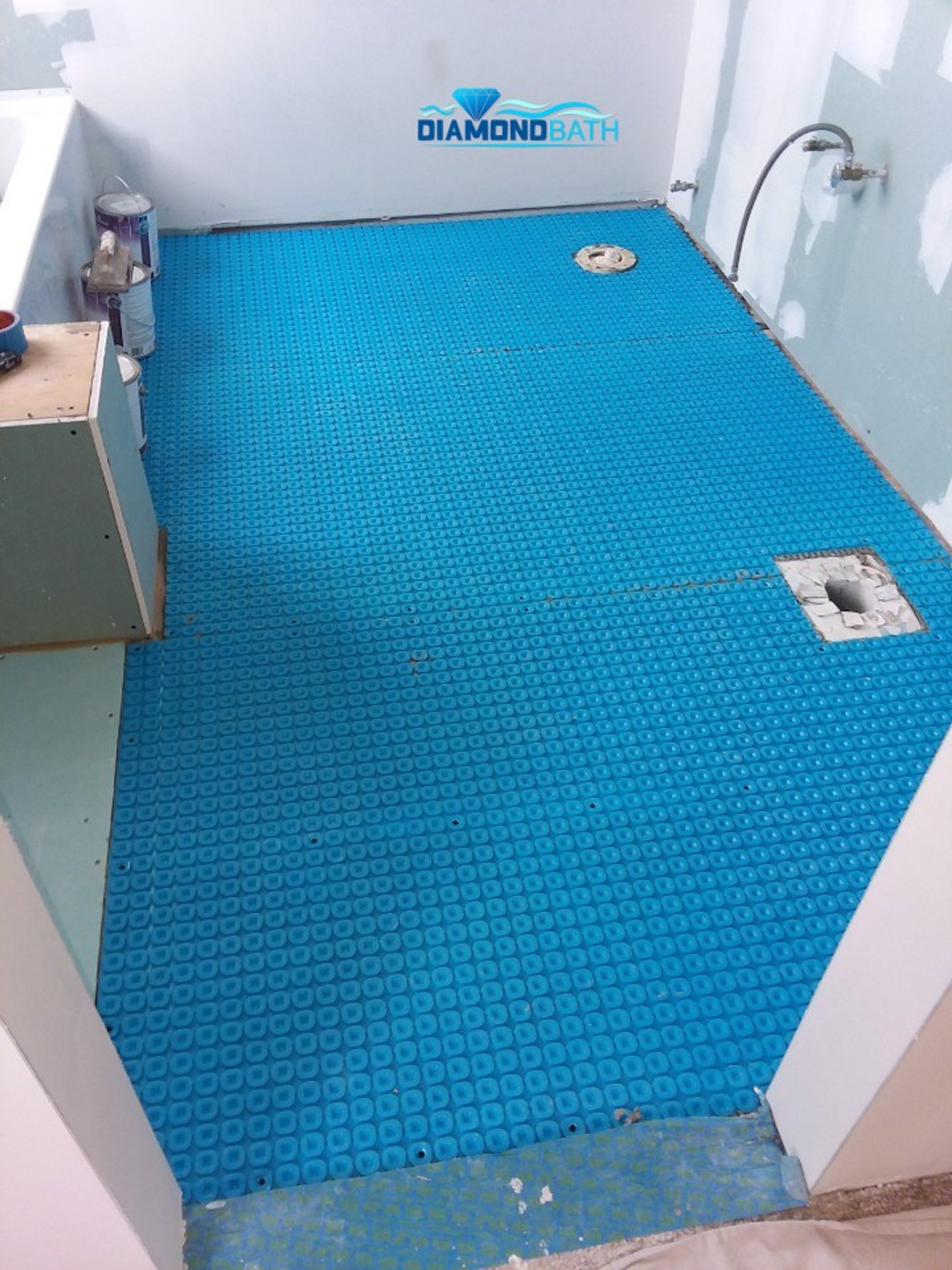

- Prodeso Membrane Roll TC-MEM-BL-054: This polypropylene uncoupling membrane serves as a vital subfloor layer.2 Its design holds the TempZone Cable securely while preventing cracks in the tile flooring by isolating the floor from subfloor movement.3 It allows for fast, same-day installation.
- Electrical Rough-in Kit FHE-ROUGH-IN-KIT-S3: A comprehensive kit containing all necessary electrical components (including a single-gang box, flexible conduit, and bushings) for the safe, code-compliant installation and wiring of the thermostat and heating cables. This kit simplifies the electrical portion of the project.
- Circuit Check: An essential tool used during installation to continuously monitor the heating cable for any damage, ensuring a successful and worry-free project start.5
