This project solved one of the most common homeowner challenges: a cold, unwelcoming basement. The customer in Liberty, Missouri, wanted to convert their 100 sq. ft. basement bedroom into a truly comfortable living space, but the concrete slab floor made it cold and damp. By installing an 81 sq. ft. TempZone™ Flex Roll system, WarmlyYours provided an energy-efficient electric floor heating solution that delivers consistent, luxurious warmth, adding significant comfort and value to the home.
Project Details
- Location: Liberty, Missouri
- Heated Space Type: Basement Bedroom

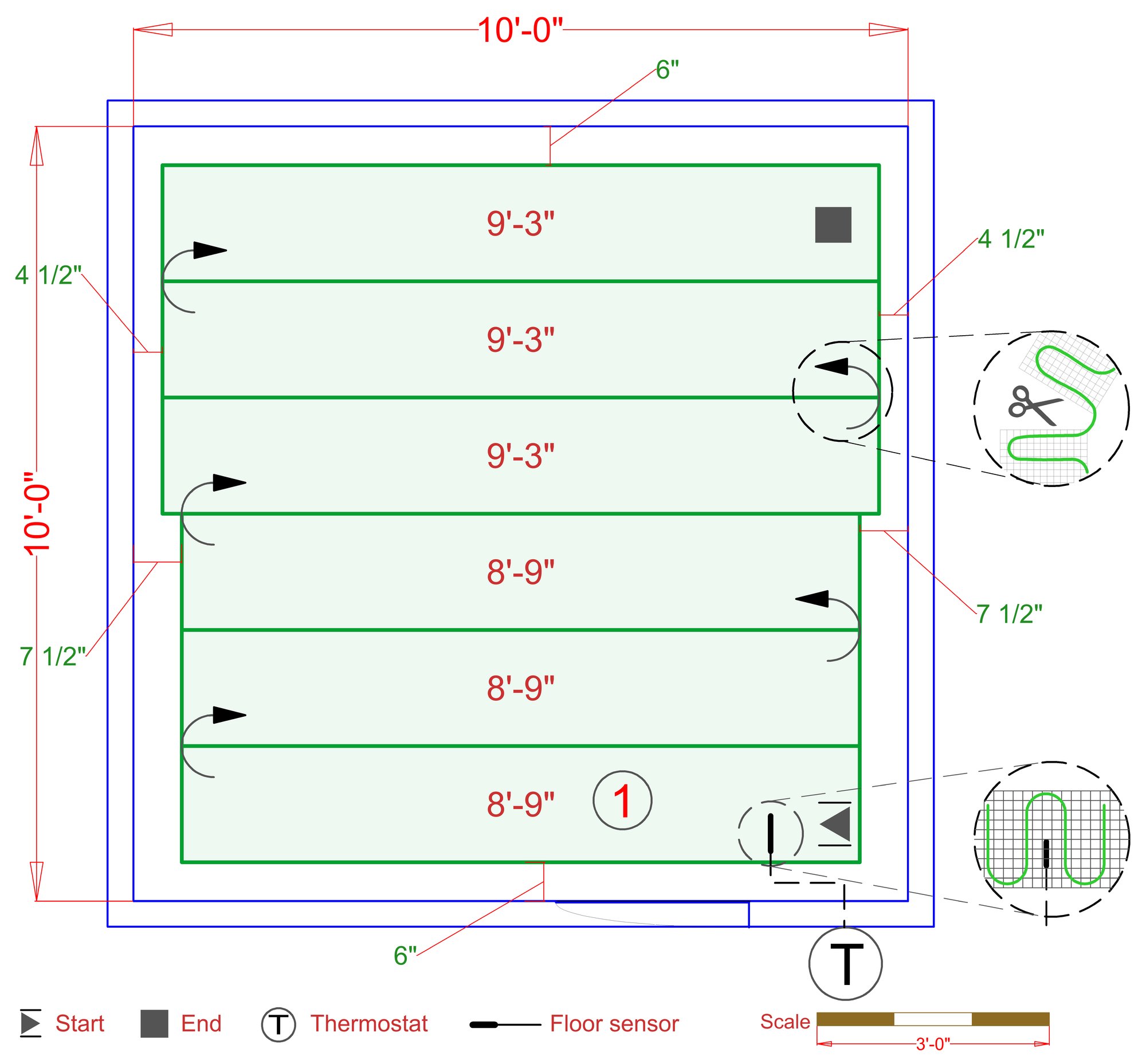

- Square Footage: 81 sq. ft. (in a 100 sq. ft. room)
- Watts, Volts, Amps: 1215W, 240V, 5.1A
- Operating Cost: ~$0.16 per hour
- Products Used: TempZone™ Flex Roll, nSpire Touch Thermostat, Circuit Check™
A Unique Finish for a Warm Floor
Basements are notoriously difficult to heat. Their concrete slab subfloors act as a "heat sink," pulling warmth out of the room and making floors uncomfortably cold, especially during Missouri winters. Homeowner Lonnie Ruckman needed an effective radiant floor heating solution that could be integrated into his unique plan for a modern, finished floor.

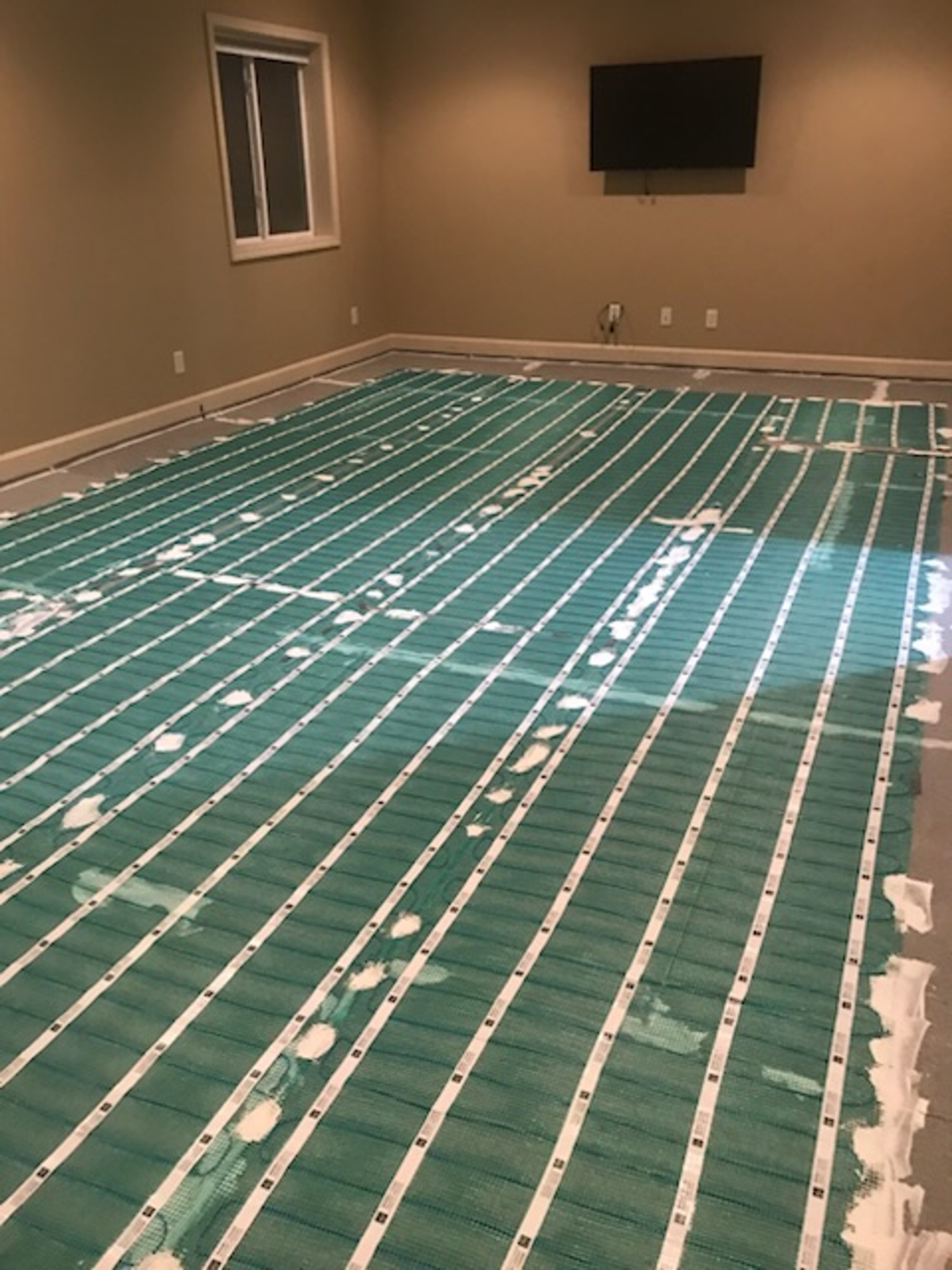

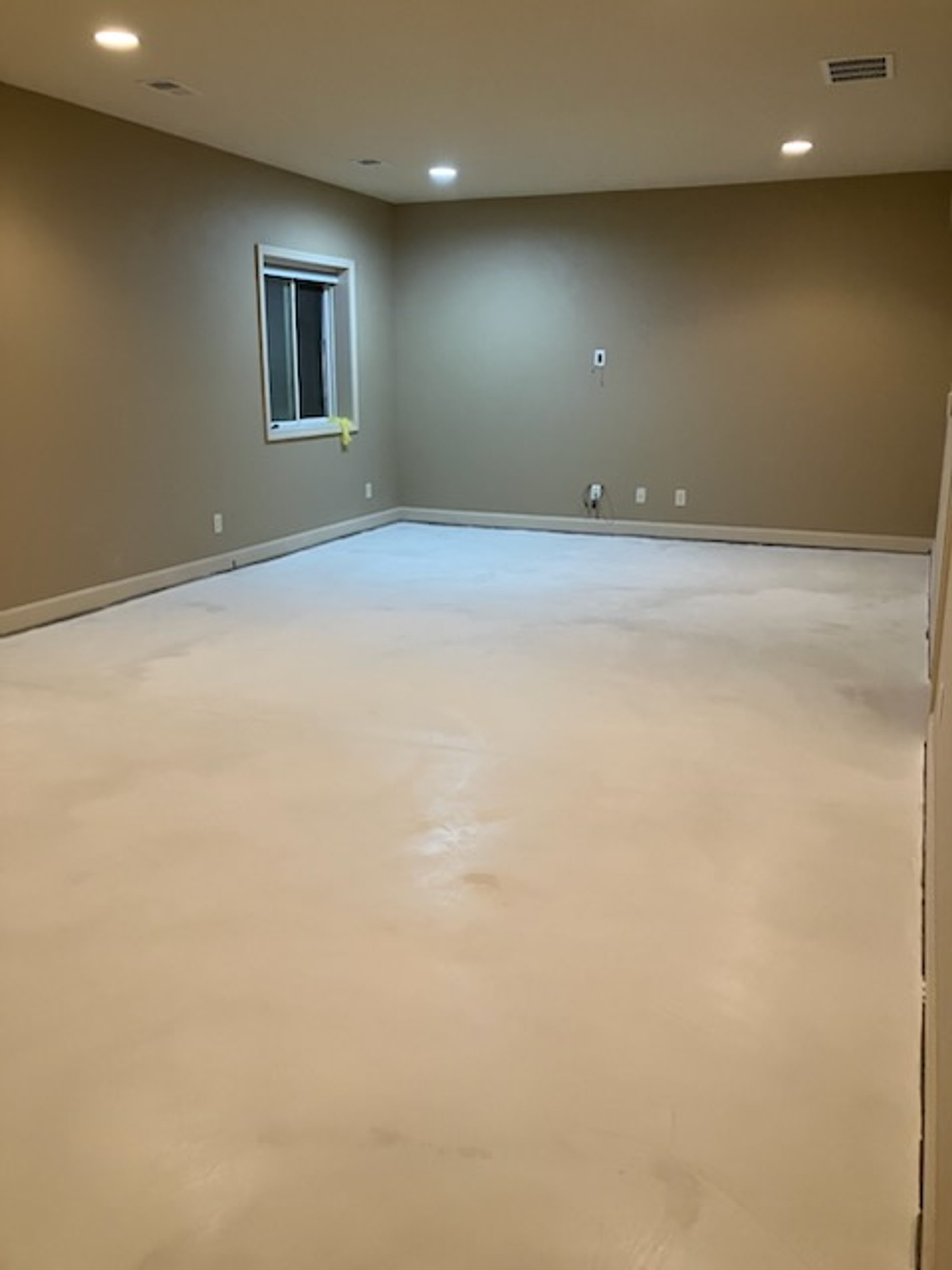

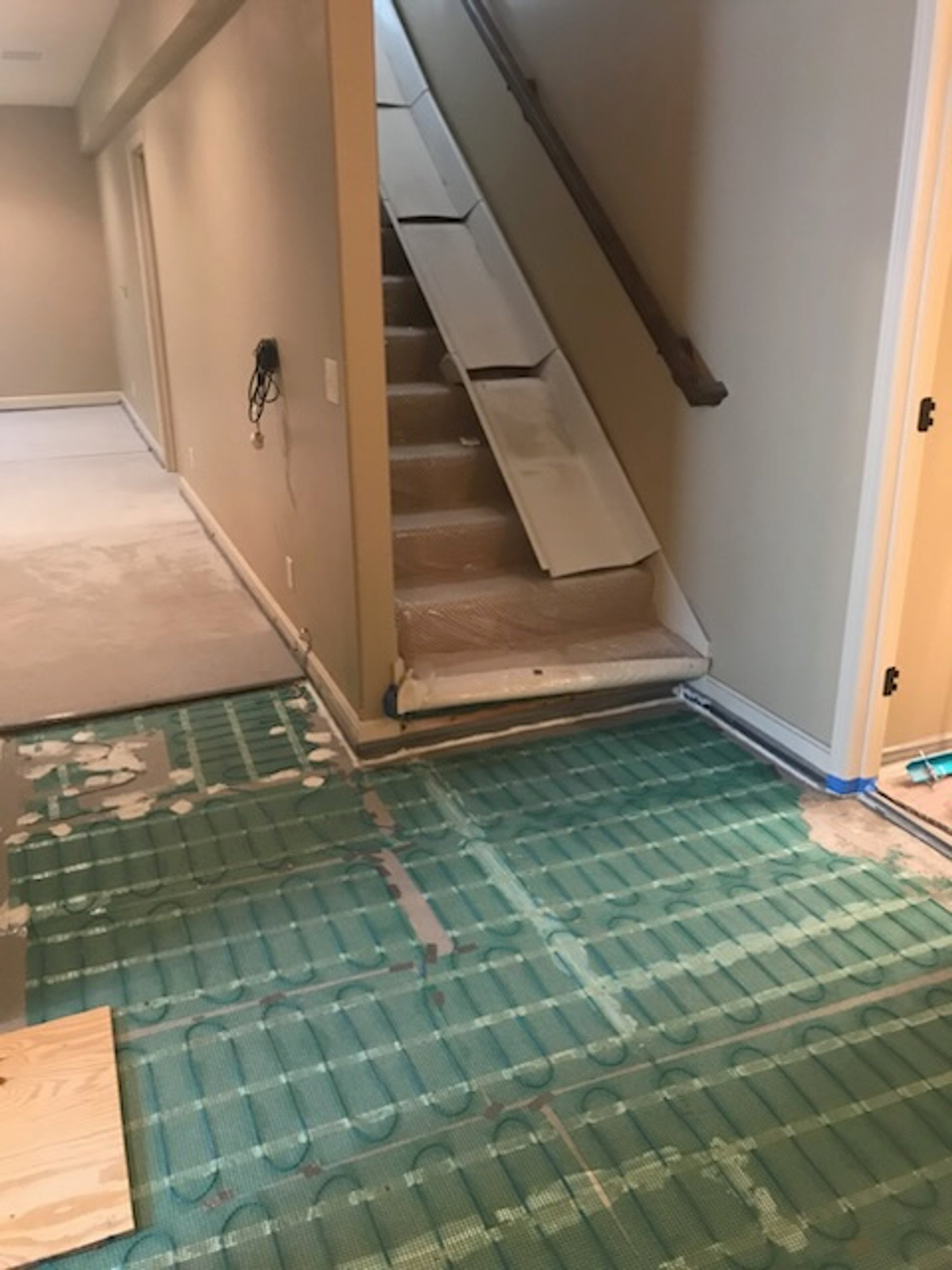

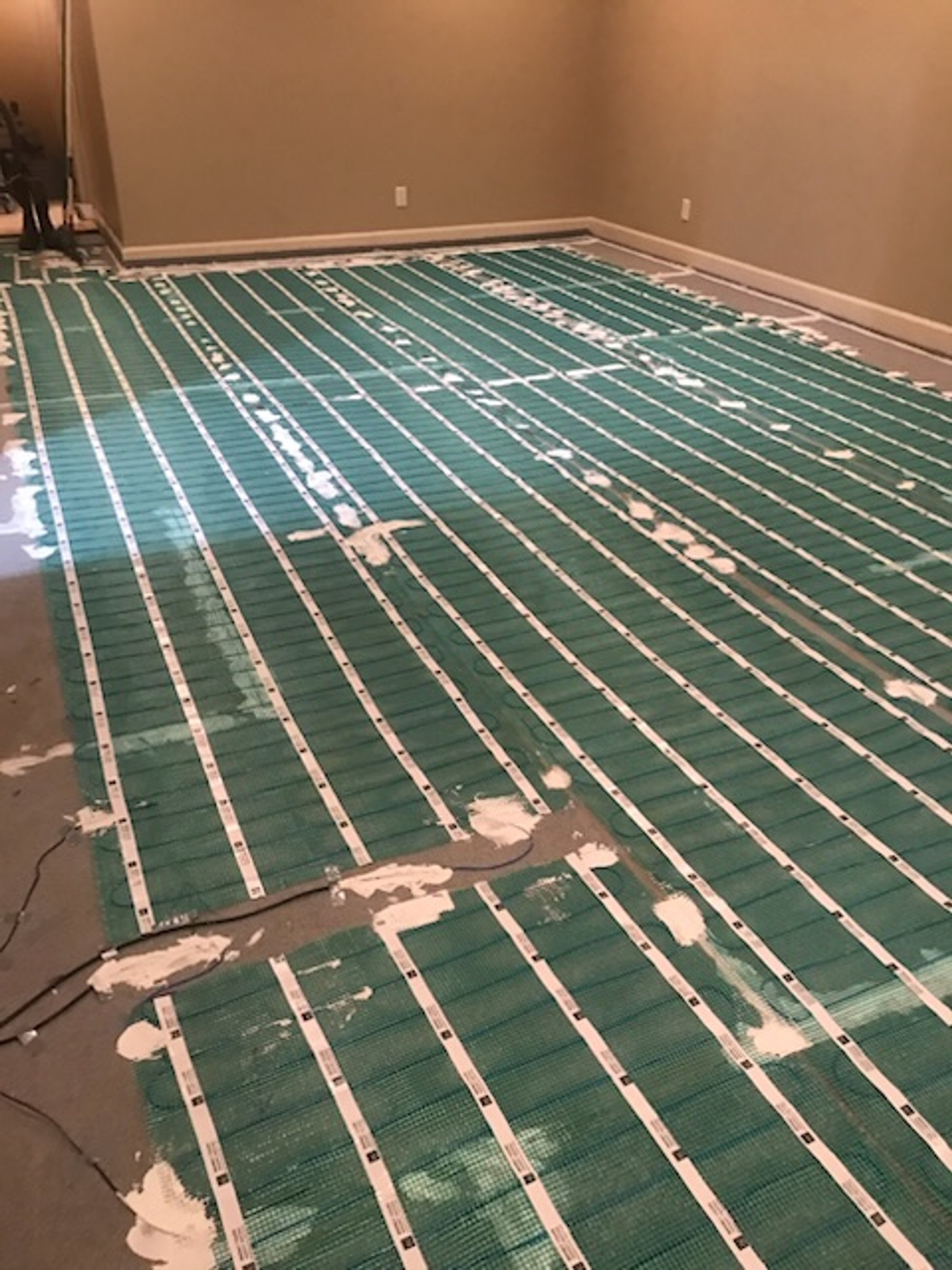

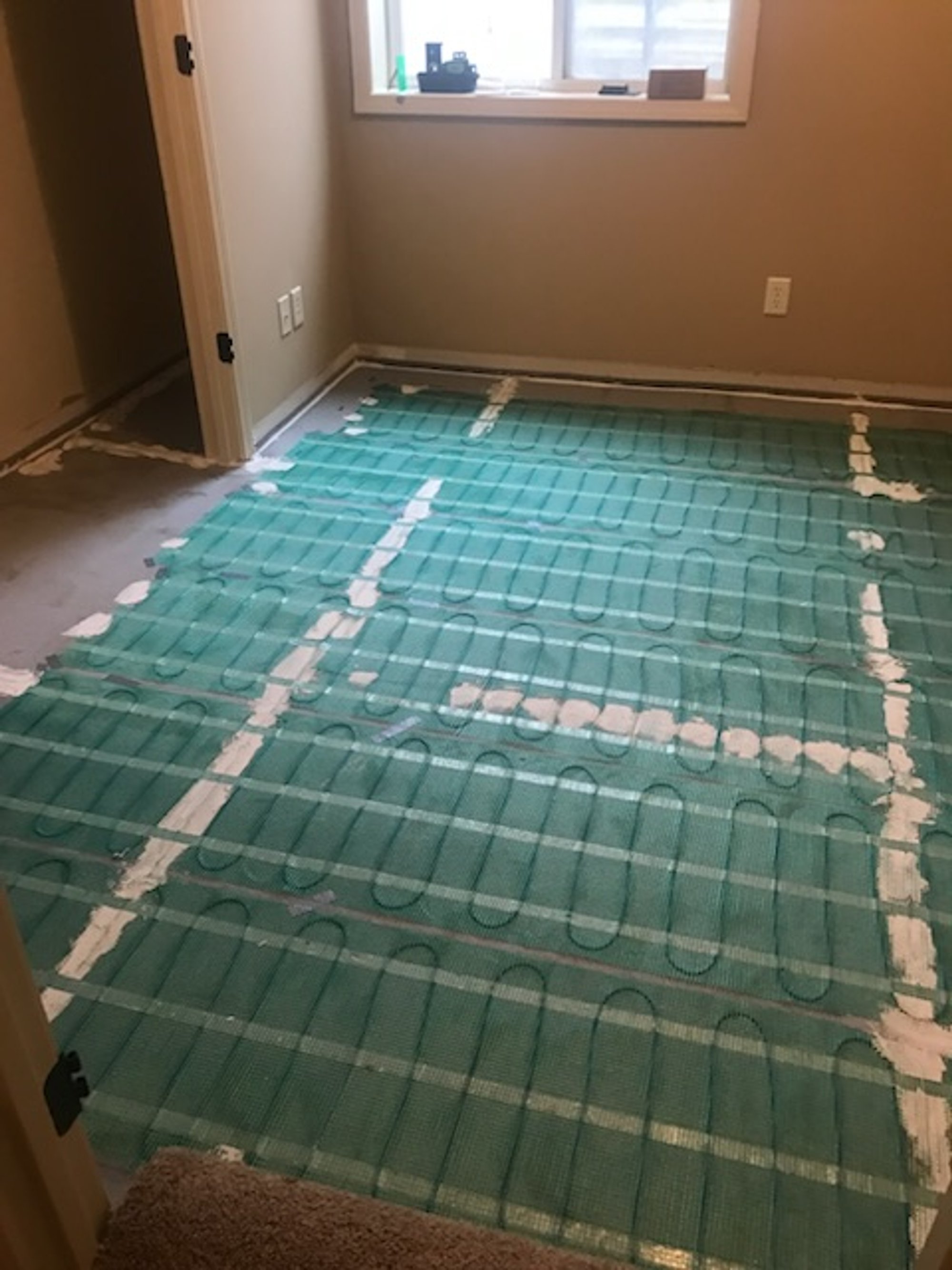

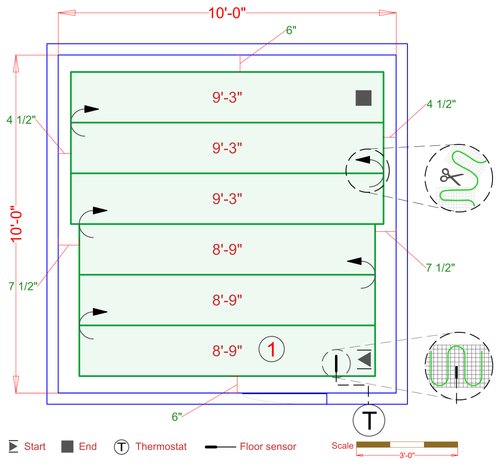

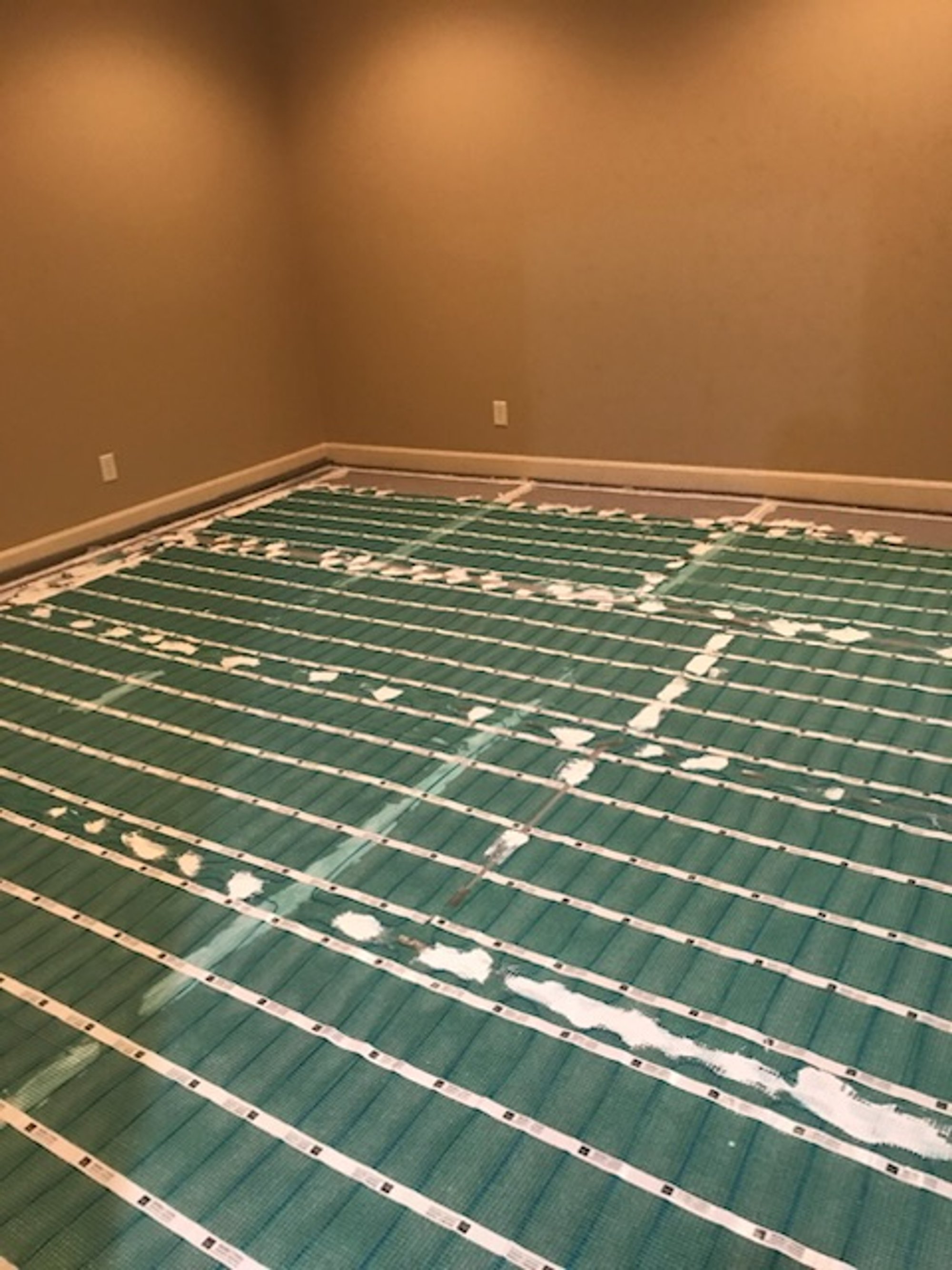

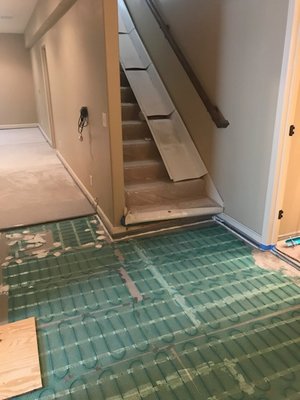

The solution was an 81 sq. ft. TempZone™ Flex Roll system. This in-floor heating system was installed directly over the existing concrete slab. What makes this project a rare and impressive example is the innovative floor finish applied on top. Instead of traditional tile, Lonnie applied a self-leveling compound directly over the heating elements to embed them, followed by a stylish acrylic troweled finish.

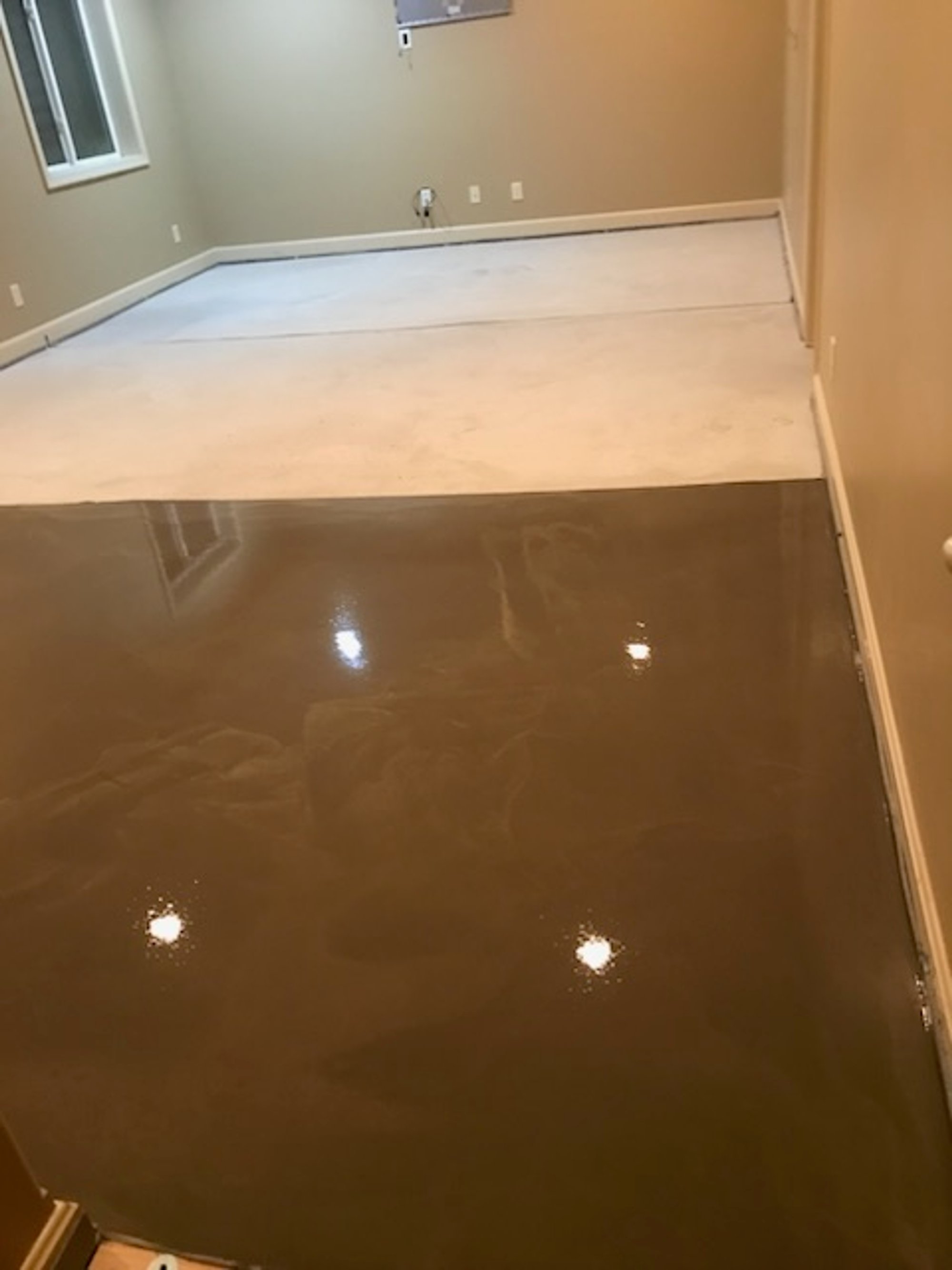

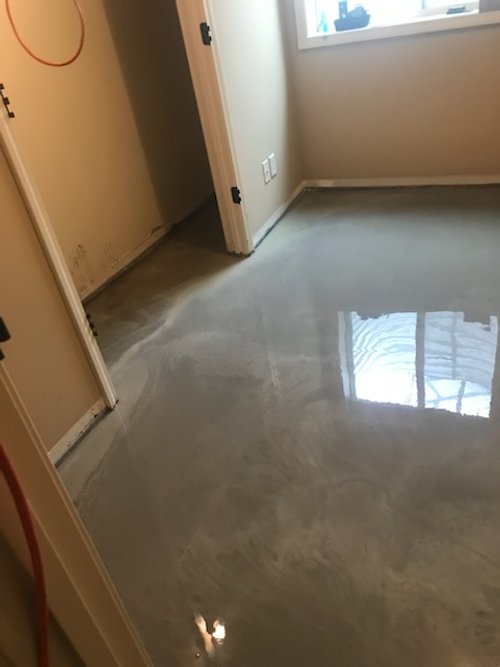

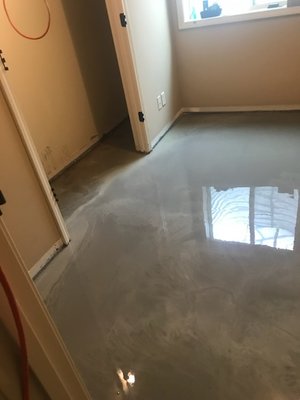

As Lonnie explained, "I installed a self-leveling topping and then an acrylic troweled finish on all the heated floors... Poured the leveler... one for the bedroom."

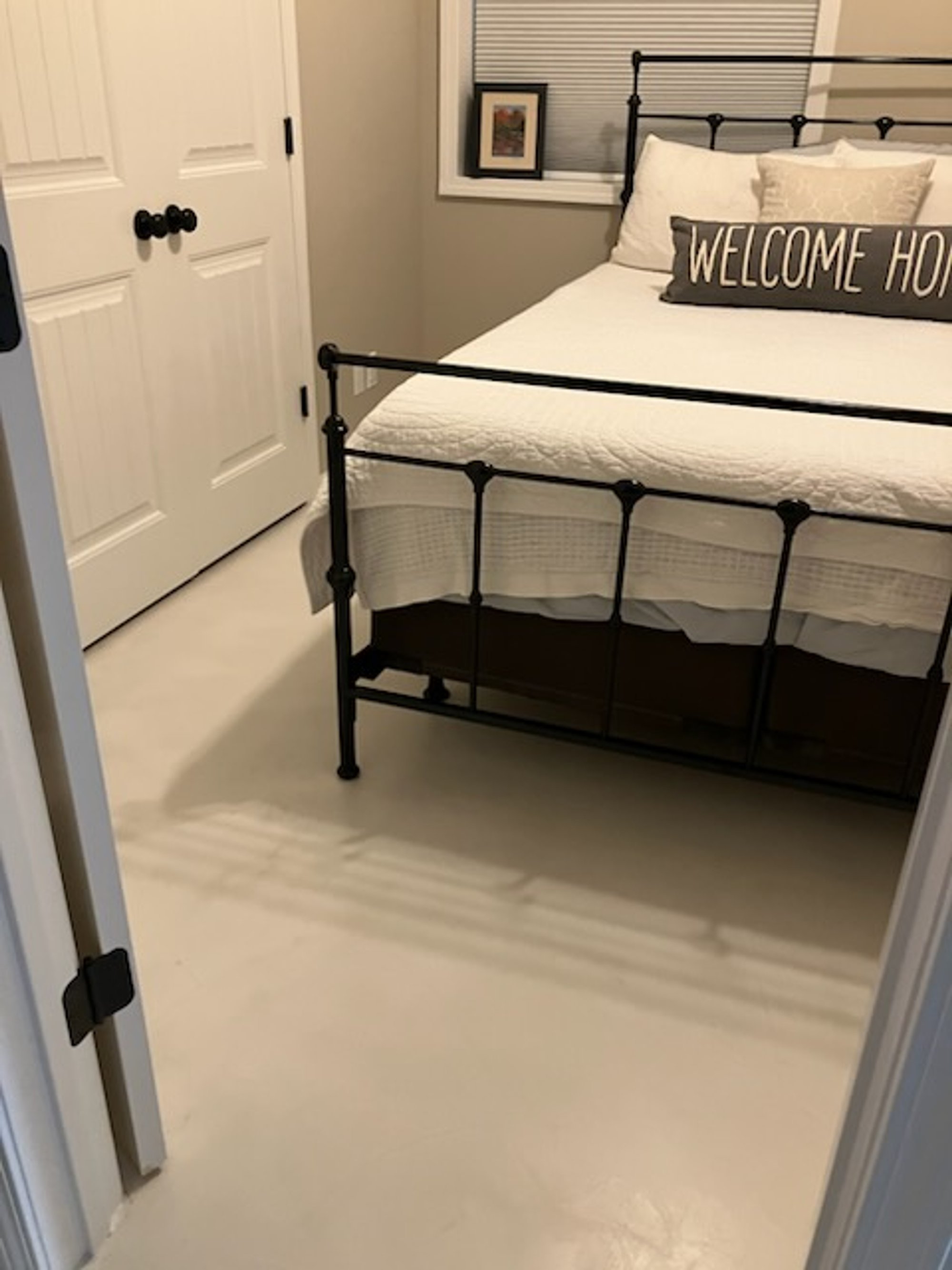

The result is a seamless, modern, and perfectly heated floor. The TempZone™ system efficiently radiates heat upward, turning the entire surface into a gentle, consistent radiator. The cold is gone, replaced by a luxurious, barefoot-friendly warmth that makes the basement bedroom a true living oasis. The entire system is controlled by an nSpire Touch programmable thermostat, ensuring it operates at peak energy efficiency.
Featured Products
- TempZone™ Flex Rolls: Our most popular floor warming product. These rolls feature the heating cable pre-attached to a mesh fabric, allowing for fast and simple installation. They are perfect for square or rectangular rooms like this bedroom.
- nSpire Touch Thermostat: This programmable thermostat features a large 3.5” touchscreen, an easy-to-use setup wizard, and energy-use monitoring. It includes a floor sensor to ensure precise temperature control and maximum energy efficiency.
- Circuit Check™: A vital tool for installation, this alarm continuously monitors the heating element for continuity and alerts the installer immediately of any potential damage, ensuring a perfect installation.
