For a homeowner in Keokuk, IA, managing a sizable driveway through tough Midwestern winters was a major chore. The challenge was finding a reliable, high-performance, and discreet snow removal solution for a new concrete pour. WarmlyYours delivered an efficient, high-wattage electric radiant floor heating system using their Snow Melt PowerMat, expertly integrated by Hicky Contracting. This system offers hands-free snow and ice removal, adding unmatched safety, convenience, and long-term value to the home.
Project Details
- Location: Keokuk, IA
- Heated Space Type: Driveway (Zone 3)
- Square Footage: 205 sq. ft. of heated coverage
- Floor/Surface Type: New Concrete
- Watts: 10,250 W (50 W/sq. ft. output)
- Volts: 240V
- Amps: 42 Amps
- Operating Cost Per Hour (Est.): $1.62 per hour
- Calculation based on a local average residential rate of $0.1585/kWh
- Quick /Day Breakdown: approx $12.96 for an 8-hour activation*
- Quick /Month Breakdown: Varies, but provides exceptional value against professional snow removal services.
- Products Used: WarmlyYours Snow Melt PowerMat, Large Relay Panel (RLY-12PL-CC), Outdoor Snow Melting Junction Box (SM-JBOX-IG-L)
Snow Melting: The Ultimate Driveway Upgrade
The customer, an instructor in electrical subjects, was well-positioned to understand the technical specifications and superior energy efficiency of an electric snow-melting system. His primary challenge was the annual burden of clearing snow and ice from a large driveway in a region that sees significant winter weather. He required a robust solution that was seamlessly embedded and reliable.

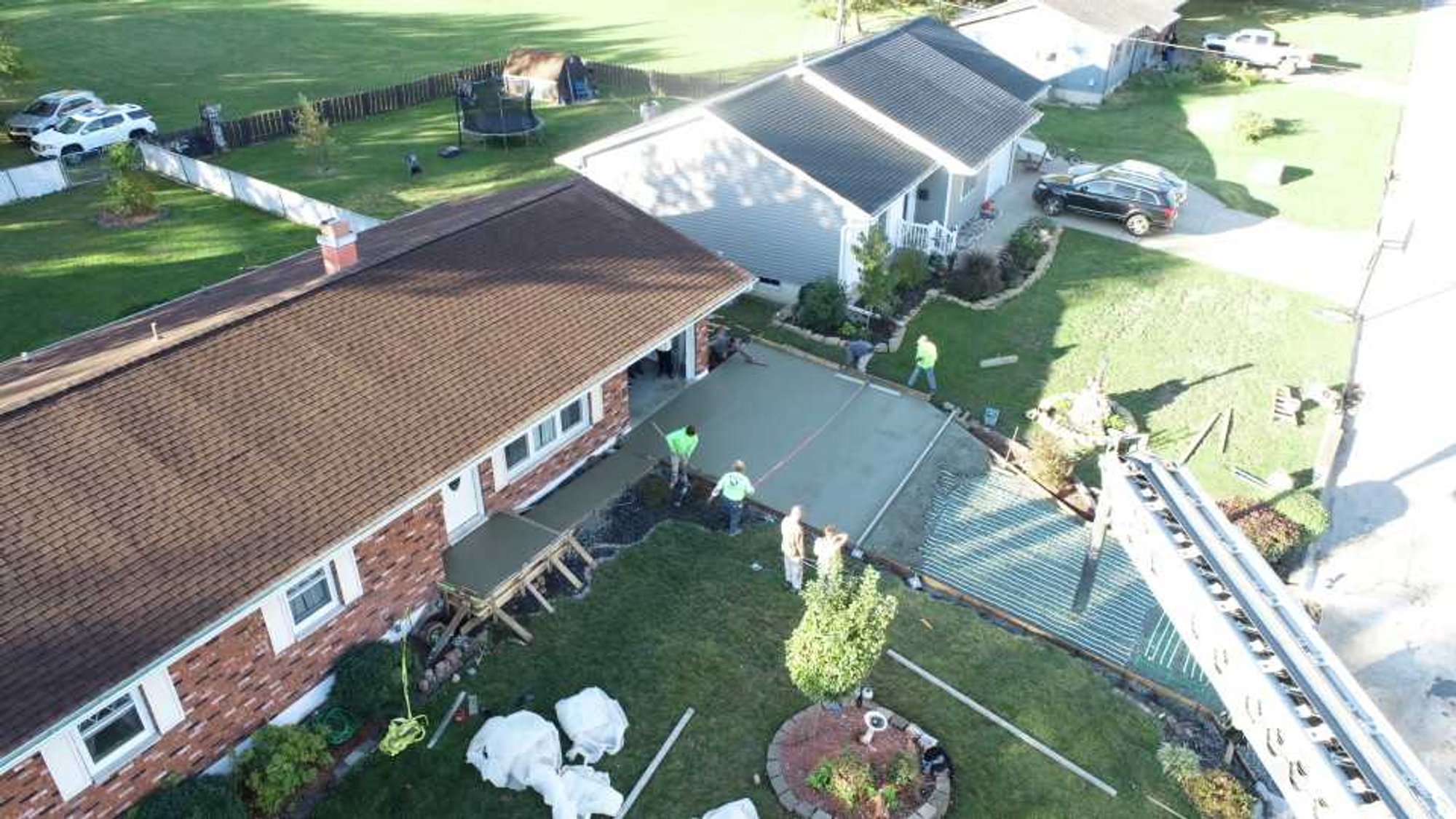

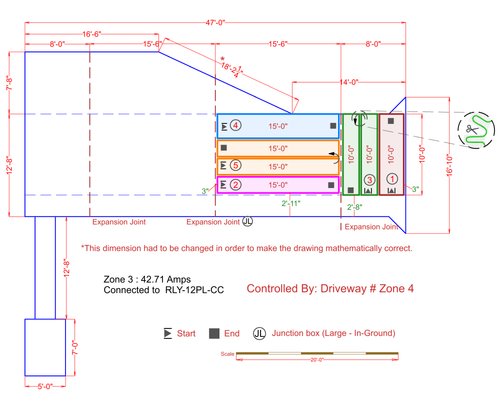

Working with Hicky Contracting, WarmlyYours designed a targeted snow melting plan covering 205 square feet of the new concrete driveway using the powerful 50W/sq. ft. Snow Melt PowerMat. The installation of the pre-sized mats was straightforward for the experienced electrical team. The mats were laid directly on the base layer before the concrete was poured, ensuring the heating elements were optimally placed for quick and efficient snow removal. This method ensures the mats are fully encased for maximum heat transfer and durability.
The outcome is a truly maintenance-free driveway. The new concrete now features a permanently installed, fully automatic de-icing system. This not only guarantees a clear and safe path for vehicles and foot traffic but also preserves the concrete surface by eliminating the need for corrosive salts and heavy snow-blowing equipment. This upgrade represents a significant addition of comfort and automated safety to the Keokuk home.
Featured Products
Snow Melt PowerMat (240V): A pre-sized mat solution rated for 50 W/sq. ft. for fast, efficient snow melting. Perfect for easy rollout installation in new concrete or asphalt.
Large Relay Panel (RLY-12PL-CC): A vital component for managing the high amperage of a large snow melting system, safely routing the power to the multiple heating mats.
Outdoor Snow Melting Junction Box: Used to connect the heating mats' cold leads to the main power lines while ensuring a secure, weather-proof, in-ground splice.
