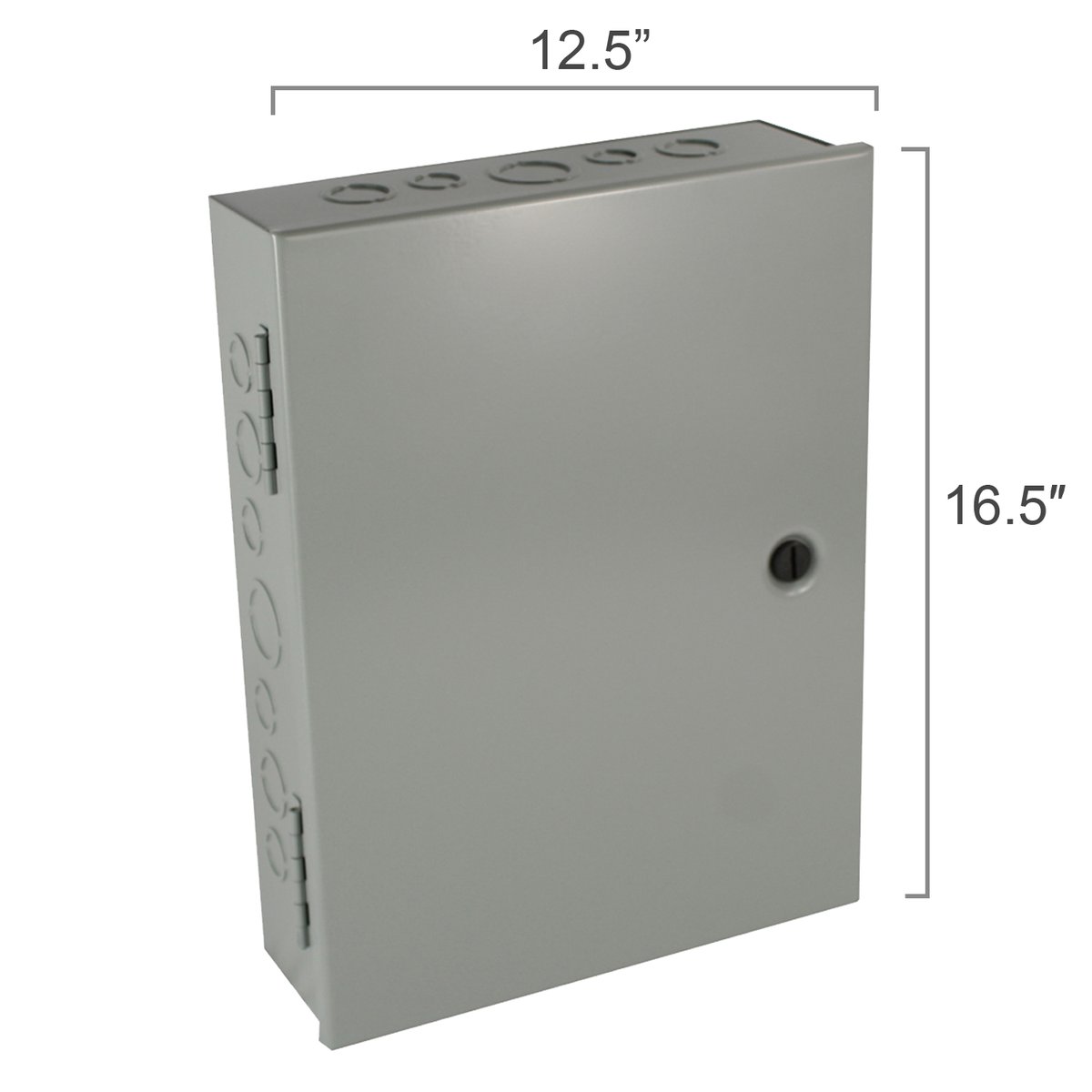

Large Relay Panel, (6x) 2-Pole

$649
  • Virtually silent load switching panels are ideally suited for snow heating mats and cables
  • Power relays are rated for up to 24 amps and include Nema1 rated metal enclosures
  • All relays utilize 120V coils
Need help? Call our experts at (800) 875-5285
Support Page
Jump to

Relay Panels Description

The RLY-12PL large relay panel is an ultra-silent, power-switching panel suitable for snow melting, slab heating and roof deicing applications. Housed in a NEMA 1 indoor enclosure, this large panel is C-UL-US approved and rated for up to 24 amps. The RLY-12PL panels can be used with 120, 208, 240 or 277 Vac cables and equipped with clearly labeled terminals for ease of wiring.

Specifications

Electrical

Applicable Voltages 120 V, 208 V, 240 V, 277 V
Connection Method Hardwired
Maximum Current 24 A
Numbers of Poles 12

Product Dimensions

Depth 4″
Height 16½″
Weight 13.6 lbs
Width 12½″

Identifiers

SKU RLY-12PL
UPC (GTIN-12) 881308011413

Warranty / Certifications

Warranty 2 years

Frequently Asked Questions

Showing all 4 questions

The relay panel is not rated for outdoors.  It can be put in a NEMA 4 box outdoors to meet this requirement.

Was this helpful? Yes No

GFEP is the National Electric Code (NEC) required protection for fixed outdoor deicing and snow-melting equipment, which may be accomplished by using circuit breakers equipped with ground-fault equipment protection (GFEP) of 30 mA. It is important to understand that this required equipment protection is NOT the same as a 5 mA GFCI used for personal protection.

11 people found this helpful Was this helpful? Yes No

When the design requirement's amp draw exceeds the selected controller's capacity.

5 people found this helpful Was this helpful? Yes No

Ground fault equipment protection (GFEP) is intended to provide protection for equipment against damaging line-to-ground currents by disconnecting all ungrounded conductors of the faulted circuit.

2 people found this helpful Was this helpful? Yes No
