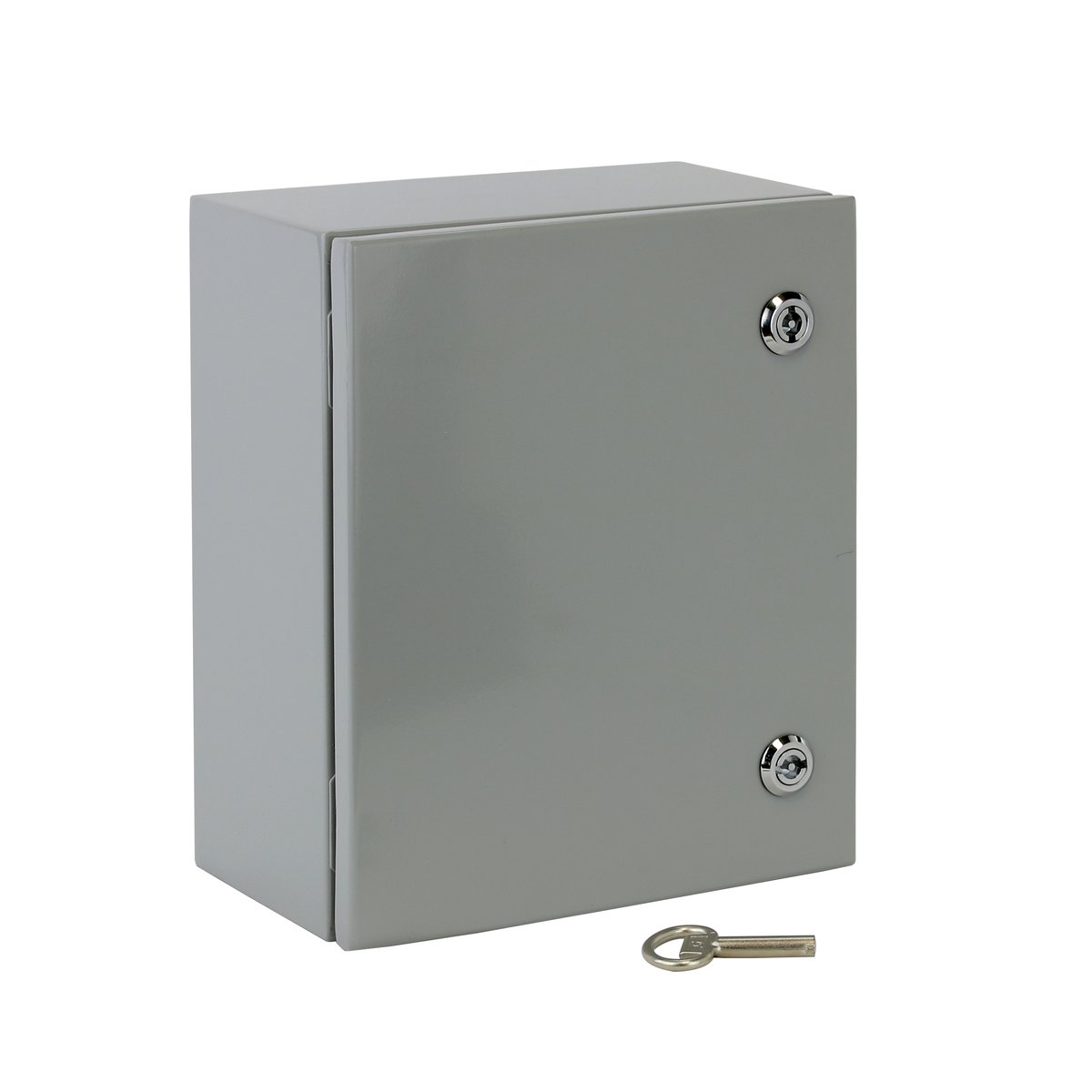

Outdoor Snow Melting Junction Box - Large - Wall-Mounted
Features
-
NEMA 4X outdoor rated for durability
-
Compatible with WarmlyYours systems
-
In-ground or wall-mounted options
-
Weather-resistant protection
-
Ideal for short cold leads
Snow Melting System Junction Boxes Description
This large outdoor junction box can be used in combination with a WarmlyYours snow melting system. This device serves as an intermediary if the cold leads from your snow melting heating elements are too short to reach your relay panel. This junction box can accommodate up to 8 cold leads. It features wall-mounted installation with a NEMA 4X rating to ensure proper protection from the elements. The dimensions for this junction box are 11.9” x 9.8” x 5.91”.
Learn more about snow melting systems. Perfect for heated driveways, patios, walkways and paths, accessibility ramps, or even stairs.
Specifications
Construction
| Color | Gray |
| Knockouts Available | No |
| Material | Continuous seam welded 16 gauge steel |
Electrical
| Connection Method | Hardwired |
Installation
| Cover Mounting | Hinged with key |
| Mounting Method | Wall Mounted |
Warranty / Certifications
| Ingress Protection (IPxx) Rating | IP66 |
| Warranty | 2 years |
| Waterproofing | NEMA 4X |
Identifiers
| SKU | SM-JBOX-WM-L |
| UPC (GTIN-12) | 881308062439 |
Product Dimensions
| Size | 11.9″ x 9.8″ x 5.91″ |
| Weight | 11.6 lbs |
Documents
Frequently Asked Questions
Showing all 2 questions
Once you've decided what type of heating system (manual vs. automatic), you'll need to choose a control, which may or may not utilize a sensor. You may need a relay panel(s) depending on the size of the system, and a snow melt plaque which is required by the National Electric Code. Junction box(es) may be optional depending on the distance of heating cable from the indoor power location.
Small In-Ground Snow Melting Junction Box can accommodate 1 or 2 cold leads, while a Large In-Ground Box can accommodate between 3 to 8 cold leads. A large Wall-Mounted Junction Box can accommodate up to 8 cold leads.
