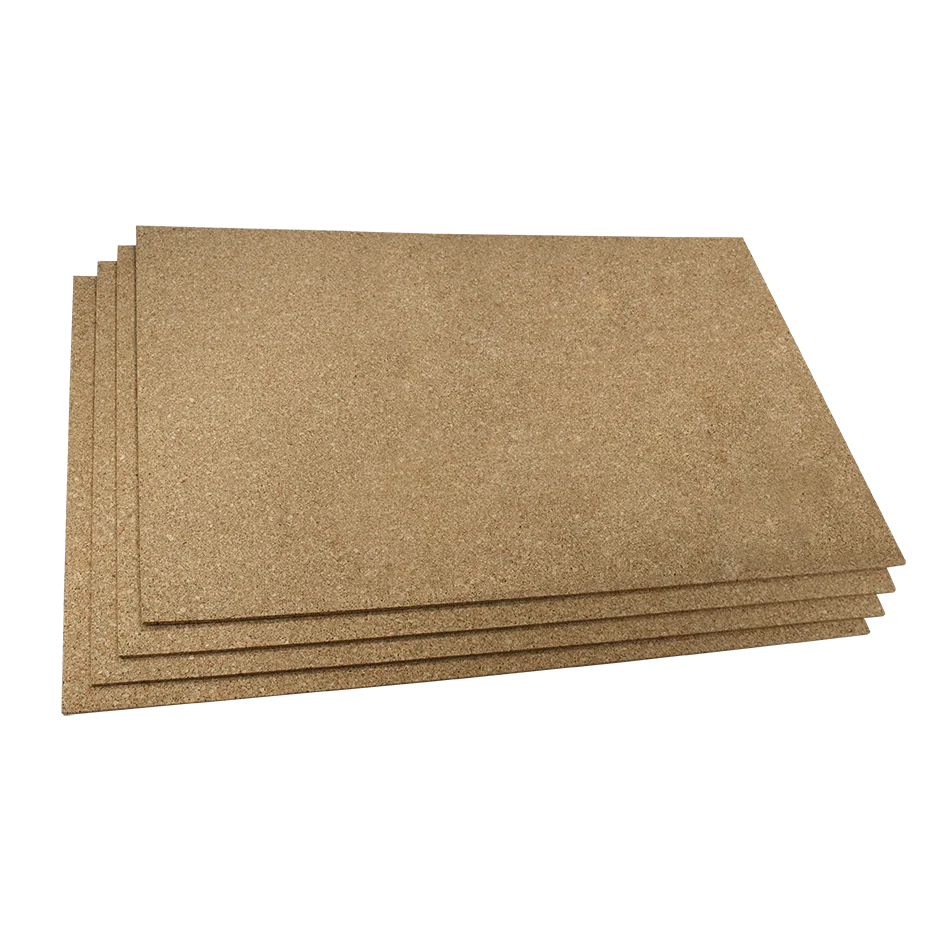

Cork Underlayment Support
This support page provides publications, manuals, videos, and common support questions for the Cork Underlayment product line.
Main Products (2)
Common Support Questions (3)
Publications and Manuals (2)
Videos (1)
Older Models (1)
Create a new Support Request
Common Support Questions
How many square feet of floor heating can be connected to one thermostat?
One thermostat can control multiple heating mats/cables as long as all the heating elements are using less than 15 amps:
TempZone™ will cover aprx. 120 sq. ft. for 120V systems and 240 sq. ft. for 240V systems on one thermostat.
Environ™ will cover aprx. 150 sq. ft. for 120V systems and 300 sq. ft. for 240V systems on one thermostat.
Slab Heat will cover aprx. 90 sq. ft. for 120V systems and 180 sq. ft. for 240V systems on one thermostat.
Need more help? View support options
What is ThermalSheet Insulating Underlayment and how does it compare to cork?
ThermalSheet Insulating Underlayment is a synthetic cork, a lightweight thermal barrier made of hemi-crystalline thermoplastic.
WarmlyYours recommends ThermalSheet underlayment when installing a floor heating system over a concrete slab to prevent heat loss and protect against moisture. It will not rot, support mold and mildew, or absorb moisture.
- ThermalSheet synthetic cork underlayment (6mm) has a 1.5 R-value, crack isolation up to 1/4“, reduces sound by up to 22 dB, and is Robinson tested (TCNA) and rated for residential loads.
- Cork (6mm) has a .72 R-value, crack isolation up to 1/32“, reduces sound by up to 23 dB, and is Robinson tested (TCNA) and rated for residential loads.
Need more help? View support options
Can I pour self leveling cement over ThermalSheet underlayment?
Yes, unlike natural cork, ThermalSheet will not expand from self leveling cement (SLC).
Need more help? View support options

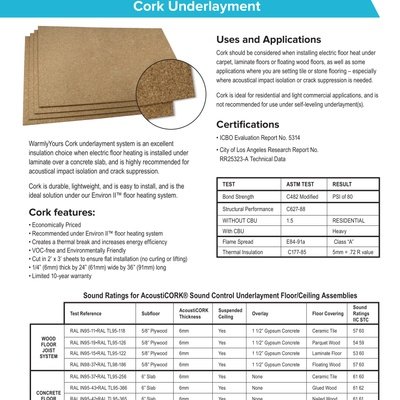

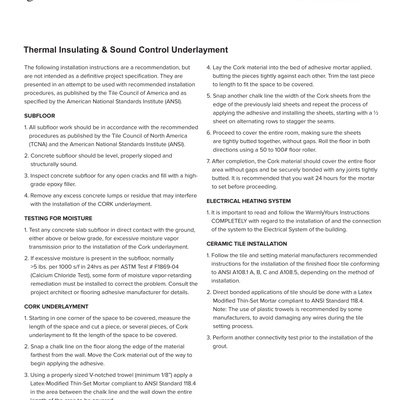

Publications and Manuals
Videos
Product Line Videos
