How do I attach the PRO-Tect self regulating cable to the pipe?

Use plastic zip ties, aluminum or fiberglass tape, or pipe straps. Do NOT use vinyl electrical tape, masking tape or duct tape. Do NOT use metal wire or metal twist ties to attach the cable.

Once we installed the Self-Regulating cable and plugged it in, we noticed it was heating. Doesn't this self-regulate and not turn on until is is cold?

Self-regulating cable heats to the specified watts per linear foot when energized

What is the difference between WarmlyYours Ice Shield and WarmlyYours Pro-Tect self regulating cable?

Ice Shield is 120V or 240V and outputs 5W/ft, and is designed for roof and gutter deicing. PRO-Tect is 120V or 240V and outputs 5W/ft, 8W/ft, or 10W/ft, and is designed for pipe freeze protection.

100’ Pipe Freeze Protection Self-Regulating Heating Cable, 5W/ft., 120V

Name: 100’ Pipe Freeze Protection Self-Regulating Heating Cable, 5W/ft., 120V
Brand: WarmlyYours
SKU: PT-SR-120-05-0100
Price: 600.0 USD
Availability: InStock
Rating: 5.0 (1 reviews)

Part Number: PT-SR-120-05-0100
This support page provides publications, manuals, specifications, videos, support articles, and common support questions

Need help? Call our experts at (800) 875-5285

Create a new Support Request

Shop Now

Support Questions

Showing 10 of 13 questions

Can heat tape start a fire?

No, as long as it's properly installed. However, improper installation, use, and/or maintenance of electrical heating cable can cause fires, electric shock, and/ or frozen pipes.

6 people found this helpful Was this helpful? Yes No

Can Pipe Freeze Protection be used indoors and outdoors?

Yes, it can be used for both application types to prevent pipes from freezing and bursting during cold weather.

6 people found this helpful Was this helpful? Yes No

Will pipe freeze protection cables work on DC voltage?

No. They are not designed to be powered by DC voltage. They must be used with AC voltage.

4 people found this helpful Was this helpful? Yes No

What is heat trace?

Heat trace, heat tape, or heating cable for pipes is typically an electric heating cable that can be attached to the pipe which helps keep non-flowing water pipes in poorly insulated perimeter walls flowing despite harsh winter temperatures.

4 people found this helpful Was this helpful? Yes No

How long does it take for pipes to unfreeze if heat tape is installed?

Unfortunately there's no set answer for this because it depends on many factors such as the diameter of the pipes, the installation density of the heating cables, the outdoor temperature, the installation of thermal insulation sleeves, etc.

There are too many variables to provide an accurate answer. Even though this product is designed to keep pipes from freezing, it is not designed to thaw pipes. If your pipe has frozen with the heat tape installed and energized, please check the placement of the built-in thermostat and verify that the insulation has been properly installed and waterproofed.

3 people found this helpful Was this helpful? Yes No

How does a heat tape for pipes work?

By attaching a heating cable to the exterior of a pipe, it will transfer the heat to the pipe to prevent frozen pipes. And with the use of pipe insulation the heat will be evenly spread and won't dissipate as quickly.

3 people found this helpful Was this helpful? Yes No

Can I use an extension cord to connect pipe heat / heat trace cable?

WarmlyYours does not recommend using an extension cord for permanent installations. Pipe heat should always be plugged directly into a receptacle or hardwired to the circuit that is powering it.

Was this helpful? Yes No

Can WarmlyYours pipe trace be used on pipe that will be buried in the ground?

No. It is not listed for this application, and it is not warrantied for use in direct burial or wet applications.

Was this helpful? Yes No

Can pipe heat be installed in walls?

No. Only install pipe heat (heat trace cable) in accessible locations. Do not install this self regulating cable in walls or any place where the cable is hidden. Do not run it through walls, ceilings, or floors. The cable must be installed 10“ away from combustible surfaces, such as wood, and it should not be embedded in insulation or roofing material.

Was this helpful? Yes No

For exterior: Should I wrap the vertical exterior plastic pipe (3/4 inch ) with the electric tape then install fiberglass tubular insulation over it to keep dirt off the tape?

Do not wrap self regulating cable around the pipe in a coiled or spiral fashion, and do not use electric tape to attach it. WarmlyYours recommends attaching the cable in a straight run and to use aluminum or fiberglass tape, pipe straps, or plastic zip ties to attach the cable. Then cover the assembly with fire-resistant insulation and assure it is waterproof. Place electrical heating cable WARNING labels every 10‘, and where the label will be clearly visible.

Was this helpful? Yes No

Show 3 More

Documents

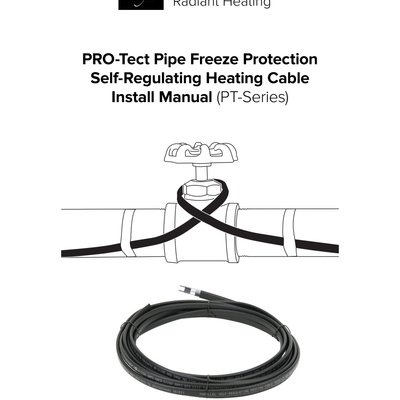

Installation

Technical Specifications

Technical Information

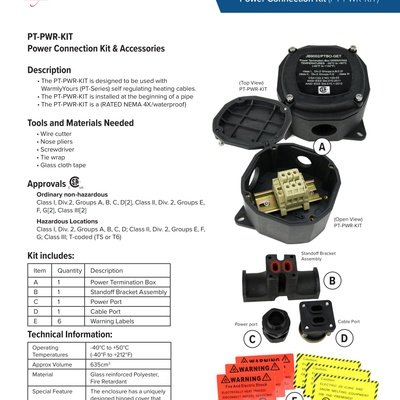

PRO-Tect Pipe Freeze Protection Self Regulating Heating Cable Power Connection Kit Spec Sheet (English)

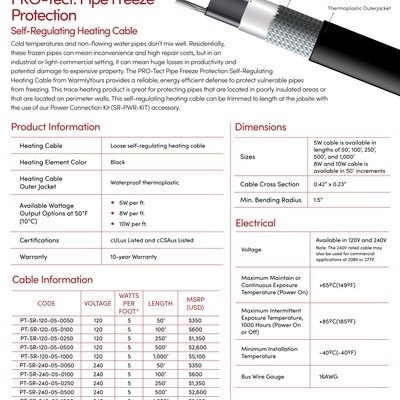

Sell Sheets

Operation Manuals

Project Planners

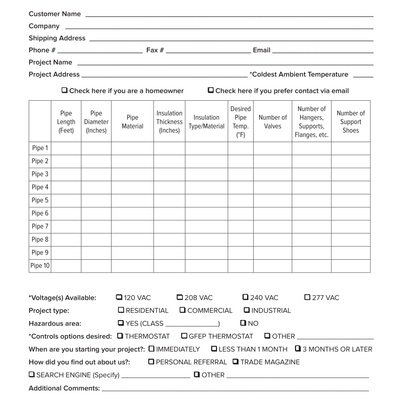

Self-Regulating Pipe Freeze Protection Quote Request Form (English)

Specifications

Electrical

Amps	4.17 A
Benefits	Can be cut-to-length & overlapped
Cable Type	Self Regulating
Connection Method	Hardwired
Power	5 W/ft. - 120 V
Voltage	120 V
Watts Per Ft. at 50°F/10°C	5 W

Warranty / Certifications

Approvals	cULus & cCSAus Listed
Warranty	10 years

Construction

Cable Cross Section	0.42″ x 0.23″ / 10.7mm x 5.84mm
Cable Jacket	Waterproof thermoplastic

Product Dimensions

Length	100′
Weight	7 lbs

Installation

Maximum Intermittent Exposure Temperature, 1000 Hours (Power On or Off)	185°F / 85°C
Maximum Maintain or Continuous Exposure Temperature (Power On)	149°F / 65°C
Minimum Bend Radius	1.125″ / 28.6mm
Minimum Installation Temperature	0°F / -18°C
