TempZone Cable Kit 235 ft. (73 sq.ft. @ 3.75 in spacing) with nHance Programmable Thermostat, Uncoupling Membrane, 240V, 3.7/ft, 3.78A


Part Number: TCT240-KIT-OP-MEM-235
This support page provides publications, manuals, specifications, videos, support articles, and common support questions


question-mark
Common Support Questions (1)

publication
Publications and Manuals (39)

specifications
Specifications (58)

Videos (17)

Articles (5)

Related Items (9)

Similar Items (86)

Create a new Support Request

Common Support Questions


Electric-resistance heating cables and systems have no polarity. This includes all current WarmlyYours heating elements.

Need more help? View support options


Publications and Manuals



Specifications


Electrical

Amps 3.78 A
Connection 4 wires, double pole
Connection Method Hardwired
Floor Load 0.91 kW
Ground Fault Protection GFCI, Class A, 5 mA
Maximum Current 15 A
Maximum Power 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V
Ohms 63.55 Ω
Ohms Per Ft 0.27 Ohm/ft
Supply 120 VAC, 208 VAC, 240 VAC (50/60Hz)
Thermal Power 0.91 kW
Voltage 240 V
Watts 906 W
Watts Per Sq. Ft at 3.75 Inch Spacing Up to 12
Watts Per Sq. Ft. 9 to 15
Watts Per Sq. Ft. at 3 Inch Spacing Up to 15
Watts Per Sq. Ft. at 4 Inch Spacing Up to 11
Watts Per Sq. Ft. at 5 Inch Spacing Up to 9

Warranty / Certifications

Approvals cULus listed
Ingress Protection (IPxx) Rating IP21
Warranty 25 Year Warranty
Wet Location Listed US, Canada

Performance

BTU Per Hour 3091 Btu

Product Dimensions

Cold Lead Length 15′
Coverage 78.3 ft²
Coverage at 3 Inch Spacing 58.8 ft²
Coverage at 3.5 Inch Spacing 68.5 ft²
Coverage at 3.75 Inch Spacing 73.4 ft²
Coverage at 4 Inch Spacing 78.3 ft²
Coverage at 5 Inch Spacing 97.9 ft²
Depth 2″
Heating Element Thickness 3/16″
Installed Depth 0.75″
Length 235′
Weight 27.55 lbs
Width 2.875″

Appearance

Color Red

Logistics

Country of Origin (COO) India

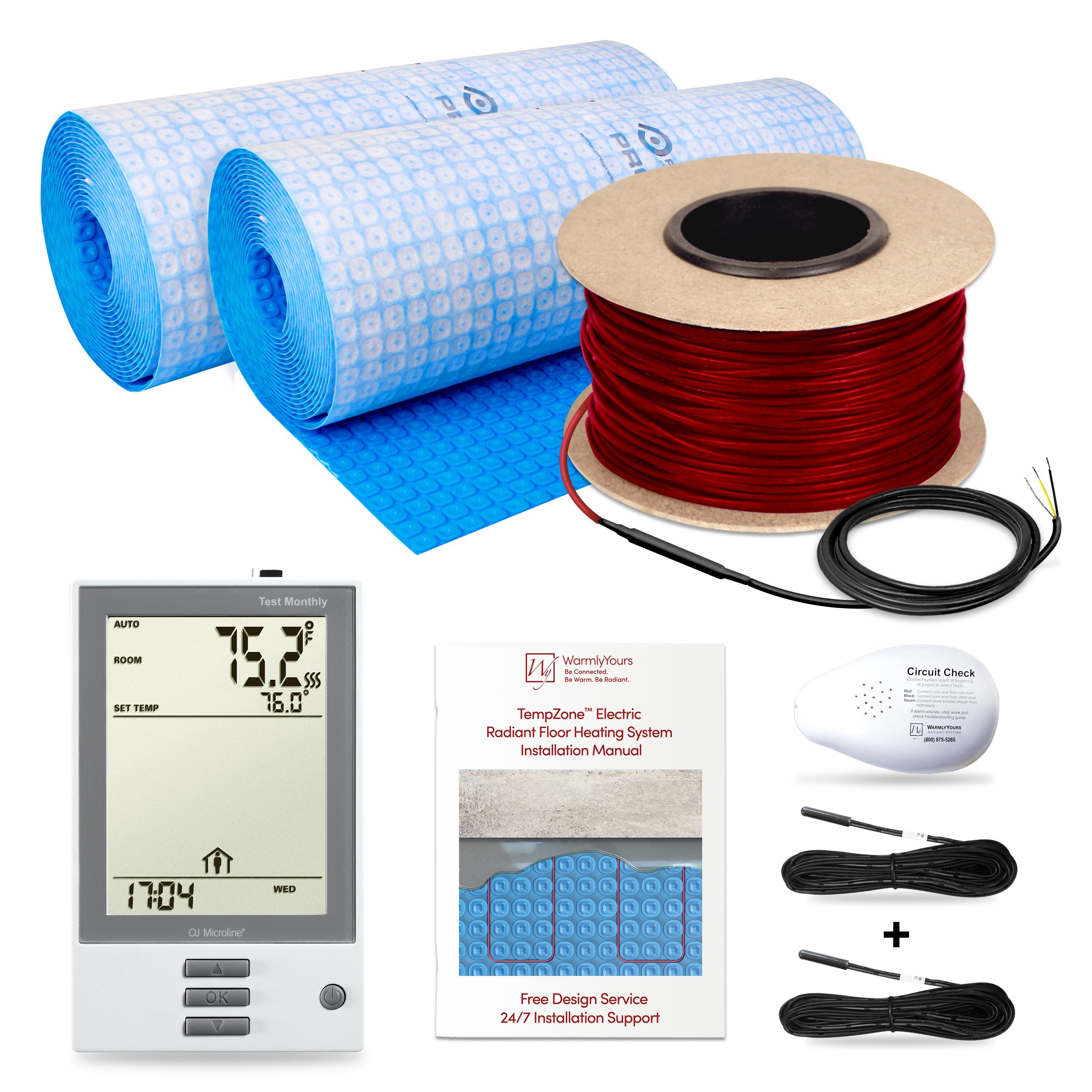

Package Contents 1x TempZone Floor Heating Cable 240V 3.7W/ft 235 ft 3.7A (TCT240-3.7W-235); 1x nHance Programmable Thermostat (UDG-4999); 2x Prodeso Membrane Roll 54 Sq. Ft. 3′ 3.4″ x 16′ 4.9″ (TC-MEM-BL-054); 1x Circuit Check (SS-01); 2x Floor Sensors

Controls

Display Backlit Display
Display Size 3.5″

Installation

Fixing Strips at 3 inch spacing 60
Fixing Strips at 4 inch spacing 60
Fixing Strips at 5 inch spacing 80
Floor Types Commonly installed beneath tile and stone
Ideal Cable Spacing with Competitor's Membrane 3.5″
Ideal Cable Spacing with Fixing Strips 4″
Ideal Cable Spacing with Prodeso Membrane 3.75″

Thermostat

Floor Sensor Compatibility 10k ohms and 12k ohms
Includes Floor Sensor Yes (1)
Maximum Ambient Temperature Setting 77 °F
Maximum Floor Temperature Setting 104 °F
Minimum Ambient Temperature Setting 32 °F
Minimum Floor Temperature Setting 41 °F
Programmable Yes, 7-day

Cabling Specs

Ideal Cable Spacing 3.75″

Identifiers

SKU TCT240-KIT-OP-MEM-235
UPC (GTIN-12) 881308078799
