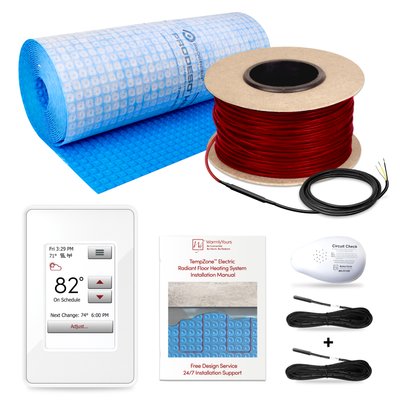

TempZone Cable Kit 315 ft. (98 sq.ft. @ 3.75 in spacing) with nSpire Touch WiFi Programmable Thermostat (White), Uncoupling Membrane, 240V, 3.7/ft, 4.94A


Part Number: TCT240-KIT-OW-MEM-315
This support page provides publications, manuals, specifications, videos, support articles, and common support questions


question-mark
Common Support Questions (1)

publication
Publications and Manuals (42)

specifications
Specifications (66)

Videos (17)

Articles (5)

Related Items (9)

Similar Items (86)

Create a new Support Request

Common Support Questions


Electric-resistance heating cables and systems have no polarity. This includes all current WarmlyYours heating elements.

Need more help? View support options


Publications and Manuals



Specifications


Electrical

Amps 4.94 A
Battery 5 year battery backup of clock and calendar
Connection 4 wires, double pole
Connection Method Hardwired
Floor Load 1.19 kW
Ground Fault Protection GFCI, Class A, 5 mA
Maximum Current 15 A
Maximum Power 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V
Ohms 48.5631 Ω
Ohms Per Ft 0.154 Ohm/ft
Supply 120 VAC, 208 VAC, 240 VAC (50/60Hz)
Thermal Power 1.19 kW
Voltage 240 V
Watts 1186 W
Watts Per Sq. Ft at 3.75 Inch Spacing Up to 12
Watts Per Sq. Ft. 9 to 15
Watts Per Sq. Ft. at 3 Inch Spacing Up to 15
Watts Per Sq. Ft. at 4 Inch Spacing Up to 11
Watts Per Sq. Ft. at 5 Inch Spacing Up to 9

Warranty / Certifications

Approvals cULus listed
Ingress Protection (IPxx) Rating IP20
Proposition 65 Compliant Yes
Warranty 25 Year Warranty
Wet Location Listed US, Canada

Performance

BTU Per Hour 4047 Btu

Product Dimensions

Cold Lead Length 15′
Coverage 105 ft²
Coverage at 3 Inch Spacing 78.8 ft²
Coverage at 3.5 Inch Spacing 91.9 ft²
Coverage at 3.75 Inch Spacing 98.4 ft²
Coverage at 4 Inch Spacing 105 ft²
Coverage at 5 Inch Spacing 131.3 ft²
Depth 2″
Heating Element Thickness 3/16″
Installed Depth 0.75″
Length 315′
Weight 39.8 lbs
Width 3.25″

Appearance

Color White

Logistics

Country of Origin (COO) India
Package Contents 1x TempZone Floor Heating Cable 240V 3.7W/ft 315 ft 4.9A (TCT240-3.7W-315); 1x nSpire Touch WiFi Programmable Thermostat White (UWG4-4999); 1x Prodeso Membrane Roll 162 Sq. Ft. 3′ 3.4″ x 49′ 2.6″ (TC-MEM-BL-162); 1x Circuit Check (SS-01); 2x Floor Sensors

Controls

Display Backlit Display
Display Size 2″ W x 3″ H (3.5″ Diagonal)
Languages English, French, Spanish

Installation

Fixing Strips at 3 inch spacing 70
Fixing Strips at 4 inch spacing 80
Fixing Strips at 5 inch spacing 110
Floor Types Commonly installed beneath tile and stone
Ideal Cable Spacing with Competitor's Membrane 3.5″
Ideal Cable Spacing with Fixing Strips 4″
Ideal Cable Spacing with Prodeso Membrane 3.75″

Thermostat

Floor Sensor Compatibility 10k ohms, 12k ohms and custom
Includes Floor Sensor 10k ohms, 15′ lead
Maximum Ambient Temperature Setting 77 °F
Maximum Floor Temperature Setting 104 °F
Minimum Ambient Temperature Setting 32 °F
Minimum Floor Temperature Setting 41 °F
Temperature Rise Limit in Laminate Floor Protection ~10°F/hr (~5.58°C/hr)

Connectivity

Hardware Version Identification Number (HVIN) NINA-W106
ISED Number 8595A-NINAW106
Wi-Fi IEEE Standards 802.11 b/g/n
Wi-Fi Radio Frequency Bands 2.4 GHz
Works with Hey Google or Amazon Alexa

Cabling Specs

Ideal Cable Spacing 3.75″

Identifiers

SKU TCT240-KIT-OW-MEM-315
UPC (GTIN-12) 881308079048
