Environ™ Flex Roll 120V 1.5′ x 25′, 37.5 sq.ft. - 3.8A
Features
-
10 Year Warranty under Laminate & Floating Hardwood, 5 Year under Carpet (Us Only)
-
12 Watts Per Sq. Ft
Description
Step into a world of luxury with radiant heating for your carpet (U.S. only), laminate, engineered wood, and floating wood flooring. Each WarmlyYours 120 V 1.5 x 25 ft. Environ™ Flex Roll consists of a fluoropolymer-insulated heating cable between two layers of reinforced, durable aluminum foil. These cut-and-turn rolls provide in field flexibility, and, because no adhesive is needed, installation is simple. The heating cable is uniformly spaced throughout the Environ™ Flex Roll to evenly heat the entire floor at 12 watts per square foot.
Specifications
Electrical
Amps | 3.8 A |
Floor Load | 0.45 kW |
Ohms | 31.58 Ω |
Thermal Power | 0.45 kW |
Voltage | 120 V |
Watts | 450 W |
Watts Per Sq. Ft. | 12 Watts Per Sq. Ft. |
Warranty / Certifications
Approvals | cULus listed |
Warranty | 10 Year Warranty under Laminate & Floating Hardwood, 5 Year under Carpet (US Only) |
Performance
BTU Per Hour | 1535 Btu |
Product Dimensions
Cold Lead Length | 15′ |
Coverage | 37.5 ft² |
Heating Element Thickness | 1/16″ |
Length | 25′ |
Weight | 5.2 lbs |
Width | 1′ 6″ |
Appearance
Color | Silver |
Logistics
Country of Origin (COO) | India |
Installation
Floor Types | Commonly installed beneath carpet (excluding Canada), floating wood, and laminate |
Identifiers
SKU | ERT120-1.5x25 |
UPC (GTIN-12) | 881308028220 |

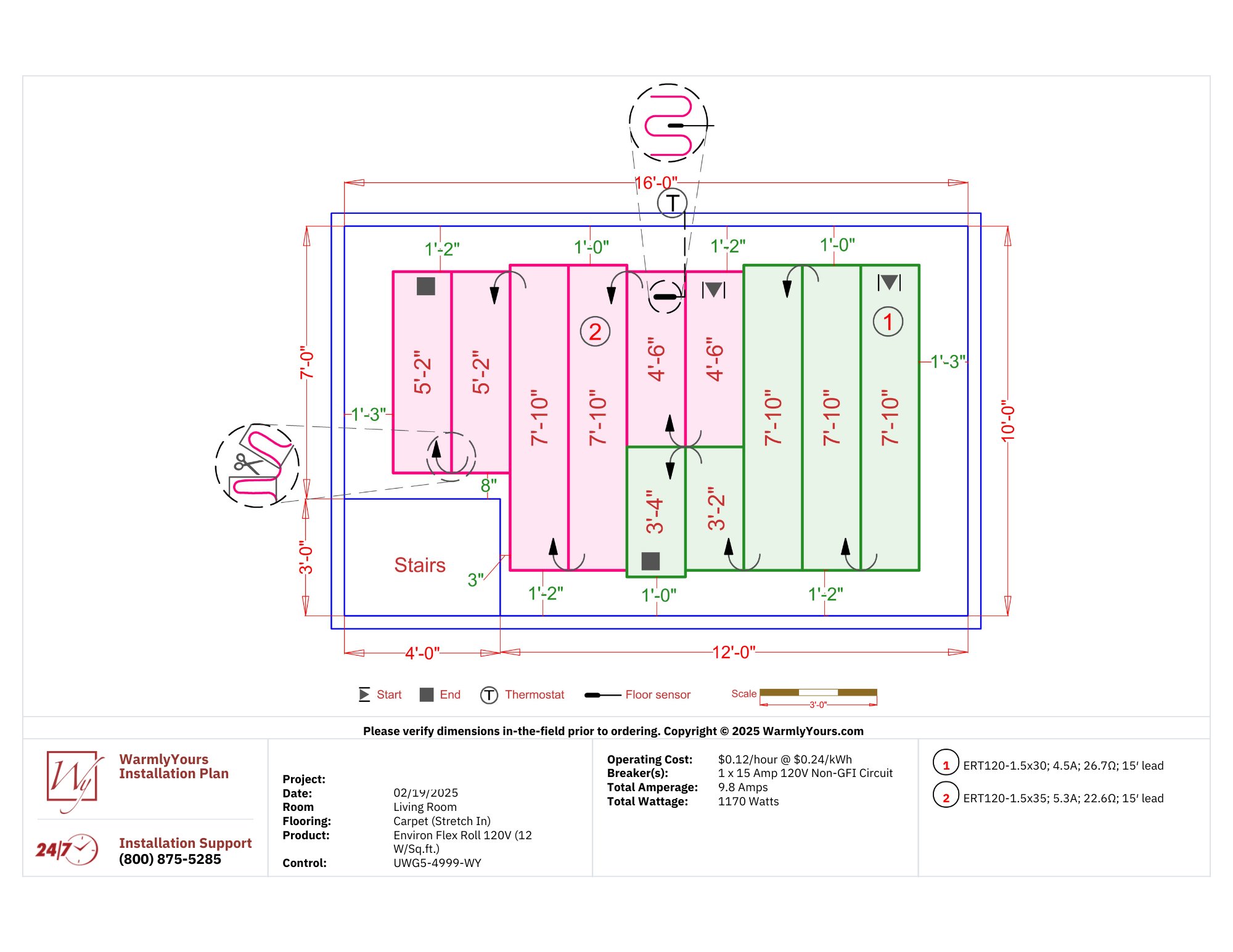

Installation Plans
This is a real example of an installation plan that uses this product. If you want to design your own room or have any questions, please contact us.
Engineered Wood (Floating) Subfloor
Wood Voltage
240V Operating Cost
102 cents per hour
This Installation Plan Includes:
Documents & Manuals
Installation
Project Planners
Technical Information
Warranties
Sell Sheets
Catalogs
Customer Questions & Answers
120 V has 81 Questions and Answers.
I have too much Environ Flex Roll, can I shorten the heating wire or heating roll?
No. Never cut the heating cable. The floor heating cable is designed with a very specific resistance in order to consistently maintain heating at a specific wattage per square foot. Trimming the heating cable lowers the resistance of the cable causing the system to overheat. WarmlyYours recommends obtaining a complimentary SmartPlan™ Floor Heating Installation Plan to assure a good installation.
How do I work with my electrician to install WarmlyYours electric floor heating?
While WarmlyYours electric radiant floor heating systems are typically installed by your floor covering contractor, a licensed electrician is recommended for the final thermostat hook-up. With every quote, we provide an Installation Plan layout, together with an electrical plan that has all the info required for the electrician.
How can I determine what I need for my floor heating project and how can I find out what my floor heating system will cost?
You can use the Instant Quote Tool, which gives you many options for your floor heating coverage. Use this interactive tool to design your room online and receive an instant quotation with product recommendations, rough-in and installation kits, cost of your control, etc. Planning your floor heating project is made easy when using our Instant Quote Tool.
Send us your floor plan or fax it to (800) 408-1100 and we will send you a quote, product recommendation and a free custom installation plan for your project.
Is electric floor heating safe and what about EMF?
Our electric radiant floor heating systems have withstood rigorous safety testing and earned the UL listing. They produce much less EMF than common household appliances like your TV or vacuum cleaner. The EPRI (Electric Power Research Institute) tests all electrical devices and publishes the data. Many common household appliances are tested at a distance of 6 inches. The test results indicate that on average, the EMF emitted for the following appliances, measured in Milligauss (mG) units, is:
Vacuum Cleaner: 300 mG
Microwave: 200 mG
Portable Heater: 100 mG
Dishwasher: 20 mG
Washing Machine: 20 mG
WarmlyYours TempZone™ (Twin): 1.8 mG
What type of flooring can I install along with an electric floor heating system?
WarmlyYours’ TempZone™ product is most commonly installed under tile, stone, and marble flooring, but can also be installed under many other popular floor covering options such as hardwood, vinyl and linoleum. We also have our Environ system, which is an electric floor heating product as well and is specially designed for installation under carpet (in the U.S. only), laminate and floating wood. WarmlyYours can accommodate any flooring type with either of the electric radiant floor heating products that we offer. If your flooring type isn't listed here, just give us a call at (800) 875-5285 and we will be happy to discuss it with you.
