TempZone™ Flex Roll 240V 3′ x 52′, 156 sq.ft., 9.8A
Heating coverage
Features
-
25 Year Warranty
-
15 Watts Per Sq. Ft
-
1/8'' Super thin rolls or mats to fit any room shape
Notices
Quebec Repairability Notice
Avis important pour les consommateurs du Québec:
WarmlyYours n’offre pas de services de réparation pour ce produit. Les seules pièces de rechange disponibles sont les kits de raccordement (splice kits) ; l’élément chauffant lui-même n’est pas offert comme pièce de rechange. Si votre système de chauffage par le sol intérieur tombe en panne pendant la période de garantie, nous remplacerons l’unité complète conformément à notre politique de garantie. Notre équipe d’assistance technique est disponible 24h/24 et 7j/7 par téléphone pour toute aide à l’installation ou au dépannage. Pour plus de détails, consultez notre politique de retour. Cet avis est fourni conformément à la Loi sur la protection du consommateur du Québec, article 39 (telle qu’amendée en 2025).
Important Notice for Québec Consumers:
WarmlyYours does not provide repair services for this product. The only replacement parts available are splice kits; the heating element itself is not available as a replacement part. If your indoor floor heating system fails within the warranty period, we will replace the entire unit according to our warranty policy. Our technical support team is available 24/7 by phone for installation and troubleshooting assistance. For full details, see our Return Policy. This notice is provided in accordance with Québec’s Consumer Protection Act, section 39 (as amended in 2025).
TempZone™ Flex Rolls Description
Add radiant warmth to your tile and stone floors with WarmlyYours TempZone™ Flex Rolls. These 240 V floor heating rolls feature a 1/8" TempZone™ heating cable, affixed to a mesh fabric backing in a serpentine pattern to evenly distribute heat across the floor.
At 3 x 52 ft., these rolls provide 156 ft² of coverage and are ideally suited for longer runs and larger areas, including kitchens, great rooms, living rooms, and other sizable spaces. Installation is easy with cut-and-turn flexibility, so the rolls can be adapted to the size and shape of your room.
Producing 15 watts per square foot, the TempZone™ Flex Rolls are the hottest on the market, providing radiant comfort throughout your home. All TempZone™ Flex Rolls are fully backed by our industry-leading 25-year No Nonsense Warranty.
Specifications
Electrical
| Amps | 9.75 A |
| Cold Lead Wire Gauge | 14 AWG |
| Floor Load | 2.34 kW |
| Ohms | 24.62 Ω |
| Ohms Per Ft | 0.041 Ohm/ft |
| Thermal Power | 2.34 kW |
| VOP | 63 |
| Voltage | 240 V |
| Watts | 2340 W |
| Watts Per Sq. Ft. | 15 Watts Per Sq. Ft. |
Warranty / Certifications
| Approvals | cULus listed |
| Warranty | 25 Year Warranty |
| Wet Location Listed | US, Canada |
Performance
| BTU Per Hour | 7984 Btu |
Product Dimensions
| Cold Lead Length | 15′ |
| Coverage | 156 ft² |
| Heating Cable Length | 600.34′ |
| Heating Element Thickness | 1/8″ |
| Length | 52′ |
| Weight | 16.4 lbs |
| Width | 3′ |
Appearance
| Color | Green |
Installation
| Floor Types | Tile, Marble, Stone, Vinyl, LVT, LVP, Wood, Bamboo, Carpet, and more |
Logistics
| Package Contents | (1) TempZone Flex Roll 240V 3′ x 52′ 156 sq ft 9.8A (TRT240-3.0x52); 1x Floor Heating Sensor (FH-BACKUP-SENSOR) |
| UNSPSC Code | 40101830 |
Identifiers
| SKU | TRT240-3.0x52 |
| UPC (GTIN-12) | 881308021566 |

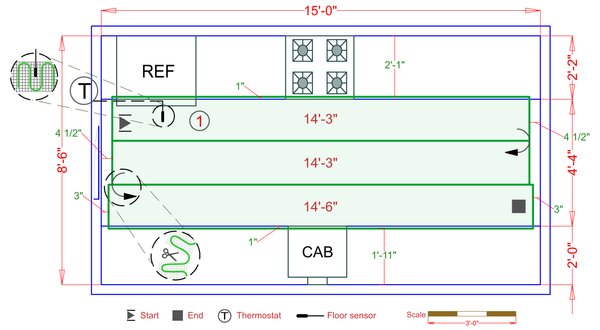

Installation Plans
