Project Details
- Location: Smithtown, NY (Long Island)
- Heated Space Type: Outdoor Driveway
- Square Footage: 2,737 sq. ft.
- Surface Material: New Asphalt
- System Specs: 124,813 Watts | 240 Volts | 520 Amps
- Operating Cost: ~$19.96 per hour
Mastering the Elements in Smithtown
The challenge for this Smithtown property was the sheer scale of the driveway. At over 2,700 square feet, traditional snow removal was not just an inconvenience—it was a logistical hurdle. The homeowner wanted a "set it and forget it" solution that would protect their brand-new asphalt investment from the freeze-thaw cycles that cause cracks and potholes.

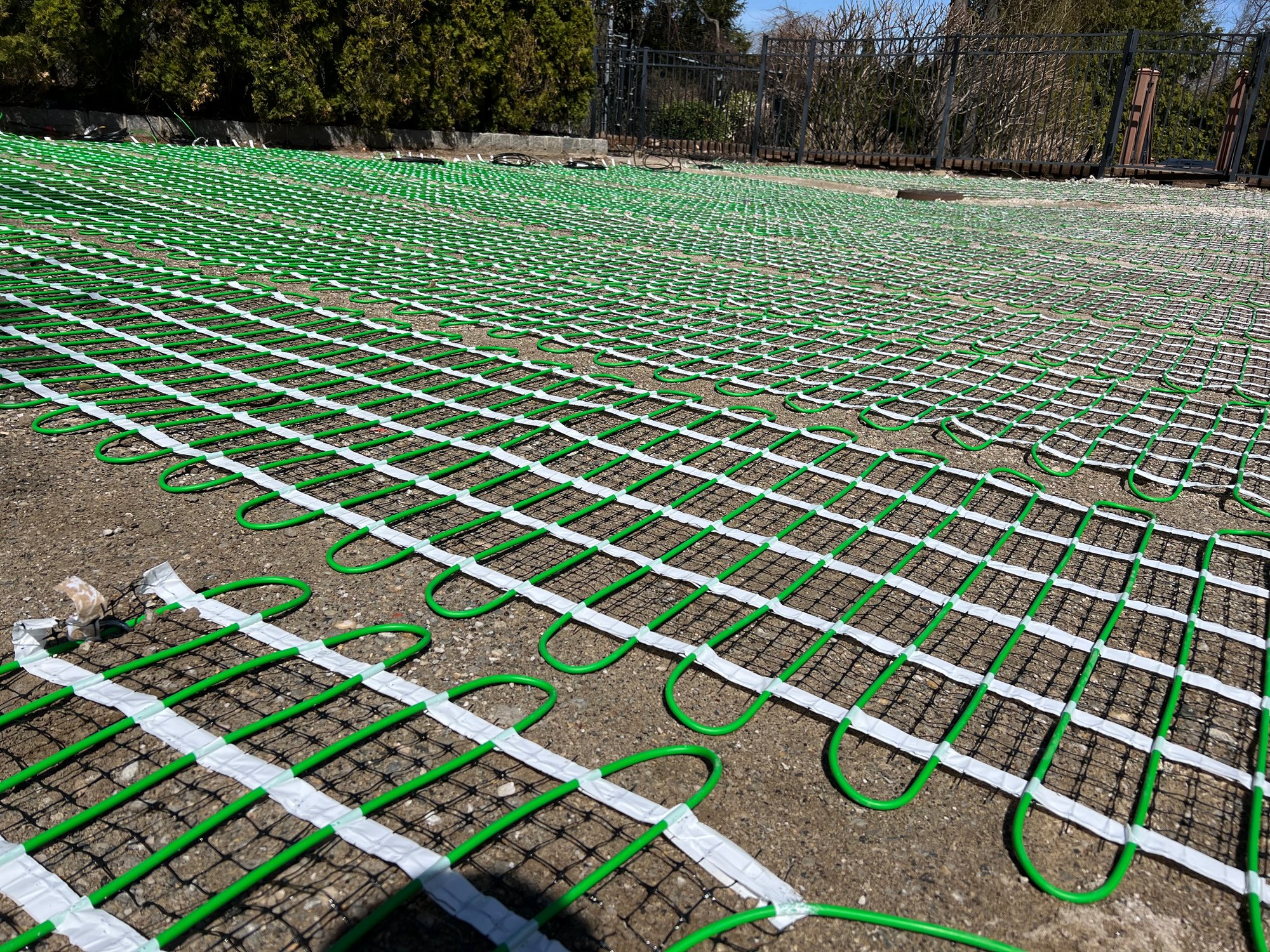

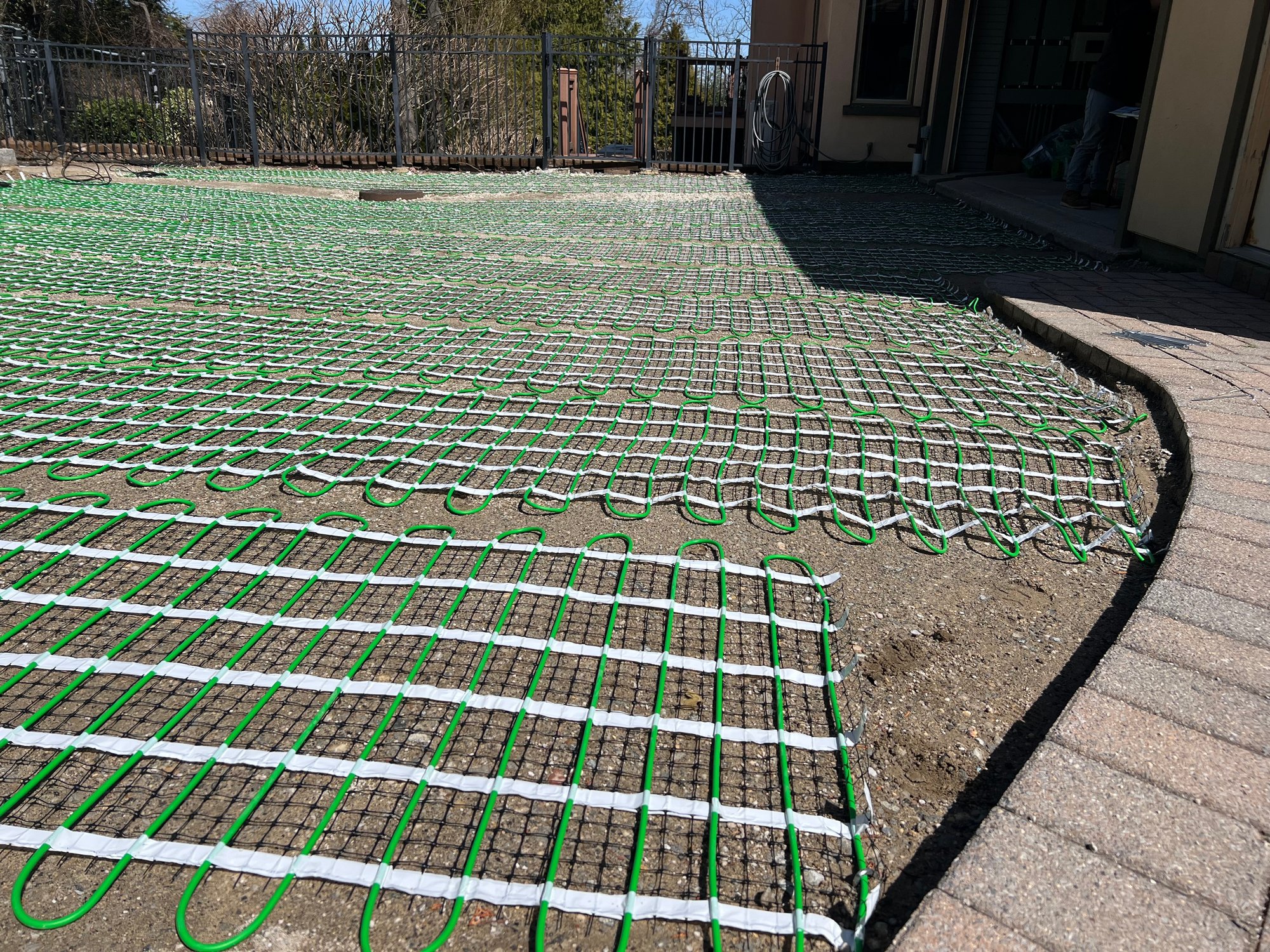

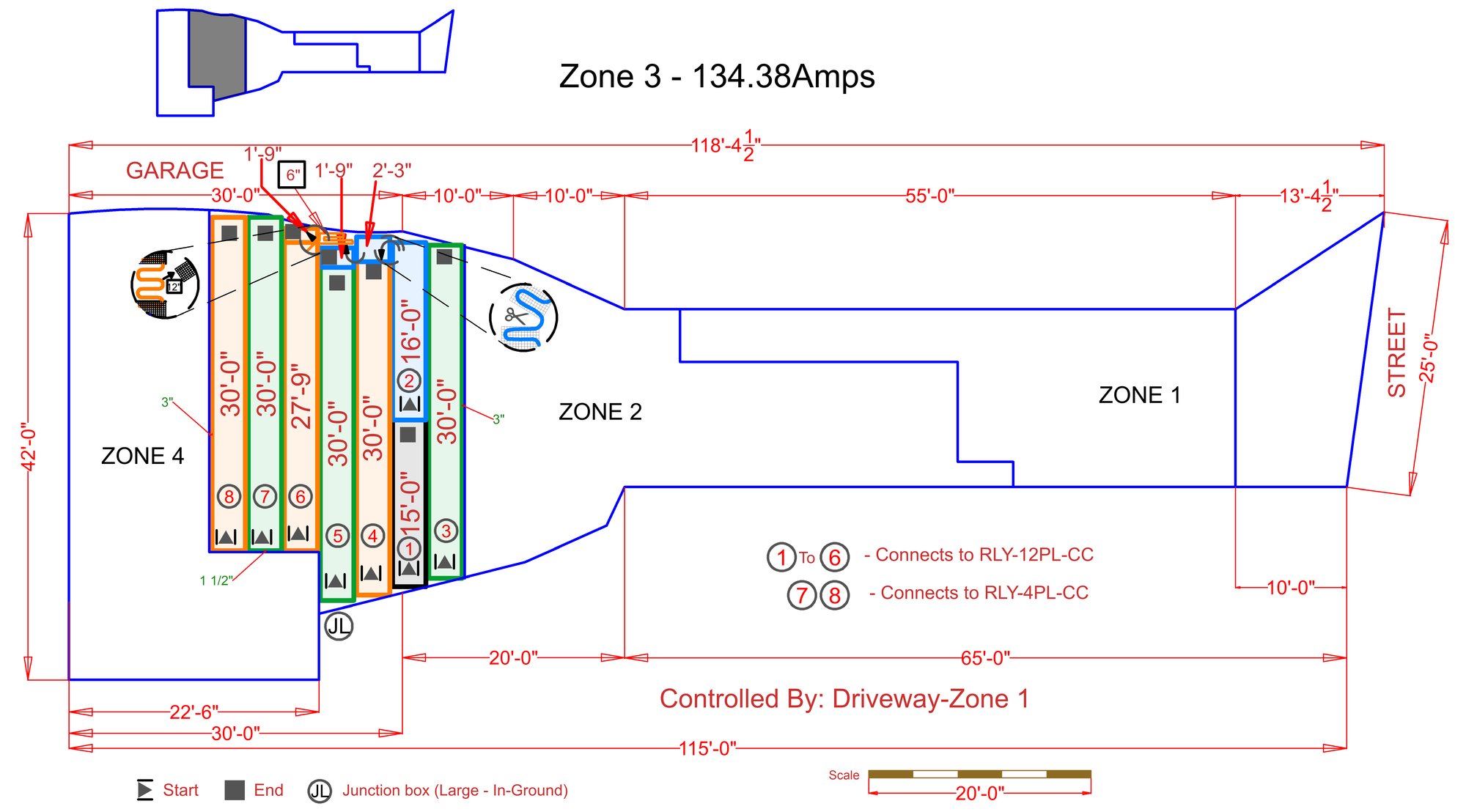

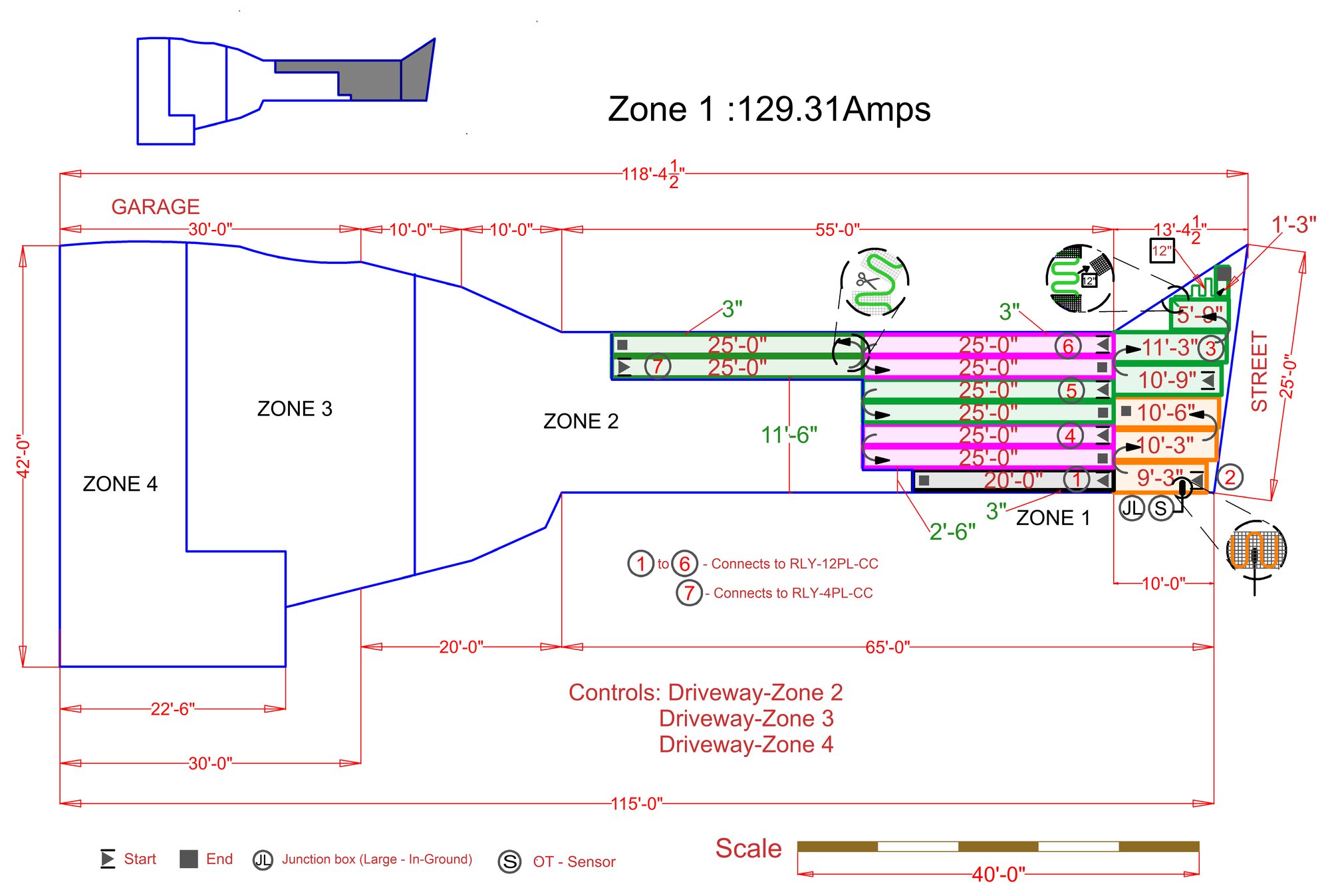

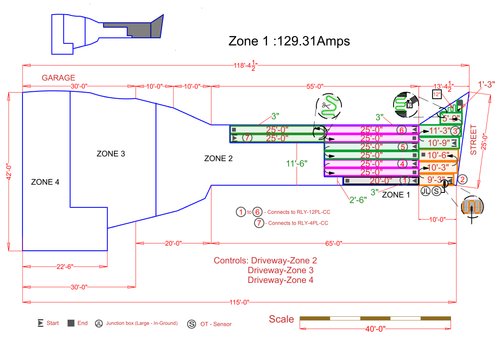

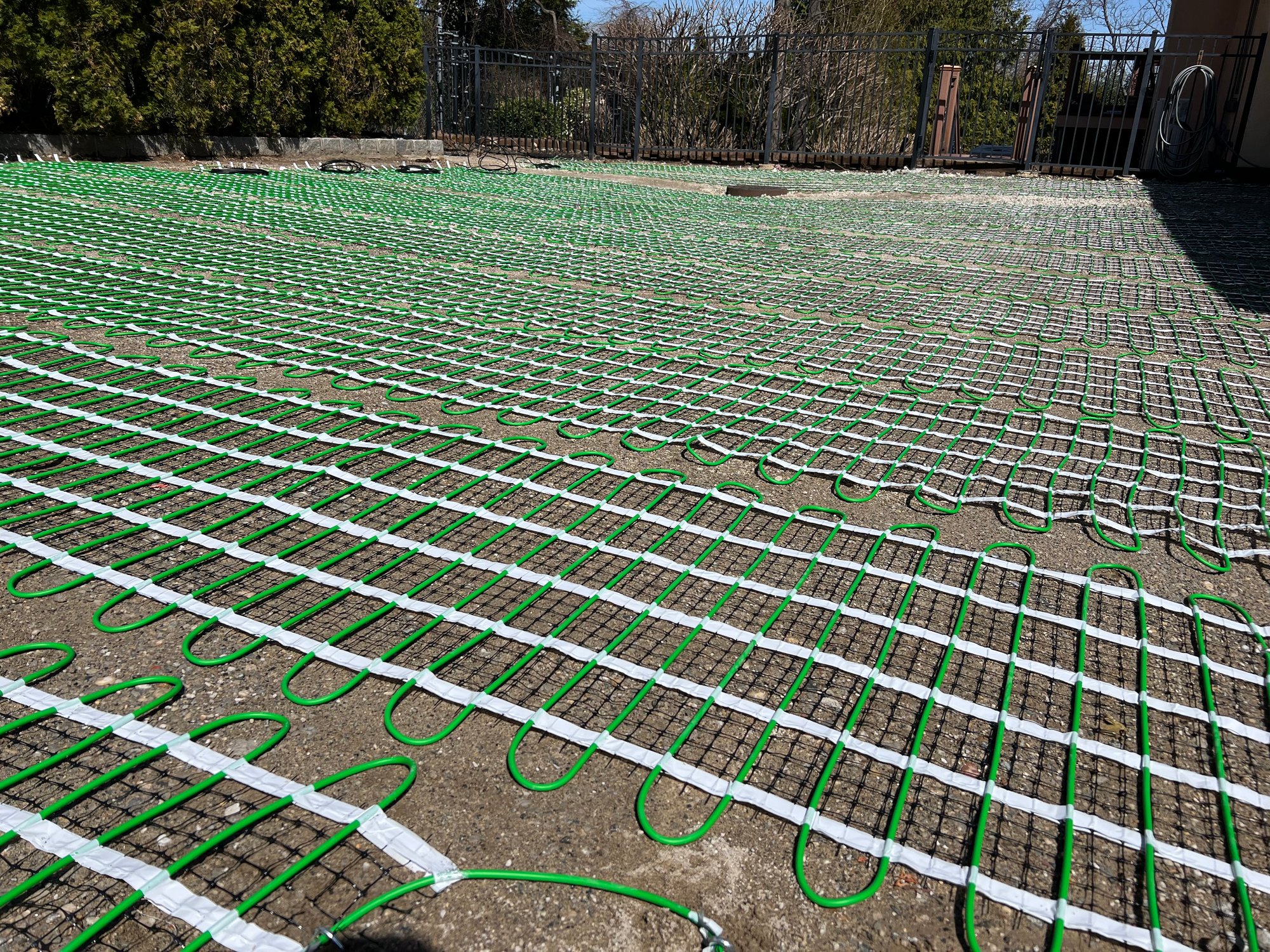

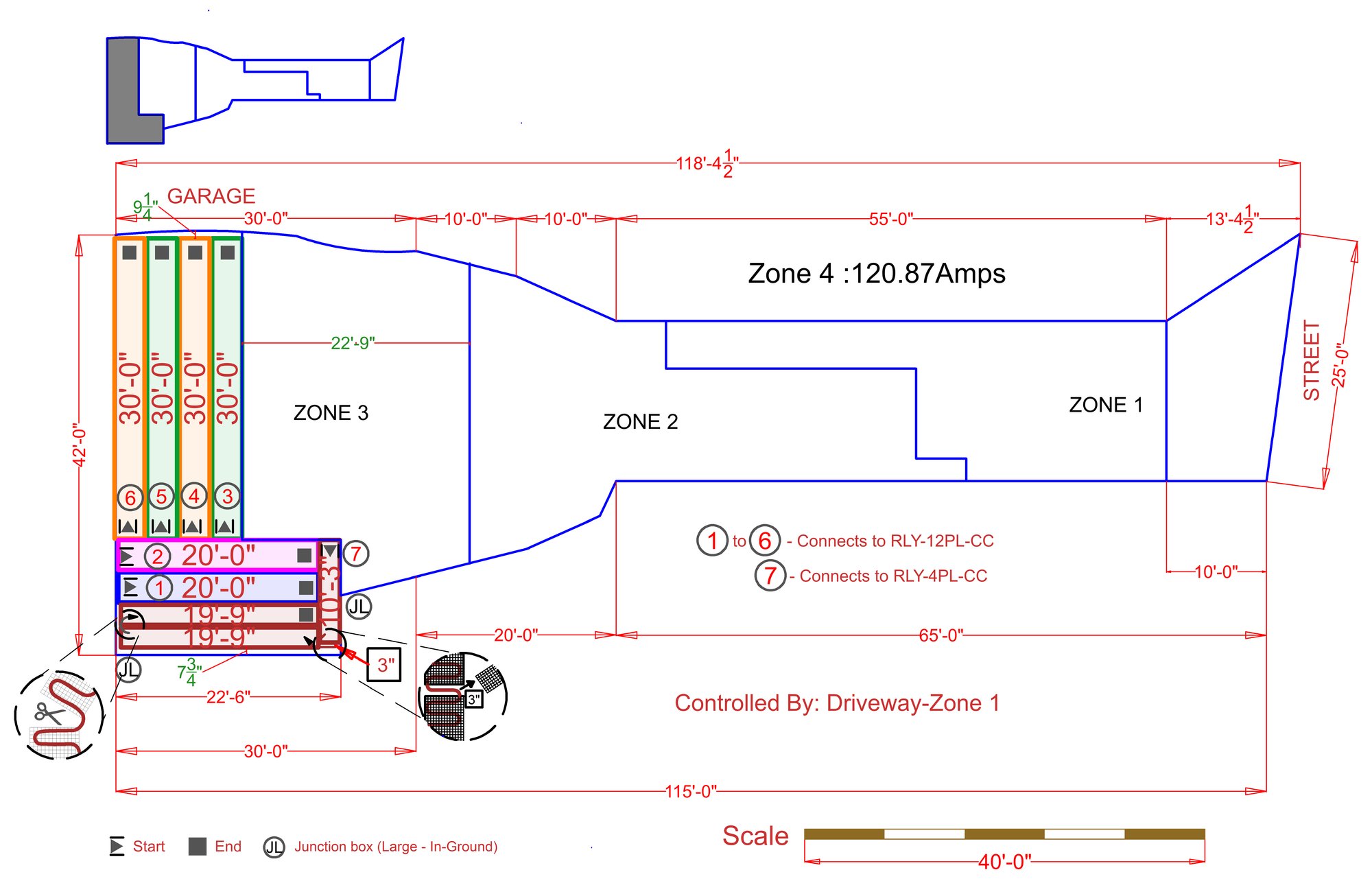

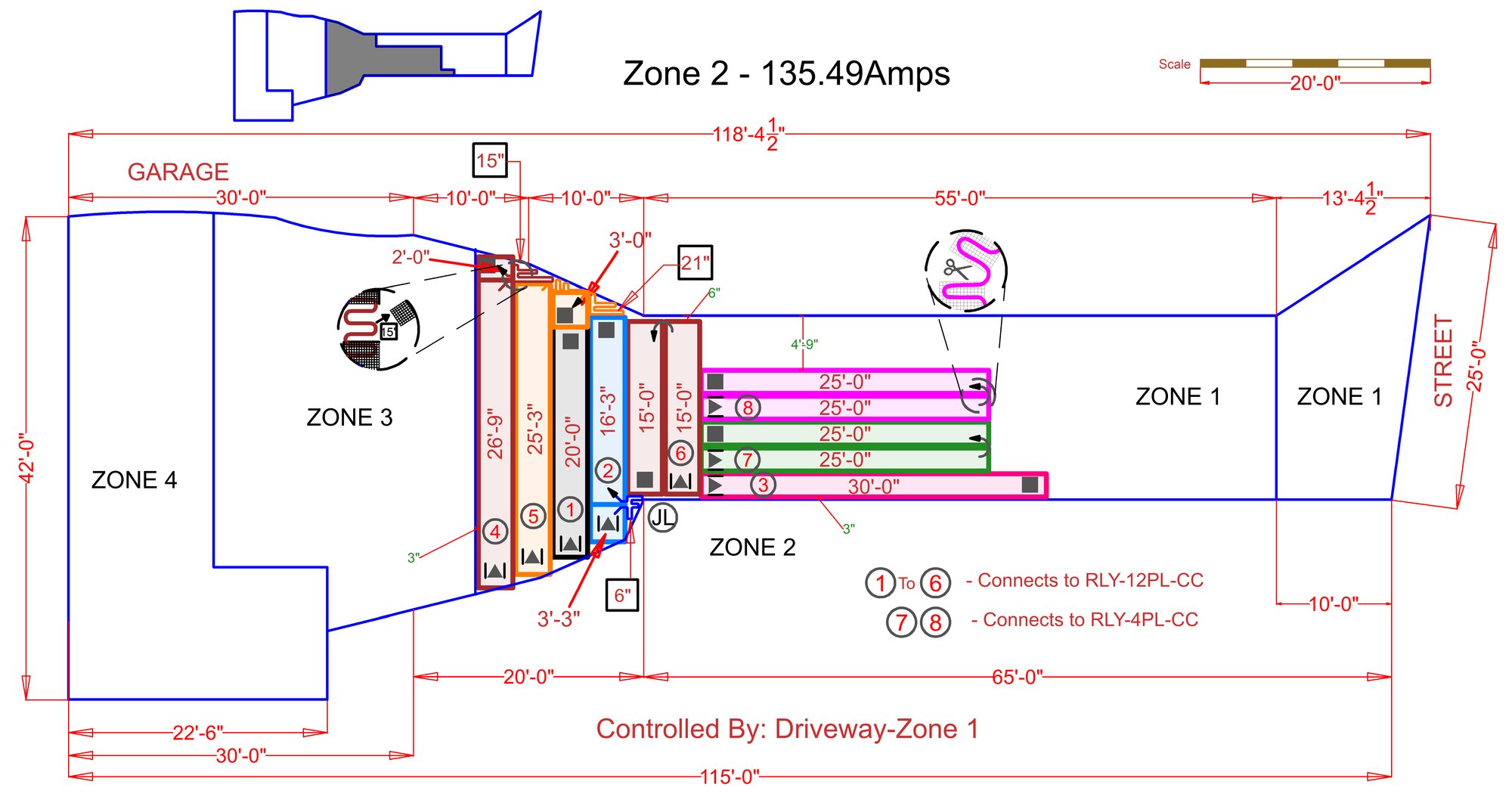

All Island Radiant designed a multi-zone system using WarmlyYours Snow Melt PowerMats. By embedding the heating elements directly into the asphalt, the system provides uniform heat that melts snow on contact. To manage the massive 520-amp load efficiently, the team utilized a ZoneBraker™ Multi-Zone Controller and a sophisticated Pavement Sensor. This setup ensures the system only activates when moisture is detected and temperatures are near freezing, providing maximum energy efficiency while keeping the surface bone-dry.
The result is a luxury entrance that maintains its curb appeal year-round. No more salt tracked into the house, no more plow damage to the new asphalt, and total peace of mind for the homeowners regardless of the weather forecast.
Featured Products
- Snow Melt PowerMat: Designed specifically for the high-temperature requirements of new asphalt installations, these mats provide 50W per sq. ft. for rapid melting.
- ZoneBraker™ Touchscreen Controller: A premium multi-zone interface that allows the homeowner to monitor and manage the large electrical load with ease.
- Pavement Snow & Ice Sensor (SIT-6E): The "brain" of the system, this sensor detects both temperature and precipitation to trigger the system automatically.
- In-Ground Outdoor Junction Boxes: To maintain a clean, professional aesthetic, large in-ground junction boxes were used to house the electrical connections. These durable, weather-tight units are flush-mounted, making them virtually invisible while ensuring easy access for future maintenance.
- Large Relay Panels:
To safely switch the massive 124,813-watt load, several high-capacity relay panels were installed. These industrial-grade components act as the heavy-duty switches that turn the heating mats on and off based on the signal from the ZoneBraker™ controller.
