Power Module Dual Voltage with GFCI 5mA


Part Number: CT230-GA
This support page provides publications, manuals, specifications, videos, support articles, and common support questions


question-mark
Common Support Questions (14)

publication
Publications and Manuals (0)

specifications
Specifications (10)

Videos (2)

Articles (4)

Related Items (1)

Similar Items (2)

Create a new Support Request

Common Support Questions


All thermostats are mandated at 42" height for handicap accessibility, most private residences are mounted at 52-60".

Need more help? View support options

When the ground fault protection mechanism trips, the TEST light is On (red). To reset the ground fault protection, switch the thermostat to Off and back to On. The TEST light will turn off.

Need more help? View support options

No. The Honeywell CT230 must be controlled by a Honeywell Master Thermostat.

Need more help? View support options

No. The nJoin power module is not compatible with a Honeywell system.

Need more help? View support options

To reset the ground fault protection, switch the CT230 OFF and back ON, or cycle the circuit breaker off and on. The TEST light will turn off if the ground fault protection is functioning properly. If the TEST light comes back on, contact Warmly Yours at 1-800-875-5285 and speak to a technical support representative to help further troubleshoot your system.

Need more help? View support options

Verify that the master thermostat is calling for heat. If it is and the light does not illuminate, this means that the test has failed. Cut power to the heating system at the main electrical panel, have a qualified electrician verify the installation and, if necessary, replace the CT230.

Need more help? View support options

The Master Thermostat must operate on 12 VDC and is powered by one of the CT230 linked units.

Need more help? View support options

Up to ten (10) CT230 linked units can be used in a given system.

Need more help? View support options

The wire distance between the master thermostat and each CT230 unit must not exceed 500 ft. (150 m). 20-AWG wires are recommended.

Need more help? View support options

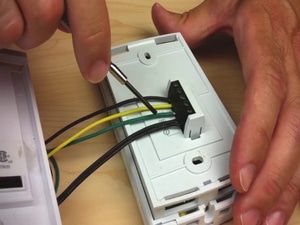

If your thermostat is blank, the first thing to do is to test to see if voltage is present at the rear of the thermostat. Verify that the power module power switches are in the ON position. Test for 12VDC across the 12VDC screw and the GROUND screw at the back of the thermostat. Here is a wiring diagram: https://www.warmlyyours.com/en-US/publications/MASTER-THERMOSTAT-W-POWER-MODULES-WIRING-DIAGRAM-B.pdf
If no power is reaching the thermostat, please test for 12VDC across the 12VDC and GND output at the front of power module base that is supplying power to the thermostat (the faceplate must be installed). If no power is present there, please inspect the circuit breaker in the breaker panel powering the power modules, and verify that the breaker is a non-GFCI type. If it is a GFCI breaker, replace it with a non-GFCI breaker. If there is power entering the thermostat and it is blank, it will need to be replaced. If power is getting to the power module and there is no 12VDC output to thermostat, the power module will need to be replaced.

Need more help? View support options

The manufacturer reversed the wiring pattern between the LOAD side and the LINE side on newly minted controllers, verify that your wiring matches the new wiring schematic stamped on the backplate of the new controller.

Need more help? View support options


Publications and Manuals



Specifications


Electrical

Connection Double pole, 4 wires, line 1 & line 2
Connection Method Hardwired
Maximum Current 15 A
Maximum Load (Resistive Only) 1800 W - 120 V, 3600 W - 240 V, 15 A

Identifiers

Ground Fault Protection (GFCI) Class A, 5 mA
SKU CT230-GA
UPC (GTIN-12) 881308020514

Product Dimensions

Length 3″
Width 2″

Warranty / Certifications

Warranty Limited 3-year warranty and lifetime technical support
